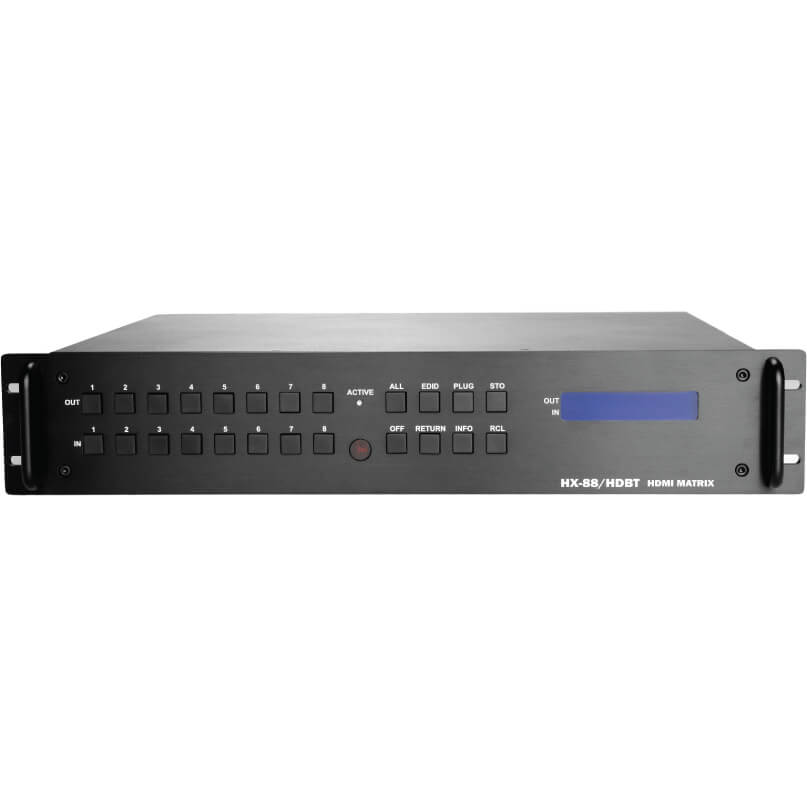

Zigen HDBT HX-88 KIT Amplifier


Built-in HDBASET 8×8 HDMI Matrix and 8 Receivers (70m) 8 HDMI inputs and 8 HDBASET Outputs and 8 receivers 8×8 Modular Matrix. Configured with multiple 2 IN 2 OUT IO cards HDMI V1.4 and HDCP Compatible.
  • HDMI cables
  • 3D Support
  • EDID management
  • ? HDCP Compliant

$12,500.00

  • 4K and 2K supported 3D Support.
  • EDID?Management (internal or copy from each display) Supports DTS-HD &?TRU-HD?and all Master Audio formats.
  • Uncompressed PCM-2Ch audio, 5.1, 7.1, DTS, Dolby Digital Audio Infra-Red pass through on all zones. IR, RS232 and Ethernet Control Only 2 U, includes rack mounts & Remote & RS232 cable & Lan cable.
Features?
Technical Features


  • ULTRA HD 4K Certified
  • 4K / 2K, 30Hz, 24bpp
  • 4K / 2K, 60Hz, 24bpp with 4:2:0 pixel format
  • Support up to 8 HDMI input/output interfaces
  • Mixed-use HDMI cables for input and output connection
  • HDCP Compliant
  • EDID management (Copy from each OUTPUT or generate internally)
  • Centralized control upon 32 series connections via RS-485
  • Memory control up to 8 presets
  • Support computer video up to 1920*1200
  • Support HDTV up to 1080p@60Hz, 12-bit
  • Support original 3D pass-through
  • Support High Definition Audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master)
  • IR pass-through supports all IN and OUT ports
  • IR pass-through supports all IR frequency band
  • IR pass-through supports duplex transmission between IN and OUT ports
  • IR pass-through switch is based on HDMI switched by the controller
  • Support IR remote control
  • Support IR Mini-Controller to select the input channel through Output configuration
  • Support RS-232 control
  • Support RS-485 serial control
  • Support Ethernet control
  • Internal universal power supply
  • 2U rack
SKU: HDBT HX-88 KIT Category:
Weight 3550 g
Dimensions 332 × 482 × 87 mm
Brand

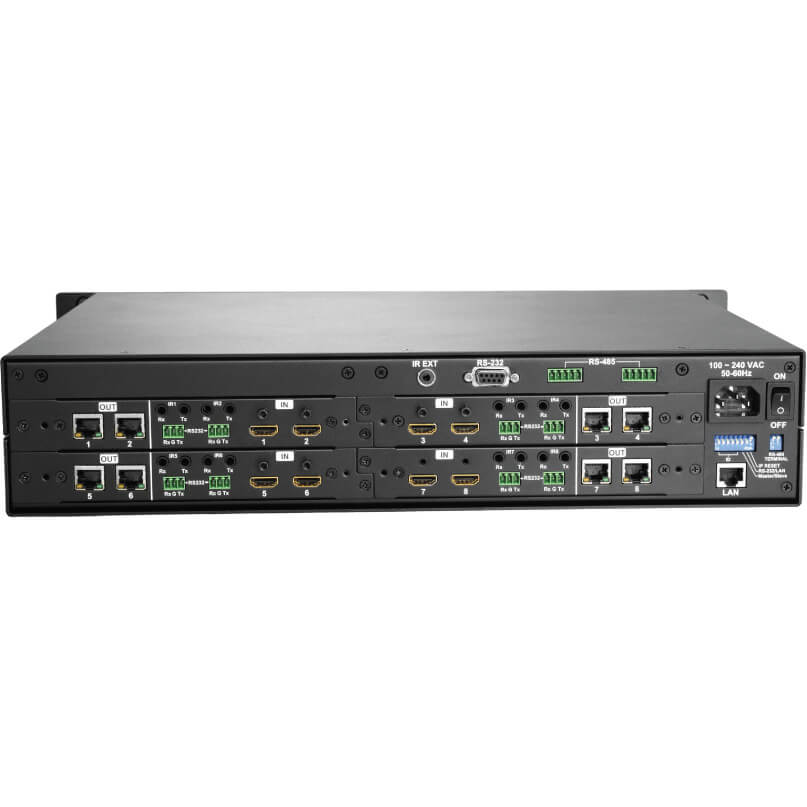

  • Input Connector – HDMI Type A x 8
  • Output Connector – RJ45 x 8
  • RS-232 Connector – DB9 Female
  • LAN Connector – RJ-45
  • RS-485 Connector – 2
  • 2 pins Dip Switch – 1
  • 8 pins Dip Switch – 1
  • LCD Module – 1
  • Power – 100~240VAC, 50~60Hz, internal mount)
  • Weight – 3.55kg
  • Dimensions (LxWxH) – 332x482x87 mm (2U high, full rack wide without grips)
  • Max. Resolution – 4Kx2K@30Hz, 8-bit
  • Highest TMDS Frequency – 300 MHz
  • Cat.5e Cable Distance – 100 meter (Max.)
  • HDMI Cable Distance – At least 10 meter
  • Baud Rate – 9600 bps; 8 data bits, 1 stop bit, no parity
  • Ethernet Protocol – HTTP, DHCP, TCP/IP, ICMP (ping)
  • Program Control – Web Server, AVM Application
  • Serial Control Port – RS-232, 9 Pin Female D Type Connector RS-485, 1X5 Pole Captive Screw
  • Control Sequence – Matrix
  • Remote Control – Remote Controller, IR Receiver, IR Blaster
  • Web Server – LAN, RJ-45

Package Contents


HDMI Matrix Switcher
RS-232 Communication Connected Cable
Power Cord
IR Receiver Cable
IR Blaster Cable
LAN Line
Female 1×5 Pole Captive Screw Socket * 2
Matrix Switcher Remote Controller
AAA battery * 2
AV Matrix Software CD
User Manual
