WiiM Vibelink Amp – 200W Stereo Power Amplifier

Designed for music lovers and home theater enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8Ω and 200W per channel at 4Ω, providing powerful, high-fidelity amplification. Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision, ensuring an immersive listening experience.

KEY FEATURES

Premium Build Quality: Aluminum oxide casing, innovative heat dissipation technology
Adaptable Digital Input: Seamlessly manage variable sample rates and bit depths to prevent audio pops
12 V Trigger: Activate/deactivate your amplifier instantly, offering quick activation and energy-saving standby mode

WiiM Vibelink Amp – 200W Stereo Power Amplifier

Dedicated amp for the purest sound
Designed for the purest sound quality possible, the WiiM Vibelink Amp delivers system versatility. Unlike previous WiiM amps, the Vibelink is not fitted with any network streaming functions, meaning that it can focus on the best sound quality for the price. It also lets you choose your own streaming device, improving system versatility.

The most powerful sound yet
With 100 watts per channel, the Vibelink Amp is WiiM’s most powerful amp to date. The extra power makes it ideal not just for larger rooms but also less efficient speakers that need plenty of power to shine. Partner with 4 ohm speakers and the power increases to a mighty 200 watts per channel.

Premium components for purist sound
Using the sophisticated TI 3255 amplifier circuit, fitted with premium TI OPA1611 op-amps and high quality auxiliary components, the Vibelink Amp delivers the highest levels of detail and ultra-low distortion. Advanced thermal design uses innovative heat dissipation for improved cooling, making the 100 watts power output fully accessible.

The perfect match for a WiiM streamer
For a top quality, two-box streamer and amp combo, pair the Vibelink Amp with WiiM’s award-winning Ultra network streamer. The two units not only function seamlessly together, but they also make for a perfect aesthetic match, too. Finished in Space Grey or Silver and using the same case dimensions, the Vibelink Amp neatly sits above or to the side of your WiiM streamer.

Connect to your analogue device
Featuring an analogue RCA input, the Vibelink Amp connects seamlessly with your phono pre-amp equipped turntable or a CD player without a digital output.

Connect to your digital sources
Delivering premium sound quality doesn’t mean that your digital sources miss out. Thanks to its high quality integrated DAC (Digital to Analogue Convertor), the Vibelink Amp connects directly to your streamer, CD player or other device with an optical or coaxial digital output. Compatible with Hi-Res Audio files up to 24-bit/192kHz, it makes the perfect match for network streamers running premium streaming apps.

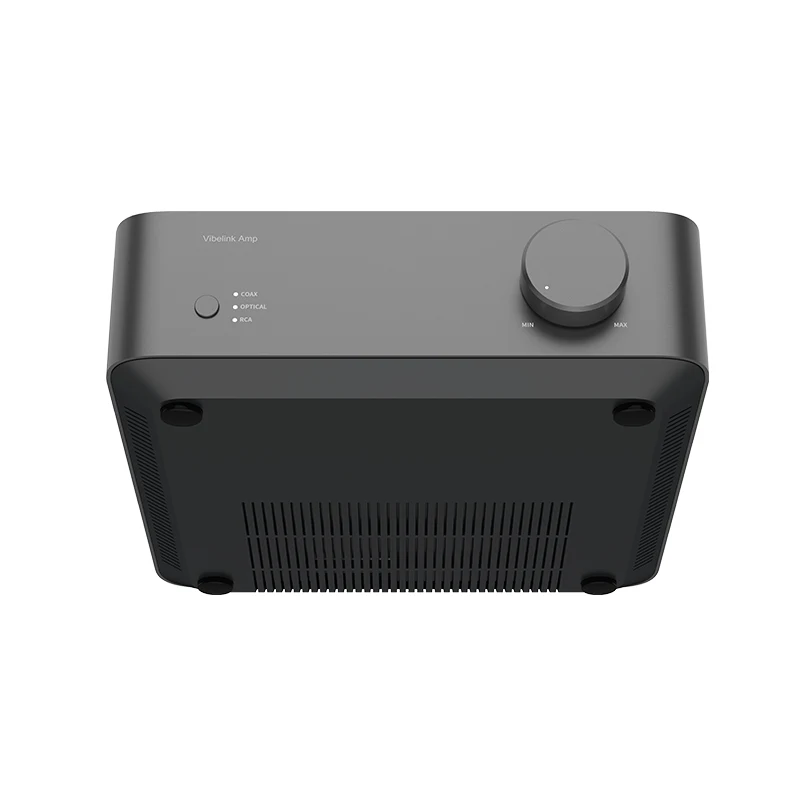

Easy operation
With its simple volume control and source selection button, the WiiM Vibelink Amp is super-simple to use. For more complex system integration, it has a trigger input that can be used in conjunction with home automation systems.

Hear the best from your music, with this pure and simple amp from WiiM.

SKU: WiiM-VIBELINK-SG Categories: Amplifier, Wiim Aftp, Amplifiers & Mixers

Weight	2050 g
Dimensions	212.5 × 200 × 63 mm
Brands	WiiM
Color	Space Gray

Power input	100-240V, 50/60Hz AC, 3A Max
Output Power	100W per channel at 8Ω (stereo)
Amplifier Technology	Class-D with PFFB (Post-Filter Feedback) technology
Total Harmonic Distortion (THD+N)	≤0.0005%
Signal-to-Noise Ratio (SNR)	≥120dB
Frequency Response	20Hz – 20kHz ± 0.5dB
Impedence Range	3~8 ohms
Premium DAC	ESS 9039Q2M high-performance DAC
Bit-Perfect Playback	Supports up to 192kHz/24-bit audio
Dynamic Range	≥120dB for high-resolution sound
Pure Analog Input	No ADC conversion, maintaining signal integrity

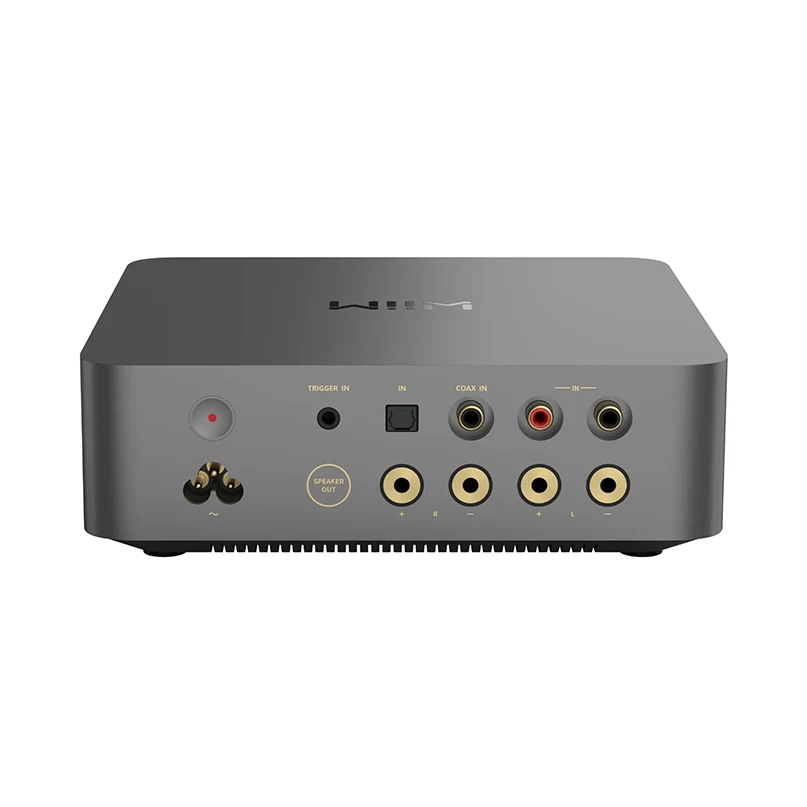

Analog Inputs	1x RCA Stereo (Line-In, pure analog signal path)
Digital Inputs	1x Optical (TOSLINK) – Up to 192kHz/24-bit
	1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
Speaker Outputs	Gold-plated binding posts (supports banana plugs or bare wire connections)
Trigger & Power Management	12V Trigger In: Auto power-on with compatible devices
	Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
Supported Audio Formats	PCM up to 192kHz/24-bit (through digital sources)
Volume Knob	Adjusts volume
LED Indicator	Three 4-color RGBW LED indicates source input and device status
Chassis	Premium unibody aluminum for durability & heat dissipation
Thermal Management	Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
Cooling System	Passive, silent operation
