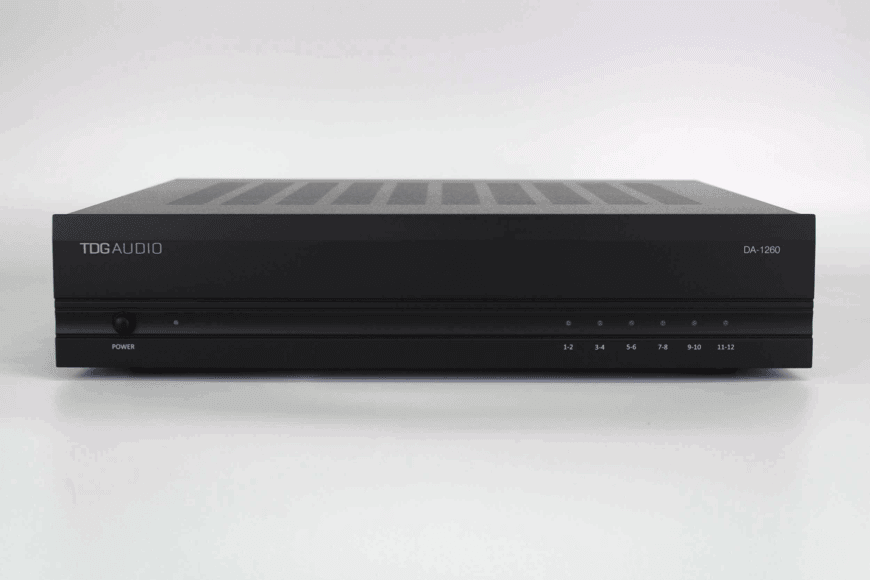

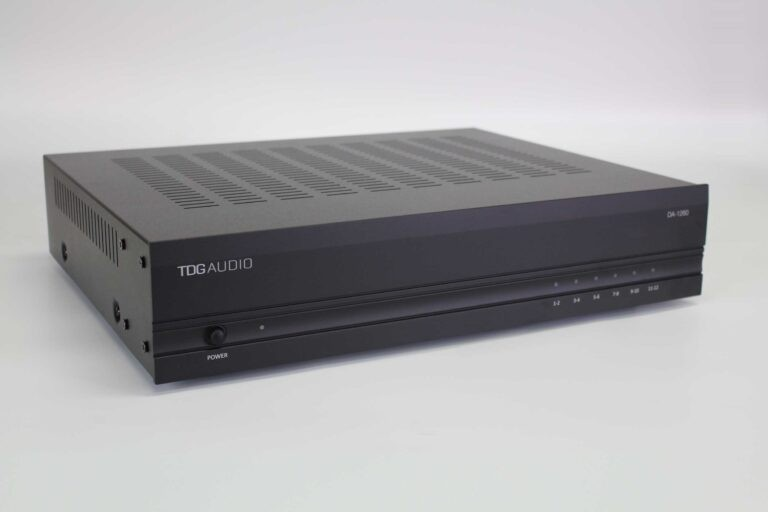

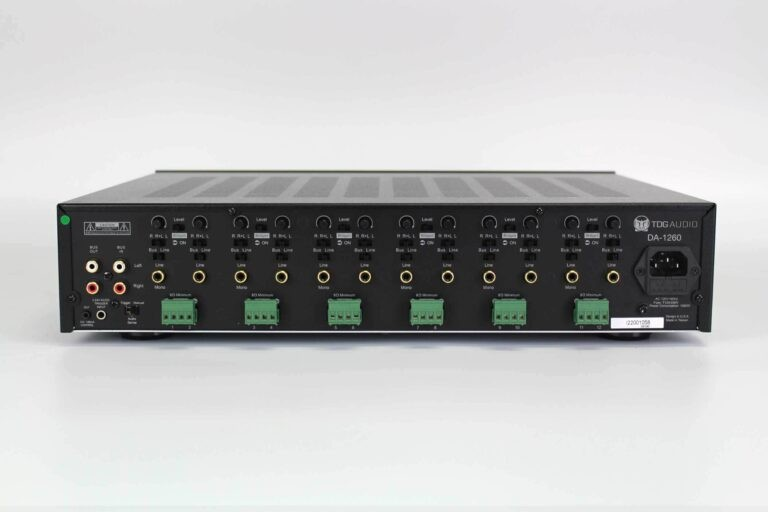

TGD Audio DA-1260 12-Channel Amplifier

TDG Audio

A high-performance 12-channel amplifier built for large multi-room audio systems. With bridging capabilities, independent channel control, and robust rack-mountable design, it ensures clean, efficient power distribution across multiple zones.

$3,099

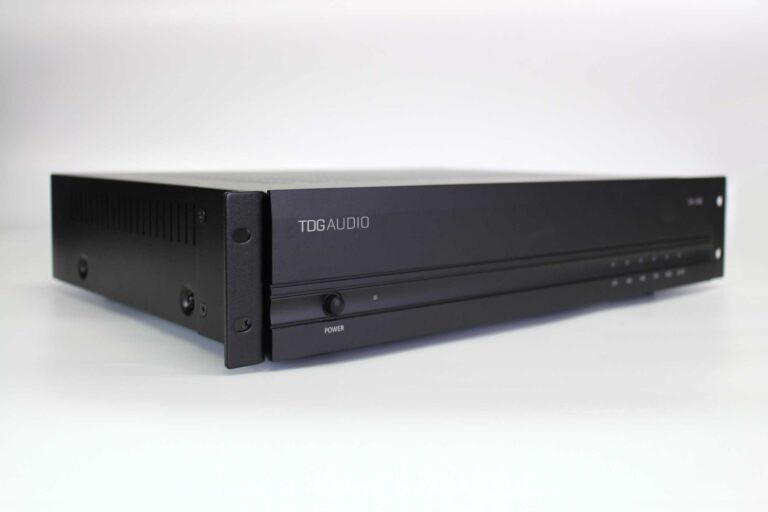

TDG Audio’s DA-1260 is a powerful 6-zone, 12-channel amplifier is a perfect way to expand any audio system to more areas of the home, office, restaurant, or retail store to provide power to speakers in any room or outdoor area. This slim 2U, rack-mountable multi-channel amplifier is powered by a toroidal transformer providing high efficiency and dampens acoustic noise. TDG Audio’s DA Series of multi-channel amplifiers are only available through trained installation professionals and offer both exceptional audio quality and intuitive system operation.

SKU: DA-1260 Category:
Weight22000 g
Dimensions410 × 437 × 89 mm
Brands

Specifications:

Power Output: 60W per channel @ 4Ω / 50W per channel @ 8Ω

Bridged Output: 120W @ 8Ω

Amplifier Type: DigiProâ„¢ Class D

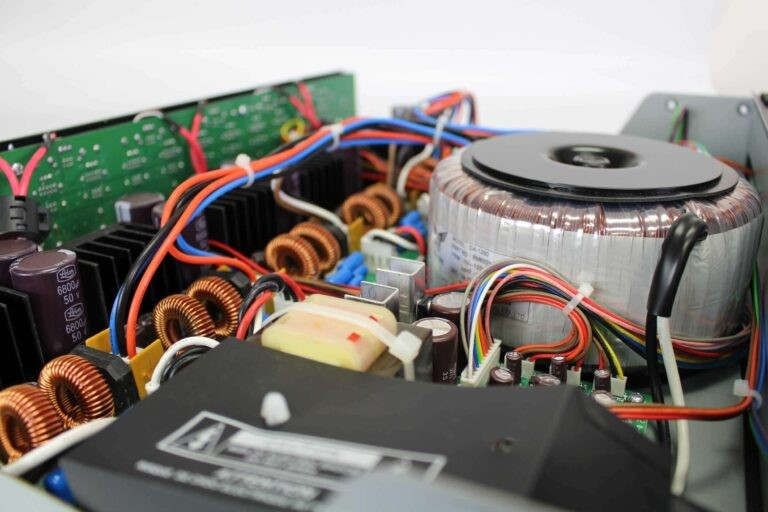

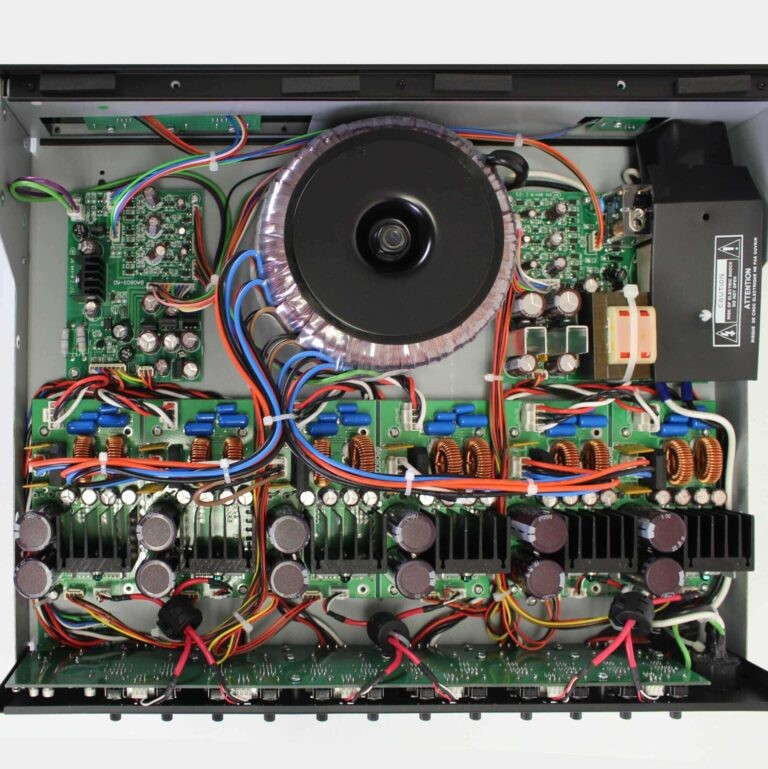

Toroidal Transformer Design

Stereo Summing to Mono

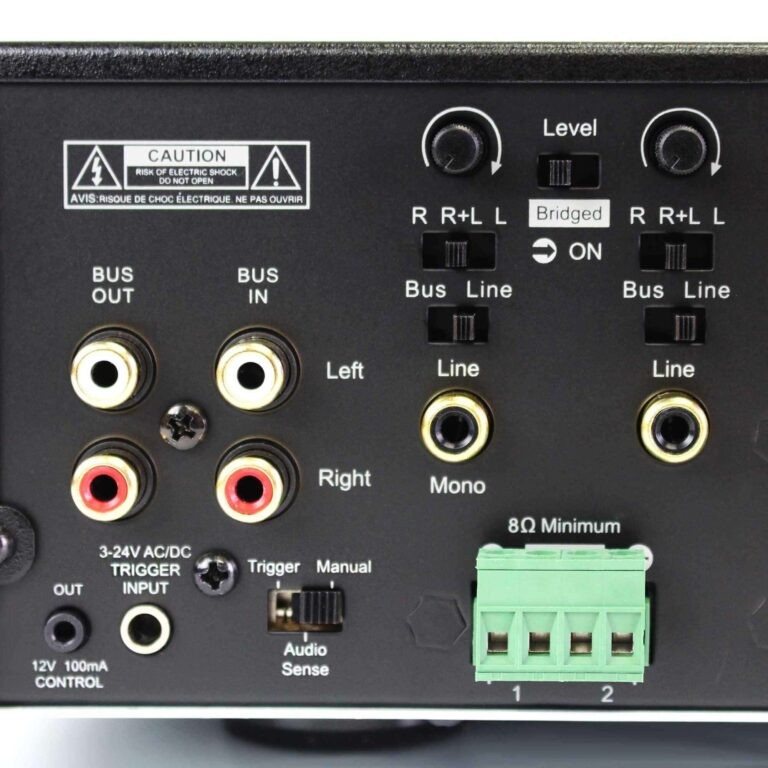

Trigger Control: Auto On/Off (3–24V AC/DC input), 12V trigger output

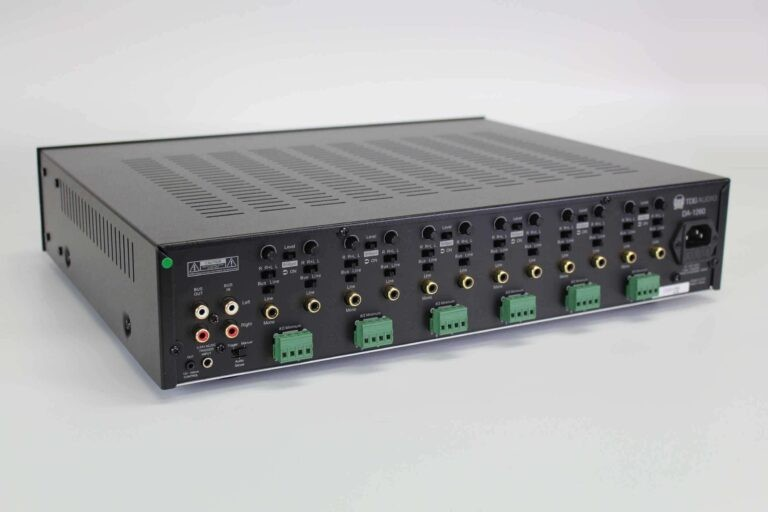

AUX Inputs with Control Trigger

Internal Bus-Pass for Multi-Amp Use

Independent Level Controls per Channel

S/N Ratio: 102dB (A-WTD)

Frequency Response:

±0.7dB, 20Hz–20kHz @ 8Ω

±1.5dB, 20Hz–20kHz @ 4Ω

Input Sensitivity: 900mV @ 8Ω

Damping Factor: >60

Channel Separation: 70dB @ 1kHz

Total Harmonic Distortion: <0.2% (20Hz–20kHz)

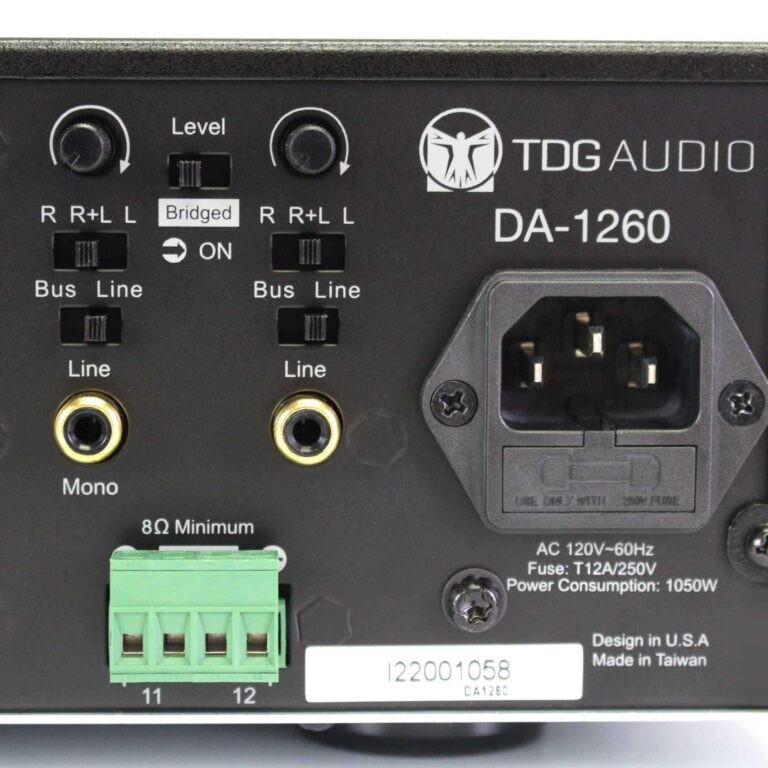

Fuse Rating: 120V Version: T12A/250V

5-Year Parts & Labor Warranty
