ASL MPS01-G0-AN

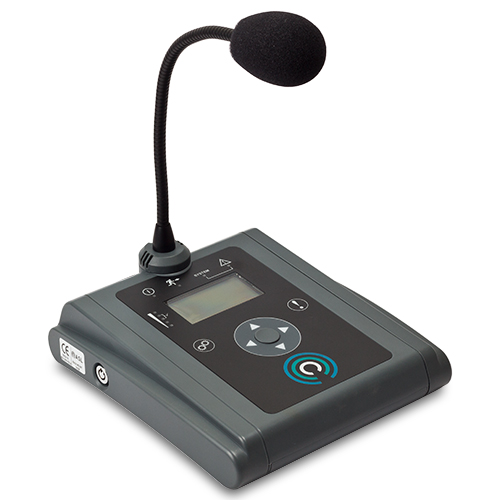

ASL MPS01 Zone selection microphone

The ASL MPS01 is a zone selection microphone. This is the base unit, it has no zone selection buttons. If you then want to build on with buttons for zone selection, it is possible to build on with more keypads (10 per module). Via the buttons, you choose in which zones the sound should be played.

The MPS01 is equipped with a gooseneck microphone that is 260mm long. A muffler sits on the microphone to muffle some unwelcome noises. The display shows the current status and you can navigate through the menus via the touch buttons. To make an announcement, hold down the blue button “TTT” touch to talk and wait for the go-ahead in the display. It is possible to start and stop pre-recorded messages. This model is a tabletop microphone but an accessory is available to make it a wall mounted version.

It is possible to use the MPS unit as a fire command microphone. To use this function, you have to unlock with the key on the side. The connections are on the underside. A plate protects against accidental pulling out of contacts.

• EN54 certified
• Gooseneck microphone
• Touch-To-Talk
• Fully supervised
• 12-40 V DC or PoE (Power over Ethernet)
• Built-in speaker
• Indicators and controls according to EN54
• Calls directly, record and broadcast (3 sec before broadcasting) or pre-recorded message
• Sound level indication LED bar
• Input for music source
• Headset input alt. handheld microphone.
• Micro SD card
• Connections ETHERNET, USB, RJ45, 3.5mm
• Optional: (can be added with keypad 10, 20, 30, 40 or 50 buttons)
• Table or wall mounted (accessory wall bracket: 492662 ).
