PATHOS CLASSIC REMIX

Pathos Acoustics

PATHOS CLASSIC REMIX

Hybrid Integrated Power Amplifier

Overview

A fully balanced, class-AB amp with a tube input stage and a solid-state power stage

The Pathos Classic Remix offers a wide soundstage with width and depth, correct tone, a sense of rhythm, and energy beyond all expectations. Low frequencies are extended and natural, but never out of control.

$8,999.95

PATHOS CLASSIC REMIX

Hybrid Integrated Power Amplifier

Overview

A fully balanced, class-AB amp with a tube input stage and a solid-state power stage

The Pathos Classic Remix offers a wide soundstage with width and depth, correct tone, a sense of rhythm, and energy beyond all expectations. Low frequencies are extended and natural, but never out of control.

One of Pathos Acoustic’s biggest international hits is the Classic One. Pathos set out to “remix” the sound and technology that made that amp such a hit, along with extra features such as an optional onboard DAC and high-quality headphone output.

The goal for the Classic Remix was high sonic performance, excellent management of digital musical files, and a high-quality headphone listening experience.

The optional HiDac Mk2 DAC offers the full, musical sound that makes the pathos Converto DAC such a favorite.

The headphone capability is absolutely not an afterthought or a compromised sub-circuit just to be able to offer the feature. The sonics of the headphone output are part of the original DNA of this amp, with the goal of offering performance at the level of dedicated headphone amps. A fully balanced circuit used the input signal straight from the input stage tubes, offering low noise, a high dynamic range, and high bandwidth. The generous output power of 2 W into 32 ohm allows great pairing with regular and high-end headphones.

Weight20000 g
Dimensions500 × 450 × 300 mm
Brands

Color

Lacquered Black, Lacquered Red, Lacquered White, Matte Metallic Black, Matte Zebrawood

Specifications

TypeIntegrated stereo amplifier, fully balanced, Hybrid technology.
Preamplifier stageTube (2×6922 ECC88)
Final stagesolid stade, bridge mode, class AB
Output Power2×70 W RMS  @ 8 Ω (Both channel driven)
Frequency response1,5Hz – 200KHz ± 0,5dB
Max input voltage4,25VRMS
Input sensitivity500m VRMS
Input impedance47K Ω
Output polarityNon- inverting. Balanced pin 2 +
Volume regulator2 x Burr Brown PGA2310 (180 steps 0,5dB)
THD0,025% @ 70W
S/N Ratio> 100dB
Power requirements250W @ 70W PC / 100W @ zero volume / < 0,5W@standby

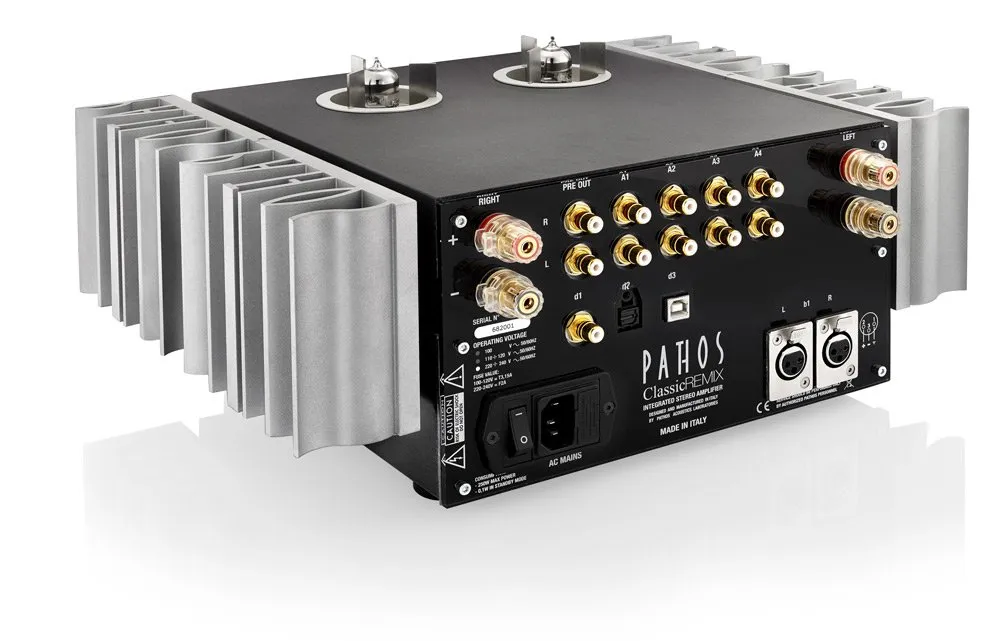

Connections
Analogue inputs1 balanced XRL
4 unbalanced RCA
Digital inputsInstallation of (optional) HiDac Mk2 board is required to enable these inputs
1 USB port type “B” for PC, 1 SPDIF coaxial, 1 SPDIF optical
Outputs1 Pre out stereo line
1 connector for jack headphone 6,3mm
Headpone Specifications
Output power1,6W @ 32 Ω
Output impedance10 Ω
Max output level10 V RMS
Frequency response1,5Hz – 200KHz ± 0,5dB
THD0,025%
Dimensions
Amplifier37cm (W) x 28cm (D) x 17cm (H)
Packed49cm (W) x 43cm (D) x 30cm (H)
Weight (net / packed)14Kg / 17,5 Kg
