BenQ S30 Document Camera


Energize and engage students instantly with still images, video, and even real subjects on the big projected screen! S30 document camera is a total interactive solution features 5-Megapixel color sensor.
  • One-Touch Audiovisual Recording
  • Constant Aperture Zoom Lens
  • SDHC card Extended Storage


Instant Sharing for Easy Learning

  • 40x zoom with the constant aperture zoom lens and XGA native resolution, which helps turn every lesson into a spontaneous and fun journey.


One-Touch Audiovisual Recording

  • The S30 allows you to create live audiovisual videos effortlessly by pressing just one button on the control panel.
  • It will then save everything recorded to your?SDHC?card up to?32GB?memory capacity.
  • Every lesson can be saved and shared with students that are absent or late to class, fellow teachers during teaching workshops, and parents at parent-teacher conferences.

Powerful 40x zoom capabilities

  • This is a practical tool for doing lab work together as a class. Being able to zoom in closely to observe tiny details helps students stay focused, understand better, and learn more.

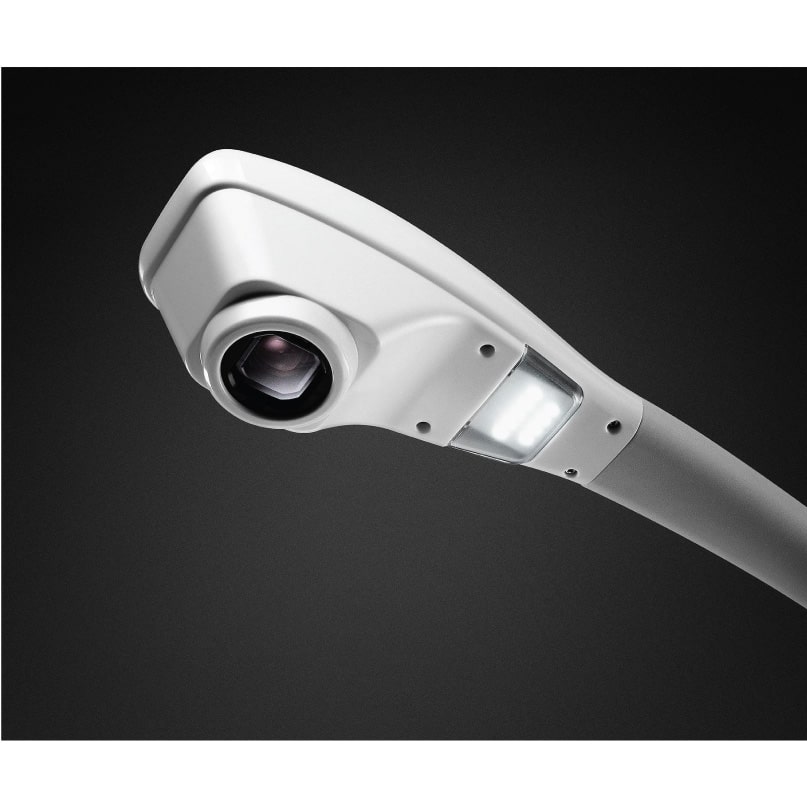

Constant Aperture Zoom Lens

  • With an S30 constant aperture and powerful 40x zoom lens, this incredible device projects still images, video clips, and even real objects with the ultimate zoom fluidity, capable of zooming in and out with consistent image quality and minimized noise.

5-Megapixel Color Sensor

  • The S30 5-Megapixel?CMOS?sensor captures sharp and vivid images of just about any object ? It does not get any higher than this!

SDHC?card Extended Storage

  • Capture and save your lessons to an SDHC card for the future! You can save up to 32GB of images and video clips with an SDHC card. With the S30, there?s plenty of room to document every great lesson!

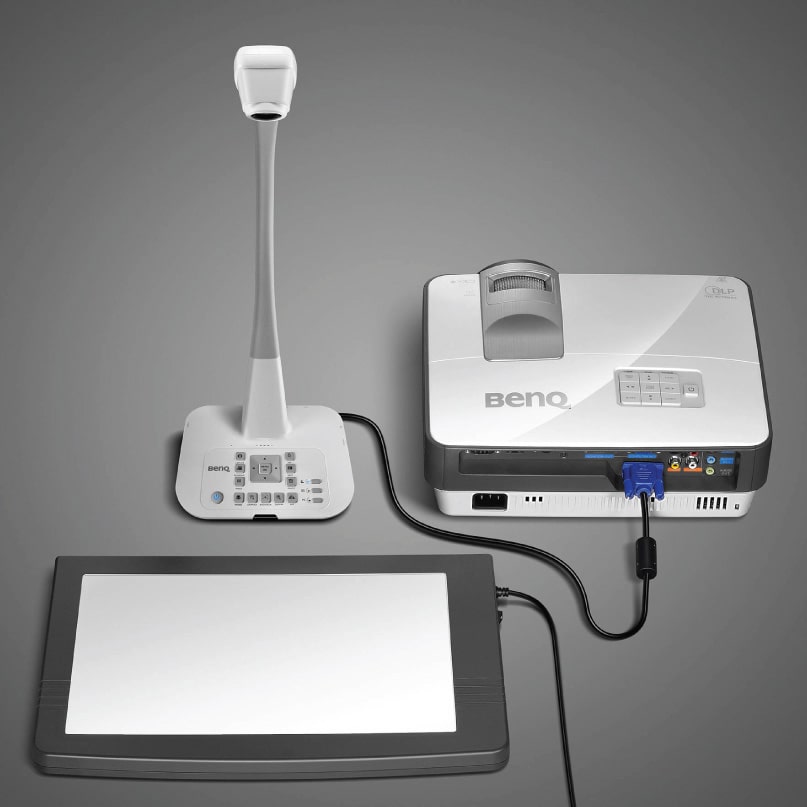

USB Cable Plug and Display

  • It is simple to just connect the S30 and?BenQ?selected projectors with a USB cable and show the image you have from S30 instantly.

Useful Presentation Tool

  • S30 offers you useful presentation tools – QBOX, QMASK, PIP, and Effect, allows you to draw students’ attention to a particular part of the lesson with QBOX, or you can cover up the answers by QMASK. PIP function makes you be able to view the live screen demo and previous image together.

??QVision?Software Tool

  • All it takes is a USB cable to connect your computer to the S30. Start sharing instantly and do editing together live as a class through?QVision! Be sure to test out all the enhanced drawing and annotation tools! You can also turn your lesson into video clips through the recording feature.

Made in Taiwan

  • With the MIT (Made in Taiwan) logo, it ensures that the S30 production is based in Taiwan to provide reliable outstanding quality.

ecoFACTS can tell you how eco-friendly BenQ products are!

  • Development of eco-friendly products,?BenQ?doesn’t just want to comply with green regulations passively, but also to actively develop eco-friendly products!
  • ecoFACTS declares BenQ’s greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design, and other aspects of the products.
SKU: S30 Category:
Weight 2600 g
Dimensions 239 × 296 × 120 mm

Weight <1.2KG (2.64lbs)
Power Supply
Power source DC 5V / USB powered
On-Screen Display Languages English, German, French, Italian, Spanish, Polish, Dutch, Simplified Chinese, Traditional Chinese, Japanese
Accessories (Standard)
CD UM/Software x1(S30 usermanual, Qvision annotation software)
QSG x1
Anti-glare sheet x1
VGA cable x1
DC 5V adapter x1(EU/US/UK/AU included)
PC camera Yes (640×480@30fps)
Remote control x1
Micro-Adapter set x1 (micro adapter + rubber for 28mm, 31mm)
Battery(AAA) x2
USB Cable X1(B to A type)

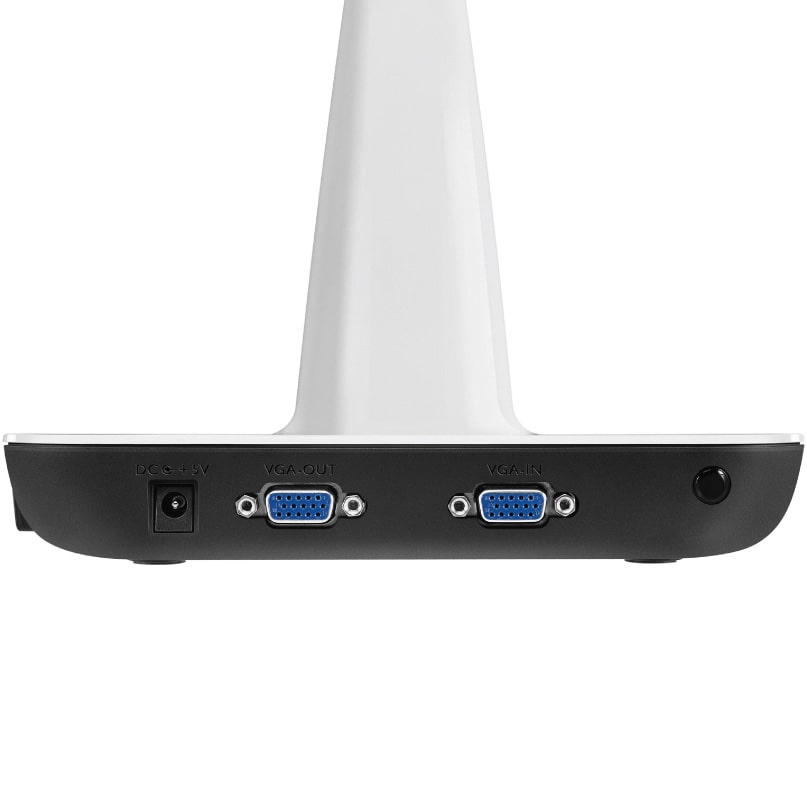

RGB in x1
RGB out x1
USB B type USB2.0 B type (powered /display / PC software)
DC 5V input x1
K-lock x1
Build in speaker Yes(0.5W )
Image sensor 1/3.2” CMOS Sensor
Effective pixel 5Mega pixel
Still image resolution 12MP/5MP/2MP
VGA output XGA, 30fps
White Balance Auto/Fluorescent / Tungsten
Brightness +-7 degree
Presentation tools
Source switch DC mode/Plackback mode/PC mode
Image control Freeze / QBox / QMask / Flip / PIP / Slideshow
Image effect Text/Graphics/B&W/Nagtive
Remote control Yes
Mechanical arm Gooseneck
PC camera Yes (640×480@30fps)
Recording Capture/ AudioVideo recording
Software Driver UVC
Lens 5.0-25.0mm/F3.5
Shooting area A4
Zoom 5X (Optical) , 8X(Digital )
Focus Auto
LED illumination system 4 level control
Software OS
Qvision Windows: XP, Vista, 7, 8 , Mac: 10.6 and Newer
