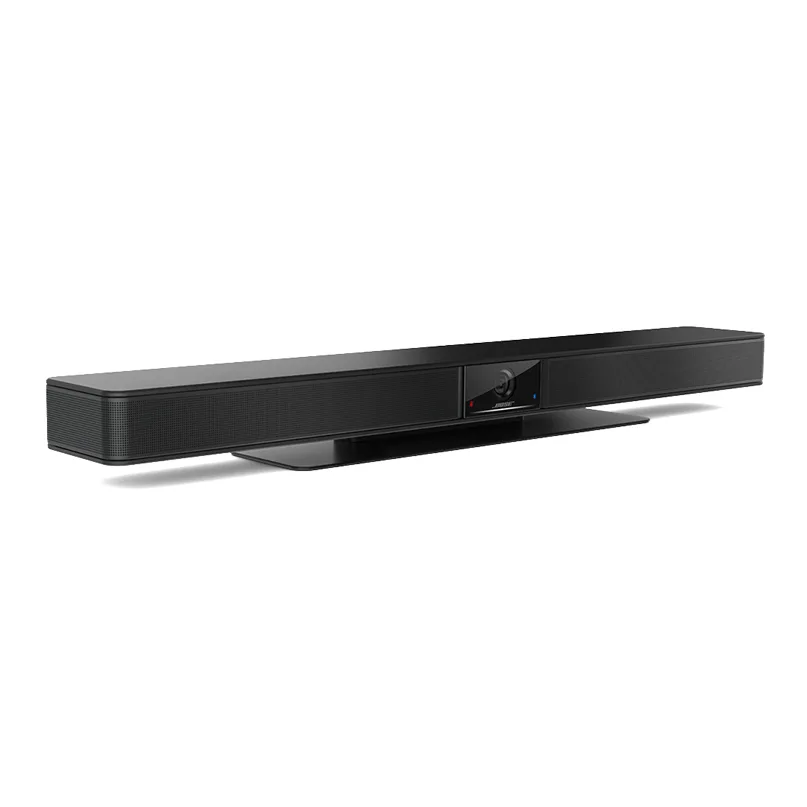

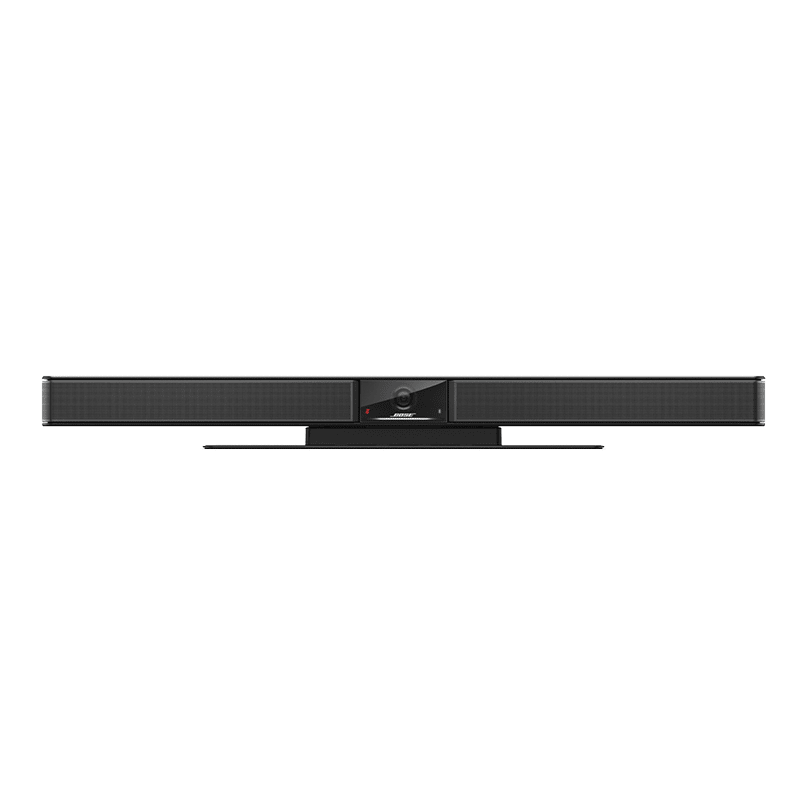

Bose VIDEOBAR VB1

Bose Professional Videobar VB1 is an all-in-one USB conferencing device that brings premium audio and video to huddle spaces to medium-sized meeting rooms up to 6 × 6 meters (20 × 20 feet). With six automatic beam-steering microphones, a 4K ultra-HD camera, and signature sound, the Videobar VB1 helps you huddle up and get more done.

KEY FEATURES

For Huddle Spaces and Conference Rooms
6 x Beam-Steering Mics with Auto EQ
4K Ultra HD Camera with Autoframing
Built-In Stereo Speakers
Bluetooth and 3.5mm Stereo Aux Inputs
Control via Smartphone or Computer
Integrates with Existing Networks
Sleek Low-Profile Design
Includes Table Stand and Wall Mount

$3,064

SKU: 842415-5110 Categories: Videobar, Video

Weight	5400 g
Dimensions	48 × 659 × 102 mm
Brands	Bose

System Requirements

macOS 10.10 or Later

Windows 7, 8.1, or 10

Google Chromebook

Microphone Setup

Microphones	6
Frequency Response	20 Hz to 15 kHz
Pickup Range	20′ / 6 m
Beamforming	Static and Dynamic Adaptive Beamforming
Noise Cancellation	Noise Suppression and Stereo Acoustic Echo Cancellation

Speakers

Enclosure	Ported
Number of Speakers	2
Amplifier Power	20 W per Channel
Distortion	<0.3% over Frequency Response
Maximum SPL	89 dB SPL at 3.3′ / 1 m, IEC 60268-5
Frequency Response	85 Hz to 20 kHz (-10 dB)

Video

Supported Resolutions	UHD 2160p (4K), 1080p, 720p, 960 x 480, 848 x 480, 640 x 480, 640 x 360, 432 x 240 (30 fps)
Encoding	H.264, M-JPEG

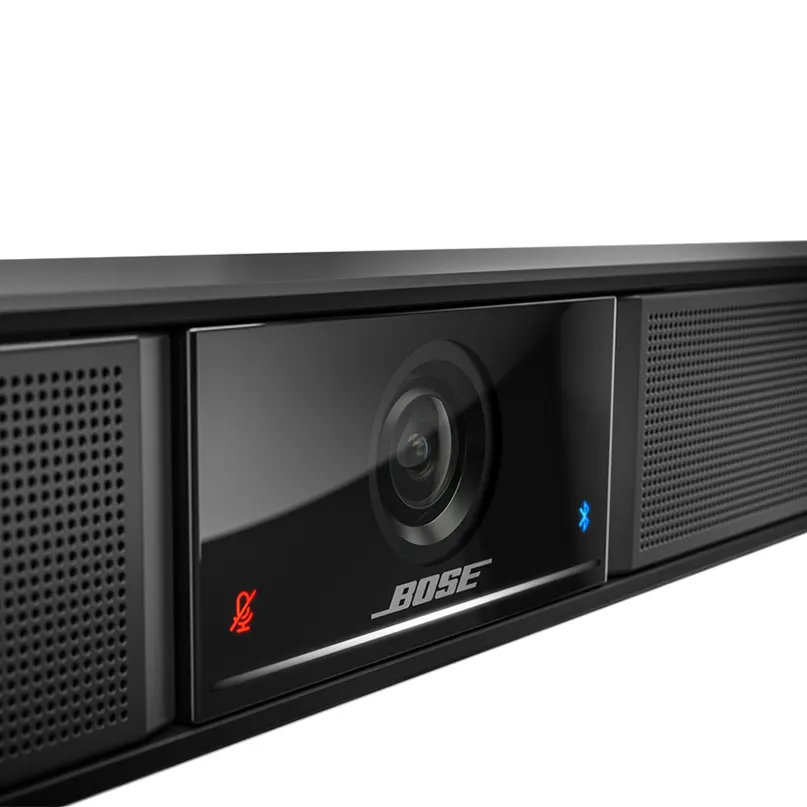

Camera

Field of View (FOV)	Diagonal: 120° Horizontal: 109° Vertical: 67°
Sensor	8 MP, 4K Resolution
Digital Zoom	5x
Focus Distance	1.6′ / 0.5 m to Infinity
UVC Video Class	v1.1
White Balance	Automatic
Brightness Control	Automatic

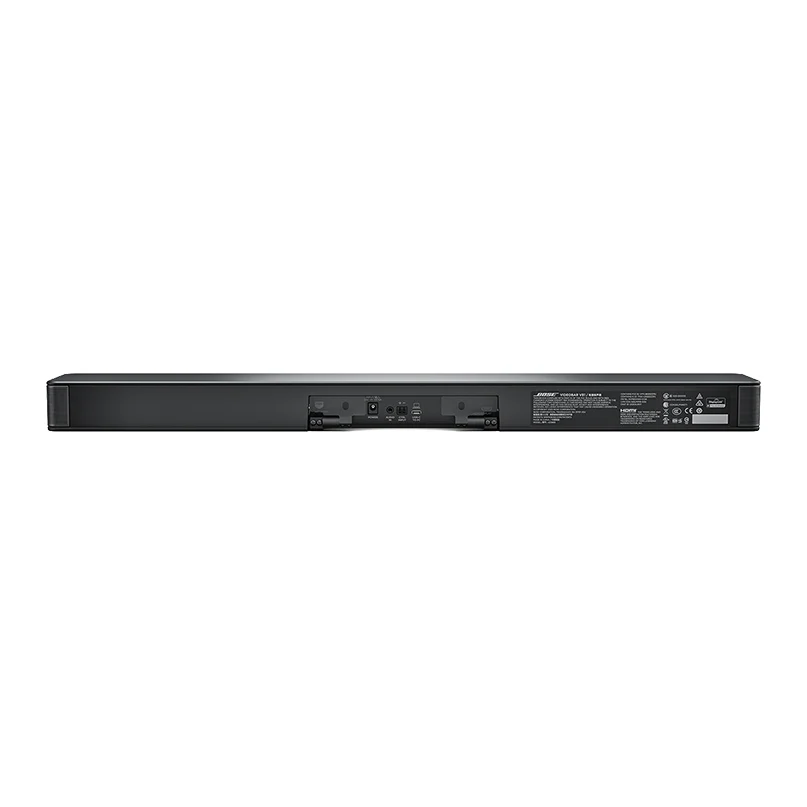

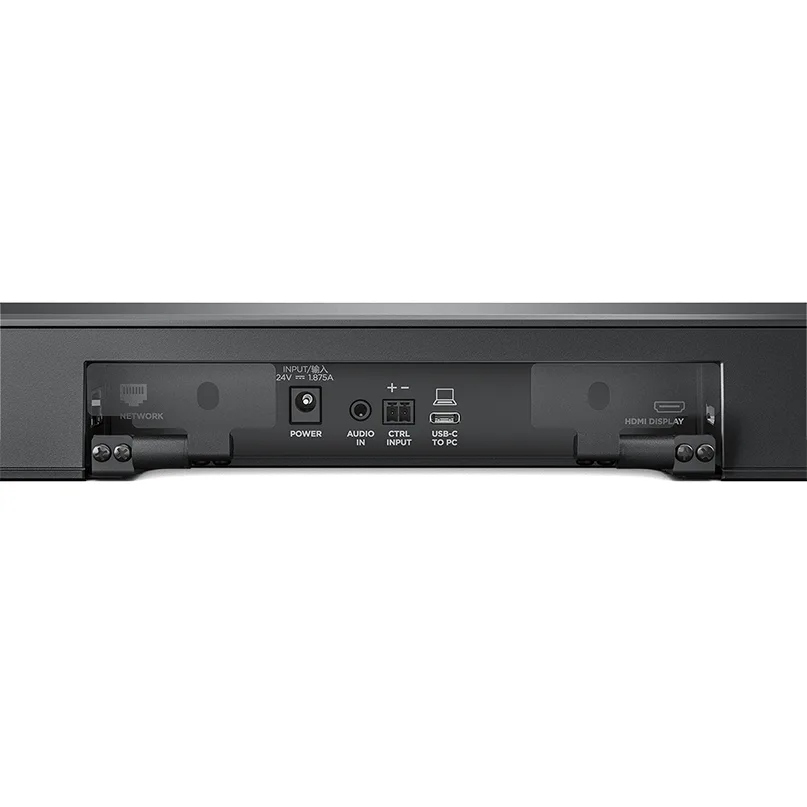

I/O

USB Connectors	1 x USB 3.0 Type-C 1 x USB 3.0 Type-A
HDMI Connector	1 x HDMI 1.4 Type-D
Audio Input	1 x 1.8″ / 3.5 mm TRS
Ethernet	1 x RJ45
GPI	1 x 2-Pin Euroblock

Communications

Ethernet Specifications	IEEE 802.3
Wi-Fi Standard	802.11ac (Wi-Fi 5)
USB Specifications	USB 3.0 UAC, UVC, HID
Bluetooth Version	4.2
Bluetooth Profiles	HSP, A2DP, AVRCP, BLE
Display	DisplayLink

Regulatory

Safety	IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017
EMC	FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439
Wi-Fi	FCC Part 15C, RSS-GEN, RSS-247, RSS-102, EN300328, EN301893, EN301489
Environmental	RoHS

Environmental

Operating Humidity	Up to 90% (Non-Condensing)
Storage Humidity	Up to 93% Relative Humidity
Storage Temperature	-40°F to 158°F / -40°C to 70°C

Power

Power Supply Input	110 to 240 VAC, 50/60 Hz, 1.5 A Max
Power Supply Output	24 VDC, 1.875 A

Physical

Mounting	Table Stand (Included) Wall Mount (Included) Kensington Security Slot
Dimensions	Videobar VB1: 1.9 x 27 x 3.8″ / 4.8 x 68.6 x 9.6 cm Remote Control: 0.7 x 1.9 x 4.9″ / 1.8 x 4.8 x 12.4 cm
Weight	5.6 lb / 2.5 kg
