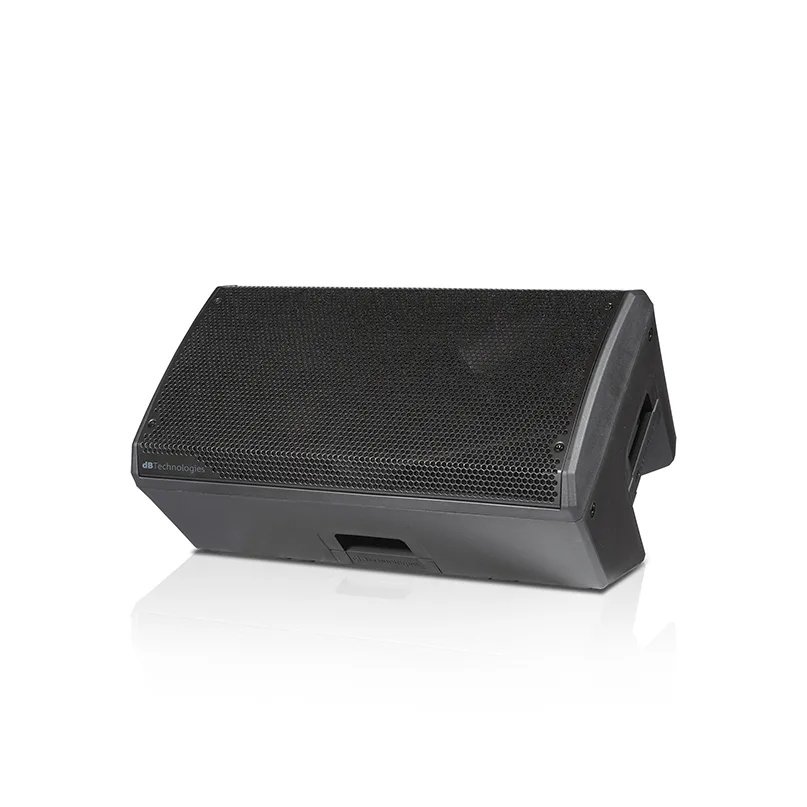

Dbtechnologies stage monitor loudspeaker, black wedge cabinet with perforated grille.

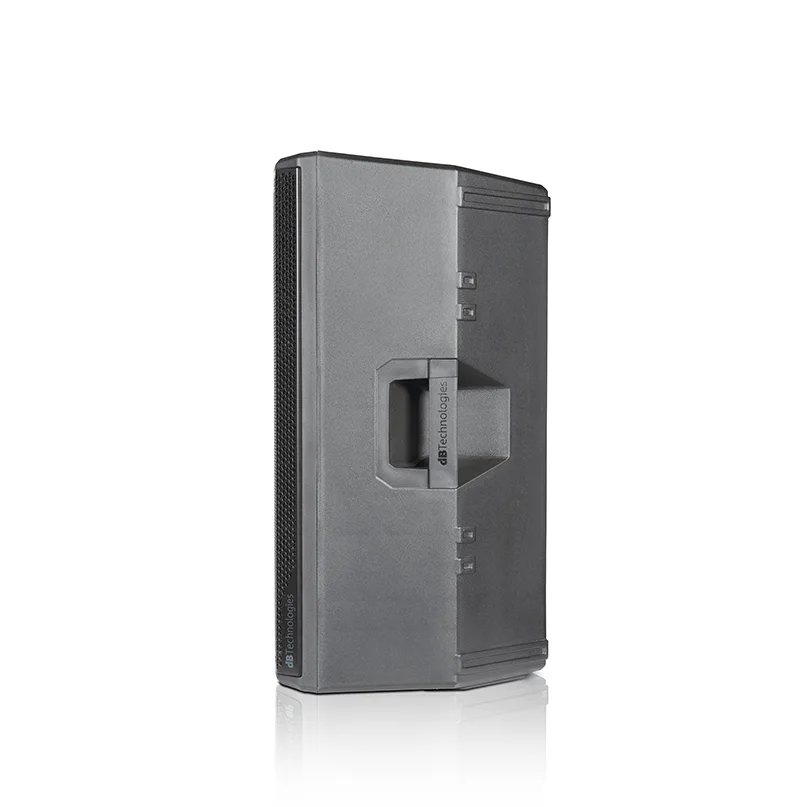

Db technologies portable loudspeaker cabinet with a recessed central carrying handle

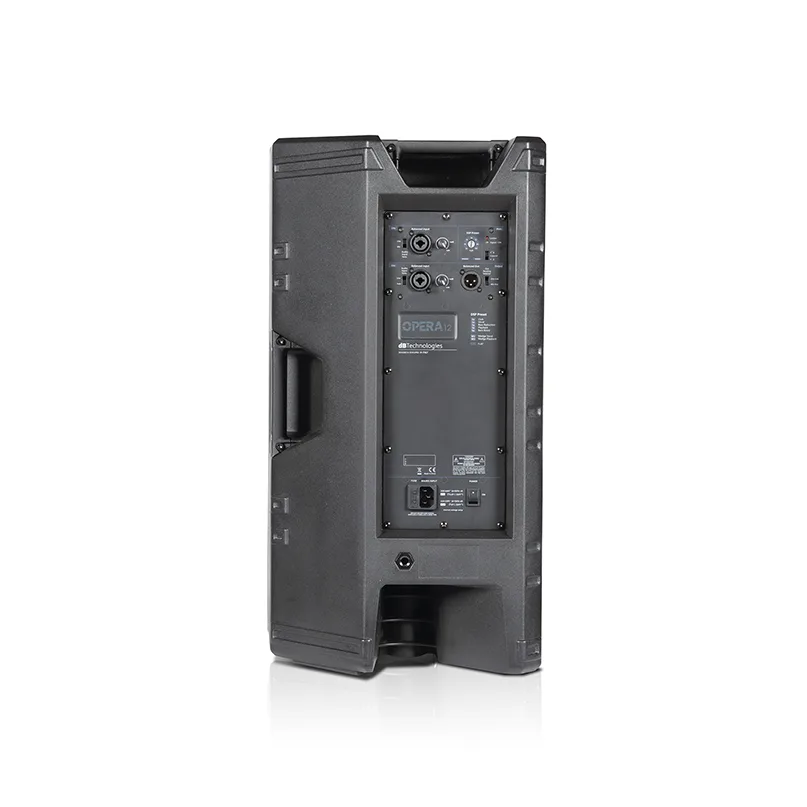

Db technologies opera 12 active loudspeaker with rugged enclosure, rear panel xlr inputs, power connector, and built-in handle.

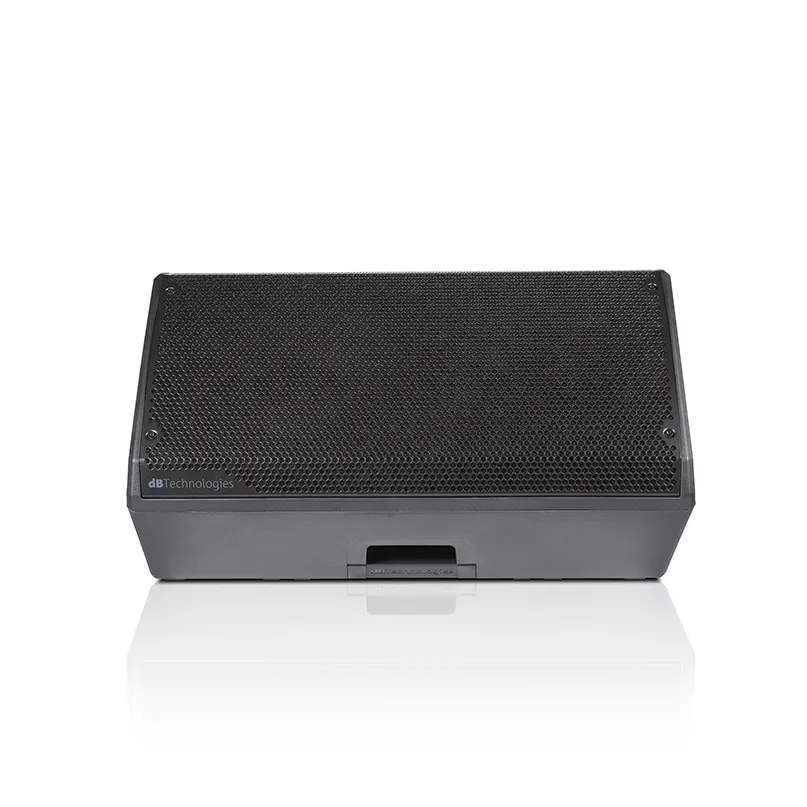

Ab technologies powered stage monitor speaker with black perforated grille and wedge-shaped enclosure.

Sales Specialist

Need help? Contact our sales specialist

(02) 9600 6655 | Email us

Party Speakers, Speakers

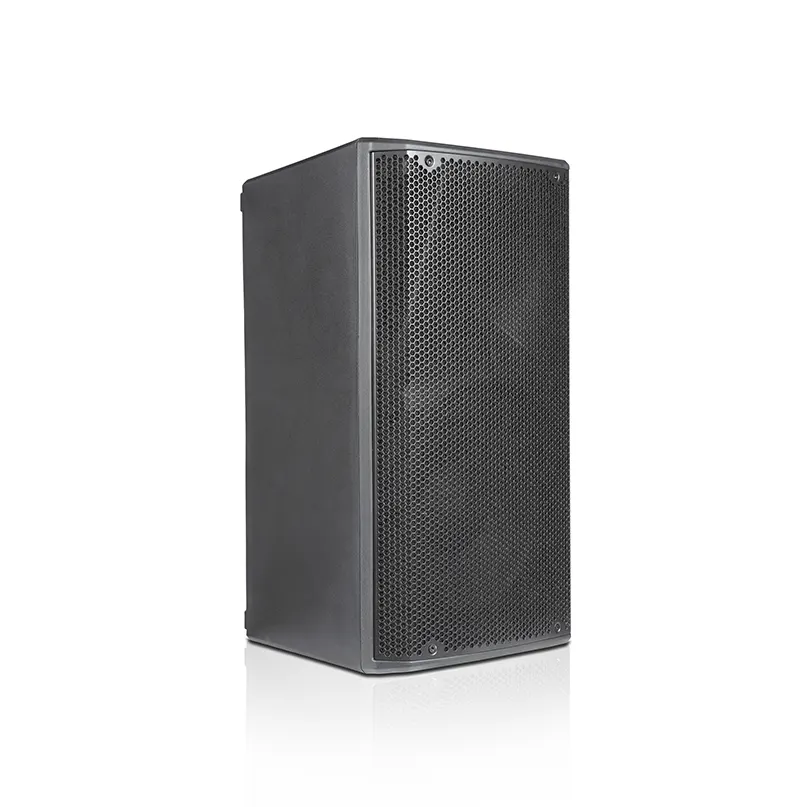

dBTechnologies Opera 12

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet accurate audio performance, successfully adaptable to both playback and live music applications.

FEATURES

600W RMS / 1,200W peak power
Redesigned asymmetrical horn has an optimized throw pattern and incredibly consistent sound dispersion
Advanced 56-bit DSP with linear phase FIR filters allows for enhanced audio at every listening position
2 input channels with selectable output channels
8 EQ presets ensure ideal audio without the need for an external EQ
2kHz crossover frequency
48kHz/24-bit AD/DA conversion

$1,329

Overview

With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range. Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern. The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

SKU: DBT-OPERA-12 Categories: Party Speakers, Speakers

Weight	14300 g
Dimensions	349 × 350 × 642 mm
Brands	dBTechnologies

Technical Data

Speaker Type: 2-Way Active Speaker

Acoustical Data:

Frequency Response [-10dB]: 52 – 20,000 Hz
Frequency Response [-3dB]: 67 – 19,600 Hz
Max SPL: 129 dB
HF (High Frequency Driver): 1″ Exit, 1.4″ voice coil (v.c.)
Type HF: Compression Driver
Horizontal Directivity: 100° (85° up / 120° down)
Vertical Directivity: 85° (+25° / -60°)
Horn: Asymmetrical Horn
LF (Low Frequency Driver): 12″, 2″ voice coil

Amplifier:

Amp Technology: SMPS Power Supply Dual Range
Amp Class: Class D
RMS Power: 600 W
Peak Power: 1200 W

Processor:

Controller: DSP 56 bit
AD/DA Converter: 24 bit / 48 kHz
System Presets: Rotary Encoder (8 Presets)
Crossover Frequency: 2000 Hz
Limiter: Peak, RMS, Thermal
Advanced DSP Functions: Linear Phase FIR Filters

Input:

Signal Input: 1x Combo (XLR/Jack 6.3 mm) MIC/Line
Signal Input: 1x Combo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output: 1x XLR Male (CH1 Link/Mix OUT) Selectable

Mechanics:

Housing: Polypropylene PP
Grille: Full Grille
Handles: 1 on left side, 1 on top
Rigging Points: 2x M10 on top, 1x M10 on back
Pole Mount: D36 mm
Angles Up: Monitor Use 45°
