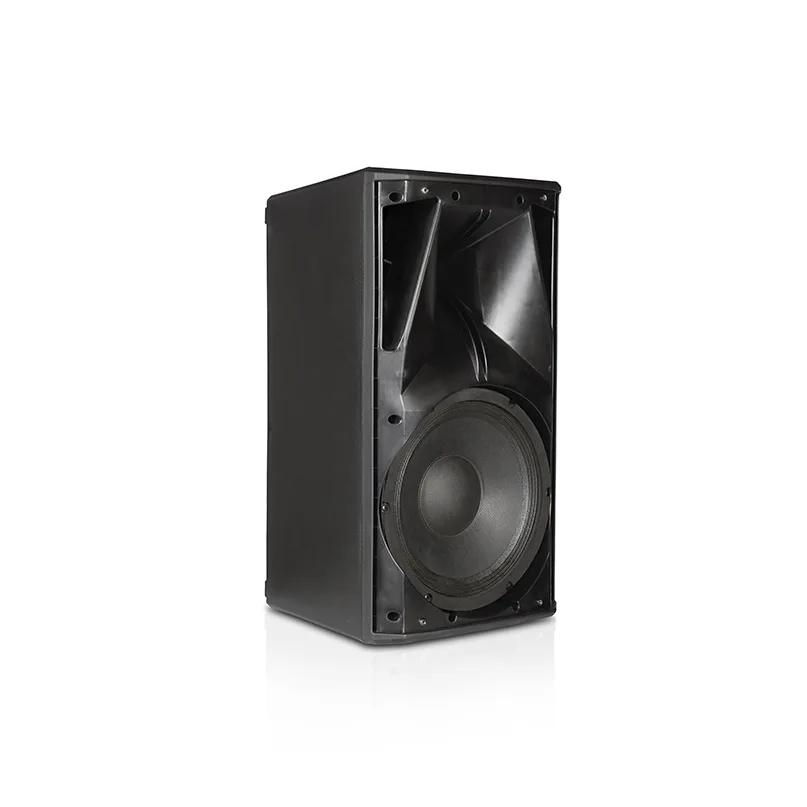

Black pa loudspeaker cabinet featuring a large woofer and internal horn, front-facing, with no protective grille.

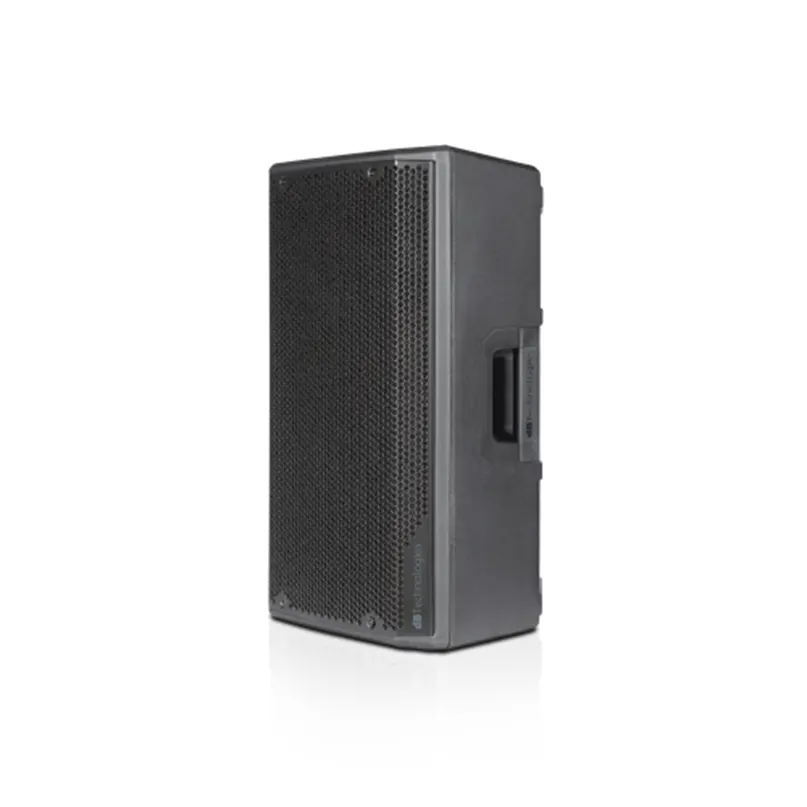

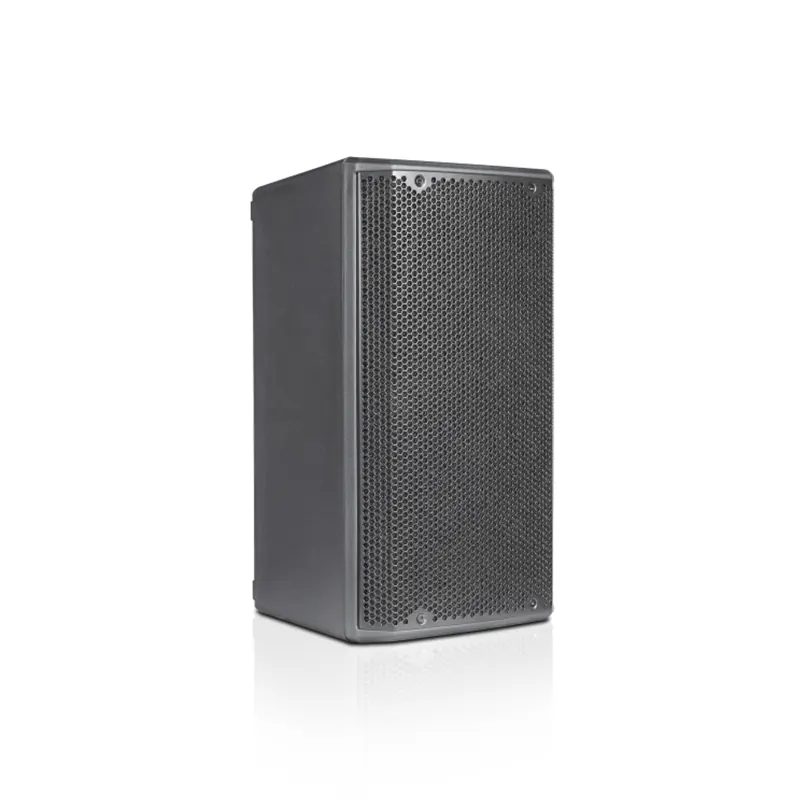

Black portable pa speaker with perforated front grille and recessed side handle.

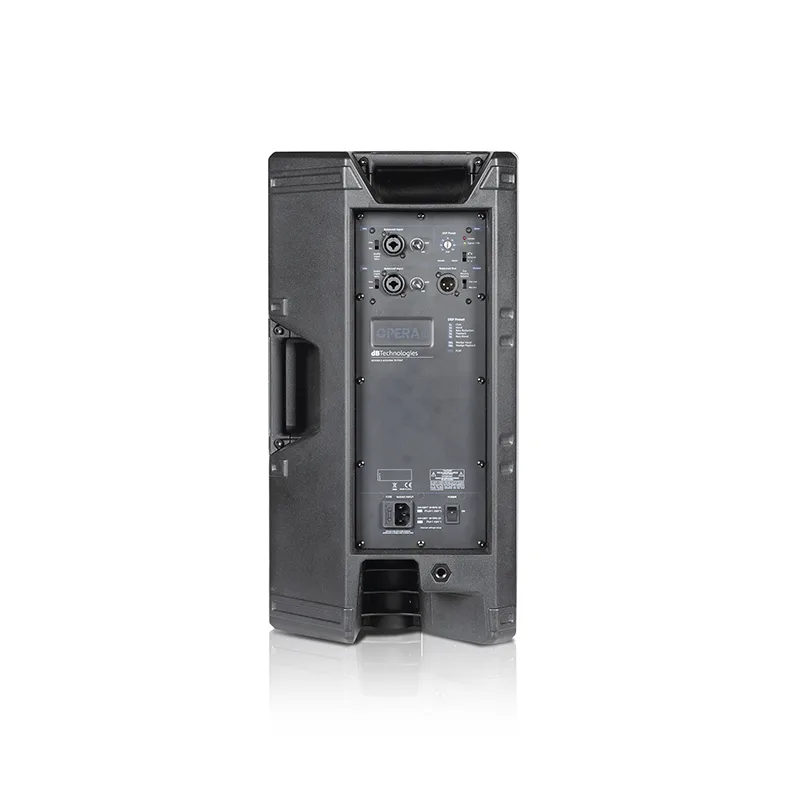

Db technologies opera active loudspeaker with rear panel inputs and power connector.

Sales Specialist

Need help? Contact our sales specialist

(02) 9600 6655 | Email us

Party Speakers, Speakers

dBTechnologies Opera 10

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet accurate audio performance, successfully adaptable to both playback and live music applications.

FEATURES:

600W RMS / 1,200W peak power
Redesigned asymmetrical horn has an optimized throw pattern and incredibly consistent sound dispersion
Advanced 56-bit DSP with linear phase FIR filters allows for enhanced audio at every listening position
2 input channels with selectable output channels
8 EQ presets ensure ideal audio without the need for an external EQ
2kHz crossover frequency
48kHz/24-bit AD/DA conversion

$949

Overview

The dbTechnoliges OPERA 10 has exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications. Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern. The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

SKU: DBT-OPERA-10 Categories: Party Speakers, Speakers

Weight	12300 g
Dimensions	301 × 300 × 552 mm
Brands	dBTechnologies

Technical Data
Speaker Type	2-Way Active Speaker
Acoustical Data:
Frequency Response [-10dB]	58 – 20,000 Hz
Frequency Response [-3dB]	70 – 19,600 Hz
Max SPL	128 dB
HF (High Frequency Driver)	1″ Exit, 1.4″ voice coil (v.c.)
Type HF	Compression Driver
Horizontal Directivity	100° (85° up/120° down)
Vertical Directivity	85° (+25°/-60°)
Horn	Asymmetrical Horn
LF (Low Frequency Driver)	10″, 2″ voice coil
Amplifier:
Amp Technology	SMPS Power supply dual range
Amp Class	Class D
RMS Power	600 W
Peak Power	1200 W
Processor:
Controller	DSP 56 bit
AD/DA Converter	24 bit/48 kHz
System Presets	Rotary Encoder (8 Presets)
Crossover Frequency	2000 Hz
Limiter	Peak, RMS, Thermal
Advanced DSP Functions	Linear Phase FIR Filters
Input:
Signal Input	1x Combo (XLR/Jack 6.3 mm) MIC/Line
	1x Combo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output	1x XLR Male (CH1 Link/Mix OUT)
Mechanics:
Housing	Polypropylene
Grille	Full grille
Handles	1 on left side, 1 on top
Rigging Points	2x M10 on top, 1x M10 on back
Pole Mount	D36 mm
Angles Up	Monitor use 45°
