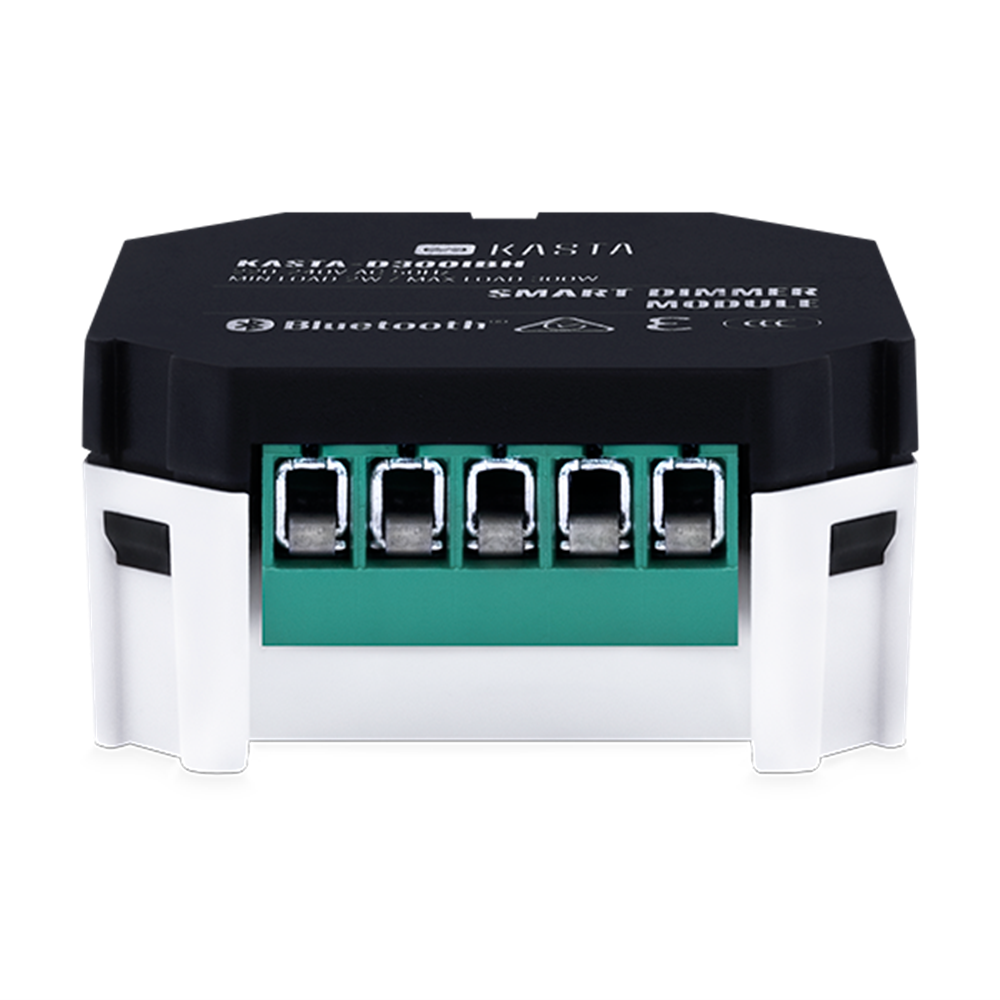

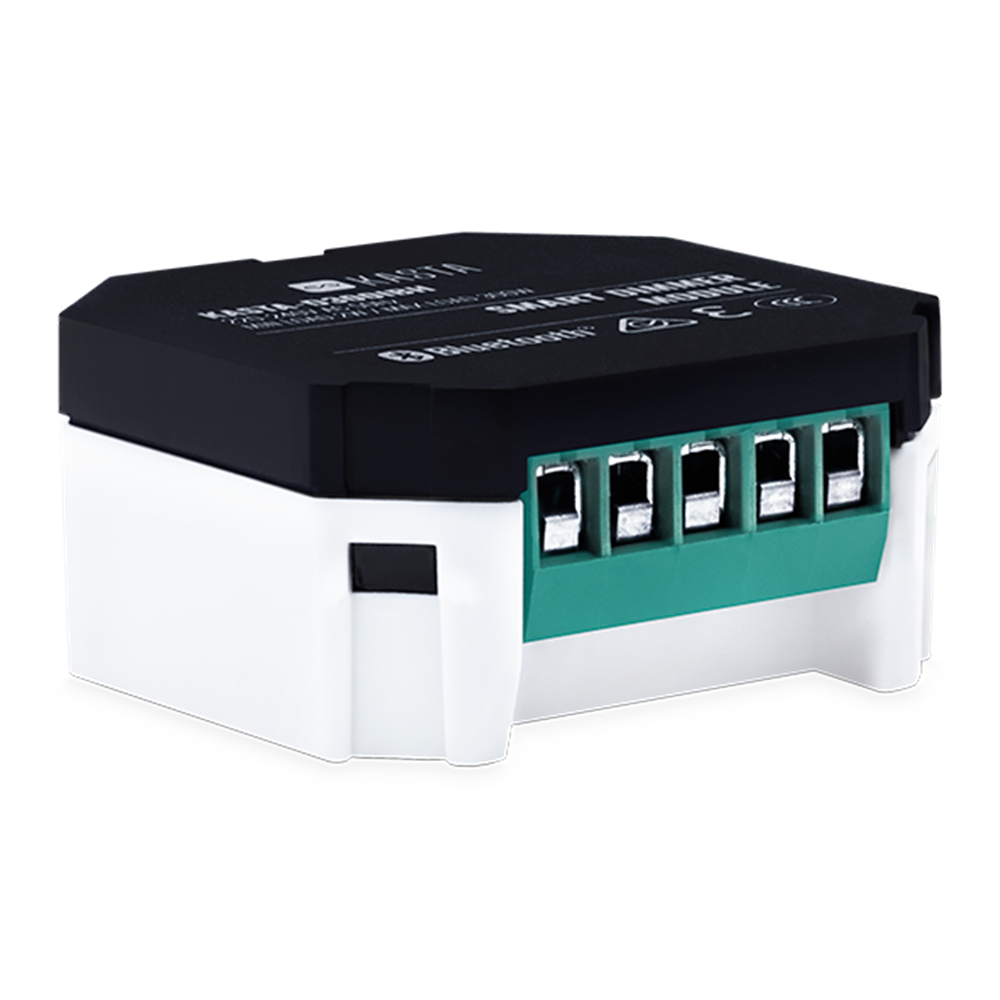

Kasta Dimmer Module
Smart dimmer module that can be fitted behind a standard wall switch plate and connects to a momentary push button mechanism.
Features
- Phase cut trailing edge (TE) dimmer
- 5-wire connection for power, load and momentary push button mechanism
- Reliable Bluetooth® mesh network connectivity to all KASTA devices
- 8-way multiway control
- Short press for ON/OFF control
- Long press for dimming control
- Over-current protection
- Supports core KASTA functionality – control devices, groups, scenes, timers and scheduling
- Suits all Australian standard wall plates using a momentary mechanism
- iOS and Android app setup and control
| Weight | 200 g |
|---|---|
| Dimensions | 45 × 45 × 22 mm |
| Brands |
Specifications
- Power Supply: 220-240V a.c. 50Hz
- Operating Ambient Temperature: -20 to 40°C
- IP Rating: IP20
- Thermal Derating: 25 to 40°C (300W-165W)
- Physical Connection Type: Terminals
- Wiring Connections: Active, Neutral, Load & Momentary Mechanism
- Momentary Input: (T1/T2): Local signal input only (not 240V a.c.) Max. wiring length between T1/T2 and momentary mechanism is 10m
- LED Load Wattage: 2W to 300W
- Dimming Method: Phase Cut Trailing Edge
- Dimming Range: 2-100%
- Multi-gang Derating: 2-225W, 3-165W @ 25°C
- Housing Material: Polycarbonate (PC)
- Standards Complied: CoS SAA 183649, AS/NZS 60669.2.1, AS/NZS 60669.1, AS/NZS CISPR 15, AS/NZS 4268
