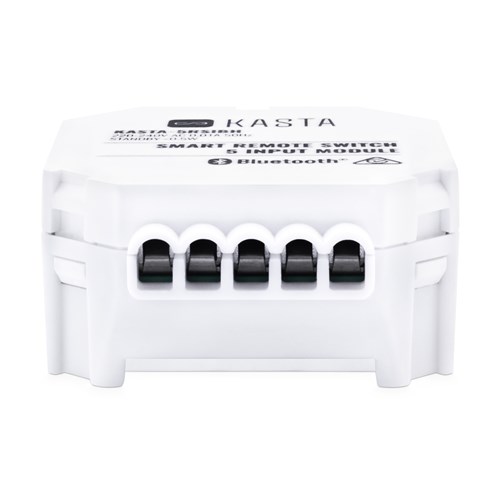

Kasta five-position terminal block module in white plastic with five metal contact slots.

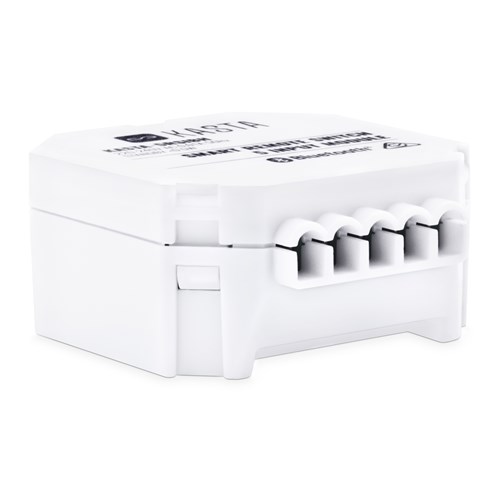

White plastic five-terminal screw terminal block module with compact enclosure.
Sales Specialist
Need help? Contact our sales specialist
(02) 9600 6655 | Email us
,

Kasta 5-Input Remote Switch Module

KASTA

The Kasta 5-Input Remote Switch Module for the wireless control of KASTA devices from a wall switch with up to five individual mechanisms or a traditional 240V a.c. motion sensor

$124.38

  • The Kasta 5-Input Remote Switch Module support 2 modes of operation – toggle input and momentary switch input
  • Toggle input mode – used with toggle switch mechanisms, the load output from a sensor or relay output from another source (e.g. Assa Abloy® VingCard® system)
  • Momentary switch input – used with momentary switch mechanism (short press and long press) or momentary relay output from another source
  • Reliable Bluetooth® mesh network connectivity to all KASTA devices
  • 8-way multiway control
  • Built-in over-voltage protection
  • Supports core KASTA functionality – control devices, groups, scenes, timers and scheduling
  • Suits all Australian standard wall plates using a momentary or toggle mechanism
  • iOS and Android app setup and control
SKU: KA-KSTA-5RSIBH Categories: ,
Weight300 g
Dimensions47 × 52 × 22.5 mm
Brands

  • Power Supply: 220-240V a.c. 50Hz
  • Operating Ambient Temperature: -20 to 50°C
  • IP Rating: IP20
  • Physical Connection Type: Terminals
  • Wiring Connections: Active, Neutral, Momentary Mechanism or Sensor Load Output
  • Input Voltage (S1-S5): 240V a.c.
  • Housing Material: Polycarbonate (PC)
  • Standards Complied: AS/NZS 60950.1, AS/NZS CISPR 15, AS/NZS 4268
