Digital Audio Controller

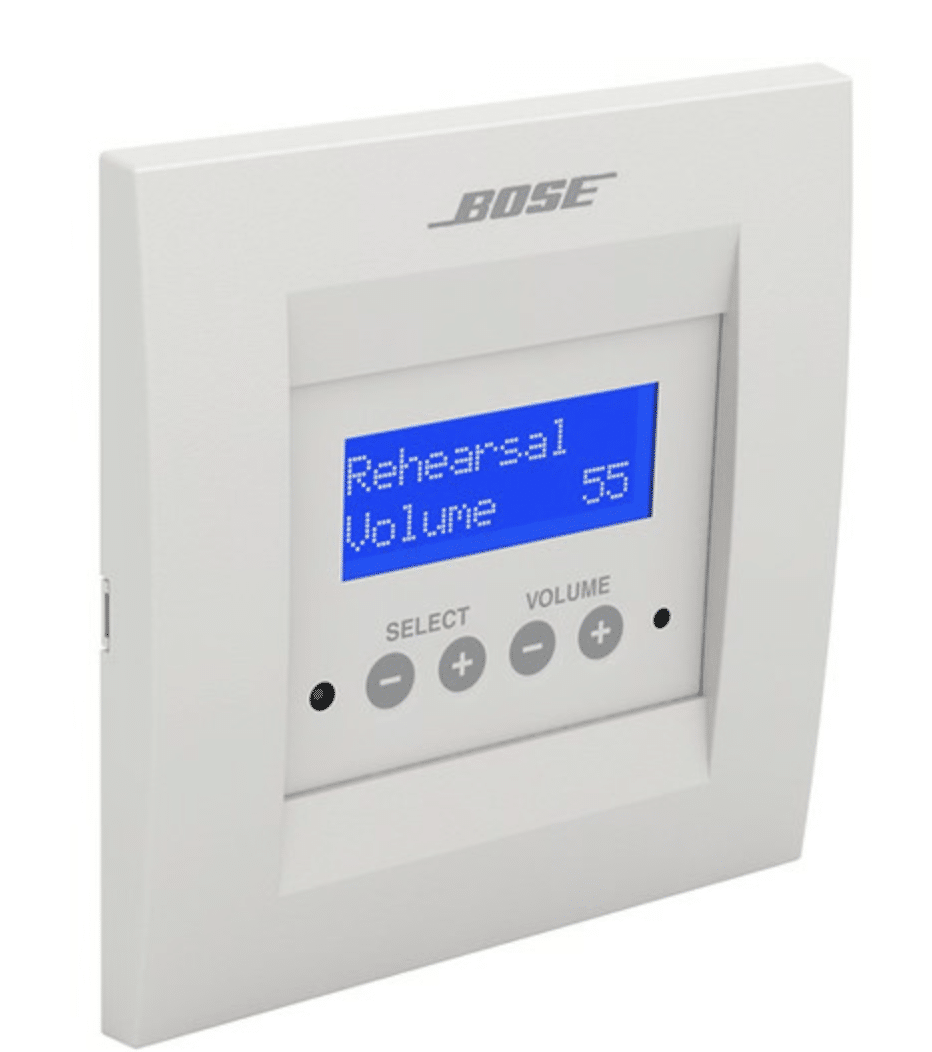

Bose CONTROLSPACE CC16 Zone Controller
The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting “scenes” or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.
$602
- Elegant styling with intuitive controls for end user operation
- 122 x 32 pixel backlit blue LCD
- Sealed VOLUME +/- and SELECT +/- pushbuttons
- Simplified drag-and-drop setup using ControlSpace® Designer™
- DIP switch addressing on back of unit
- Programmable control of system elements (switching of audio sources, system configurations)
- Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
- Customizable on-screen wording provides easier system operation
- Programmable software lock out
- Fits into a standard 2-gang electrical wall box
| Weight | 200 g |
|---|---|
| Dimensions | 121 × 118 × 37 mm |
| Brands |
Specs:
Display: 122 × 32 pixel blue backlit LCD
Controls: (2) volume buttons (+/–), (2) select buttons (+/–)
Control Interface: Custom programmable via ControlSpace Designer
Addressing: DIP switches
Power: 8–18 VDC, 100 mA
Cable Type: Cat 5 UTP (24–18 AWG)
Max Controllers: 15 per ControlSpace ESP processor
Max Cable Length: 609 m (2000 ft)
Connector: Euroblock, 6 pins
Mounting: 2-gang wall box (NA, JP)
Compliance: ICES-003 Class B, EN55103-1/2, FCC Part 15 Class B
Compatible With:
ControlSpace ESP-880A
ControlSpace EX-1280
ControlSpace EX-1280C
DS4 Ceiling Audio Solution
Related Products
- Digital Audio Controller

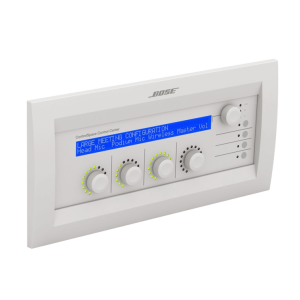

Bose CONTROLSPACE CC-64 Control Center
The Bose ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch® amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system.
The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed “scenes” or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.
SKU: 41760 - Digital Audio Controller

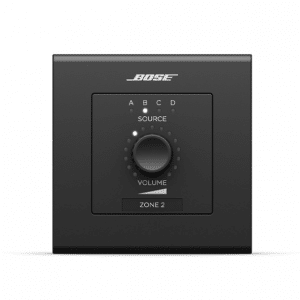

Bose CONTROLCENTER CC-3D
The Bose ControlCenter CC-3D is a user-friendly digital wall controller in black. It features attractive styling with a single rotary encoder and circular LED ring. The CC-3D model allows for A/B/C/D source selection with illuminated source and volume level indication. Powered using PoE, ControlCenter digital controls can be applied anywhere on the network, supporting up to 16 units simultaneously.
SKU: n/a - Digital Audio Controller

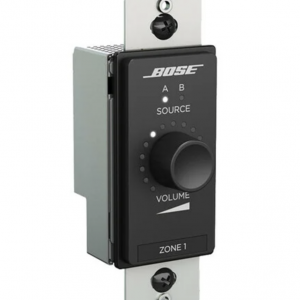

Bose CONTROLCENTER CC-2D
Bose ControlCenter CC-2 zone controllers provide volume and A/B source selection for FreeSpace® and ControlSpace® products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.
SKU: n/a - Digital Audio Controller

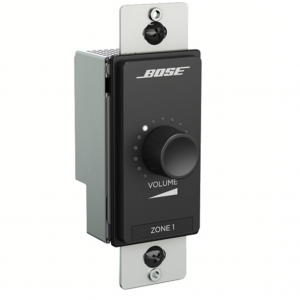

Bose CONTROLCENTER CC-1D
The White Bose Professional ControlCenter CC-1D is a volume control panel for Bose CSP, ControlSpace ESP, and ControlSpace EX sound processors. The panel is powered using Power over Ethernet (PoE) and can be used with multiple processors simultaneously over an Ethernet-based network. The panel is designed to fit any single-gang electrical box and features a single rotary volume encoder. What’s more, installers can set discrete volume ranges via software for customized performance.SKU: n/a
