Digital Audio Controller

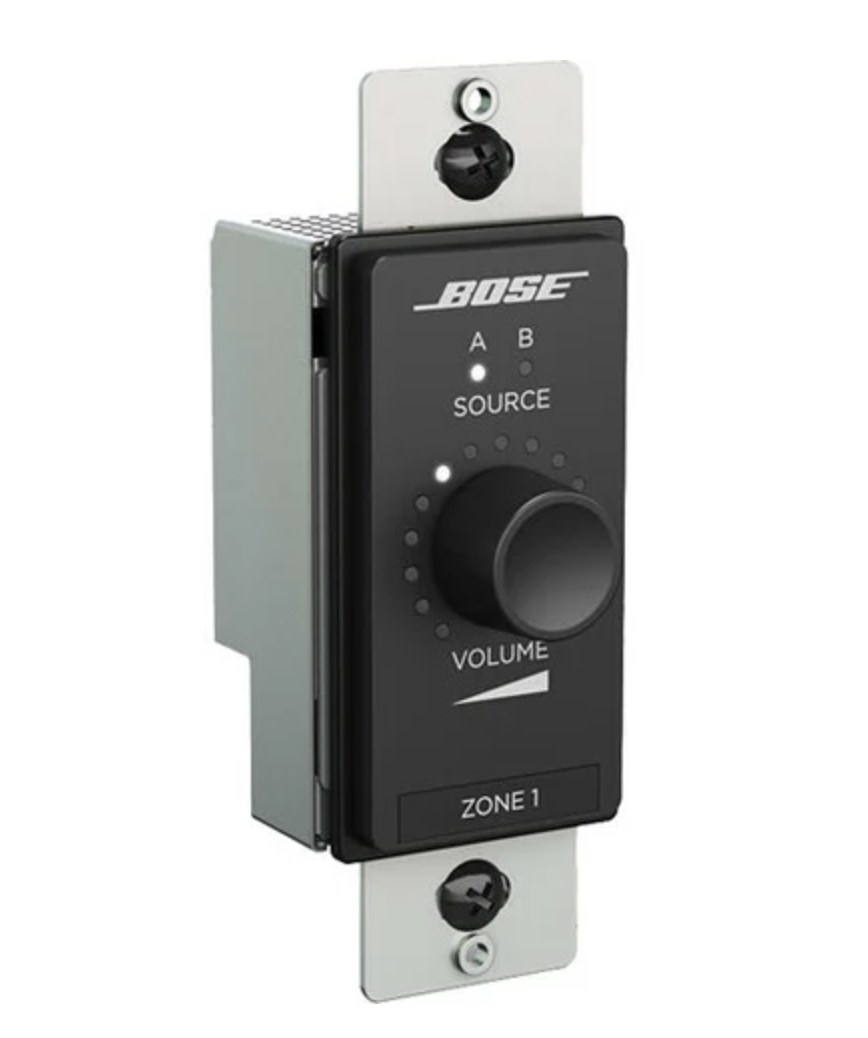

Bose CONTROLCENTER CC-2D
Bose ControlCenter CC-2 zone controllers provide volume and A/B source selection for FreeSpace® and ControlSpace® products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.
$415
- ControlCenter Series
The ControlCenter series is a set of remote controls for use with Bose FreeSpace® amplifiers, PowerShare amplifiers, and ControlSpace® processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).
- Custom Labels
Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.
| Weight | 100 g |
|---|---|
| Dimensions | 46 × 40 × 105 mm |
| Brands |
Specs:
Models: CC-1D (volume only), CC-2D (volume + A/B), CC-3D (volume + A/B/C/D)
Control Interface: 1 rotary encoder (turn for volume, push for source, push-hold for mute)
Indicators: LED ring for volume; 2 (CC-2D) or 4 (CC-3D) source LEDs
Cable Type: Cat 5e UTP
Power: PoE (Power over Ethernet)
Max Controllers: 16 per CSP processor / 32 per ControlSpace network
Connector: 1 × RJ-45
Operating Temp: 0 °C to 40 °C (32 °F to 104 °F)
Mounting: 1-gang box (NA, EU, JP)
Compatible With:
CSP-428, CSP-1248
ControlSpace ESP-880A, EX-1280, EX-440C, EX-1280C
DS4 & ES1 Ceiling Audio Solutions
PowerMatch networked amplifiers
Related Products
- Digital Audio Controller
Bose CONTROLSPACE CC-64 Control Center
The Bose ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch® amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system.
The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed “scenes” or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.
SKU: 41760 - Digital Audio Controller
Bose CONTROLSPACE CC16 Zone Controller
The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting “scenes” or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.
SKU: 41761 - Digital Audio Controller
Bose CONTROLCENTER CC-3D
The Bose ControlCenter CC-3D is a user-friendly digital wall controller in black. It features attractive styling with a single rotary encoder and circular LED ring. The CC-3D model allows for A/B/C/D source selection with illuminated source and volume level indication. Powered using PoE, ControlCenter digital controls can be applied anywhere on the network, supporting up to 16 units simultaneously.
SKU: n/a - Digital Audio Controller
Bose CONTROLCENTER CC-1D
The White Bose Professional ControlCenter CC-1D is a volume control panel for Bose CSP, ControlSpace ESP, and ControlSpace EX sound processors. The panel is powered using Power over Ethernet (PoE) and can be used with multiple processors simultaneously over an Ethernet-based network. The panel is designed to fit any single-gang electrical box and features a single rotary volume encoder. What’s more, installers can set discrete volume ranges via software for customized performance.SKU: n/a
