Digital Audio Controller

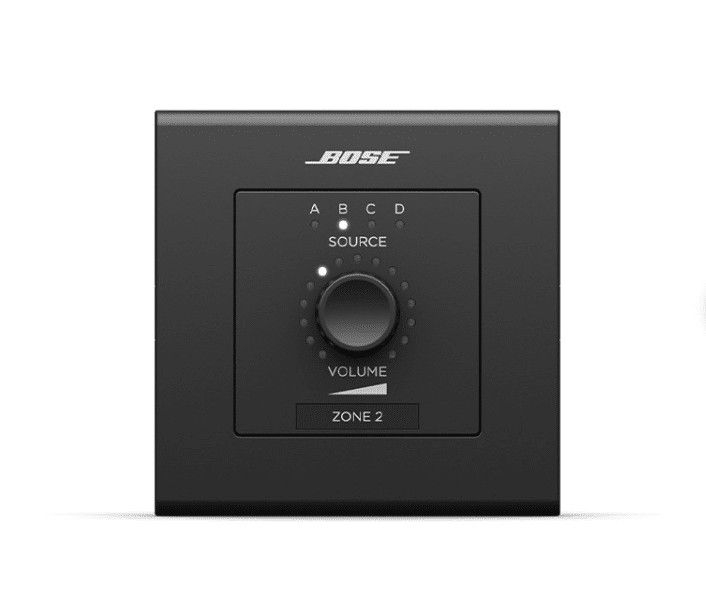

Bose CONTROLCENTER CC-3D
The Bose ControlCenter CC-3D is a user-friendly digital wall controller in black. It features attractive styling with a single rotary encoder and circular LED ring. The CC-3D model allows for A/B/C/D source selection with illuminated source and volume level indication. Powered using PoE, ControlCenter digital controls can be applied anywhere on the network, supporting up to 16 units simultaneously.
$495
Powered using PoE
User-friendly
A/B/C/D source selection
Can be applied anywhere on the network
| Weight | 100 g |
|---|---|
| Dimensions | 46 × 40 × 105 mm |
| Brands |
Specs:
Models: CC-1D (volume only), CC-2D (volume + A/B), CC-3D (volume + A/B/C/D)
Control Interface: 1 rotary encoder (turn for volume, push for source, push-hold for mute)
Indicators: LED ring for volume; 2 (CC-2D) or 4 (CC-3D) source LEDs
Cable Type: Cat 5e UTP
Power: PoE (Power over Ethernet)
Max Controllers: 16 per CSP processor / 32 per ControlSpace network
Connector: 1 × RJ-45
Operating Temp: 0 °C to 40 °C (32 °F to 104 °F)
Mounting: 1-gang box (NA, EU, JP)
Compatible With:
CSP-428, CSP-1248
ControlSpace ESP-880A, EX-1280, EX-440C, EX-1280C
DS4 & ES1 Ceiling Audio Solutions
PowerMatch networked amplifiers
