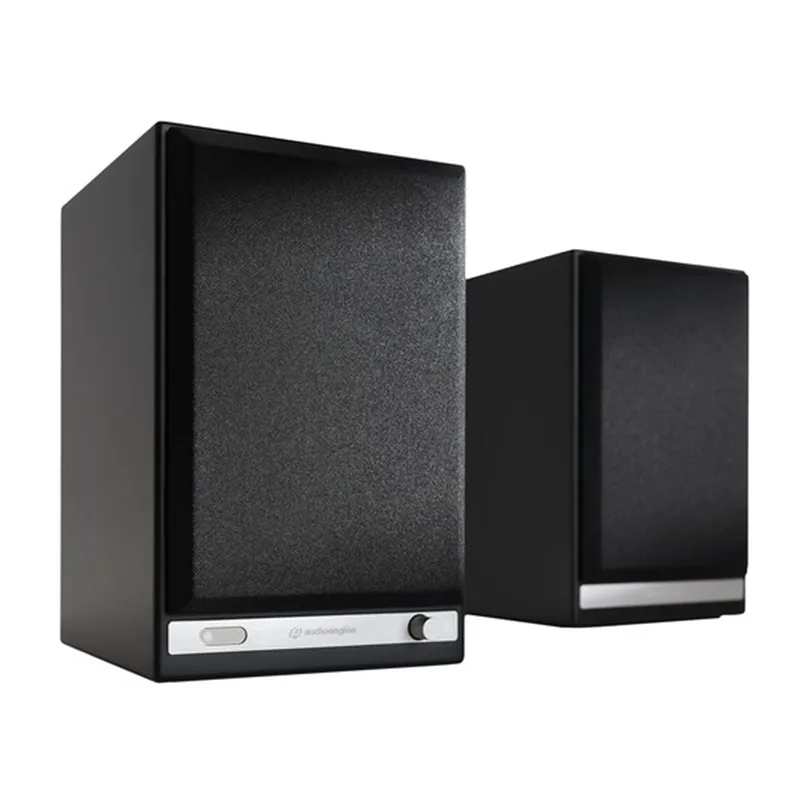

Audioengine HD5 Wireless Bookshelf Speaker System

Audioengine

Engineered for the music lover, the gamer and anyone else that demands audio perfection, the HD5 Home Music System delivers up to 24 Bit audio at an exhilarating 150 Watts. It’s not just loud though. The sound is so crisp and so clear, you’ll hear new details in music you never heard before.

KEY FEATURES

  • Up to 150W RMS
  • 2-Way Rear-Ported Design
  • 5″ Aramid Woofers & 0.75″ Silk Tweeters
  • 50 Hz to 22 kHz Frequency Response
  • Up to 100′ Bluetooth aptX HD Streaming
  • Optical, RCA, and 3.5mm AUX Inputs
  • Hi-Fi Class AB Amplification
  • 24-bit AKM AK4396 DAC
  • 0.7″ Thick MDF Cabinets
  • Video Shielded for Use Near Displays

$899

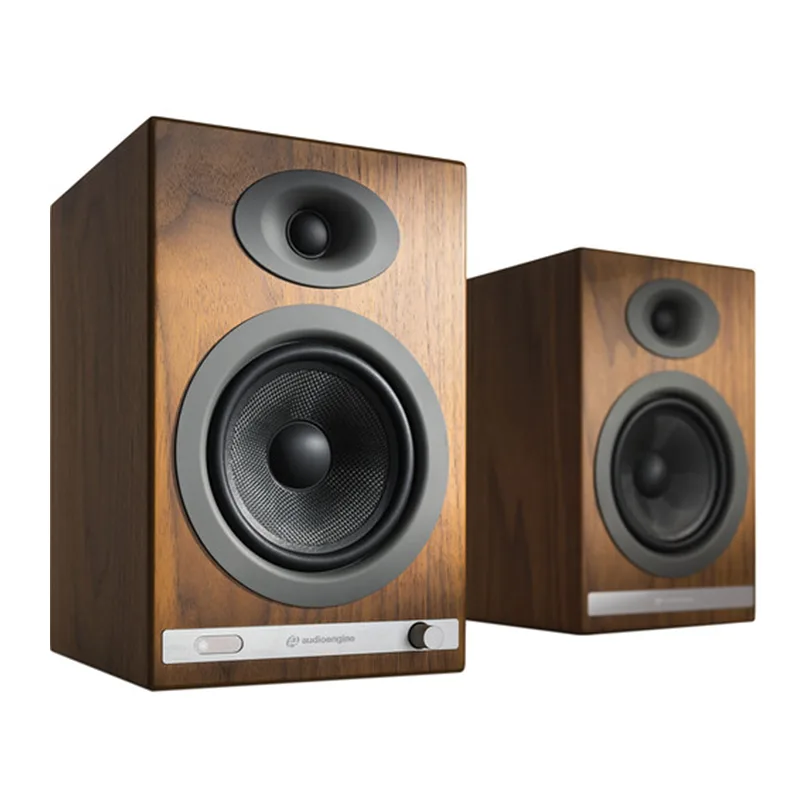

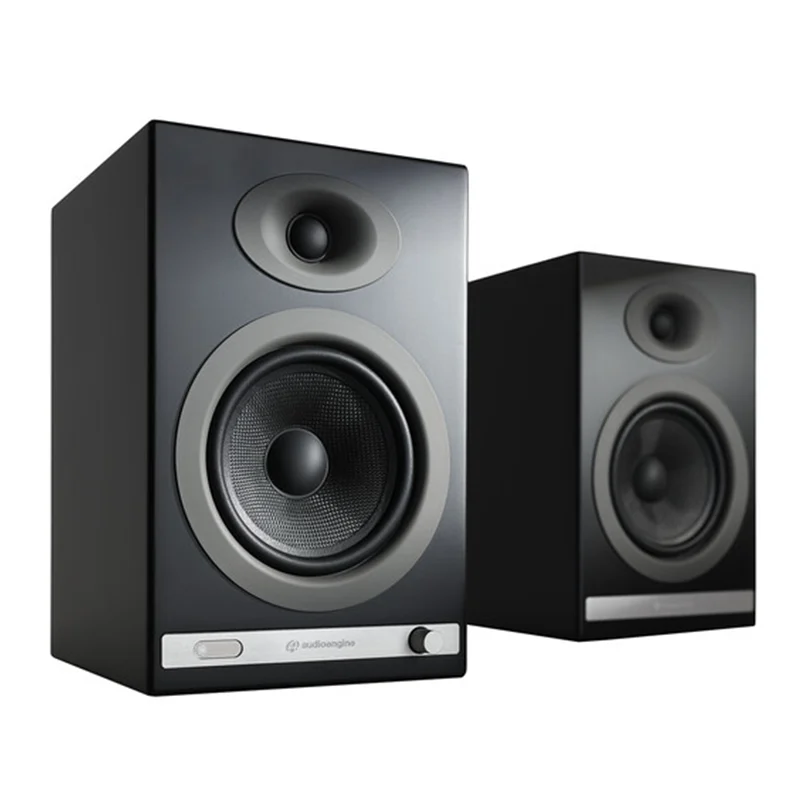

Durable and High-Quality Drivers

The 0.75″ silk tweeters are ferrofluid-cooled, while the 5″ Aramid fiber woven glass composite material with rubber surrounds are housed in cast aluminum frames, which offer high rigidity and optimized heat dissipation. These durable materials are made to not only deliver exceptional quality with details you may never have heard before from your favorite songs, but they are also meant to hold their shape and performance over time. Even when driven at high levels of power.

Thick Cabinets

The drivers inside are nothing without well-designed cabinets to house them. The HD5 music system utilizes 0.7″ thick high-resin MDF walls. This design keeps vibrations low, which rounded edges reduce high-frequency diffraction effects on the front baffles, while also adding attractive aesthetics. This all works on conjunction with tuned rear port slots to help those internal drivers fill your room with clear and balanced sound.

Component Protection

Ensuring that the components of the HD5 speakers are properly protected, Audioengine incorporates various protection technologies, such as output current limiting, thermal over-temperature, power on/off transient protection, and a replaceable main fuse.

Additional Features
  • 24-bit DAC can be used via Bluetooth or optical input to bypass TV or component DACs

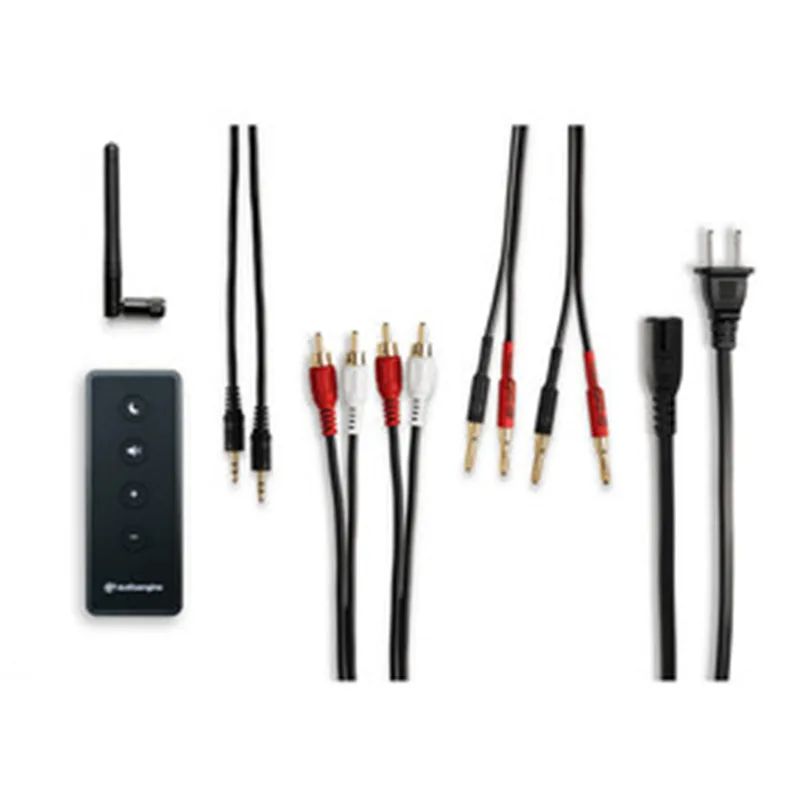

  • Optical, RCA, and 3.5mm AUX inputs
  • Subwoofer output
  • Gapless core toroidal transformers for lower noise
  • Drivers are video shielded for close placement to displays and hard drives
  • Brushed metal hardware and front volume control
  • Removable neodymium magnetic grilles



SKU: AUDIOENGINE-HD5 Categories: ,
Weight12968 g
Dimensions182 × 280 × 198 mm
Brands

Color

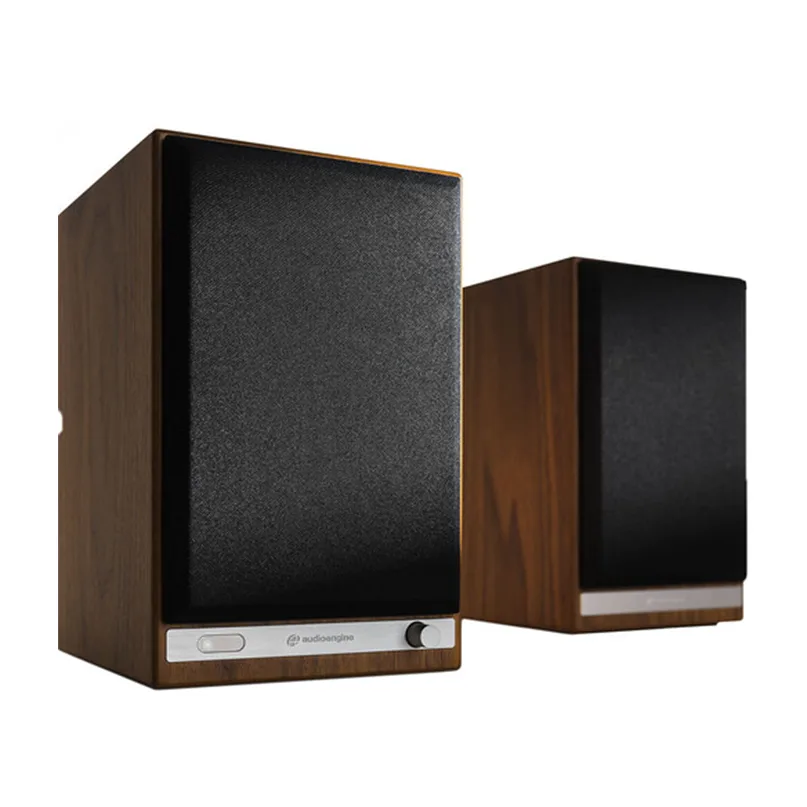

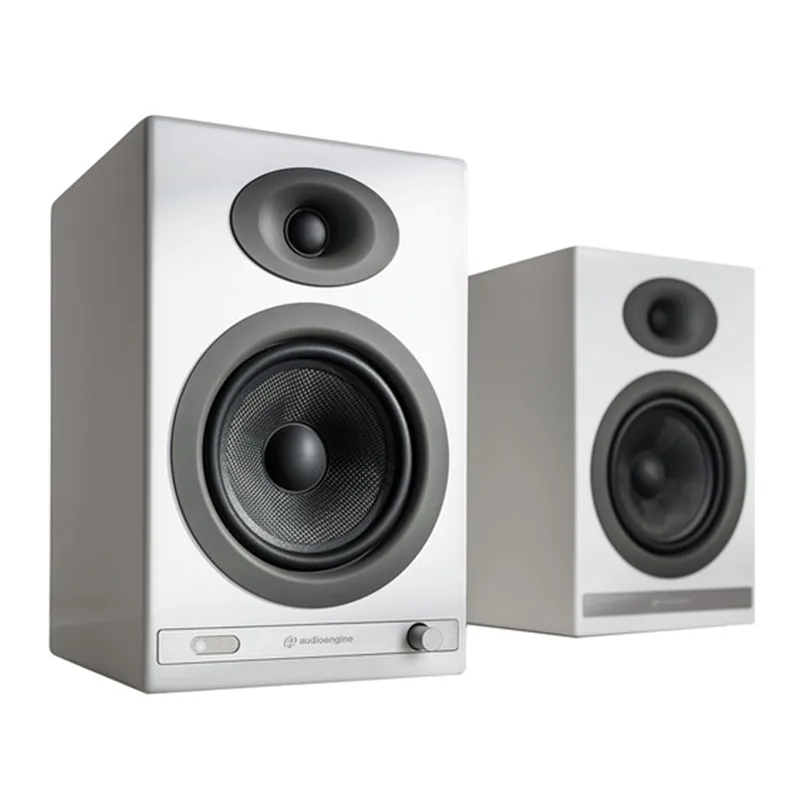

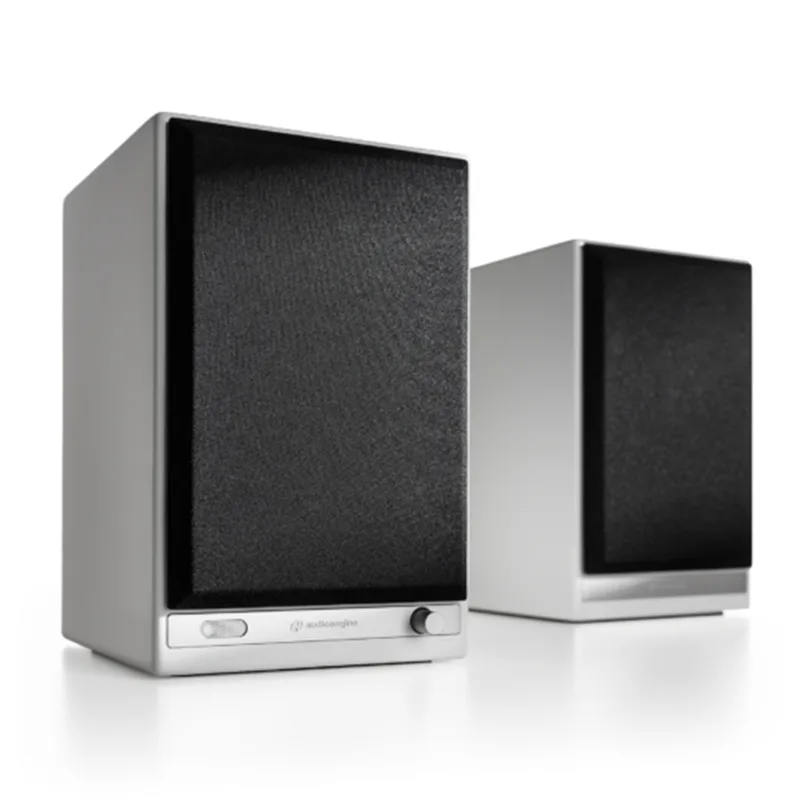

Black, Walnut, White

Speaker System
Speaker Configuration
2-Way
Amplifier Power Rating
100 W RMS
150 W Peak
Drivers
1x 5″ / 127 mm Woven Aramid-Fiber/Kevlar Woofer (per Speaker)
1x 0.75″ / 19.05 mm Silk Tweeter (per Speaker)
Ports
1x Rear-Firing (per Speaker)
Frequency Response
50 Hz to 22 kHz (±1.5 dB)
Magnetic Shielding
Yes

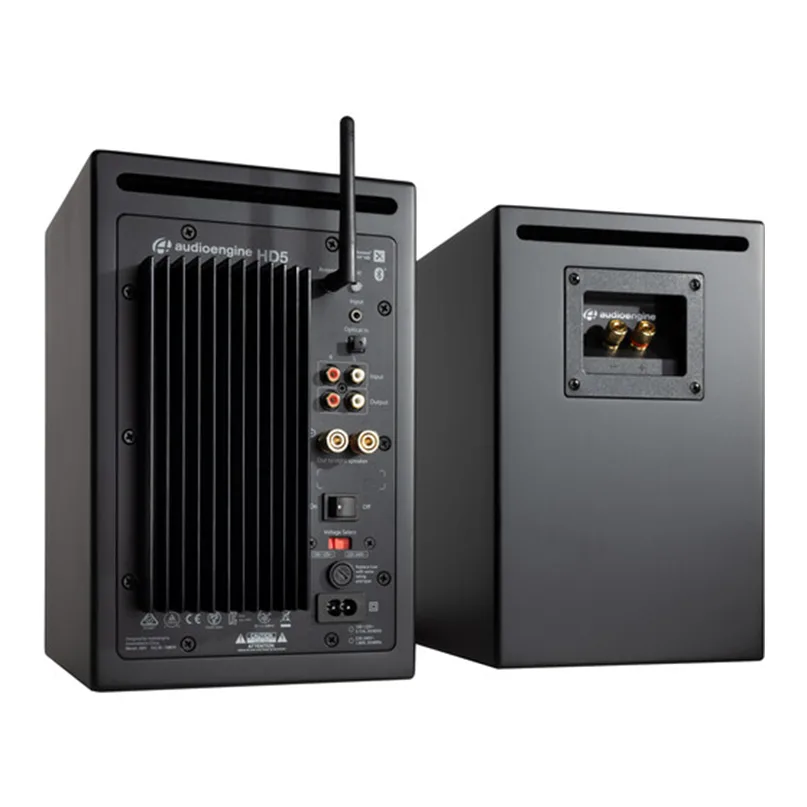

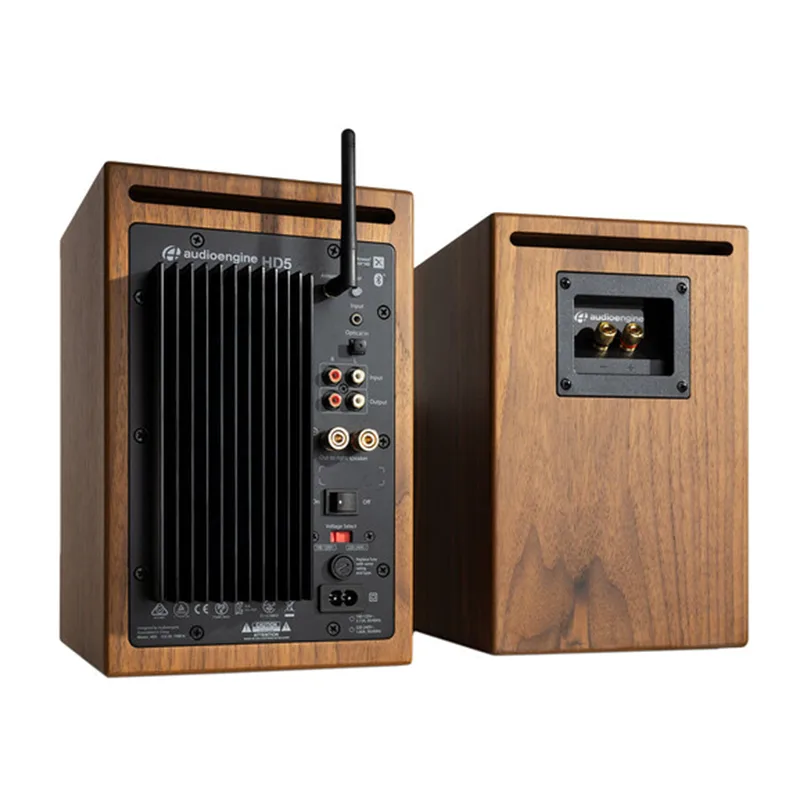

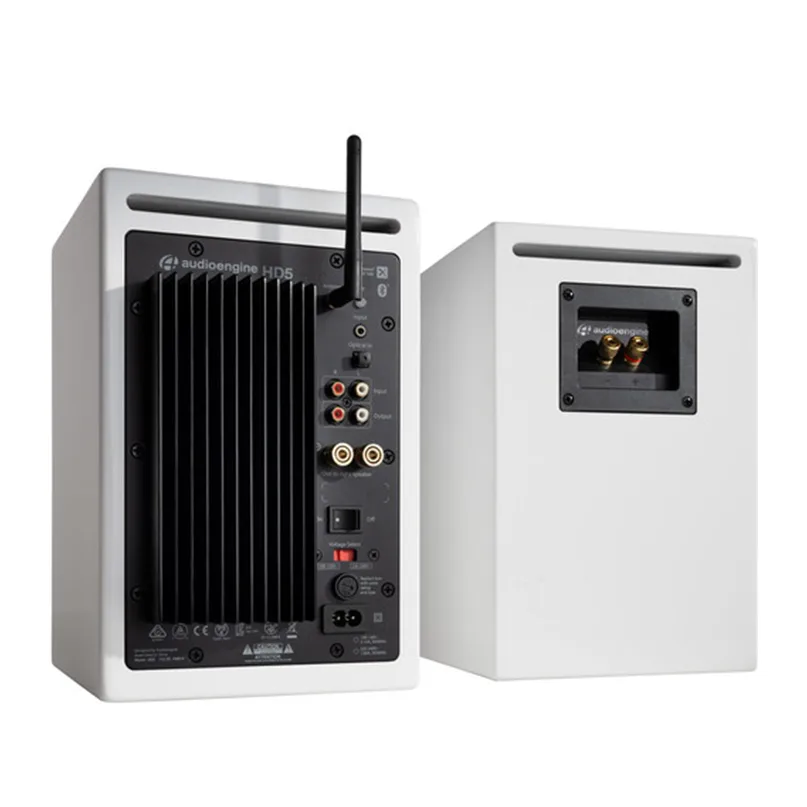

Inputs/Outputs
1x TOSLINK Optical Input (Audio)
1x RCA Input (Audio)
1x 1/8″ / 3.5 mm Input (Audio)
1x RCA Output (Audio)
2x Binding Post Pair Thru (to Other Speaker)
Amplifier Class
1 x Class-AB
SNR (Signal-to-Noise Ratio)
95 dBA
THD (Total Harmonic Distortion)
< 0.05%
Input Impedance
48 Kilohms (RCA)
48 Kilohms (1/8″ / 3.5 mm)
Wireless Connectivity
Wireless Connection Protocols
Bluetooth
Bluetooth
5.0
Wireless Range
100′ / 30.5 m (Device to Speaker)
Supported Audio Codecs
AAC, aptX, aptX HD, SBC
Power
Input Power
115 to 240 VAC, 50 / 60 Hz
Power Consumption
10 W (Idle)
4 W (Standby)
Compatibility
Supported Sample Rates
Up to 192 kHz / 24-Bit
Physical
Color
Real Wood Veneer Woodgrain
Placement & Mounting Options
Tabletop/Bookshelf
Cabinet Material
MDF
Grille
Cloth (Removable)
Operating Conditions
32 to 95°F / 0 to 35°C at 5 to 95% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Dimensions
7.2 x 11 x 7.8″ / 18.2 x 28 x 19.8 cm (Each)
Weight
Left:
17.6 lb / 8.0 kg
Right:
12.1 lb / 5.5 kg
