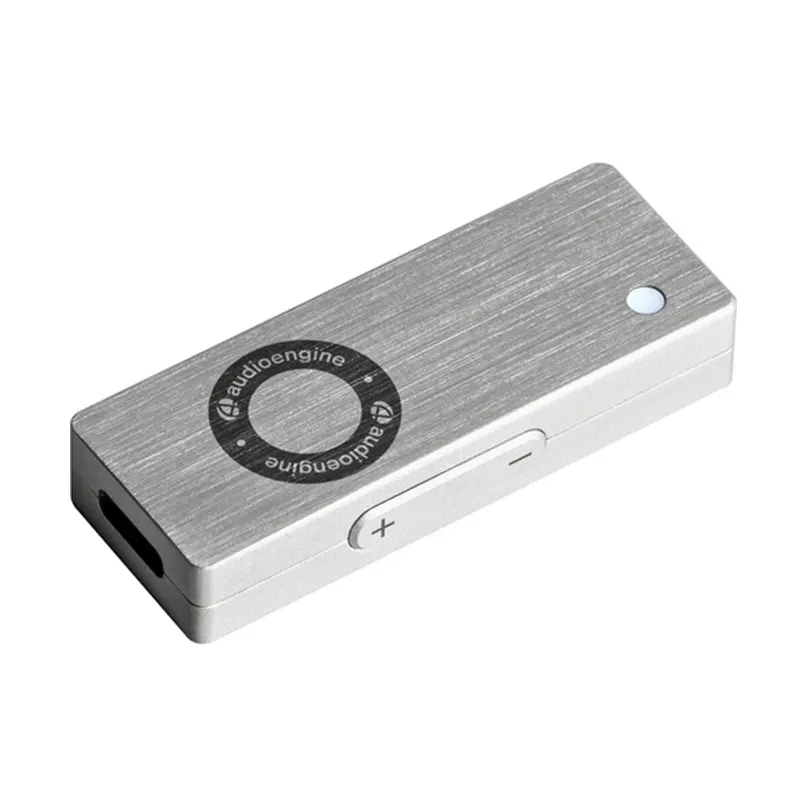

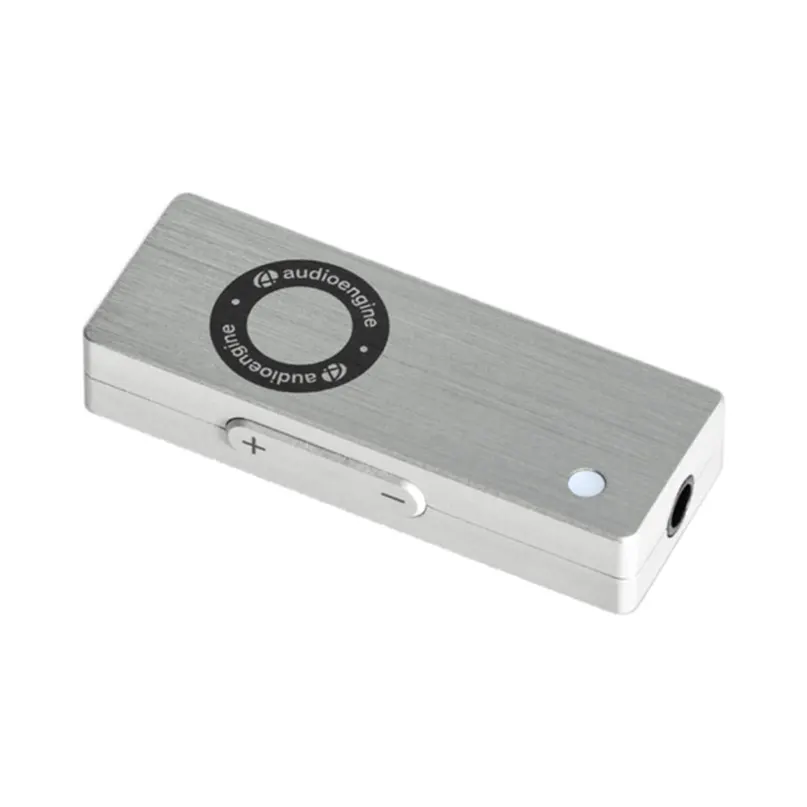

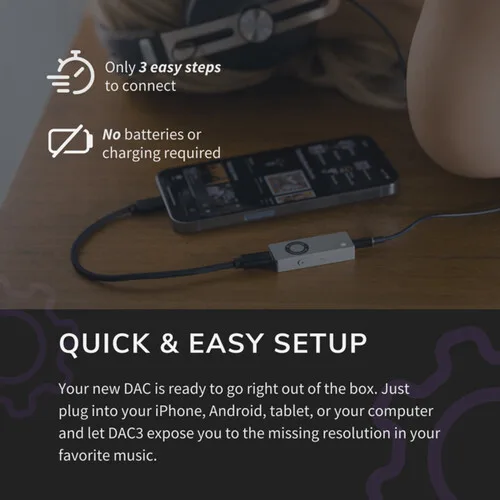

Audioengine DAC3 Portable Headphone Amplifier & DAC

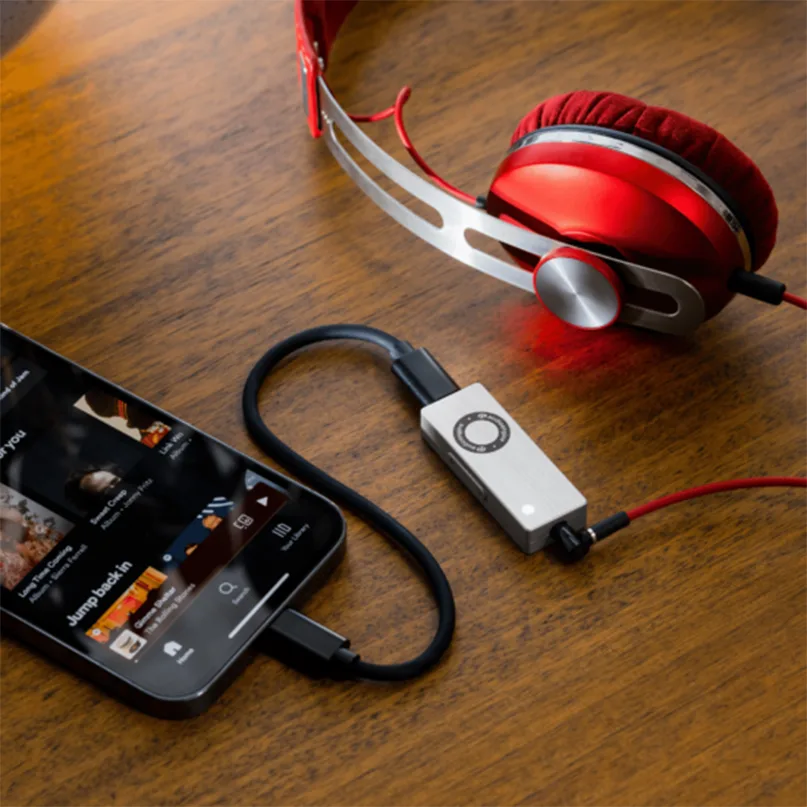

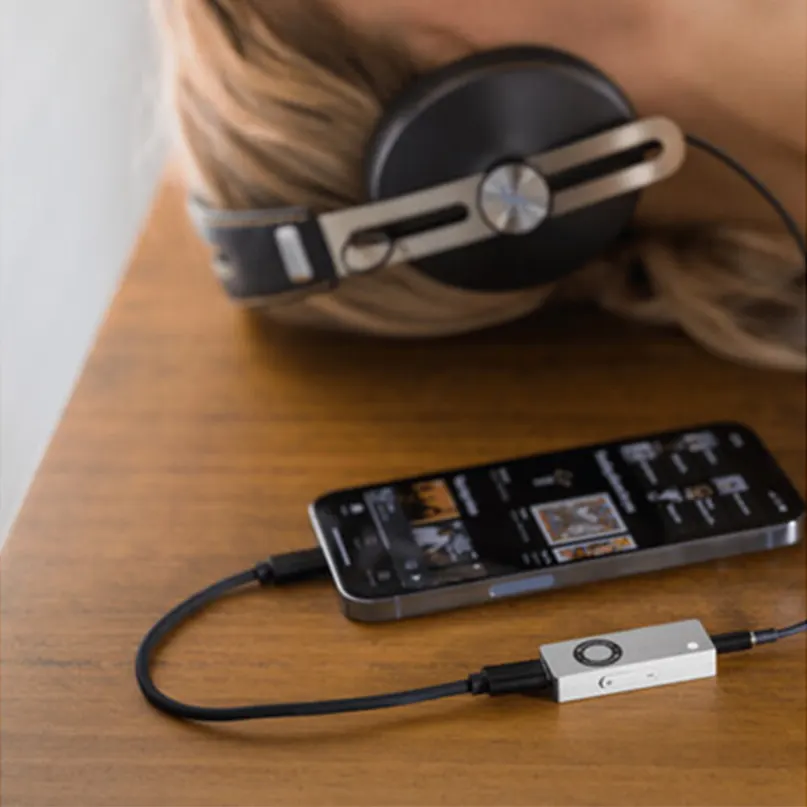

The DAC3 is a mobile 32-bit digital-to-analog converter and headphone amplifier that delivers high-quality audio from a digital source, like your phone, tablet, or computer to an analog source, like headphones or speakers. The DAC3 will level up your streaming experience, whether at home or on the go.

KEY FEATURES

Ultraportable Audiophile Headphone Amp

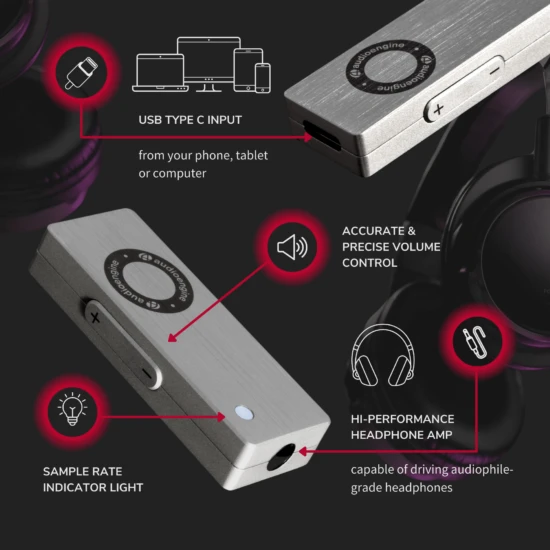

Digital Audio Converter with USB-C Input
High-Quality 32-Bit / 96 kHz Audio
High-Performance Headphone Amp
3.5mm Headphone / Line-Out Jack
10 Hz to 25 kHz Frequency Response
Mac or Windows Compatible
Powered via USB Port, No Battery Needed
Includes Lightning and USB Cables

SKU: AUDIOENGINE-DAC3 Categories: Amplifiers & Mixers, Headphone Accessories

Weight	500 g
Dimensions	48 × 15 × 10 mm
Brands	Audioengine
Color	Black

Number of Headphone Channels	Single Channel
Recommended Headphone Impedance	12 Ohms
Headphone Output Power	Not Specified by Manufacturer
Digital Chipset	DAC: 1 x ESS ES9281A
Analog Circuitry	Preamplifier Op-Amp: 1x LME49726
EQ	No
Display	No

Connectivity

Analog Audio I/O	1x 1/8″ / 3.5 mm Line/Headphone Output
Digital Audio I/O	No
USB I/O	1x USB-C (Digital Input, Power/Charging Input)

Performance

Frequency Response	10 Hz to 25 kHz ±0.5 dB
Maximum Output Level	1/8″ / 3.5 mm Outputs: 2 Vrms
Impedance	Headphone Outputs: < 10 Kilohms
SNR	> 116 dB
Crosstalk	< -110 dB

Digital Audio

Sample Rates	USB-C Input: 384 kHz (PCM) 5.6 MHz (DSD)
Bit Depths	Up to 32-Bit

Compatibility

Mobile Device Compatibility

Android Smartphone
Android Tablet
iPad
iPhone

Power

Power Requirements	USB Bus Power
DC Input Power	5 VDC at 200mA
Current Consumption	200 mA

Physical

Operating Conditions	32 to 95°F / 0 to 35°C at 5 to 95% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C

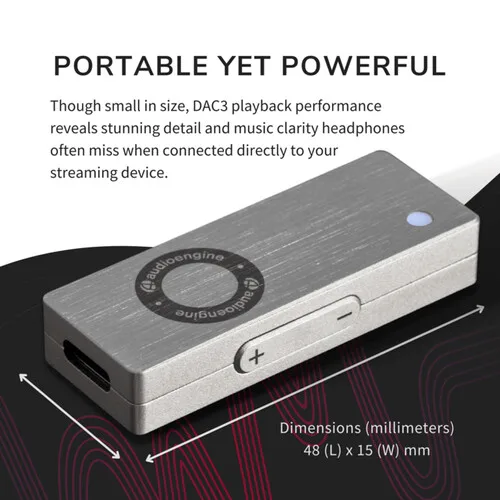

Dimensions	1.9 x 0.6 x 0.4″ / 48 x 15 x 10 mm
