ASL MPS10-G0-AN
ASL MPS10-G0-AN
The MPS10 is a powerful and flexible 10 button paging and or emergency microphone which can provide live, store-and-forward, and recorded message broadcast into user selected zones. Including EN 54 compliant emergency functions and all mandatory indicators and controls.

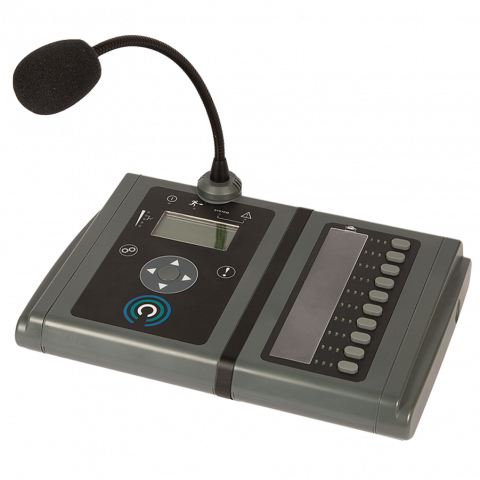

It consists of a sloping desk console with a flexible gooseneck paging microphone, graphic LCD display, and silent operation ‘Touch to Talk’ touch pad PTT button. PA zone selection is provided by the Select buttons or by using the rotary selector and graphic LCD display. There is also a VU bar-graph which displays the microphone signal level.
$3,800
ASL MPS10-G0-AN
The MPS10 is a powerful and flexible 10 button paging and or emergency microphone which can provide live, store-and-forward, and recorded message broadcast into user selected zones. Including EN 54 compliant emergency functions and all mandatory indicators and controls.
It consists of a sloping desk console with a flexible gooseneck paging microphone, graphic LCD display, and silent operation ‘Touch to Talk’ touch pad PTT button. PA zone selection is provided by the Select buttons or by using the rotary selector and graphic LCD display. There is also a VU bar-graph which displays the microphone signal level.
The MPS range can be connected directly to either one or two ASL audio routers using analogue audio and a serial link. All interconnecting cabling and the microphone capsule are continuously monitored.
As well as the main microphone gooseneck, there is a 3.5mm jack plug connection for an auxiliary audio input, such as for background music, and for connection of a microphone headset. A general purpose local contact input and output enables use with PTT foot switches and external speak-now indicators.
The MPS microphone range can be used freestanding on a desk as standard, or can be permanently mounted with the optional mounting bracket MPX. This bracket gives options to mount the microphone flat on a wall, built onto consoles or fixed on desks.
The MPS can be purchased with a fist microphone replacement for the standard gooseneck if required. Please contact Zenitel for more details.
Desk Mount Paging and Emergency Mic with 10 Buttons – Gooseneck
- EN 54-16 CERTIFIED
- DESK MOUNT GOOSENECK MICROPHONE
- 10 PHYSICAL BUTTONS
- LIVE AND STORE-AND-FORWARD SUPPORTED
- ANALOGUE CONNECTIVITY
- DUAL HOSTING
- HARDWARE FALL BACK SUPPORTED
- LOUDSPEAKER WITH PA ZONE LISTEN-IN FUNCTION
- BACKGROUND MUSIC INPUT AND CONTROL
- HEADSET SUPPORT
- LIVE, STORE-AND-FORWARD, AND RECORDED
- COMPATIBLE WITH THE VIPEDIA RANGE
| Weight | 1500 g |
|---|---|
| Dimensions | 250 × 175 × 98 mm |
| Brands |
Specifications:
Power Supply
Input Voltage ……………………. 18-40 V DC or PoE 42-57V DC
Current Consumption @ 24V (nom.- sounder & LEDs off)
MPS01 ……………………………………………………………….. 90mA
Each additional MPX10 …………………………………………… 5mA
Current Consumption @ 24V (max. – sounder & LEDs on)
MPS01 ……………………………………………………………… 165mA
Each additional MPX10 ………………………………………….55mA
Analogue ASL PAVA System Connection
Audio…. Dual Analogue Balanced Audio/0dBu nominal/220Ω
Control Data …………………………….. EIA RS485 / 19200 baud
Hardware Bypass Interface……….. 2 x PTT & 2 x Speak Now
Listen In Input ……………….. Single Analogue Balanced Audio
IP ASL PAVA System Connection (Not EN54 Compliant)
Connection……………………. 1 x 100BASE- T Ethernet (RJ45)
Audio Format …………………………. ASL PMC Compliant VoIP
Listen In Input ……………………………….Single ASL PMC VoIP
PoE …………………………………………………………………. 42-57V
General
Key Switch …………………………… .Emergency mode selection
LCD Display …… 128 x 64 pixels / 58 mm x 29 mm view area
Additional Connectivity
Music Input ….. 1 x 3.5mm jack balanced / unbalanced stereo
Output (Speakers, Headset)…… 1 x 3.5 mm jack unbalanced
Contact Input (Ext. PTT)…………………………..1 x 3.5 mm jack
Contact Output (Speak Now)1 x 3.5 mm jack (open-collector)
Mechanical
Dimensions (H x W x D mm)
MPS01 …………………. 58 x 175 x 200 (excluding gooseneck)
Each additional MPX10 ………………………………… +110mm W
Weight
MPS01 ……………………………………………………………….. 1.0kg
Each additional MPX10 ……………………………………….. +0.2kg
Environmental
Temperature (Storage) ………………………….. -20 °C to +55 °C
Temperature (Operation)……………………….. -10 °C to +55 °C
Humidity Range …………………….. 0% to 95% non-condensing
IP Rating ……………………………………………………………… IP30
Compatibility
DSP Audio Routers …………… VIPEDIA Range, IPAM Range,
& VAR Range
ASL Control Systems ……….. VIPA Range, iVENCS Range &
VIPA-WS Range
