AV Matrix Switchers
Showing all 7 results
- AV Matrix Switchers, Matrix Switchers

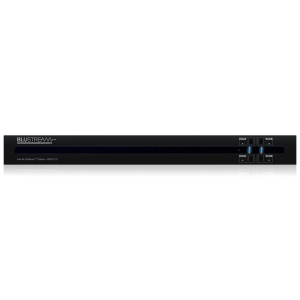

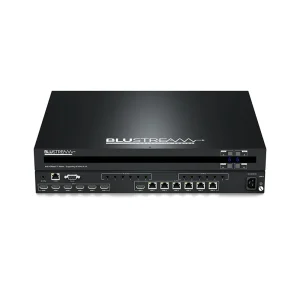

Blustream C66CS Contractor 6×6 HDBaseTâ„¢ CSC Matrix
The Blustream C66CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).
KEY FEATURES
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p video up to 70m
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Web interface module for control and configuration of matrix
- Supports bi-directional IR on all HDBaseTâ„¢ outputs
- Control via front panel, IR, RS-232 and TCP/IP
SKU: C66CS - AV Matrix Switchers

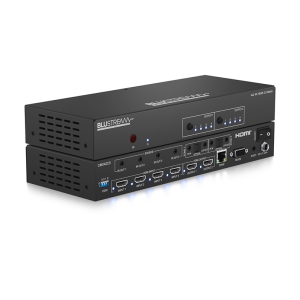

Blustream CMX42CS 4×2 4K HDMI 2.0 Matrix
The Blustream CMX42CS is a compact yet powerful 4×2 HDMI 2.0 matrix switch engineered for high-performance AV signal routing in demanding custom installation environments. Delivering premium 4K video support and advanced integration capabilities, it represents unmatched value and flexibility for professional AV installers.
KEY FEATURES
- HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
- Control via front panel, TCP/IP, IR and RS-232
- IR routing
- Supplied with Blustream 5V IR receivers and emitters
- 3rd Party drivers available for all major control brands
- Advanced EDID management • HDCP 2.2 support
SKU: CMX42CS - AV Matrix Switchers

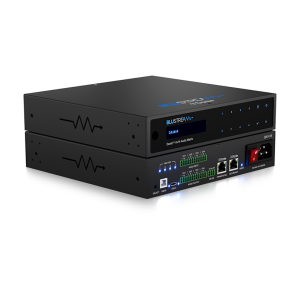

Blustream DA1414 Audio Matrix with Dante® and USB
The Blustream DA1414 is an advanced PoE+ powered audio matrix designed for efficient and seamless distribution of various audio sources across a multi-zone setup. The unit offers advanced audio processing features such as independent routing and mixing of mono audio signals, volume control, balance adjustments, and up to an 8-band parametric equaliser, including high/low shelf, and high/low pass filtering on both the input and output stages.
KEY FEATURES
- 14 x 14 audio Matrix with Dante/AES67, balanced / unbalanced analogue, and USB audio connectivity
- Supports separation (mono) of all audio channels with independent control resulting in switching of up to 14×14 audio feeds
- Analogue audio inputs support both balanced and unbalanced audio, with MIC line level signals
- MIC line level supports 48V Phantom power
- Selectable USB audio between USB-C and USB Type-B inputs with USB audio class 2.0 support
- Supports: volume, balance, 8 band parametric equaliser control with high/low shelf and high/low pass filter, per input and output channel
- Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
SKU: DA1414 - AV Matrix Switchers

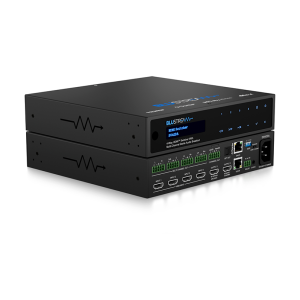

Blustream SW42DA 4-Way HDMI Switcher with Multi-Channel Dante Audio Breakout
The Blustream SW42DA is a 4-Way HDMI switch that has been designed to breakout, convert, and downmix embedded Dolby Audio or DTS Audio within a HDMI switching environment.
KEY FEATURES
- HDMI Dolby Atmos and DTS-HD 7.1 down-mixing to 2ch balanced and unbalanced audio ouputs
- Supports ARC/eARC including breakout to 7.1ch and 2ch downmixed analogue, and Dante audio
- Supports: 44.1, 48, 88.2 & 96kHz Dante® sample rates @ 24-bit
- Configurable Dante® device latency using Dante® Controller
- Supports AES67 RTP audio transport
- Control via TCP/IP, web-GUI, RS-232, front panel buttons, and infrared
- HDCP 2.3 compliant with advanced EDID management
SKU: SW42DA - AV Matrix Switchers

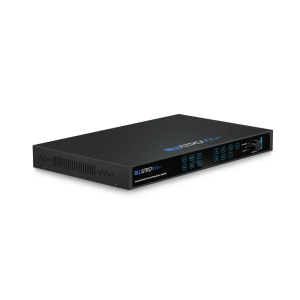

Blustream AMF42AU 4×2 Multi-Format Presentation Switcher with Seamless Switching
Blustream AMF42AU 4×2 Multi-Format Presentation Switcher delivers seamless 4K switching with independent video scaling, USB-C input, MIC mixing, and dual HDMI/HDBaseT outputs for professional AV environments.
SKU: BLU-AMF42AU
