AV Matrix Switchers

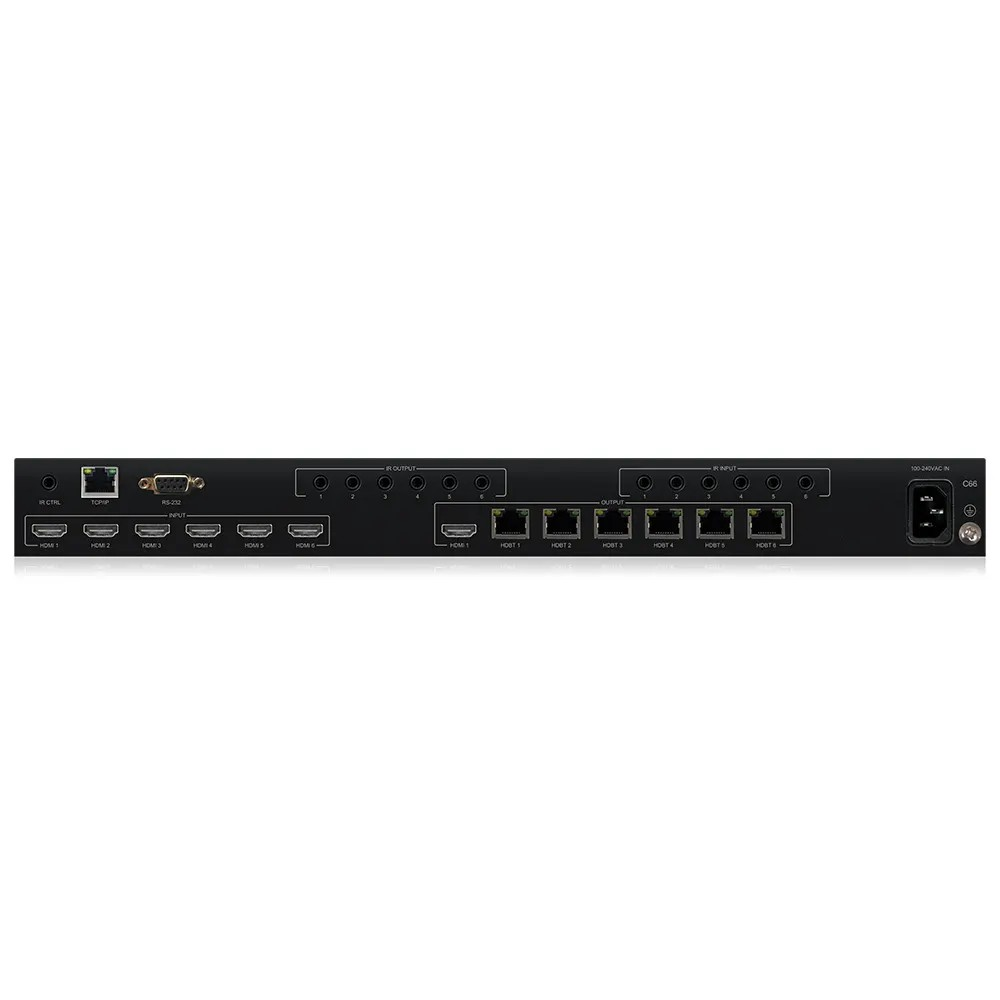

JANDS 6 x 6 HDBaseT Matrix KIT Contractor 70M @ 1080P – 6 x HDBaseT Out + 1 HDMI
6-input, 6-output HDBaseT matrix kit with 70m PoC support, HDMI/IR routing, and web configuration
$3,399
The JANDS Contractor 6×6 HDBaseT Matrix Kit delivers outstanding performance and value for custom AV installations. Supporting HDMI, bi-directional IR, and PoC (Power over Cable), it transmits 1080p signals up to 70 meters over a single CAT cable. With 6 HDMI inputs and simultaneous HDBaseT/HDMI output on channel 1, it also features a web browser interface for intuitive control and configuration—ideal for residential or commercial AV environments requiring high-definition distribution and centralized control.
| Weight | 5000 g |
|---|---|
| Dimensions | 384 × 437 × 53 mm |
| Brands |
Specs:
Video Inputs: 6 x HDMI Type A (19-pin, female)
Video Outputs: 1 x HDMI Type A + 6 x HDBaseT RJ45
RS-232 Serial Port: 1 x DB-9 (female)
IR Inputs: 7 x 3.5mm stereo jack
IR Outputs: 6 x 3.5mm mono jack
Rack Mountable: Yes (1U height, rack ears included)
Power Supply: Internal 100–240V AC
Operating Temp: -5°C to +55°C
Storage Temp: -25°C to +70°C
Web browser interface for control
Simultaneous HDBaseT and HDMI output on Output 1
Supports PoC and bidirectional IR
Box Contents:
1 x C66 Matrix
1 x Rack Mount Kit
1 x Remote Control
6 x IR Emitters
7 x IR Receivers
1 x Serial Cable (DB9 to DB9)
1 x IR Control Cable (3.5mm to 3.5mm)
1 x Quick Reference Guide
IEC Power Cable(s)
