Quadral CASA CI6 In-Wall Speaker

Quadral

Quadral CASA CI6 In-Wall Speaker

Overview

Open chamber design principle

Strong cast aluminum front baffle optimizes noise vibration and sound reflection

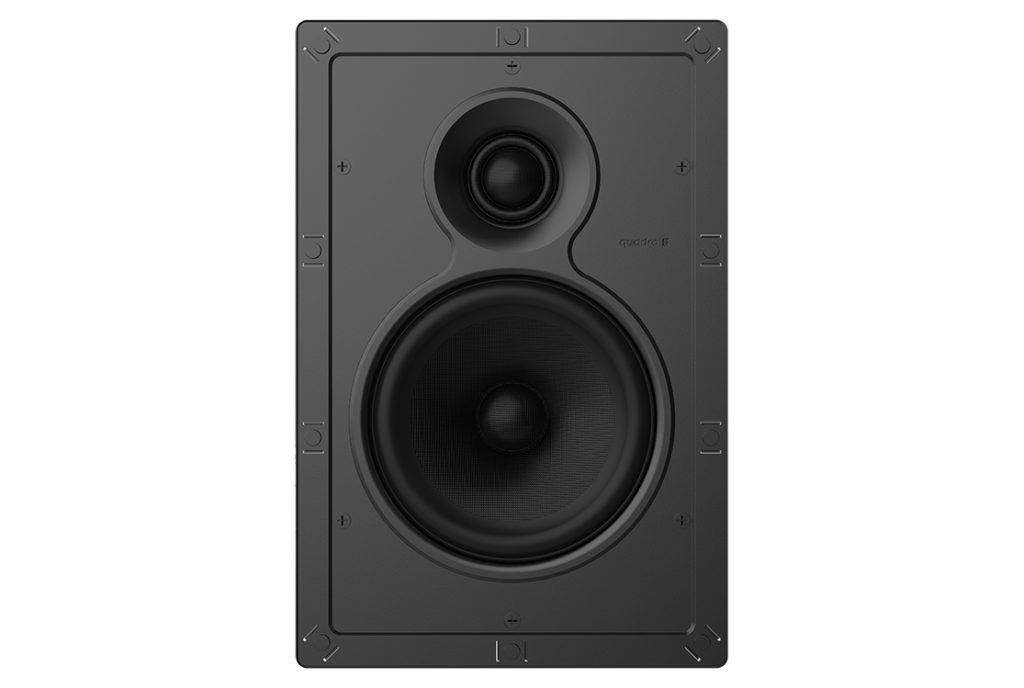

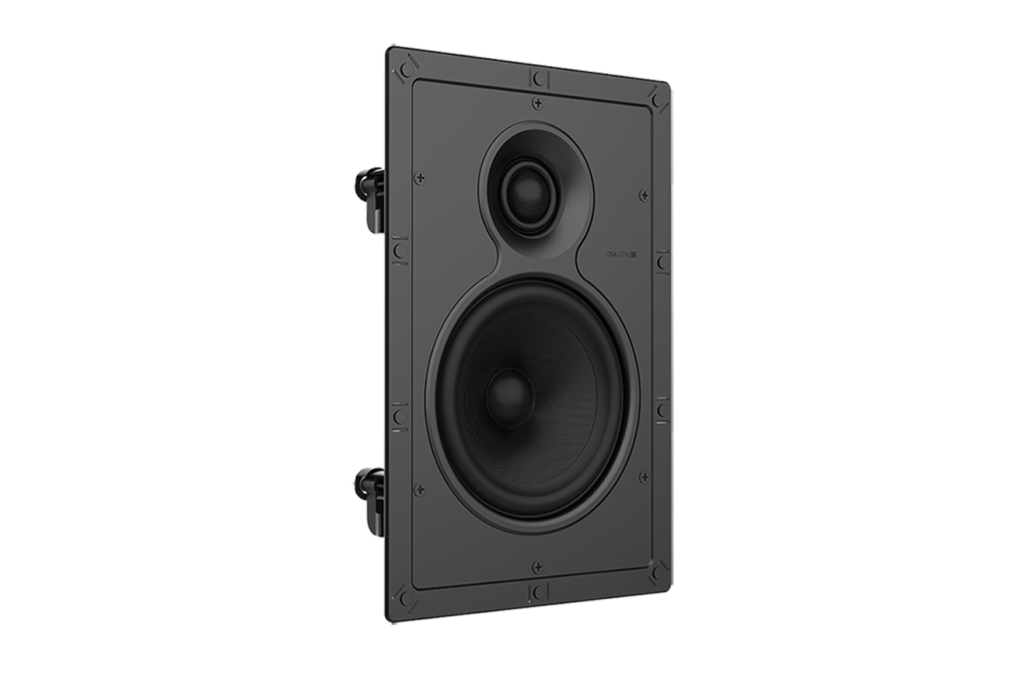

Woven glass fiber cone with powerful driver (90mm dimension of motor structure), strong magnet and large voice coil (32mm)

The tweeter’s waveguide achieves controllable dispersion and provides an optimized off-axis and power response

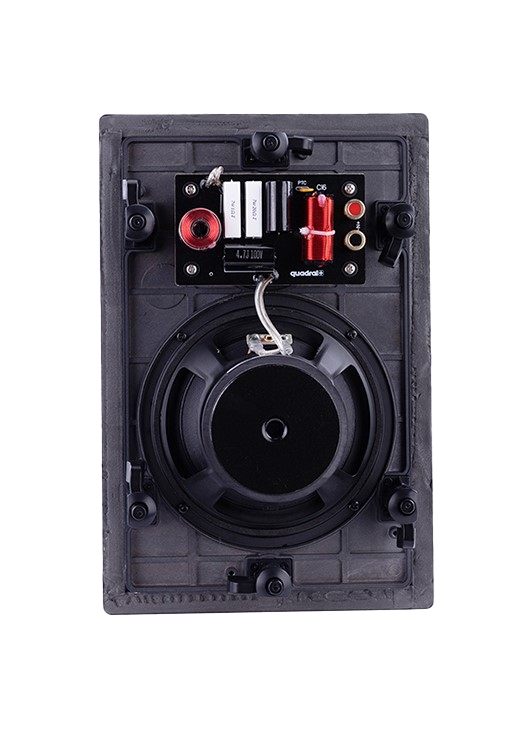

Gold plated speaker connecting terminal

Magnetic cover, paintable, slim sized

$950

Quadral CASA CI6 In-Wall Speaker

Overview

Open chamber design principle

Strong cast aluminum front baffle optimizes noise vibration and sound reflection

Woven glass fiber cone with powerful driver (90mm dimension of motor structure), strong magnet and large voice coil (32mm)

The tweeter’s waveguide achieves controllable dispersion and provides an optimized off-axis and power response

Gold plated speaker connecting terminal

Magnetic cover, paintable, slim sized

  • Type: 2-way
  • Nominal / Music power: 60/120 W
  • Frequency range: 65′-20’000 Hz
  • Crossover frequency: 2,800 Hz
  • Nominal impedance: 8 Ohm
  • Tweeter: Ø 30 mm, silk dome
  • Woofer: Ø 165 mm
SKU: quadral-casa-ci6 Categories: ,
Weight 2330 g
Dimensions 85 × 222 × 332 mm
Brand

Specifications

  • Type 2-Way
  • Principle Open
  • Nominal/music power (W) 60/120 W
  • Frequency response (Hz) 65…20.000 Hz
  • Crossover frequency (Hz) 2.800 Hz
  • Efficiency (dB/1W/1m) 88 dB
  • Impedance (Ohm) 8
  • Tweeter 30 mm Ø Seiden-Kalotte
  • Woofer 165 mm Ø
  • Size (h x w x d) in cm 33,2 x 22,2 x 8,5cm
  • Installation depth 7,8 cm
  • Mounting cutout 30,3 x 19,5 cm
  • Weight in kg 2,33 kg
  • Color White
