PATHOS ADRENALIN

Pathos Acoustics

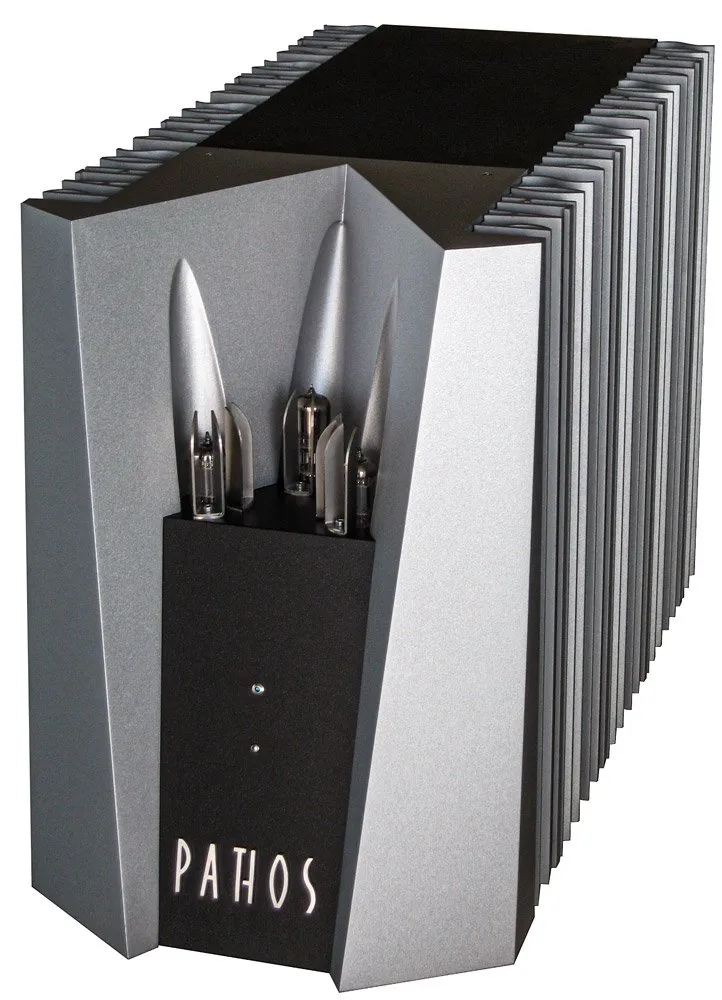

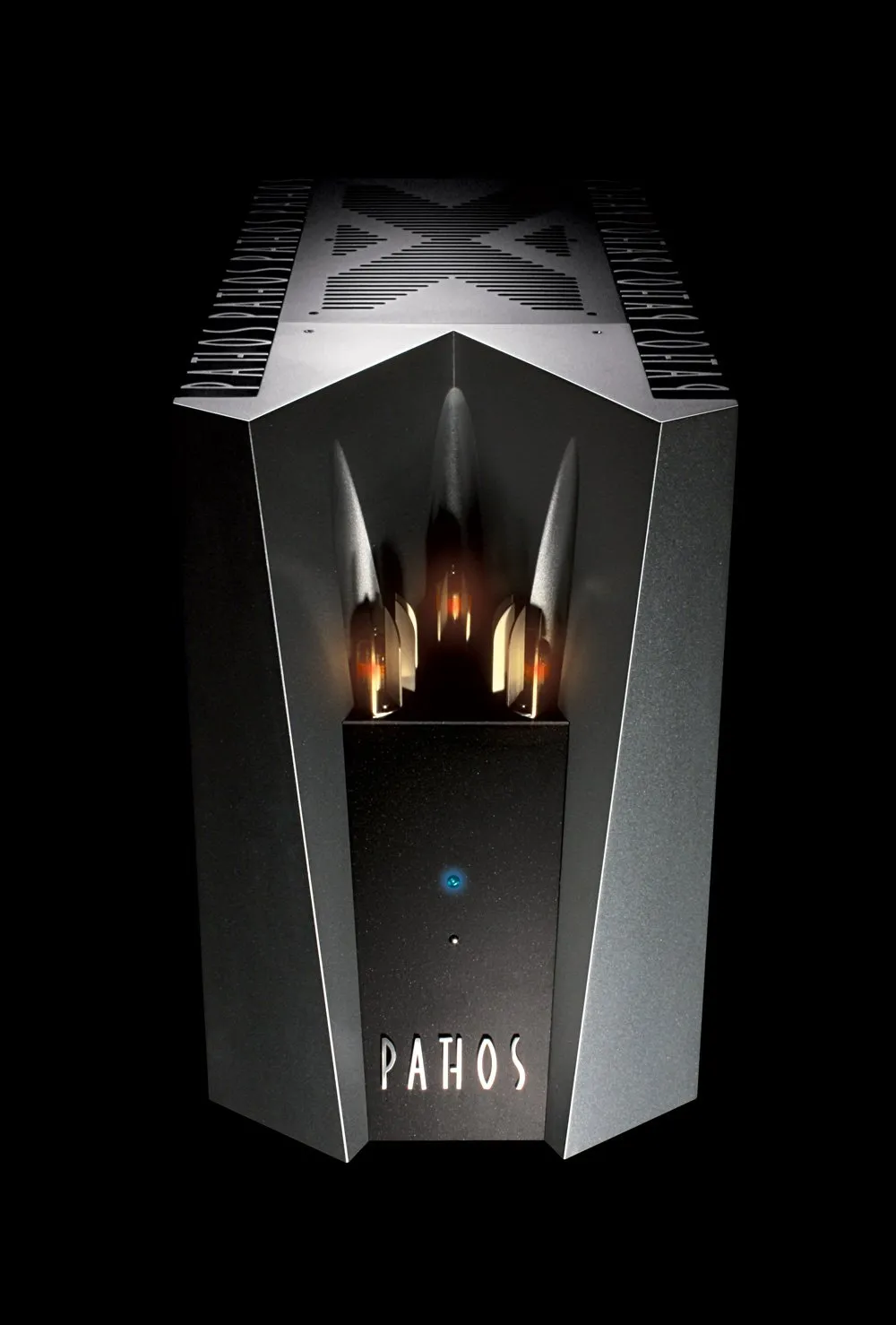

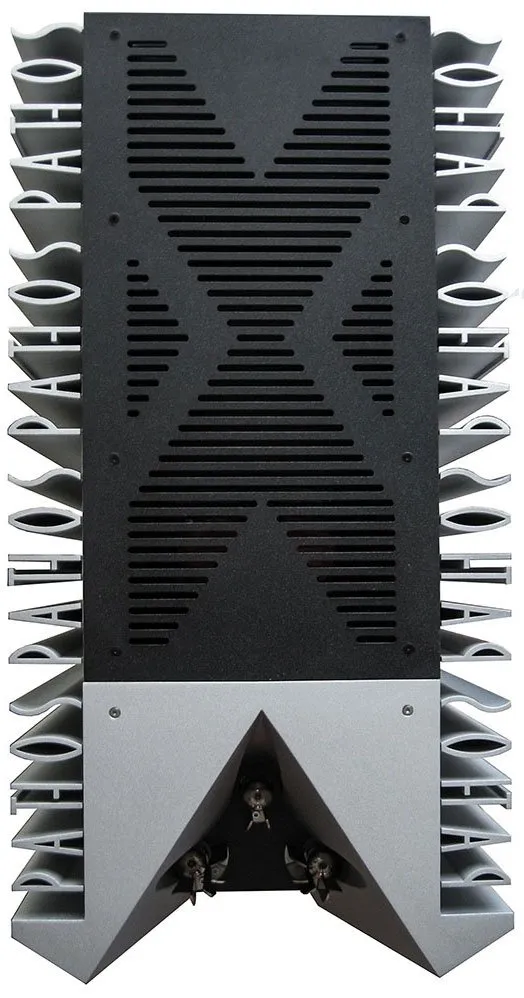

PATHOS ADRENALIN

Pure Class A Monoblock Power Amplifier

Overview

This is the amp Kevin has chosen for his flagship home system. A tube input stage is coupled with the the apex of Pathos’ InPol technology for the output stage

$59,000

PATHOS ADRENALIN

Pure Class A Monoblock Power Amplifier

Overview

This is the amp Kevin has chosen for his flagship home system. A tube input stage is coupled with the the apex of Pathos’ InPol technology for the output stage

One hundred and fifty pounds of sheer audio heft combined with the delicacy and imaging of tubes. It’s hard to imagine, but Pathos has done it.

This giant power amplifier represents the apex of InPol technology. InPol (Inseguitore Pompa Lineare – Linear Pump Follower) is a Pathos patented system that allows for much greater output in pure Class A. This fully balanced circuit design uses a single solid-state component in follower configuration, with a high-current gain and voltage gain together.

In the Adrenaline it results in a sensitive and refined amp with astonishing output capability. A unitary gain power buffer is controlled by a tube amplification stage using three double triodes, two ECC83/12AX7 and one 6H30. The first stage generates voltage amplification, and the second is a buffer with a common anode with the 6H30 that drives two groups of power MOSFETs. The result is a very powerful, extremely linear amplifier without global feedback.

Pathos, as usual, did not skimp on any components and has used an optimum inductive/capacitive switching power supply able to perfectly filter the electrical current of the two power stages. This reactance filter weighs over 26 pounds!

SKU: pathos-adrenalin Categories: ,
Weight 80000 g
Dimensions 680 × 300 × 440 mm
Brand

Type entirely balanced, Double INPOL® power amplifier in pure class A
Feedback absent
Inputs 1 balanced XLR
1 unbanced RCA
Input inpedance 100 Ohm
Outputs power 200 W @ 8 Ohm
Frequency response 5Hz ÷ 60kHz ± 0.3 dB
Signal/noise ratio 98 dB
THD 0,01% @ 1W
0,2% @ 50W
Absorption at rest 475 W
Tubes 1 x 6H30
2 x 12AX7 ECC83
Damping factor 25
Rise time 6µs
Fall time 6µs
Slew rate 11V/µs
Dimensions :
Size 68cm (D) x 30cm (W) x 44cm (H)
Weight 80Kg
