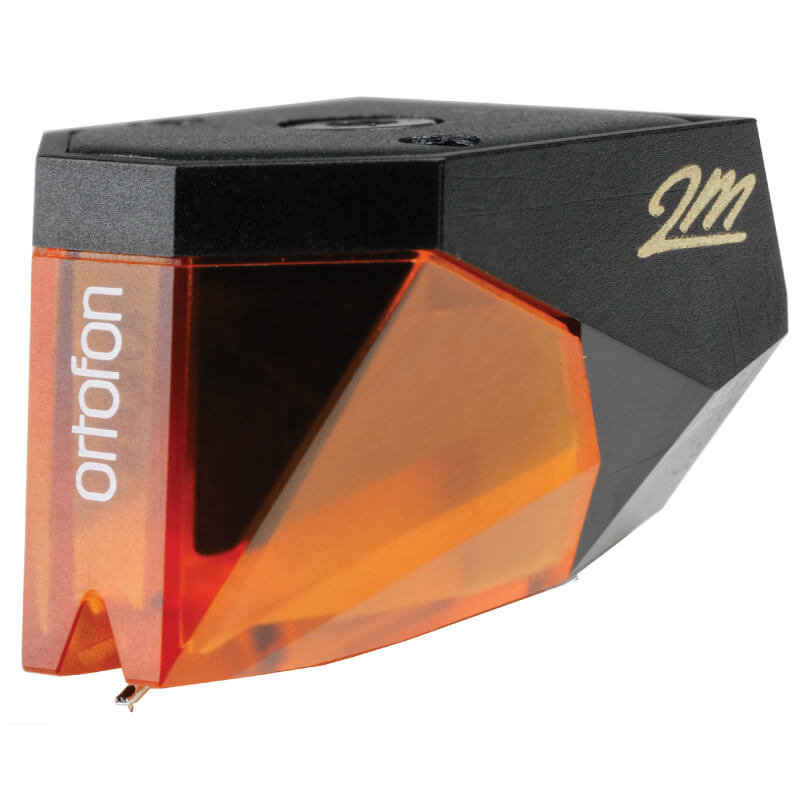

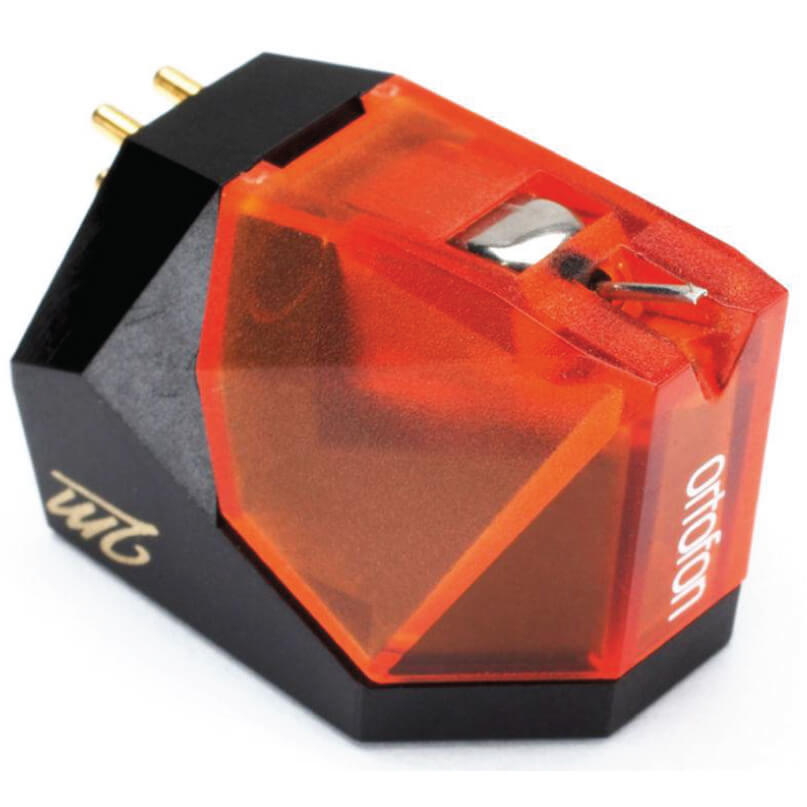

Ortofon 2M Bronze Moving Magnet Cartridge

Ortofon

  • The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications
  • The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black
  • The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire

$729

2M Bronze Magnetic Cartridge

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound.

The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

Weight7.2 g
Dimensions28 × 19 × 18 mm
Brands

Output voltage at 1000 Hz, 5cm/sec.5 mV
Channel balance at 1 kHz1 dB
Channel separation at 1 kHz26 dB
Channel separation at 15 kHz15 dB
Frequency range at – 3dB20-29.000 Hz
Frequency response20-20.000 + 2 / – 0 dB
Tracking ability at 315Hz at recommended tracking force80 µm
Compliance, dynamic, lateral22 µm/mN
Stylus typeNude Fine Line
Stylus tip radiusr/R 8/40 µm
Tracking force range1.4-1.7 g (14-17 mN)
Tracking force, recommended1.5 g (15 mN)
Tracking angle20°
Internal impedance, DC resistance1.2 kOhm
Internal inductance630 mH
Recommended load resistance47 kOhm
Recommended load capacitance150-300 pF
Cartridge colour, body/stylusBlack/Bronze
