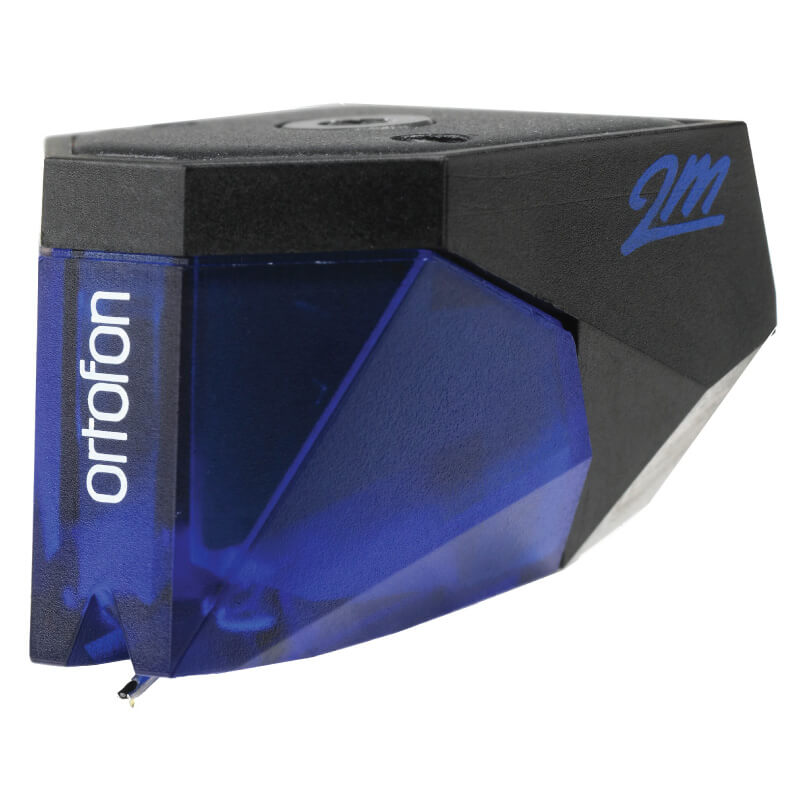

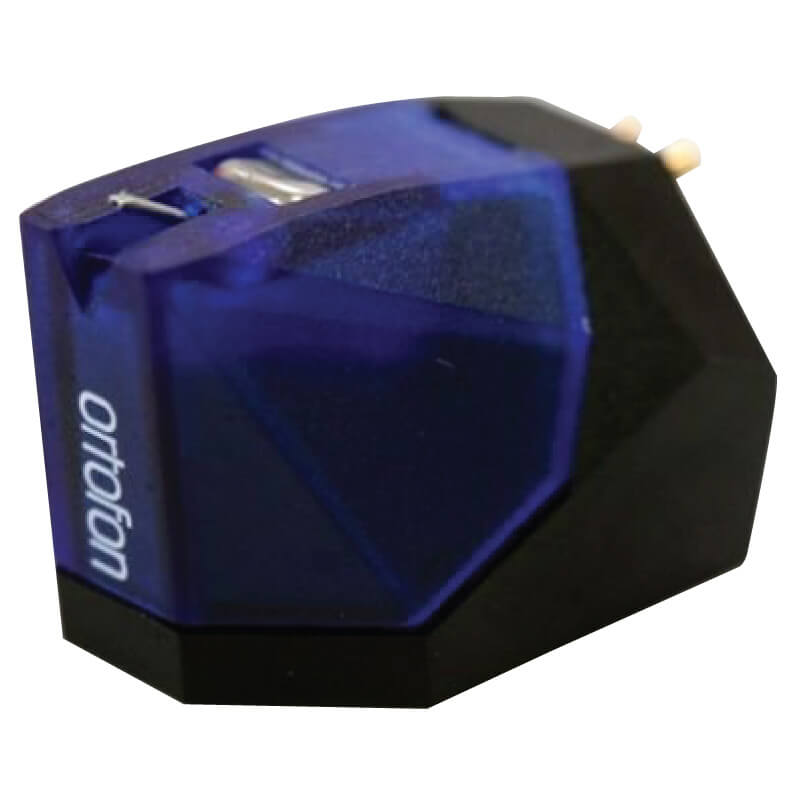

Ortofon 2M Blue Moving Magnet Cartridge

Ortofon

2M Blue is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

  • An improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.
  • Nude Elliptical diamond and?split pole pins with a copper wire
  • The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.

$369

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, with minimal coloration.

The 2M series of cartridges feature Ortofon?s trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by?Ortofon, and were originally presented in the 500 series and Super OM series.
We have?optimised?the design of the 2M series for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of?phono?preamps.

The 2M Blue Series features:
? an improved engine, which provides an increased output of 5.5mV
? Nude Elliptical diamond and?split pole pins with a copper wire

2M?Headshell?features:
? Universal mount fitting a wide range of?tonearms
? The?headshell?body is manufactured from a special compound used by the Medical industry, ensuring high rigidity while reducing unwanted vibration
? Length?52mm.?Headshell?with a 2M cartridge pre-mounted provides correct?Baerwald?alignment with?Ortofon?TA-110/210, likewise with the major part of?tonearms?with universal mount
? Weight 16.9g, weight with a 2M cartridge pre-mounted 23g
? Exclusive plug-and-play solution

Weight 7.2 g
Brand

Output voltage at 1000 Hz, 5cm/sec 5.5 mV
Channel balance at 1 kHz 1.5 dB
Channel separation at 1 kHz 25 dB
Channel separation at 15 kHz 15 dB
Frequency range at – 3dB 20-25,000 Hz
Frequency response 20-20,000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.6-2.0g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1.3 kOhm
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Blue
