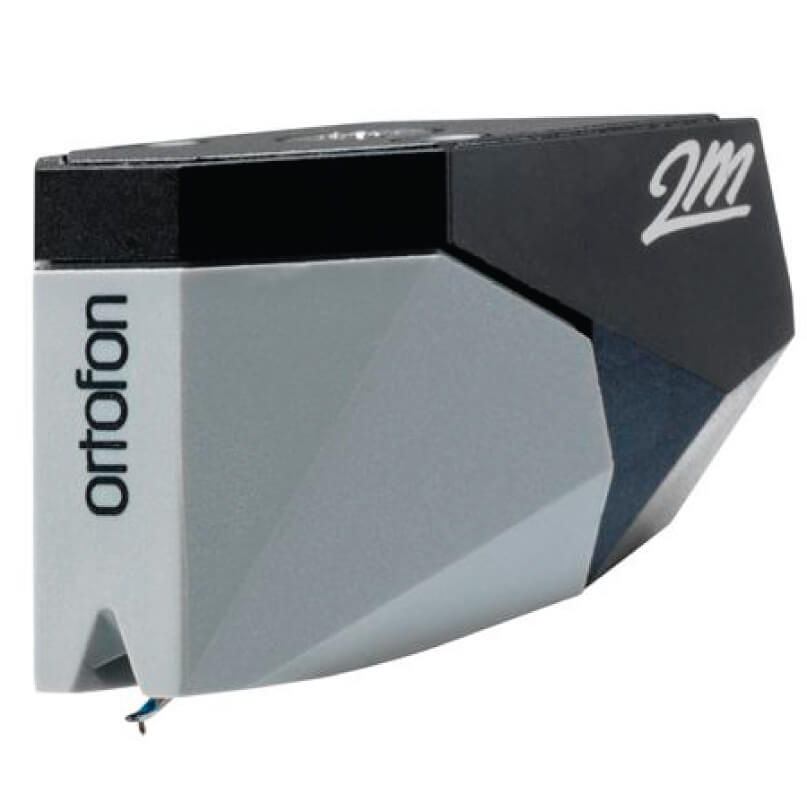

Ortofon 2M 78 Moving Magnet Cartridge

Ortofon

  • An improved engine, which provides a high level of sonic accuracy
  • Spherical diamond that is perfect for playback of 78 rpm shellac records
  • The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances
  • 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins

$209

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer M?ller Jensen Design ? the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record?s surface, the 2M?s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn?t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon?s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

The 2M series of cartridges features Ortofon?s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Weight 7.2 g
Dimensions 28 × 19 × 18 mm
Brand

Output voltage at 1000 Hz, 5cm/sec. 4 mV
Frequency range at – 3dB 20-20.000 Hz
Frequency response 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force 70 µm
Compliance, dynamic, lateral 18 µm/mN
Stylus type Spherical
Stylus tip radius R 65 µm
Tracking force range 1.6-2.0g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Internal impedance, DC resistance 700 Ohm
Internal inductance 350 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Tracking angle 20°
Cartridge colour, body/stylus Black/Grey
Cartridge weight without screws 7.2 g
2M PnP MkII cartridge with integrated headshell weight 20 g
2M PnP MkII cartridge with integrated headshell length 52 mm
