Onkyo TX-RZ70 11.2-Channel AV Receiver

Onkyo

Onkyo TX-RZ70 11.2-Channel AV Receiver

Introducing the latest, greatest home theater receiver from Onkyo, the TX-RZ70. With audio processed by built-in ESS Sabre DACs and video connections that accept 8K Ultra HD signals, this feature-packed Onkyo delivers audiophile and cinephile performance. It’s a centerpiece for your whole home audio and video system, too, with three-zone wired capabilities and more wireless zones with the addition of a Sonos Port and other Sonos gear.

$3,749 $4,999

Onkyo TX-RZ70 11.2-Channel AV Receiver

Introducing the latest, greatest home theater receiver from Onkyo, the TX-RZ70. With audio processed by built-in ESS Sabre DACs and video connections that accept 8K Ultra HD signals, this feature-packed Onkyo delivers audiophile and cinephile performance. It’s a centerpiece for your whole home audio and video system, too, with three-zone wired capabilities and more wireless zones with the addition of a Sonos Port and other Sonos gear.

Ideal for Dolby Atmos® or a multi-zone sound system

The Onkyo TX-RZ70 can power up to 11 speakers at the same time. Use all 11 channels in a 7.2.4 or 9.2.2 Dolby Atmos or DTS:X® system. Or, go with a more conventional surround sound setup, and repurpose the extra channels for sound in up to two additional zones.

At 140 watts per channel (2-channels driven), the TX-RZ70’s high-powered amplifier will drive your speakers with precision and impact. If you have unused surround channel connections, you can bi-amp a pair of compatible front right and left speakers for a powerful front soundstage.

Precise room calibration

Dirac Live® is one of the finest room correction systems in the industry, and it comes standard on the ‘RZ70. Use the included microphone to run a basic version of this software within Onkyo’s mobile app. Or pick up a third-party USB mic (sold separately) and run the Dirac software on your laptop to take more precise sound measurements in your room. After the software completes the test, it then creates a personalized EQ correction curve for all your speakers, made to overcome your room’s specific acoustic characteristics. As an optional upgrade, Dirac Live Bass Control is available to calibrate your subwoofers for the lowest, cleanest bass possible.

Klipsch Optimize Mode

If you have Klipsch Reference or Reference Premiere speakers, the ‘RZ70 is made for you. Select your speakers for each channel in the setup menu, and the Klipsch Optimize Mode automatically selects the correct crossover mode for the best performance. Your Klipsch speakers have never sounded better!

Advanced video processing for movies and more

Onkyo equipped the Onkyo TX-RZ70 with the latest video technology. All six of its rear-panel HDMI inputs support 8K and 4K video content — perfect for high-quality sources like a 4K Ultra HD Blu-ray player, an Apple TV, or your next-gen gaming system. (The front-panel HDMI input supports 4K/60 video content.)

IMAX Enhanced Mode

IMAX Enhanced Mode brings you all the excitement of an IMAX-mastered movie. This mode brings you clean, clear picture quality, just as the filmmakers intended. It even provides a stretched aspect ratio for more picture on your screen.

Many music options

Stream music with Bluetooth or play Wi-Fi networked sources like Apple AirPlay 2, Chromecast built-in, DTS Play-Fi and Spotify® Connect. Use the optical or coaxial digital inputs to connect a CD player, or break out your vinyl collection and connect your turntable to the dedicated phono input. For uncompromising sound quality, you can play high-resolution music files from a USB stick or a networked computer.

Integrate Sonos with your system

This “Works with Sonos” certified receiver lets you tie your home theater into a whole-house audio system when you add a Sonos Port. Control the audio on your receiver using the Sonos app on your mobile device, PC, or Mac® for a whole-home Sonos experience. The app will even turn on the TX-RZ70 and select the correct input.

Weight 25000 g
Dimensions 505 × 437 × 202 mm
Brand

Features & specs

Amplification
Number Of Channels 11
Stereo RMS Power (watts) 140
THD in Stereo 0.08 %
Frequency Bandwidth (stereo) 20-20k Hz
Minimum Impedance L/R 4 ohms
Minimum Impedance Center 4 ohms
Minimum Impedance Surround 4 ohms
Amplifier Class AB
Bluetooth
Version Info Built-in
Receiver Mode Yes
Bluetooth Built-in
Transmitter Mode Yes
AAC Playback Yes
aptX Playback Yes
aptX-HD Playback Yes
LDAC Playback No
Features
Apple AirPlay AirPlay 2
Chromecast built-in Yes
DTS Play-Fi Yes
Alexa-compatible Yes
Google Assistant-compatible Yes
App Remote Control Yes
Built-in Radio Tuner AM/FM
On-Screen Display Thru HDMI
Room Correction DIRAC Live or AccuEQ
Multi-room Audio/Video
Powered Multi-room Audio Output Yes
Preamp Multi-room Audio Output Yes
Multi-room HDMI Output Yes
Total Number of Zones 3
Playback from Digital Audio Inputs Yes
Playback from Streaming Sources Yes
Surround Processing
Dolby Digital DD, TrueHD, DD+
Dolby Atmos Yes
Dolby Atmos Height Virtualization Yes
DTS DTS, HD, HDMA, ES, 96/24
DTS:X No
DTS Virtual:X Yes
High-res Audio Playback
From Network Yes
From USB Thumb Drive (USB-A) Yes
From Computer (USB-B) No

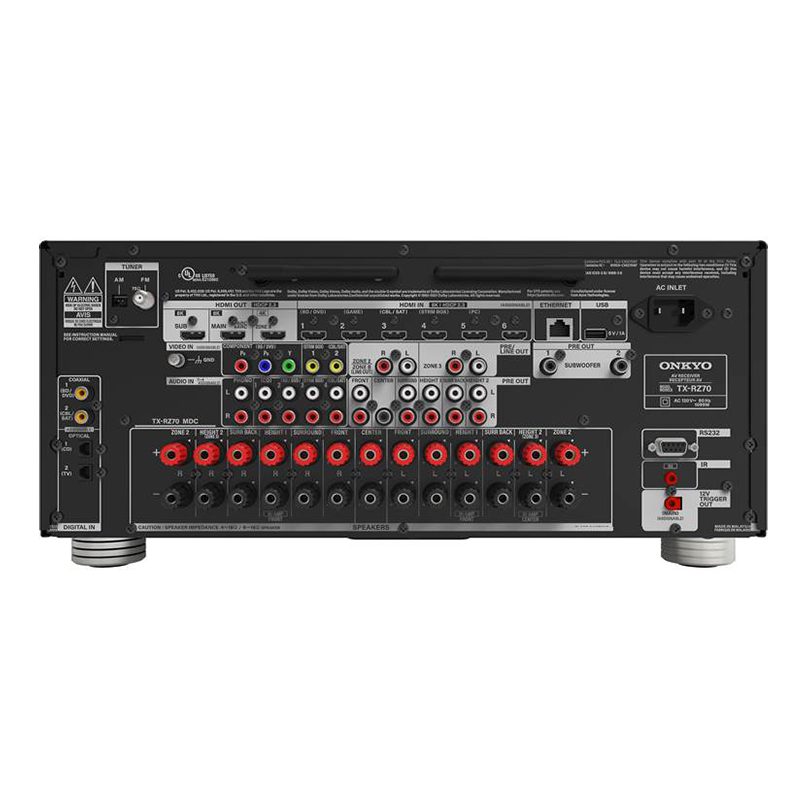

Inputs
Audio-Video Inputs 7
Number of HDMI Inputs 7
Component Video Inputs 1
Audio-only Inputs 2
Phono Input 1
Optical Digital Inputs 2
Coaxial Digital Inputs 2
Multi-Channel Analog Input No
Ethernet Port Yes
USB Connections Y
Outputs
HDMI Monitor Outputs 3
Component Video Monitor Outputs None
Optical Digital Outputs None
Coaxial Digital Outputs None
Subwoofer Outputs 2
Discrete Subwoofer Outputs Yes
Multi-channel Preamp Output Yes
Main Speaker Output Pairs 1
Speaker Terminals Binding Posts
HDMI Features
HDMI Version 2.1
VRR (Variable Refresh Rate) Yes
ALLM (Auto Low Latency Mode) Yes
4K/120Hz-Capable Inputs 6
Audio Return Channel eARC supported
Video Upscaling To 4K and 8K
HDR (High Dynamic Range) Support
HDR10 Yes
HDR10+ Yes
HLG Yes
Dolby Vision Yes
Other Info
DAC Bit Depth 24-bit
DAC Sample Rate 192 kHz
FM Sensitivity Not Given
Multibrand Remote Control No
Learning Remote No
Removable Power Cord IEC 2-prong
Supports Wireless Rear Speakers No
Width (inches) 17.1875
Height (inches) 7.9375
Depth (inches) 19.875
Weight (pounds) 48.5
