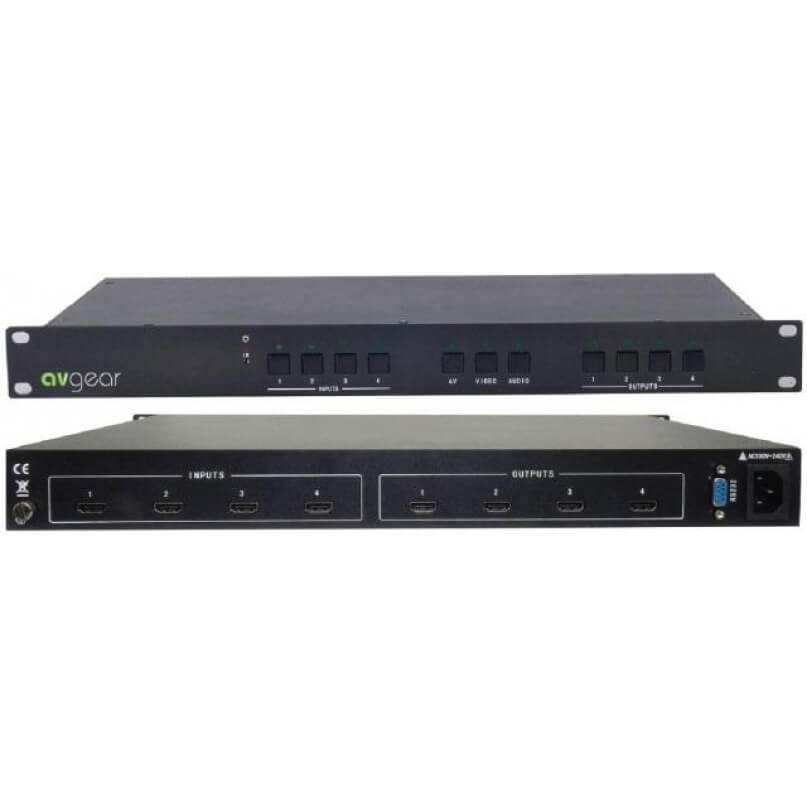

Avgear MHD44 EXT KIT Amplifier Matrix Switcher

AVGear

The MHD44 is a 4×4 matrix switcher for routing HDMI signals with a resolution up to 1920 x 1200 or 1080P. The MHD44 supports crosspoint switching.
  • Video Input
  • Video Output
  • Input Impedance
  • Connector

$2,350

  • It is compliant with HDCP and supports EDID, controllable via IR remote, front panel, and RS232 control.
  • AVG-MHD44?AV Matrix with IR Remote &?RS232?Port;
  • 4 pairs of?HDBaseT?4 Transmitters and Receivers 70m range;
  • Bi-Directional IR and RS232, all in one single CAT cable
  • Includes Four x 2m?HDMI?Cables
SKU: MHD44 EXT KIT Category:
Weight 1500 g
Dimensions 235 × 483 × 44 mm
Brand

Video Input    and     Video Output

Input   :

  •  4 HDMI ,

Output  :

  •  4 HDMI

Input Connector   :

  •  HDMI 1.3

Output Connector  :

  •  HDMI 1.3

Input Level  :

  •  T.M.D.S. 2.9V/3.3V

Output Level  :

  •  T.M.D.S. 2.9V/3.3V

Input Impedence

  •   75Ω ,

Output Impedence :

  •    75Ω

Video General

Gain :

  •  0 dB

Bandwidth   :

  • 340 MHz (10.2 Gbit/s)

Video Signal :

  • HDMI (or DVI-D)

Maximum Pixel Clock  :

  •  165MHz

Resolution Range   :

  • Up to 1920 x 1200 or 1080P@60Hz

Switching Speed  :

  • 200ns (Max.)

Consumer Electronics Control (CEC)  :

  • Supports CEC wired infrared data pass-through using the HDMI 1.3 standard

EDID and DDC Management :

  • Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards, EDID and DDC signals are actively bufferred.
  • The built-in EDID/DDC database can analyze these two signals, mix them, and realize the handshake of them internally.

HDCP Management  :

  • Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI 1.3 standards.
  • The built-in HDCP management technology can analyze HDCP key, and realize the handshake internally.

Audio General

Digital Audio :

  • Supports HDMI audio transmitted through the RGB and Y, Cr, Cb lines, actively buffered

Control Parts

  • Serial Control Port
  • :RS-232, 9-pin female D connector  ,
  •  Pin Configurations :   2 = TX, 3 = RX, 5 = GND

IR Remote   :

  • Default IR remote  ,
  • Front Panel Control  :  Buttons

General

Power Supply  :

  •  100VAC ~ 240VAC, 50/60Hz,

 Power Consumption :

  •   25W

Temperature  :

  •  -20 ~ +70℃  ,

 Humidity :

  • 10% ~ 90%

Case Dimension  :

  • W483 x H44 x D235mm
  • ​(1U high, full rack wide) ,

  Product Weight    :

  • 1.5Kg
