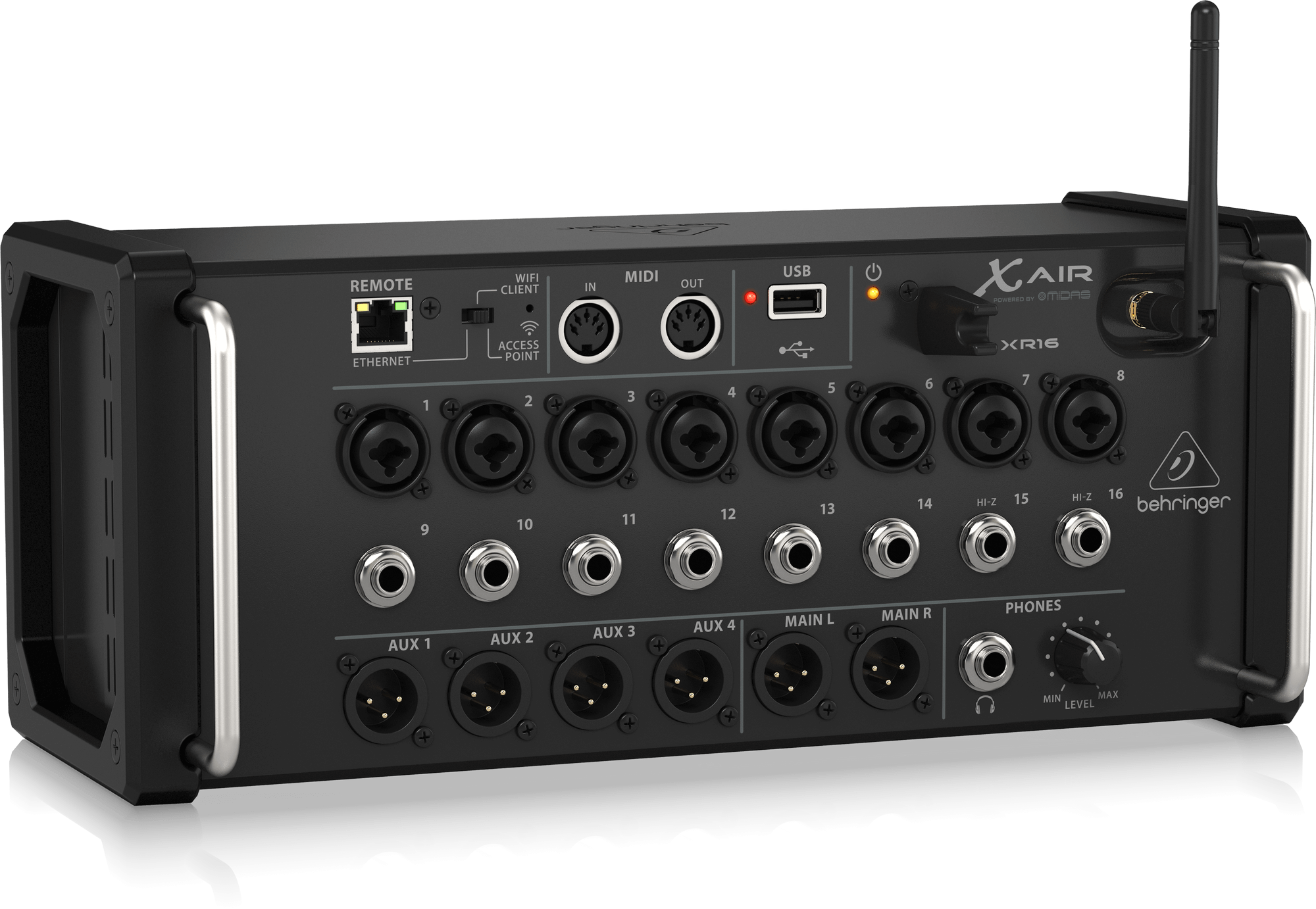

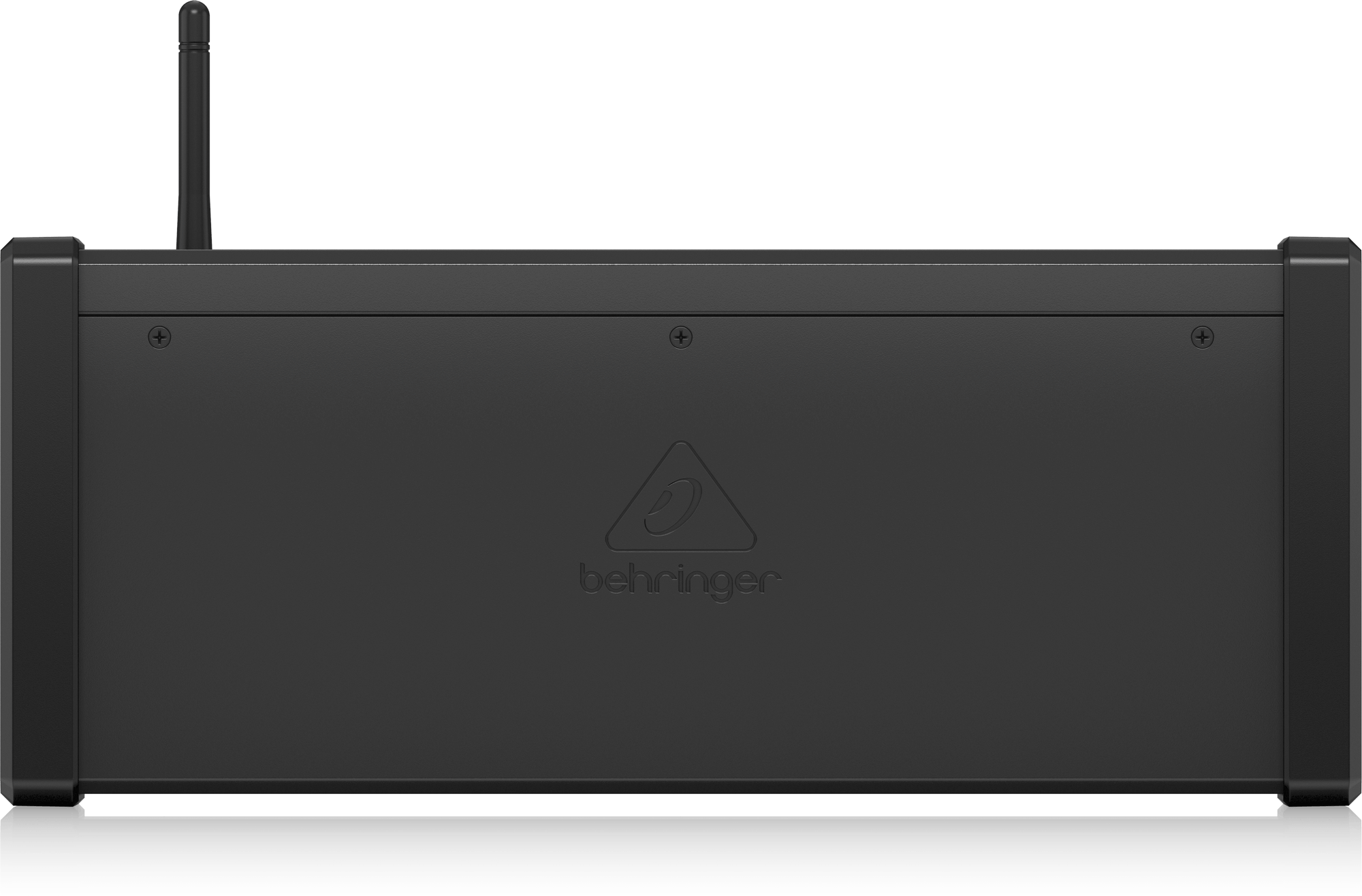

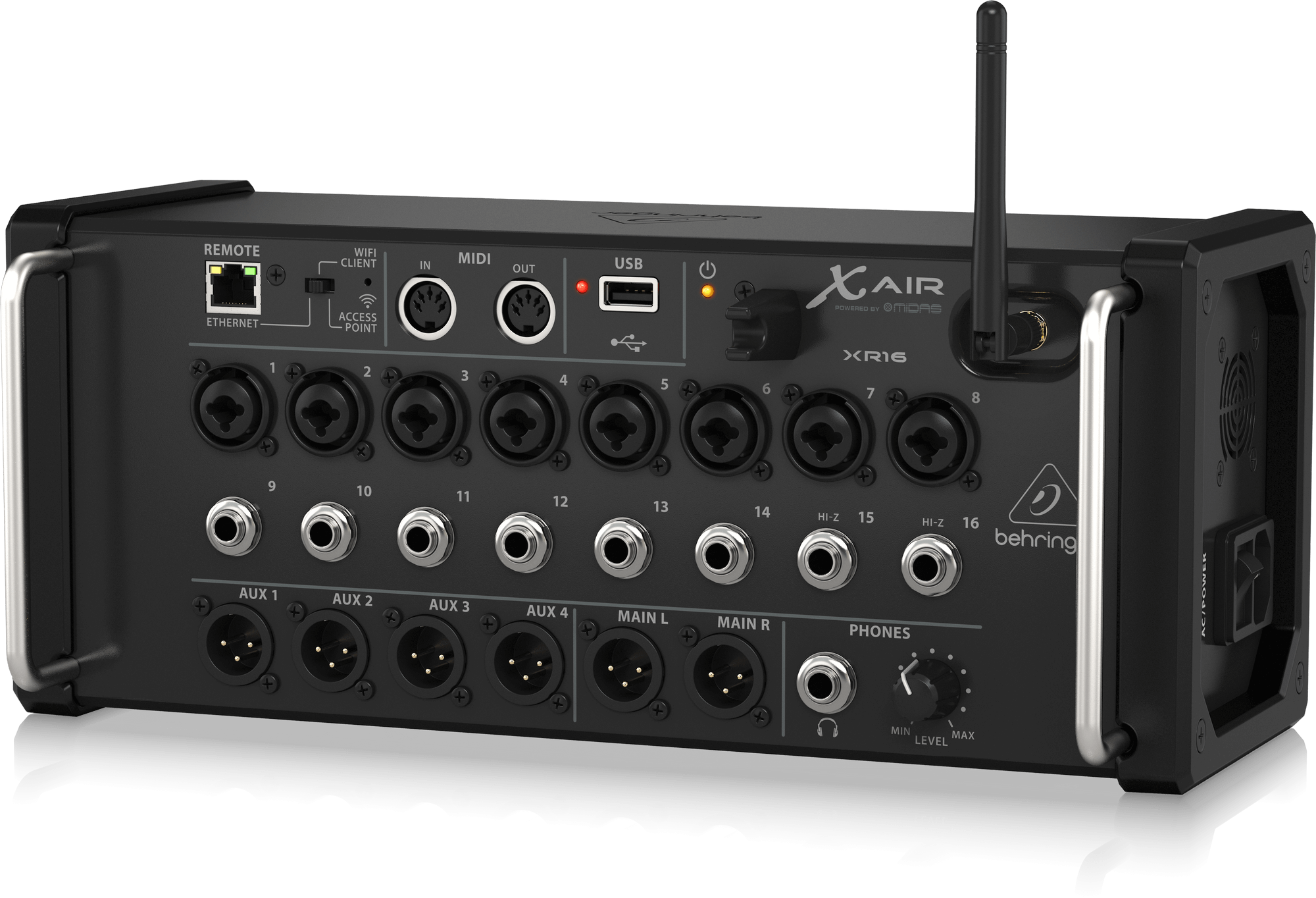

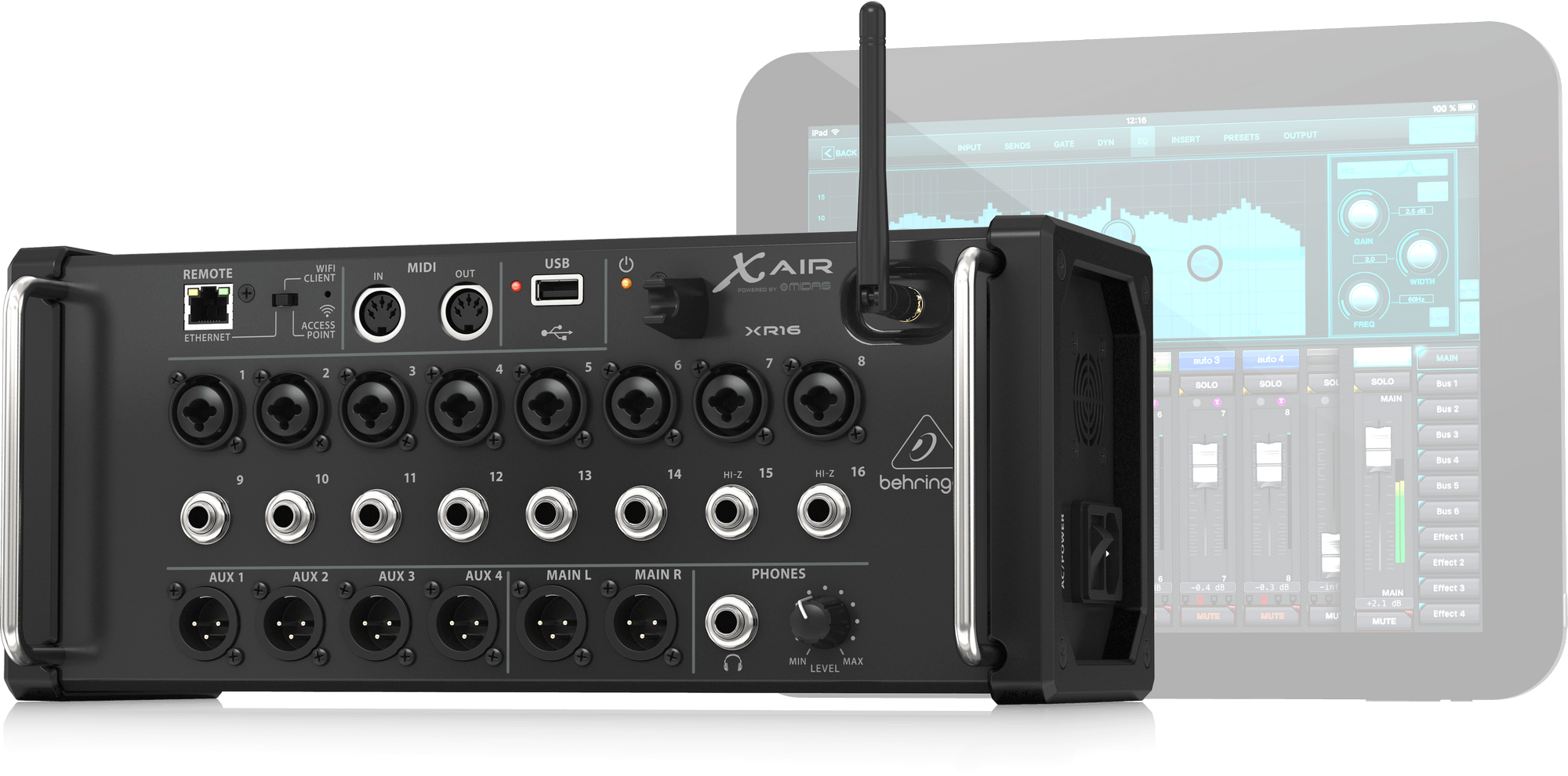

BEHRINGER X AIR XR16 DIGITAL MIXER

Behringer

 BEHRINGER X AIR XR16

BEHRINGER X AIR XR16 KEY FEAUTURES

The Behringer XR16 is a compact 16-input digital mixer with 8 MIDAS-designed mic preamps, powerful 40-bit DSP, and wireless control via the X AIR app. It features X32-style effects, real-time analysis, and flexible outputs, making it ideal for live sound, worship, and portable mixing setups.

Behringer XR16 – Key Features

  • 16‑input digital mixer with 8 MIDAS‑designed mic preamps

  • 40‑bit floating‑point DSP for pro‑level audio processing

  • Wireless control via X AIR app (iOS/Android/PC/Mac)

  • Built‑in tri‑mode Wi‑Fi (no external router needed)

  • Four X32‑style stereo effects engines (reverb, delay, modulation)

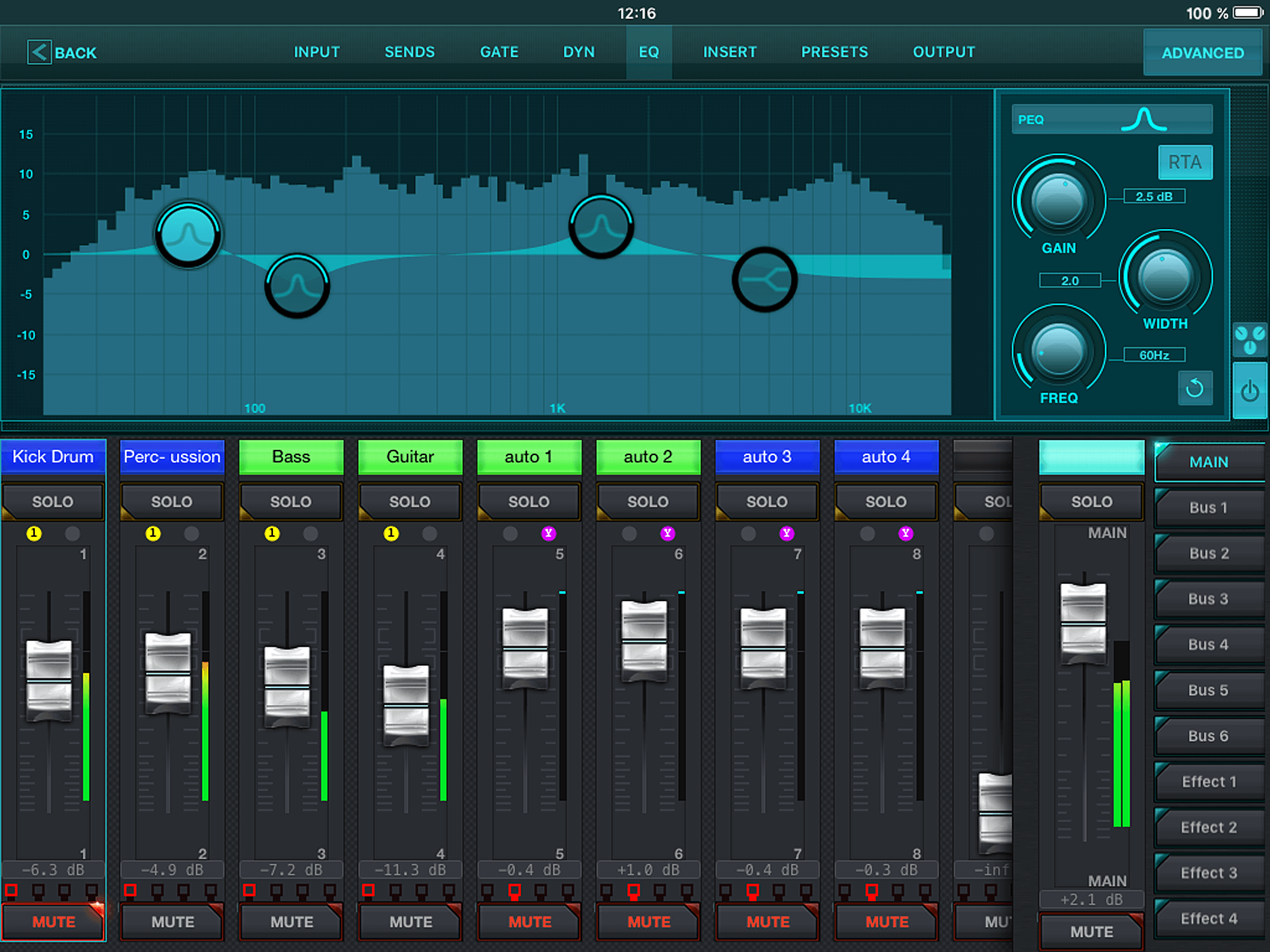

  • 100‑band Real‑Time Analyzer (RTA) for precise EQ

  • USB stereo recording/playback

  • Multiple balanced outputs for PA and monitors

  • Auto‑mixing for panels and spoken‑word applications

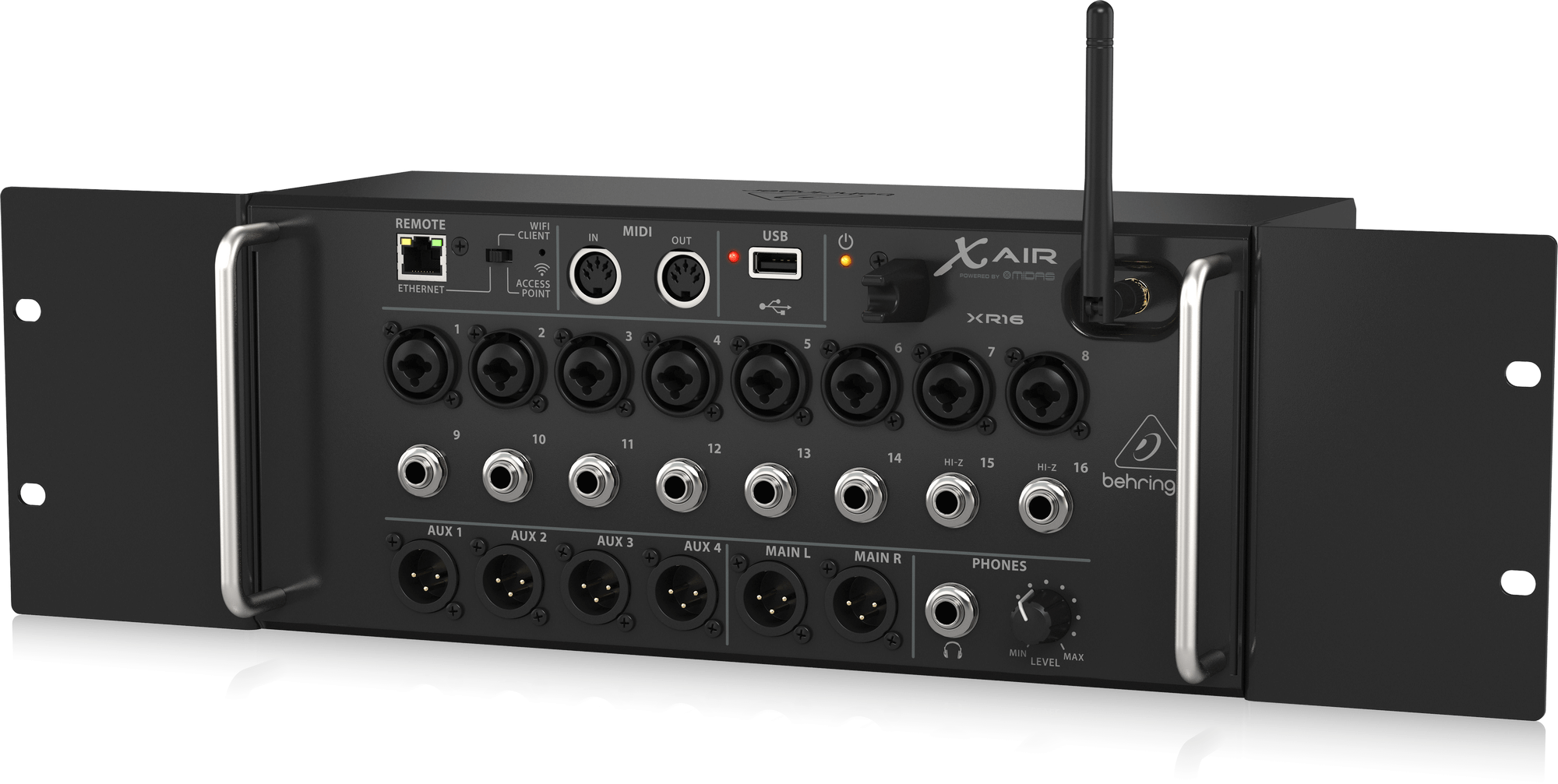

  • Rack‑mountable, portable design perfect for live and studio use

$679

Behringer X AIR X16 DIGITAL MIXER

Behringer X Air XR16 is a professional-grade 16-input digital mixer engineered to bring modern, flexible mixing power to live sound, studio work, broadcast, houses of worship, and portable PA systems — all in a compact, rack-mountable stage-box design. Combining high-quality audio performance with intuitive wireless control and advanced signal processing, the XR16 redefines what a digital mixer can do for both seasoned engineers and mobile sound teams.

At its core are 8 award-winning MIDAS-designed, fully programmable mic preamps, delivering transparent, low-noise sound that rivals much larger consoles. This ensures pristine audio capture for vocals, instruments, and microphones under demanding live or studio conditions. Integrated tri-mode Wi-Fi enables you to mix from anywhere in the venue — adjust levels, EQ, dynamics, effects, and more right from your iPad, Android tablet, laptop, or desktop without being tethered to a physical control surface.

The XR16 includes a 40-bit floating-point DSP engine with near-zero latency and virtually unlimited dynamic range. Each channel provides full processing tools — including low-cut filters, compressor, limiter, gate, and a deep four-band EQ — giving you professional control over every sound source. A 100-band Real-Time Analyzer (RTA) on all channels and bus EQs offers precise visual feedback for surgical frequency shaping.

One of the standout features is the onboard X32 effects rack, offering four true-stereo multi-effects processors loaded with high-quality reverbs, delays, modulation effects, and more — including simulated models of classic studio units like the Lexicon 480L and PCM70. All effects run inside the XR16’s DSP environment, reducing the need for external hardware or taxing your computer during mixing sessions.

SKU: BE-XR16-1 Categories: ,
Weight3000 g
Dimensions333 × 149 × 140 mm
Brands

Processing
Number of processing channels                     16 input channels, 1 stereo USB return channel,
4 stereo FX return channels, 6 aux buses, main LR
6 aux buses, main LR
Internal effects engines                                    4 true stereo
Signal processing                                               40-bit floating point
A/D-D/A conversion (Cirrus Logic A/D CS5368, D/A CS4385) 24-bit @ 44.1 / 48 kHz, 114 dB dynamic range
Analog I/O latency*                                            0.8 ms

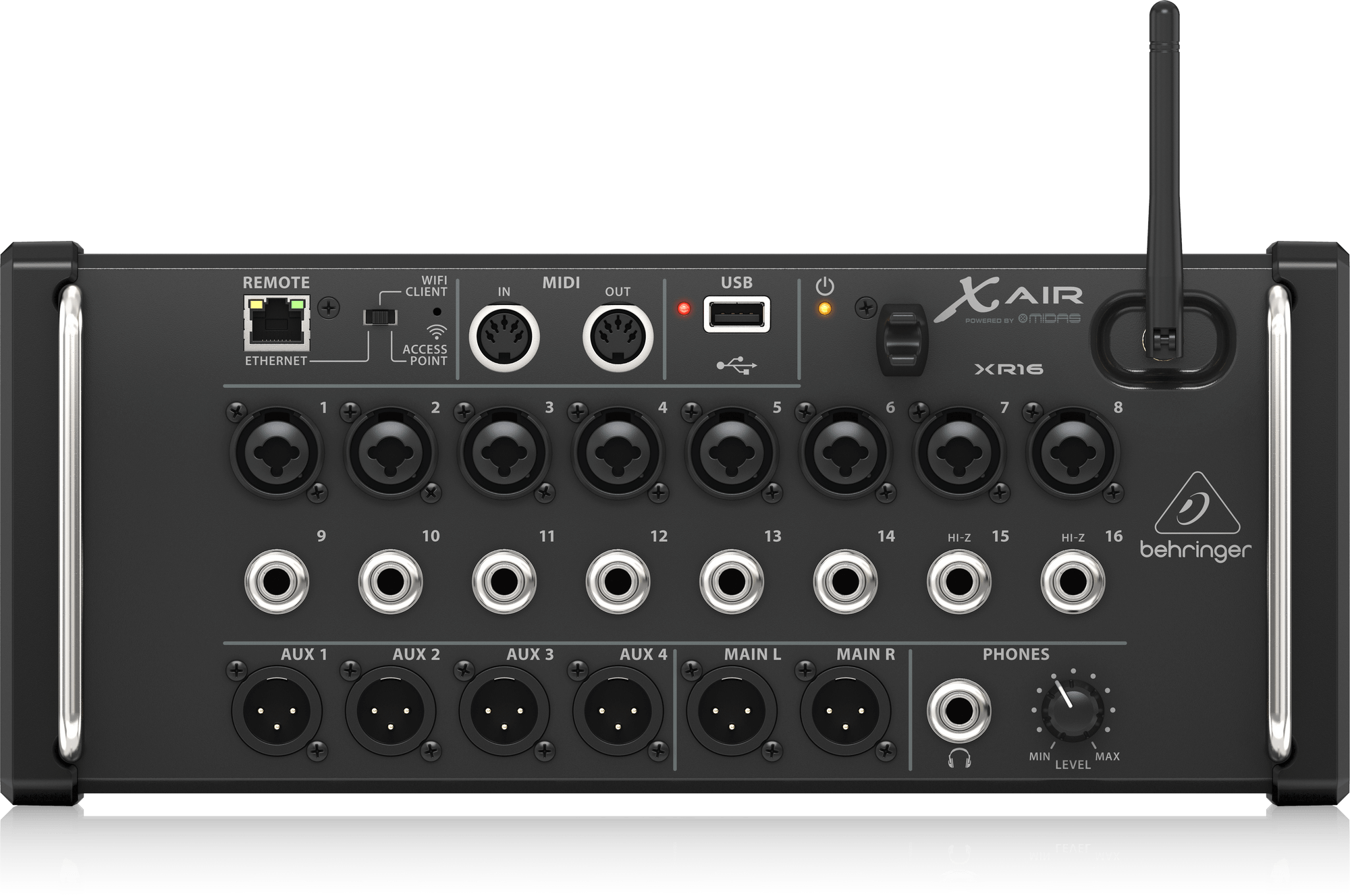

Connectors
Programmable mic preamps, designed by Midas         8 XLR/TRS combo jacks, balanced
Line inputs                                                                             8 TRS, balanced
Main outputs                                                                         2 XLR, balanced
Aux outputs                                                                           4 XLR, balanced
Phones outputs                                                                     1 TRS
MIDI inputs / outputs                                                         1/1 DIN
Ethernet                                                                                  1 RJ45
USB port                                                                                 Type A

Mic Input Characteristics
Preamp design                                                                        Midas
THD + noise, 20 dB gain, 0 dBu out                                  < 0.005%, A-weighted
Phantom power, switchable per input                               48 V
Equivalent input noise level,
XLR (input shorted)                                                                -128 dBu, A-weighted
CMRR, XLR, @ 20 dB gain (typical)                                    >60 dB
CMRR, XLR, @ 40 dB gain                                                     >65 dB

Input/Output Characteristics
Frequency range, @ 48 kHz sample rate, 0 dB to -1 dB      10 Hz – 22 kHz

Dynamic range, analog mic in to analog out (typical)         105 dB
A/D dynamic range, mic preamp to converter (typical)      109 dB
D/A dynamic range, converter and output                             108 dB
Cross talk rejection @ 1 kHz, adjacent channels                   90 dB
Mic input impedance XLR jack, unbal. / bal.                         5 kΩ / 10 kΩ
Non clip maximum input level, XLR                                      +23 dBu
Hi-Z input impedance TRS jack, unbal. / bal.                       1 MΩ / 2 MΩ
Line input impedance TRS jack, unbal. / bal.                        20 kΩ / 40 kΩ
Non clip maximum input level, TRS                                      +21 dBu

Output Characteristics
Output impedance, XLR, unbal. / bal.                                    50 Ω / 50 Ω
Output level, XLR, nom./max.                                                 +4 dBu / +16 dBu
Output impedance, TRS, unbal. / bal.                                     50 Ω / 50 Ω
Output level, TRS, nom./max.                                                 +4 dBu / +16 dBu
Phones output impedance / level                                            40 Ω / +35 dBm (stereo)
Residual noise level, XLR and TRS                                        -92 dBu, A-weighted

WLAN Module
Antenna                                                                                        External, SMA connector, 50 Ω
Access Point, number of clients                                               Max. 4
IEEE 802.11 b/g standard                                                         2.4 GHz
Frequency Range                                                                        2,412-2,462 MHz
WLAN channels (Wi-Fi Client, Access Point)                        1-11 / 1-11
Max Output Power                                                                      19 dBm (802.11 b) / 18 dBm (802.11 g)

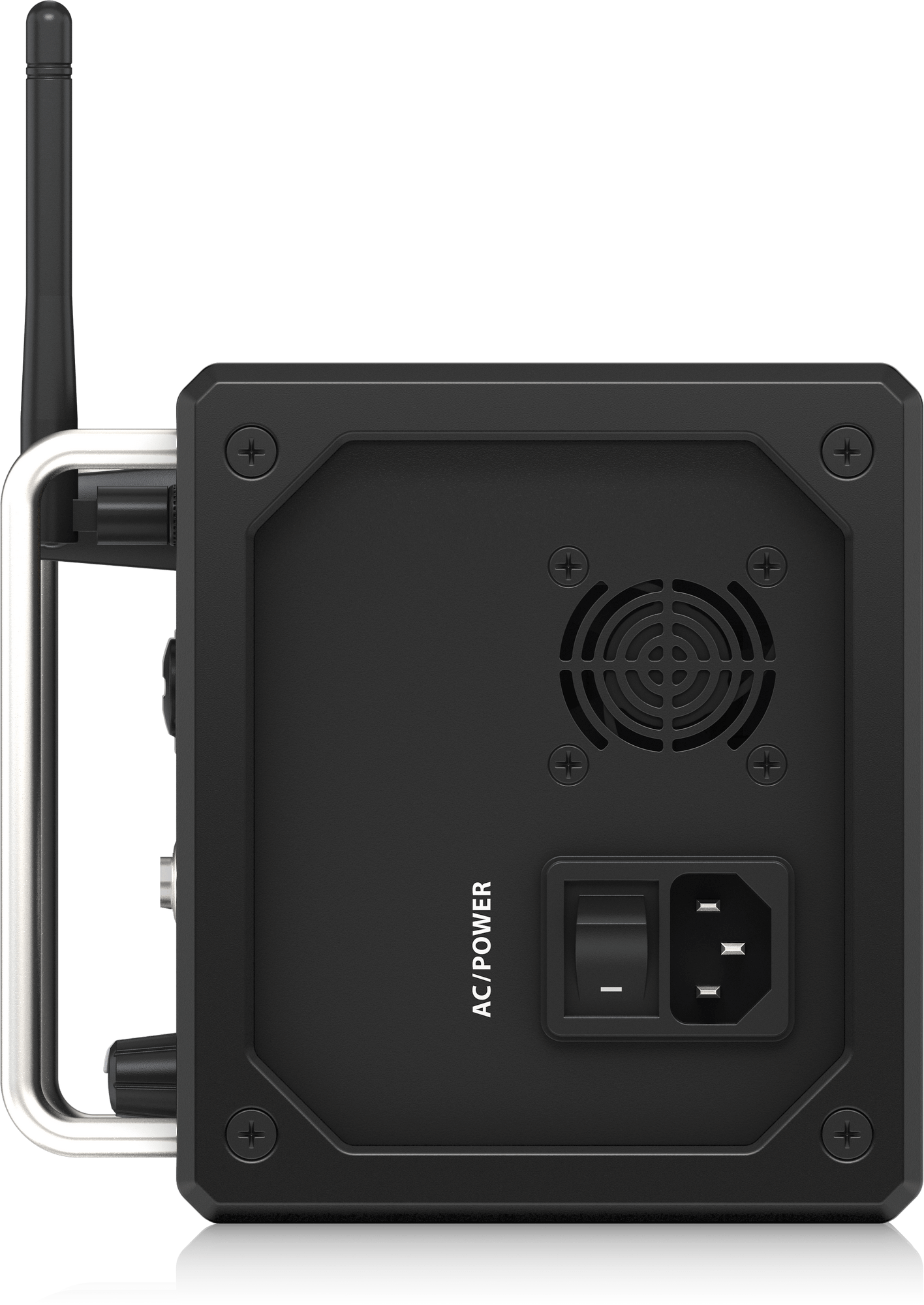

Power
Switch-mode power supply                                                      Autorange 100-240 V, (50/60 Hz) Power consumption                                                                               30 W
Physical
Standard operating temperature range                                5°C – 40°C (41°F – 104°F)
