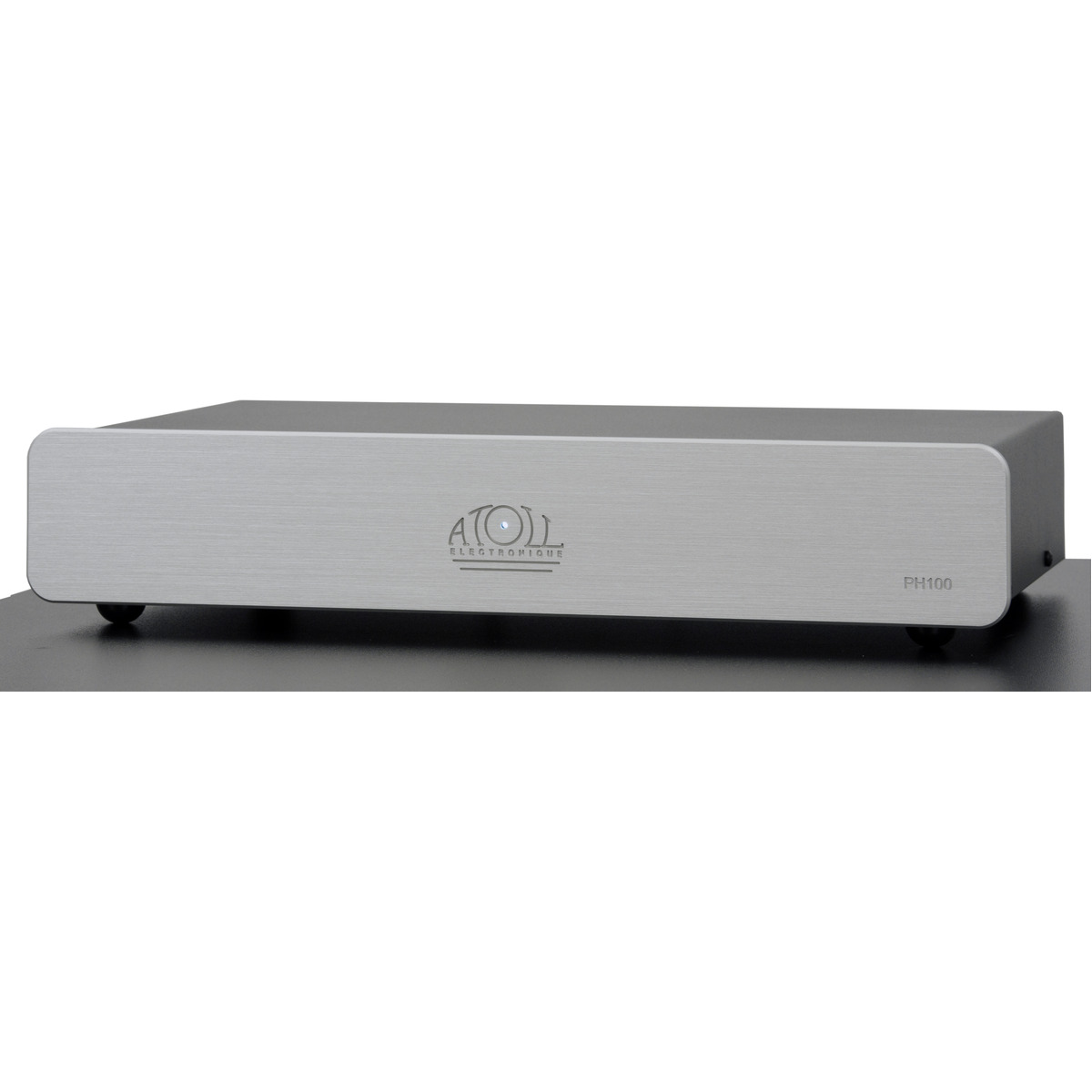

Atoll electronique ph100 phono preamplifier with a brushed aluminum front panel and rounded corners.
Rear panel of a black audio component with l/r rca in/out jacks and iec power inlet.

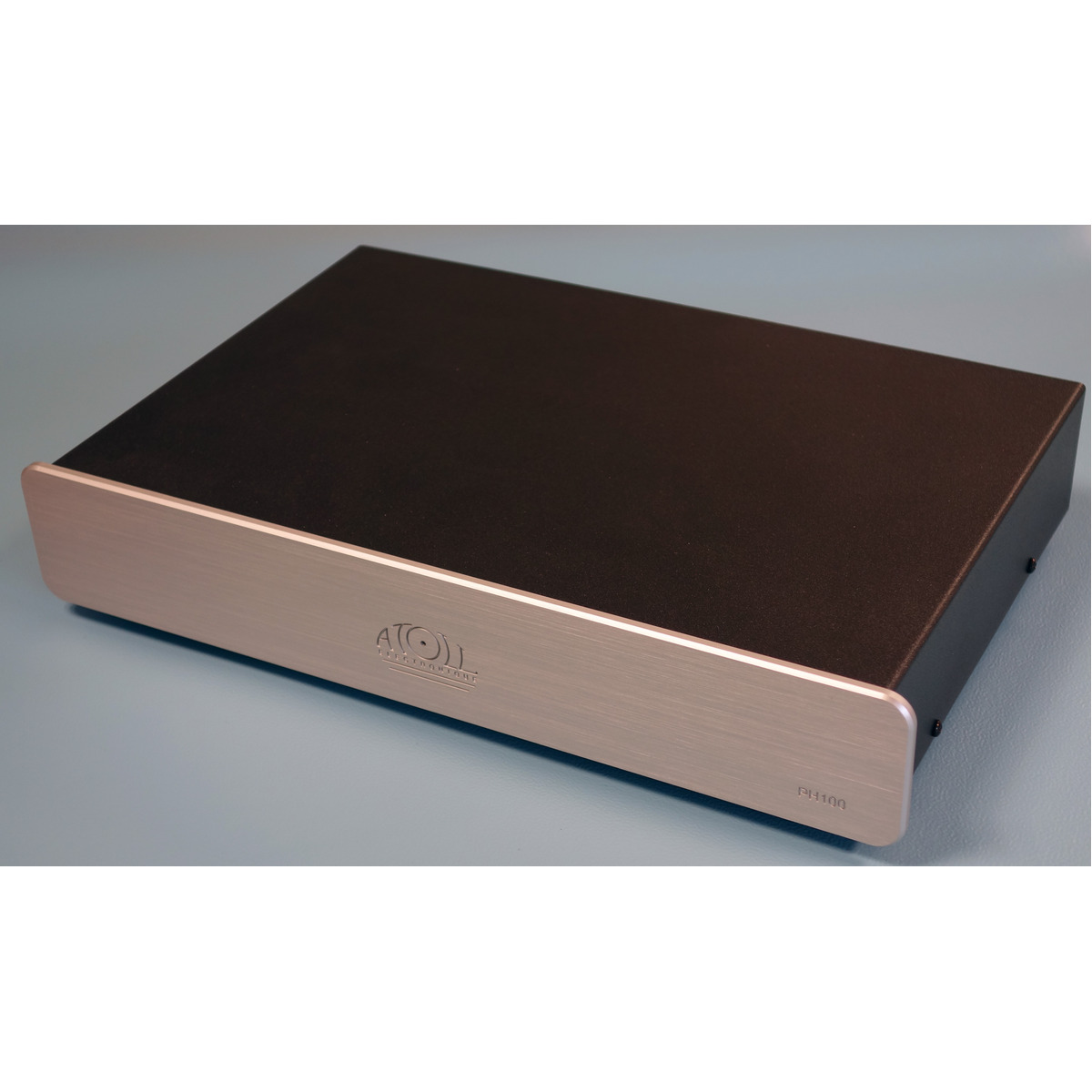

Atoi ph100 phono preamplifier with brushed aluminum front panel and black top surface.

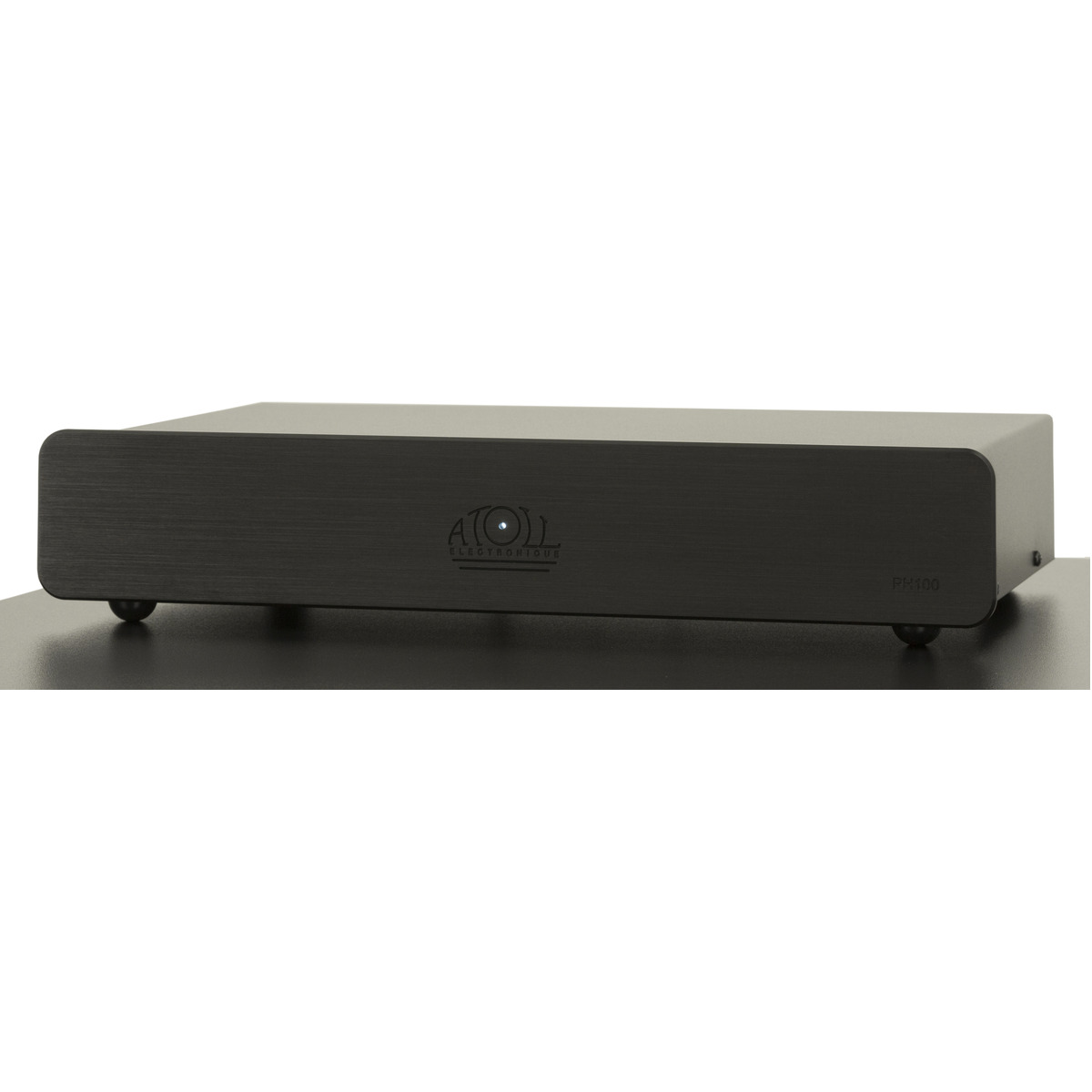

Atoll electronique ph100 phono preamplifier with black brushed front panel and logo
Sales Specialist
Need help? Contact our sales specialist
(02) 9600 6655 | Email us
,

ATOLL ELECTRONIQUE PH100

ATOLL

ATOLL ELECTRONIQUE PH100

The PH100 phono preamp is an external module with a specific power supply consisting of 2 high-end transformers (one per channel) with very low noise and 4 voltage regulators. The assembly is shielded by a metal box to preserve any interference on the audio stages. It is entirely made of discrete components and does not include any link capacitors. The configurations (MM/MC, input impedance) are directly accessible from the rear of the chassis.

$839.95

ATOLL ELECTRONIQUE PH100

The PH100 phono preamp is an external module with a specific power supply consisting of 2 high-end transformers (one per channel) with very low noise and 4 voltage regulators. The assembly is shielded by a metal box to preserve any interference on the audio stages. It is entirely made of discrete components and does not include any link capacitors. The configurations (MM/MC, input impedance) are directly accessible from the rear of the chassis.

Features:

  • 4 mm brushed aluminium front.
  • 2 very low noise linear transformers 3,2 VA each.
  • 4 regulated power supplies.
  • Total capacitance: 11,280 µF.
  • Input impedance: 47 k or 100 k (*).
  • Input capacitance: 100 pF or nothing (*).
  • MM gain: 40 dB (*).
  • High-level MC gain: 47 dB (*).
  • Low level MC gain: 60 dB (*).
  • Signal/Noise Ratio at 1 kHz: 80 dB.
  • Crosstalk at 1 kHz: < -85 dB.
  • Frequency response (20 Hz -20 kHz): <0.1 dB.
  • THD: 0.05%.

(*) Depending on the switch position.

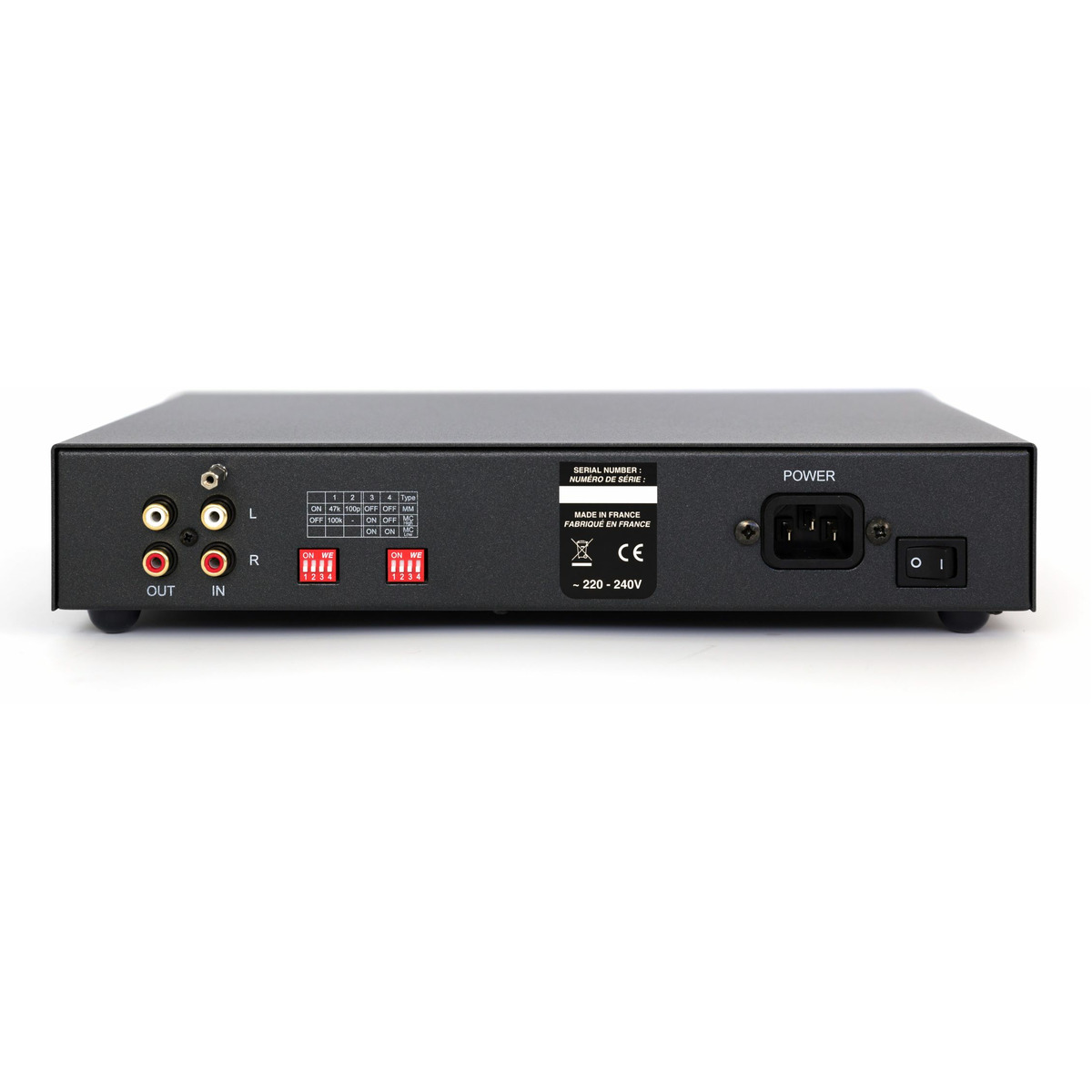

CONNECTIVITY

Ground

  • 1 Module signal output.
  • 1 Turntable signal input.
  • Settings block (Left channel).
  • Settings block (Right channel).
SKU: atoll-ph100-pa Categories: ,
Weight2500 g
Dimensions320 × 210 × 63 mm
Brands

Color

Black, Silver

TECHNICAL DATA

  • Power supply: 6,4 VA
  • Total capacitance: 11,280 µF
  • Cell type: MM / MC
  • Input impedance: 47 k or 100 k(*)
  • Input capacitance: 100 pF or nothing(*)
  • MM gain: 40 dB(*)
  • High-level MC gain: 47 dB(*)
  • Low-level MC gain: 60 dB(*)
  • Signal-to-noise ratio at 1 kHz: 80 dB
  • Crosstalk at 1 kHz: <-85 dB
  • THD: 0.05%
  • Dimensions: 320×210×63 mm
  • Weight: 2 kg

(*) Depending on the switch position.
(Data subject to change).
