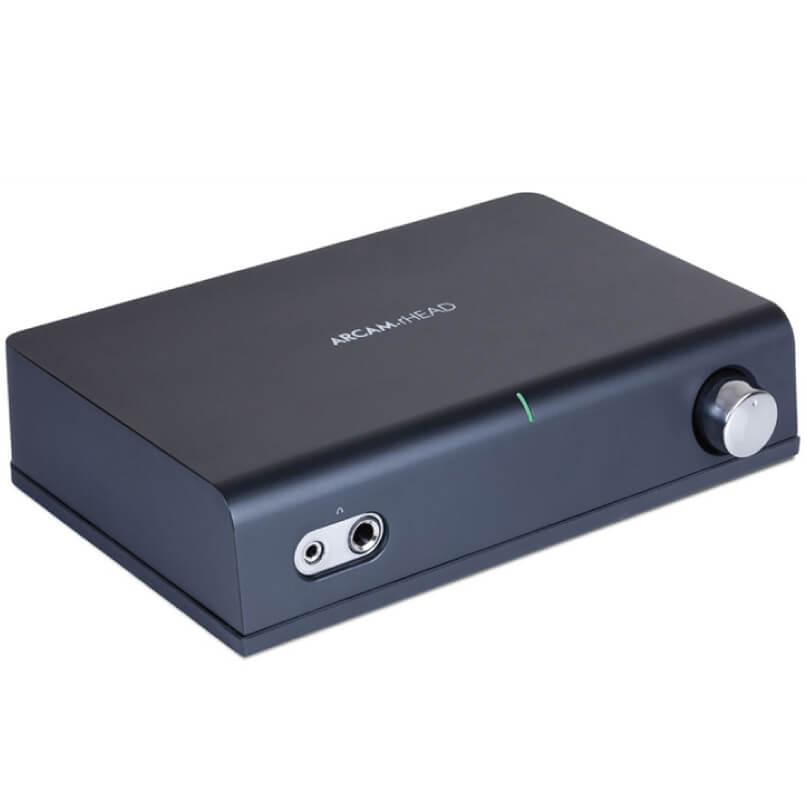

ARCAM rHead Accessories

Arcam has always been known for producing class-leading integrated amplifiers, all of which featured excellent headphone stages.
  • Audiophile class-A headphone amplifier
  • High-end audio circuitry
  • Dimensions W194 x H44 x D135mm


  • The rHead continues that tradition, but n the highly specialized area of discrete analog headphone amplification in a small, solidly, and beautifully built unit designed to complement the audio system of any headphone lover.
  • The rHead is a true linear class A design, resulting in absolutely no crossover distortion for the purest sound. Extensive care has been taken to optimize the layout and areas like multiple ultra-low noise power supplies and a fully direct coupled signal path make a big difference.
  • Also, the volume control is an ultra-linear analog resistive ladder device, as used in the flagship A49, which eliminates tracking errors which can be found in normal potentiometer-based volume controls.
  • Comprehensive protection systems prevent damage to the rHead while not interfering in any way with the ultimate reproduction of the sound – the rHead sounds amazingly natural and completely engaging and reveals the true character of any music that is played through it.

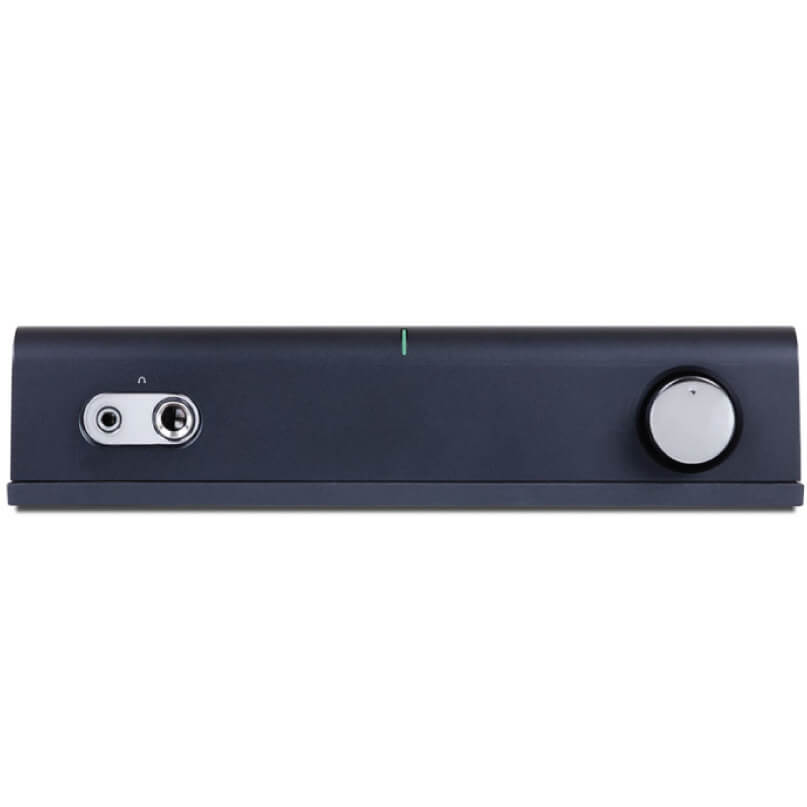

  • The rHead is more than capable of driving the most demanding of headphones. Both RCA and XLR inputs (switchable) are available, as well as both 3.5 and 6.35mm sockets, allowing for ultimate headphone listening flexibility.
  • The rHead will be available Q3 2016 from your Arcam dealer.


  • Audiophile class-A headphone amplifier
  • 3.5 and 6.35mm headphones supported

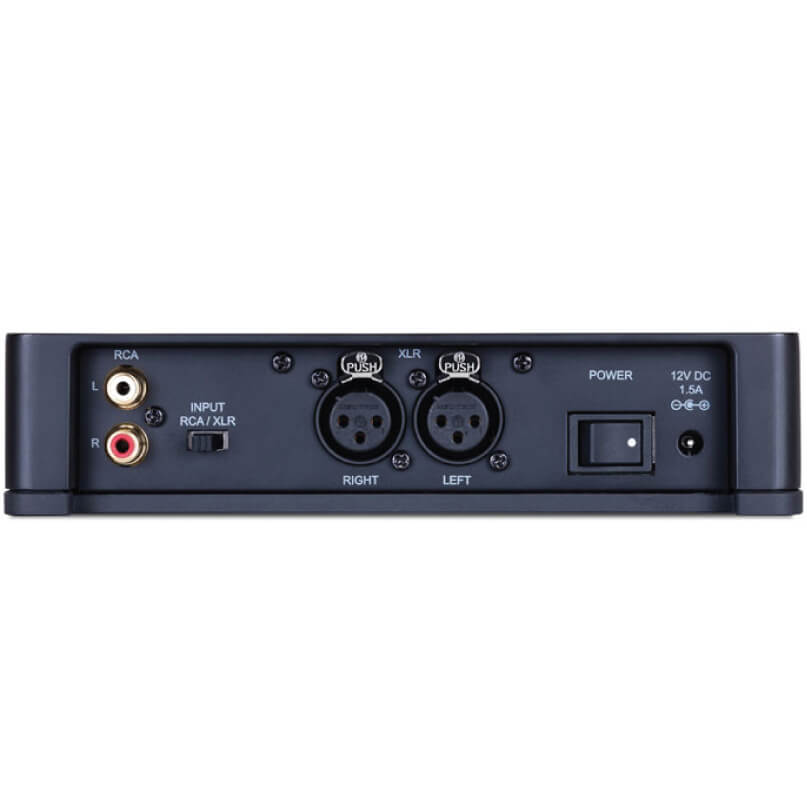

  • RCA & XLR inputs supported
  • Ultra-linear analog volume control
  • High-end audio circuitry
  • Comprehensive protection systems
  • Stylish cast aluminum casework
SKU: Ar-rHead Category:
Weight 710 g
Dimensions 135 × 194 × 44 mm

Frequency response

  • 10Hz – 20kHz

Total Harmonic Distortion + Noise

  • 0.001% at 2V output, 32Ω load

Signal-to-noise ratio (A-weighted)

  • 109dB at 2V output, 32Ω load

Power requirements

  • 12V DC, 1.5A

Headphone output power

  • 2.0W, 16Ω load
  • 1.1W, 32Ω load
  • 0.13W, 300Ω load

Headphone recommended impedance

  • 16Ω – 600Ω, 3.5 or 6.35mm plug

Output impedance

  • <0.5Ω

Input levels

  • 0-4V (RCA)
  • 0-8V (XLR)


  • W194 x H44 x D135mm


  • 0.71kg

EAN/UPC code

  • 5 060133 602576
