Cooling System, Cabinet

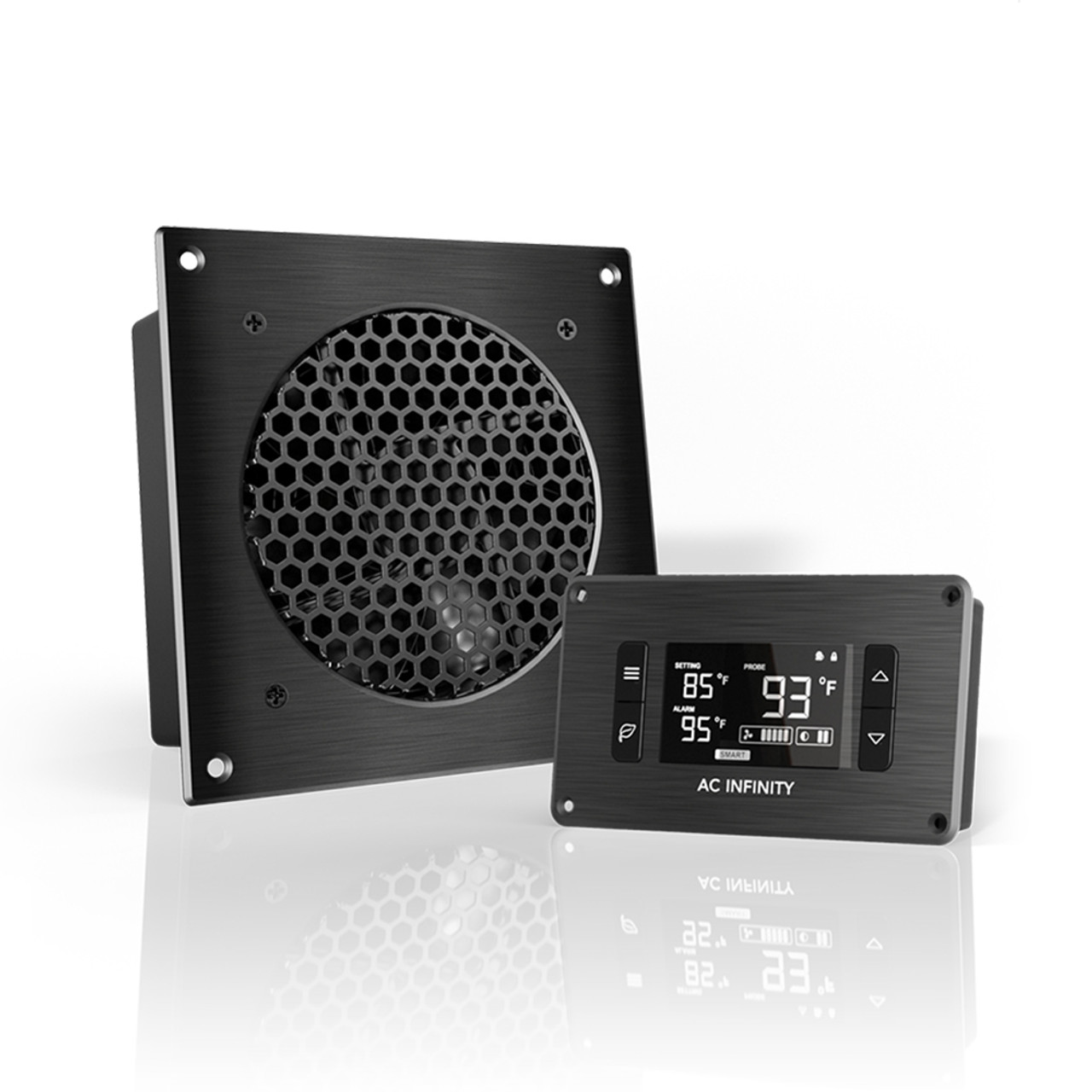

AC Infinity Airplate T3
AC Infinity Airplate T3 – The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets.
$278
Key Features
• An ultra-quiet fan system designed for cooling cabinets
• Controls up to 6 AC Infinity cabinet & USB Fans
• CNC machined aluminum frame with a modern brushed finish
• Multi-speed fan controller to set the optimal noise & airflow levels
• Automated programming that self-adjusts cooling power in response to changing temperatures

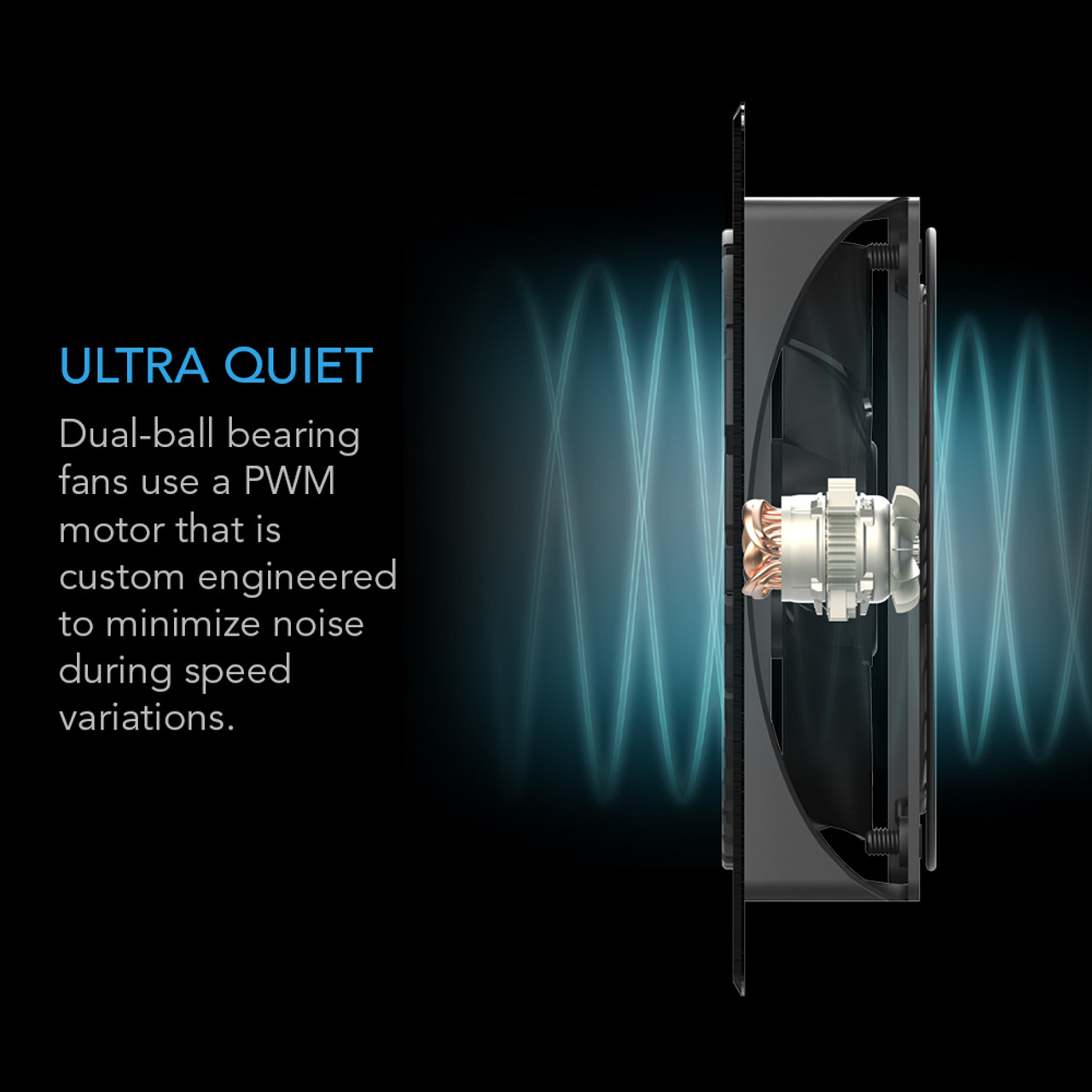

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE, UL, TUV, and RoHS. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

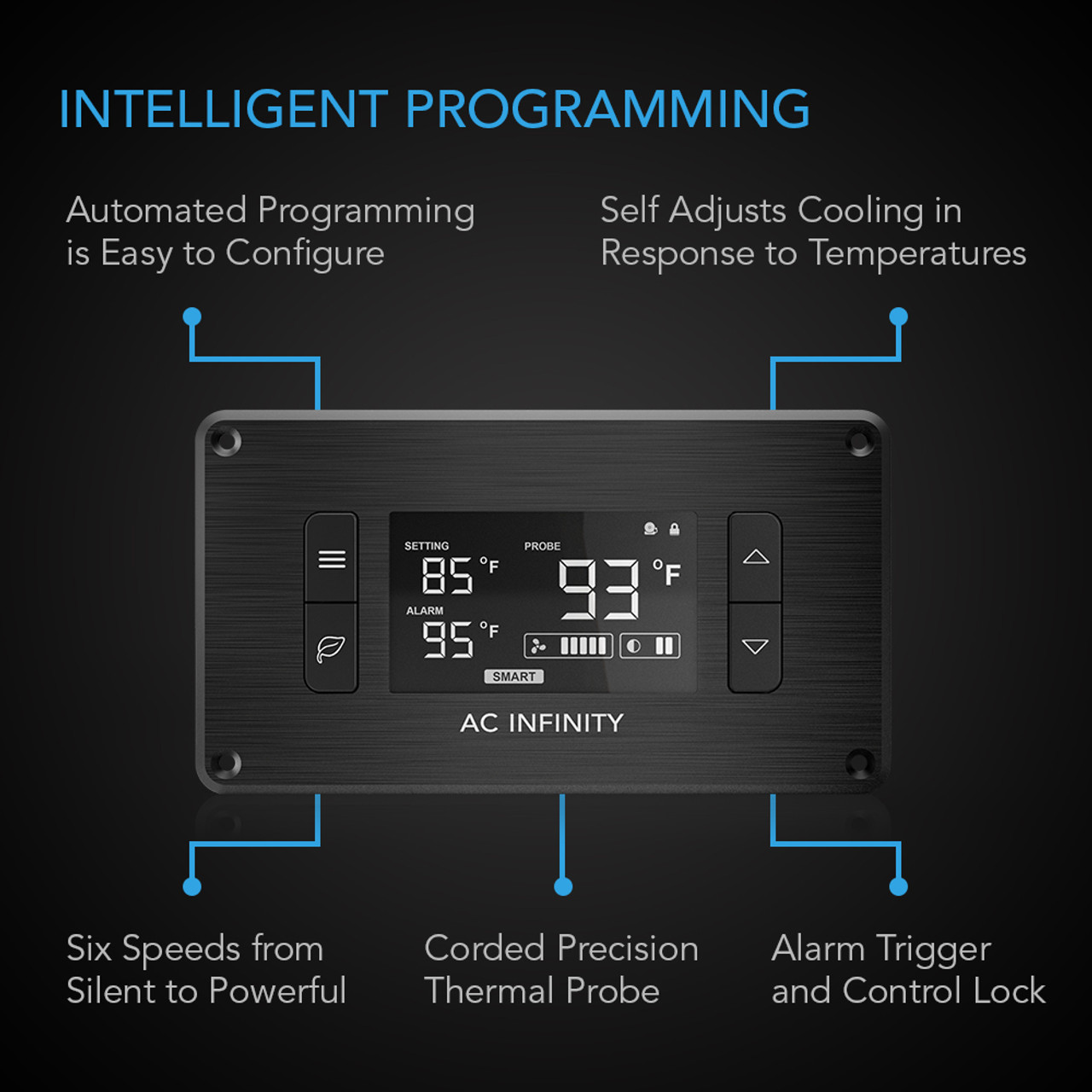

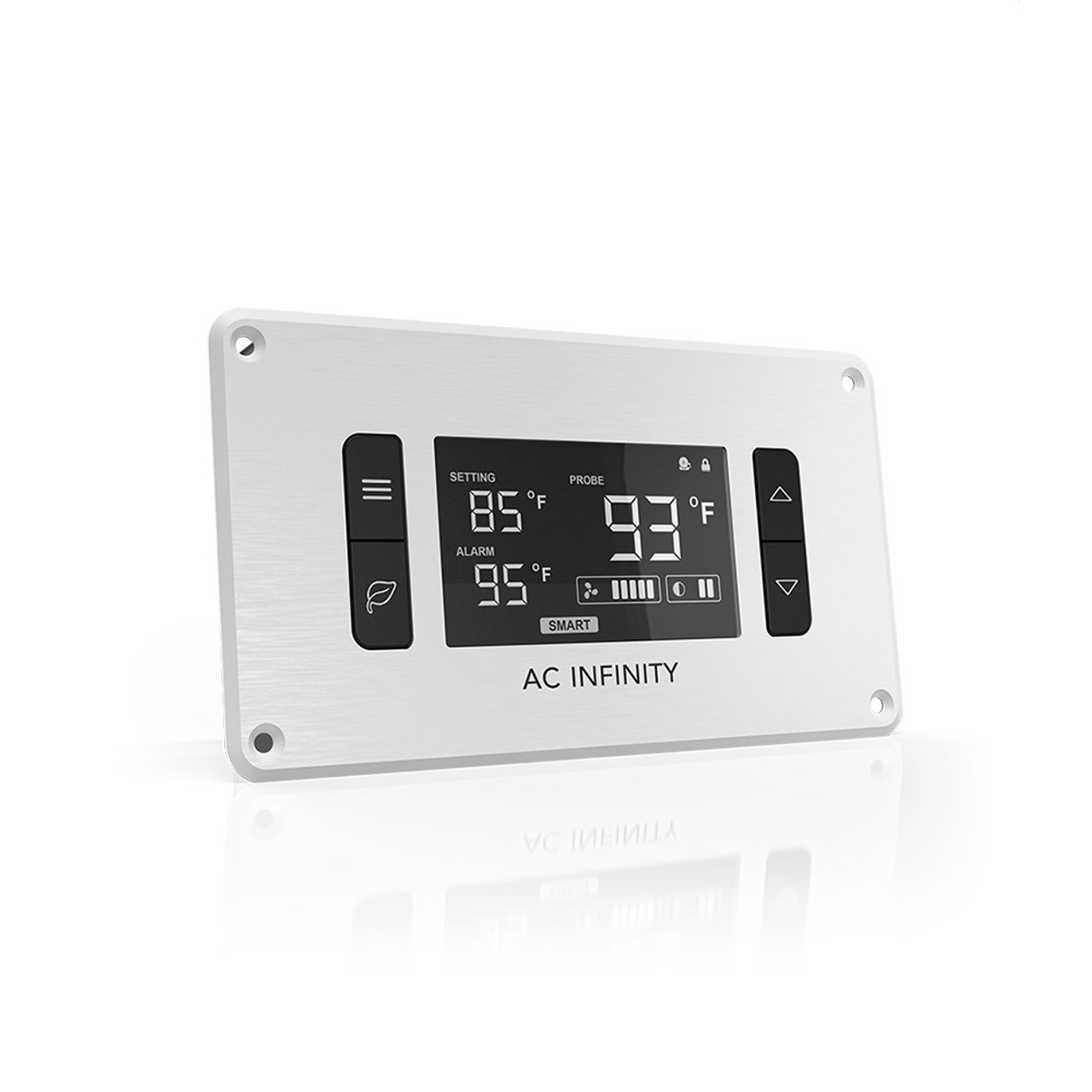

Thermal Controller
AC Infinity Airplate T3 – The controller features an on-board processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features includes an alarm system, display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory. Features a detachable 6-foot precision thermal probe that is water resistant.

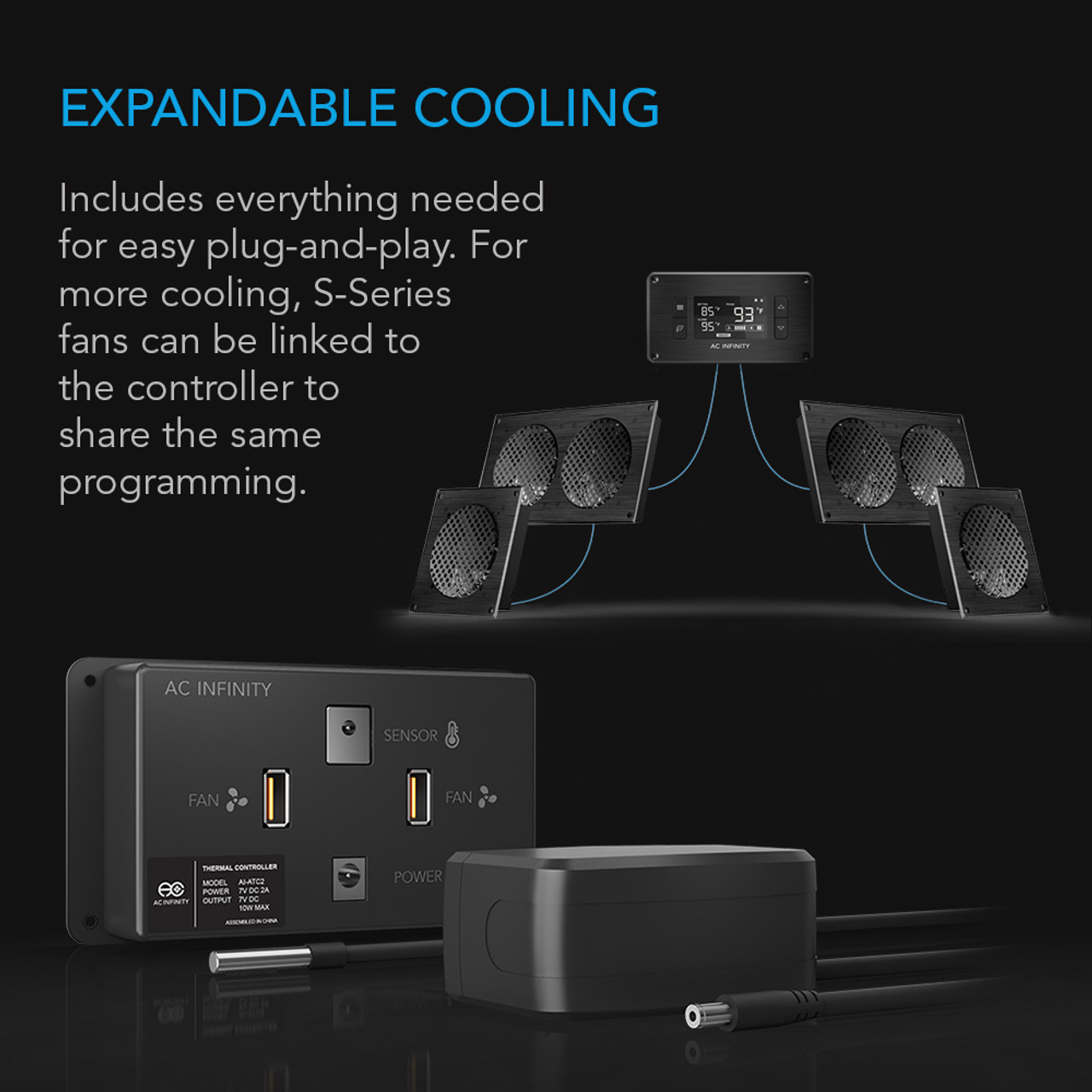

Connecting Additional Units
AC Infinity Airplate T3 – For cabinets that requires more airflow, additional AIRPLATE S series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

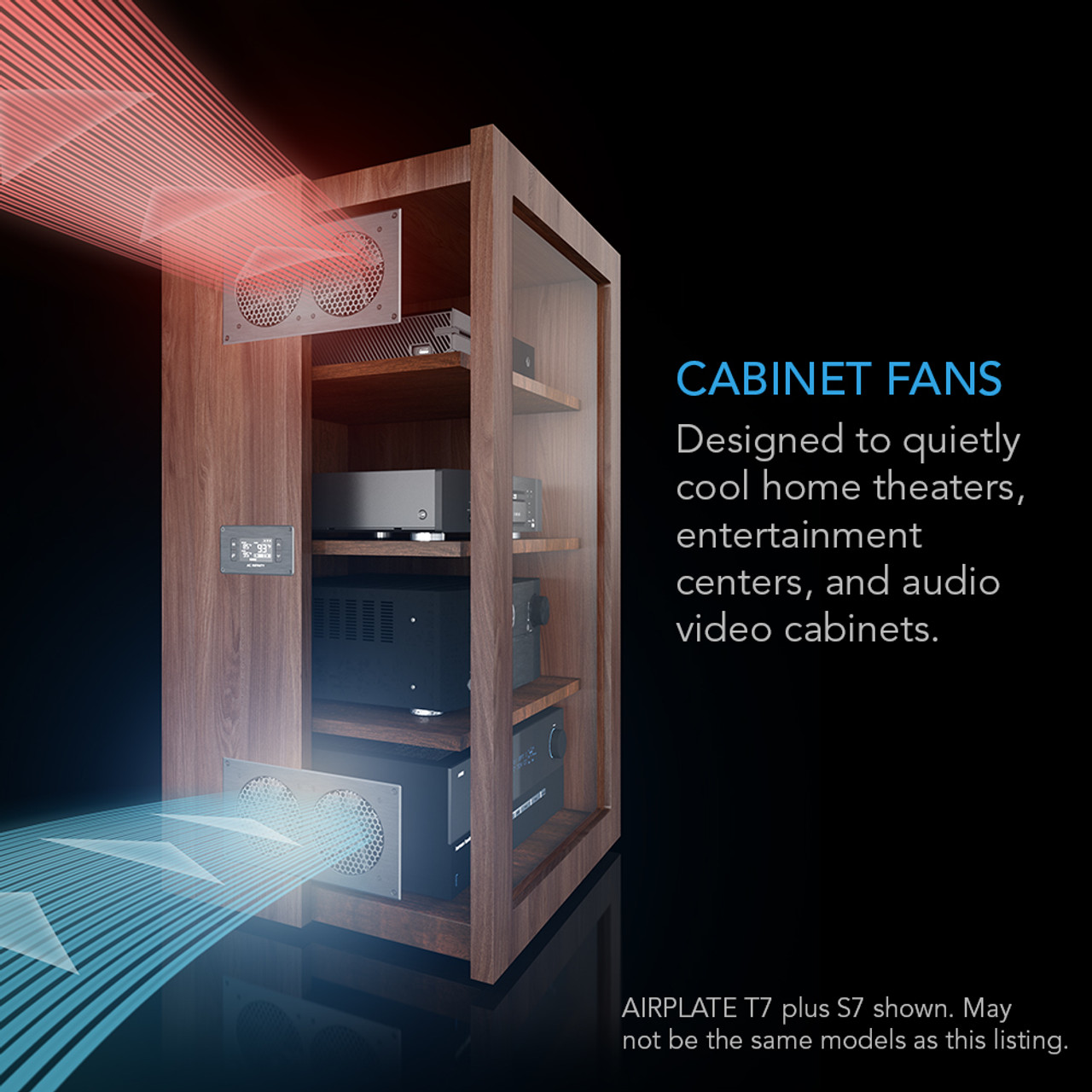

Applications

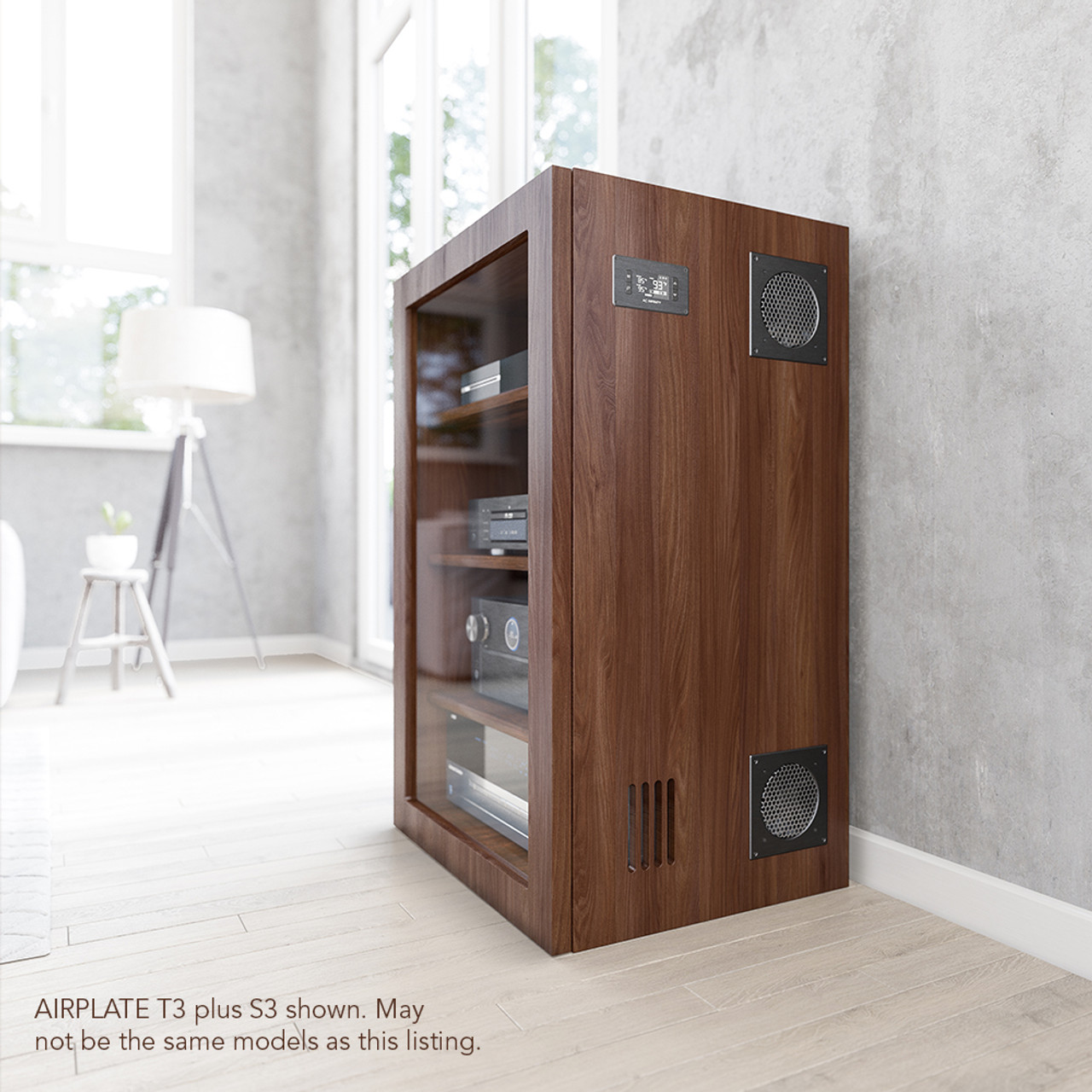

AC Infinity Airplate T3 – This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.
| Weight | 455 g |
|---|---|
| Dimensions | 160 × 160 × 33 mm |
| Brands | |
| Color | Black, White |

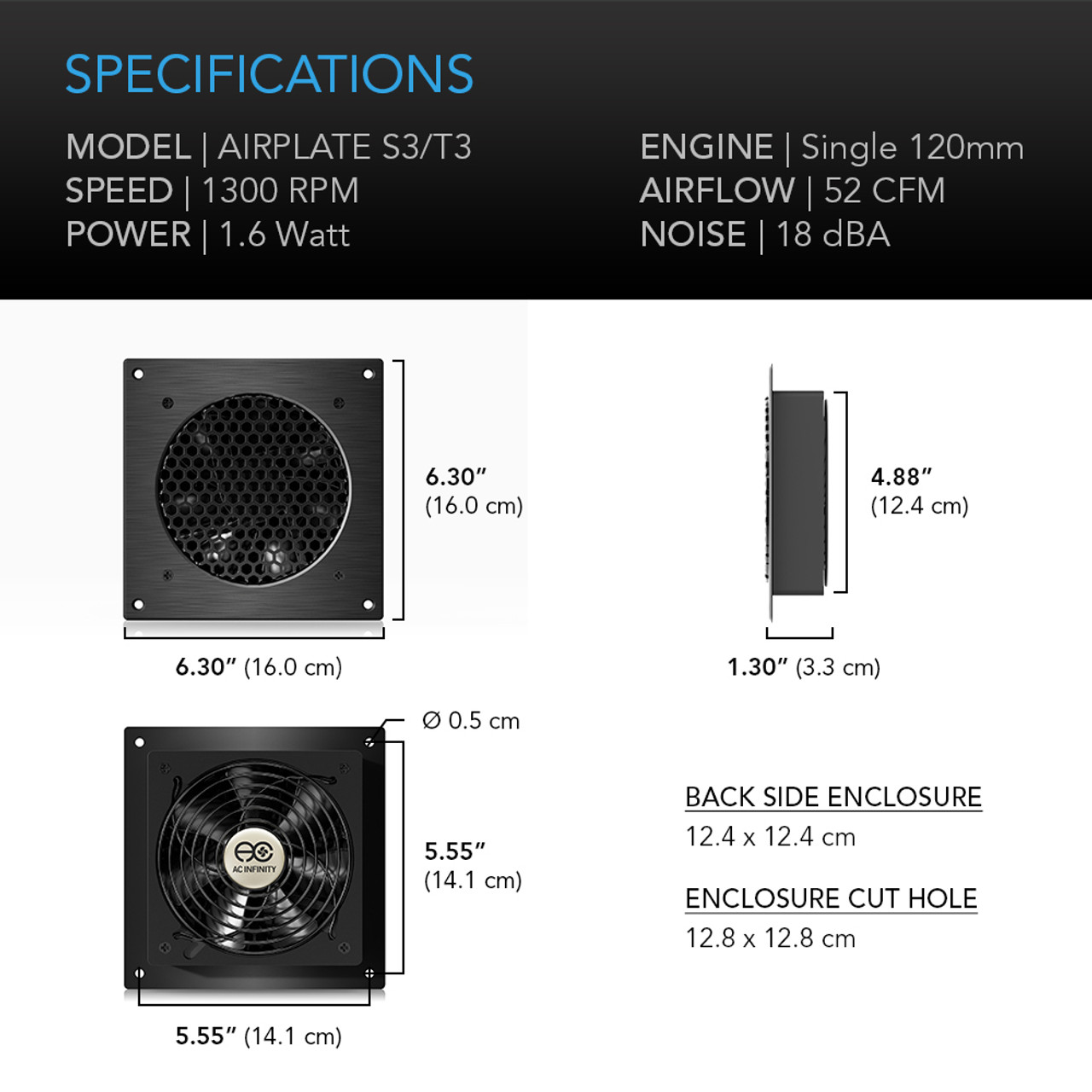

Product and Mounting Dimensions – Fan Unit | |
| Total Dimensions | 6.30 x 6.30 x 1.30 in (16.0 x 16.0 x 3.3 cm) |
| Backside Enclosure Dimensions | 4.88 X 4.88 in (12.4 x 12.4 cm) |
| Required Mounting Hole | 5.04 x 5.04 in (12.8 x 12.8 cm) |
| Hole to Hole Distance | 5.55 x 5.55 in (14.1 x 14.1 cm) |
| Screw Hole Size | Ø 0.197 in (Ø 0.5 cm) |
| Cord Length | 72 in (6 feet) |
| Mounting Template |  PDF |

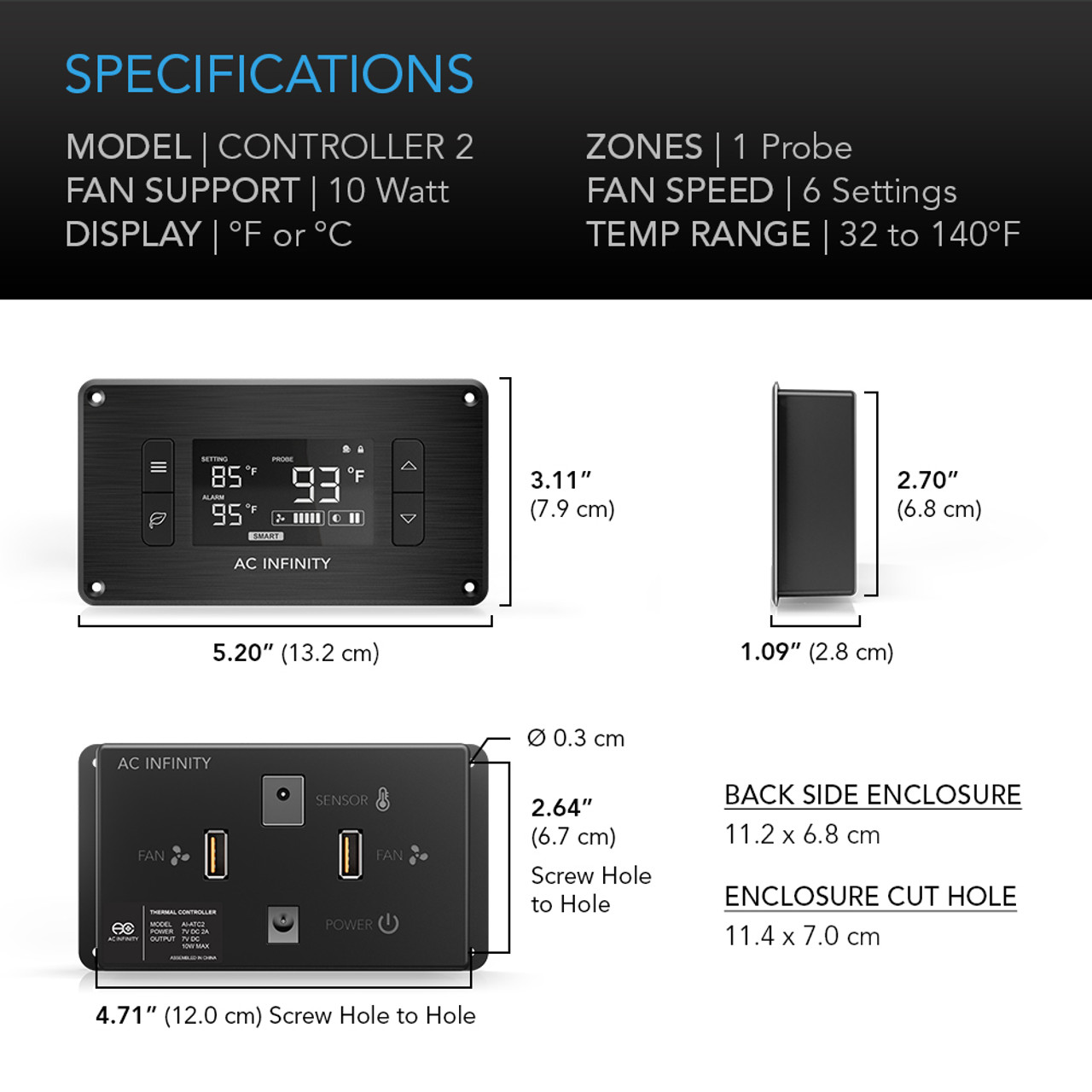

Product and Mounting Dimensions – Controller | |
| Total Dimensions | 5.20 x 3.11 x 1.10 in. (13.2 x 7.9 x 2.8 cm) |
| Backside Enclosure Dimensions | 4.41 x 2.68 in. (11.2 x 6.8 cm) |
| Required Mounting Hole | 4.48 x 2.76 in. (11.4 x 7.0 cm) |
| Hole to Hole Distance | 4.71 x 2.64 in. (12.0 x 6.7 cm) |
| Screw Hole Size | Ø 0.119 in (Ø 0.3 cm) |
| Display Size | 2.25 x 1.25 in. (4.7 x 3.2 cm) |
| Cord Length | 72 in. (6 feet) |
| Thermal Probe Length | 72 in. (6 feet) |
| Mounting Template | PDF |
| Product Performance and Technical Specs | |
| Total Airflow | 52 CFM |
| Total Noise | 18 dBA |
| Static Pressure | 1 mm-H2O |
| Operating Voltage | 3 to 7V DC |
| Power | 2.2 W |
| Current | 0.44 A |
| Wall Adapter Input | 100 to 240V AC |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 14 to 230°F |
| Fan Bearings | Dual Ball |
| L10 Life Expectency | 67,000 Hours |
| Fan Quality Approvals | UL, CE, TUV, RoHS |
