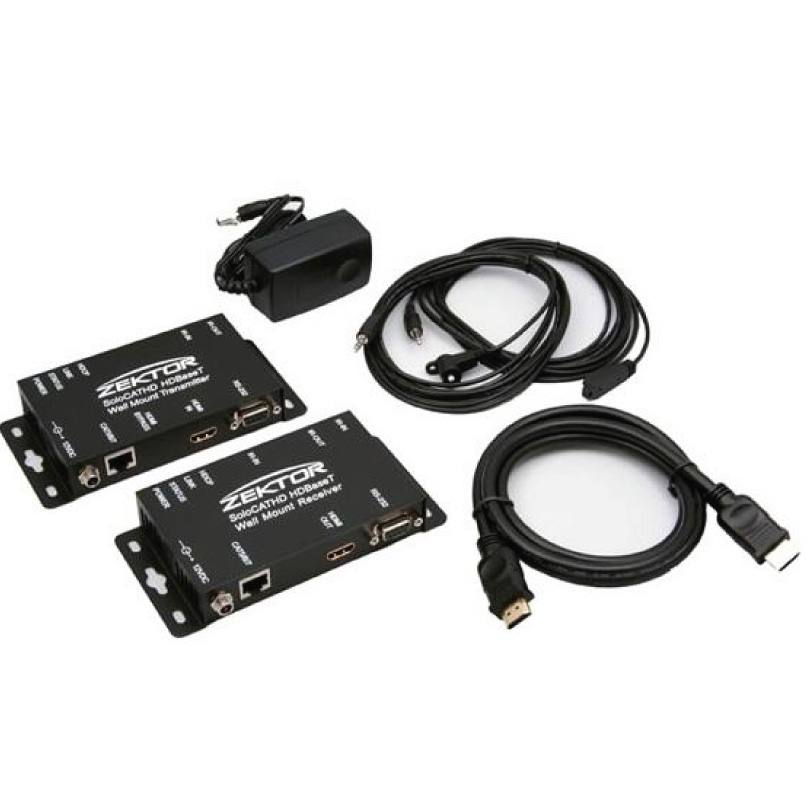

Zektor SoloCAT HDL POE Extender Set


HDMI over HDBaseT has proven to be the most reliable technologies developed to transmit your HDMI signal over CAT5e/6 cable.
  • HDCP 1.2 Compliant
  • EDID pass-through
  • Deep Color: 48bit up to 210ft
  • Video Bandwidth: 10Gbps
  • External wall mount, ventilated chassis

$640.00

  • Other technologies generally begin to degrade over 100′ at 1080p.
  • The SoloCAT HD using HDMI over HDBaseT technology is solid and reliable up to 210′ over a single CAT5e/6 cable.
  • In addition to the HDMI signal, bi-directional IR and bi-directional RS232 can be sent over that same CAT cable up to 210′.
  • Additionally, Zektor has designed our product utilizing our SoloCAT technology requiring only one end to be powered.
  • This exciting new technology is available from Zektor now.
SKU: SoloCAT HDL POE Category:
Brand

  • Transmits HDMI 1.4, RS232 and Bi-Directional IR up to 210ft over a single CAT5e/6 cable
  • Full HD and 3D support – all 7 3D formats are supported
  • Uncompressed video 1080p@ 50/60Hz, 2k (2048x1080p) and 4k (4096×2160p) resolutions
  • Supports high resolution video: 480i, 480p, 720p, 1080i, 1080p, 2k (2048x1080p) and 4k (4096×2160p)
  • DVI 1.0 and HDCP 1.2 compliant
  • Full EDID pass-through
  • Supports all VESA formats
  • Enables 10.2Gbps of HDMI Audio: Dolby TrueHD & DTS Master Audio 7.1 compliant
  • Supports Refresh Rates: 24Hz, 30Hz, 50, 60Hz
  • Full 1080p 50/60Hz (48bit) at 210′
  • External wall mount, ventilated chassis

TECHNICAL SPECIFICATIONS:

  • Transmitter Inputs: HDMI (Type A), IR, RS232
  • Transmitter Output: RJ45, HDMI (Type A) Local-Out
  • Receiver Input: RJ45
  • Receiver Output HDMI, 3.5mm IR, 15 pin female D Subminiature
  • HDCP 1.2 Compliant
  • EDID pass through
  • 3D formats support: Side-by-Side Horizontal; Top-and-Bottom; Frame-Packing; field alternative; frame alternative; line alternative; side-by-side half; side-by-side full; L + depth; L + depth + graphics + graphics depth
  • Deep Color: 48bit up to 210ft
  • Resolution Support: up to 2k (2048x1080p) and 4k (4096×2160p), 4 times higher than 1080p
  • Power Consumption (max.): 15W
  • Video Bandwidth: 10Gbps
  • Input TMDS signal: 1.2 volts (peak-to-peak)
  • Input DDC signal: 5 volts (peak-to-peak)
  • HDMI Connector: 19 pin female connector
  • Power Supply: 5V 2A (110/240 universal)
  • Link Connector: RJ-45 ShieldedTransmits HDMI 1.4, RS232 and Bi-Directional IR up to 210ft over a single CAT5e/6 cable
  • Full HD and 3D support – all 7 3D formats are supported
  • Uncompressed video 1080p@ 50/60Hz, 2k (2048x1080p) and 4k (4096×2160p) resolutions
  • Supports high resolution video: 480i, 480p, 720p, 1080i, 1080p, 2k (2048x1080p) and 4k (4096×2160p)
  • DVI 1.0 and HDCP 1.2 compliant
  • Full EDID pass-through
  • Supports all VESA formats
  • Enables 10.2Gbps of HDMI Audio: Dolby TrueHD & DTS Master Audio 7.1 compliant
  • Supports Refresh Rates: 24Hz, 30Hz, 50, 60Hz
  • Full 1080p 50/60Hz (48bit) at 210′
  • External wall mount, ventilated chassis

TECHNICAL SPECIFICATIONS:

  • Transmitter Inputs: HDMI (Type A), IR, RS232
  • Transmitter Output: RJ45, HDMI (Type A) Local-Out
  • Receiver Input: RJ45
  • Receiver Output HDMI, 3.5mm IR, 15 pin female D Subminiature
  • HDCP 1.2 Compliant
  • EDID pass through
  • 3D formats support: Side-by-Side Horizontal; Top-and-Bottom; Frame-Packing; field alternative; frame alternative; line alternative; side-by-side half; side-by-side full; L + depth; L + depth + graphics + graphics depth
  • Deep Color: 48bit up to 210ft
  • Resolution Support: up to 2k (2048x1080p) and 4k (4096×2160p), 4 times higher than 1080p
  • Power Consumption (max.): 15W
  • Video Bandwidth: 10Gbps
  • Input TMDS signal: 1.2 volts (peak-to-peak)
  • Input DDC signal: 5 volts (peak-to-peak)
  • HDMI Connector: 19 pin female connector
  • Power Supply: 5V 2A (110/240 universal)
  • Link Connector: RJ-45 Shielded
