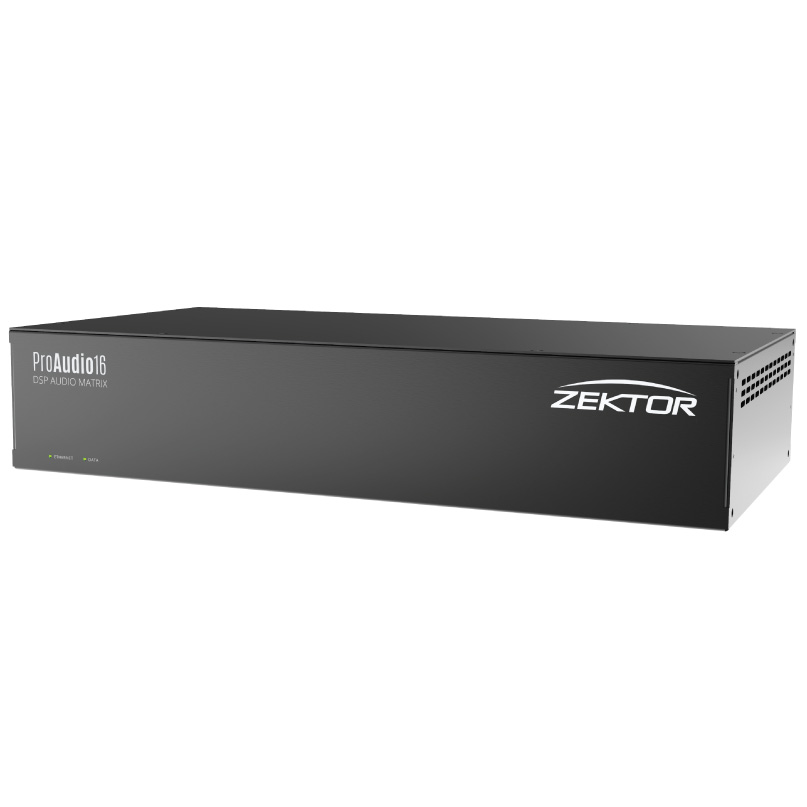

Zektor 16×16 Elite Audio Matrix


TCP/IP, RS232 & IR control. 2U rackmount. With Lip Sync delay function built-in & Doorbell Input
  • Zone settings (+/-24dB) for each zone.
  • Lip sync delay from 0 to 170ms,
  • 16 coax digital inputs
  • 16 optical digital inputs
  • W/auto conversion to coax,

$3,150.00

  • ProAudio 16×16 Digital Audio Matrix 16 input 16 output matrix.
  • 16 Spdif & 16 Toslink Digital Inputs 16 Inputs of Stereo Audio on RCA.
  • A/D & D/A Conversion with volume & 5 bands EQ.
  • TCP/IP, RS232 & IR control. 2U rackmount. With Lip Sync delay function built-in & Doorbell Input
SKU: Audio 16x16 Elite Category:
Brand

AUDIO

  • Volume, Balance, Bass, Treble and 5 Band Equalizer control of analog AND digital audio.
  • Volume range: +24dB to -99.5dB, and full mute (-115dB), with 0.5dB step resolution.
  • Master volume to control all zones simultaneously (+24dB to -99.5dB), and full mute.
  • Tone / EQ ranges: +20dB to -20dB, with 0.5dB step resolution.
  • Gain settings (+/-24dB) for each input, separate gains available for digital and analog.
  • Zone settings (+/-24dB) for each zone.
  • Lip sync delay from 0 to 170ms, per zone and/or per input.
  • Audio format conversion: Analog audio is automatically converted to digital audio, digital audio is automatically converted to analog audio. (Does not downmix Dolby5.1 or DTS to analog audio, but does pass multichannel audio to the S/PDIF outputs)
  • Both analog and digital audio is available simultaneously on the outputs.

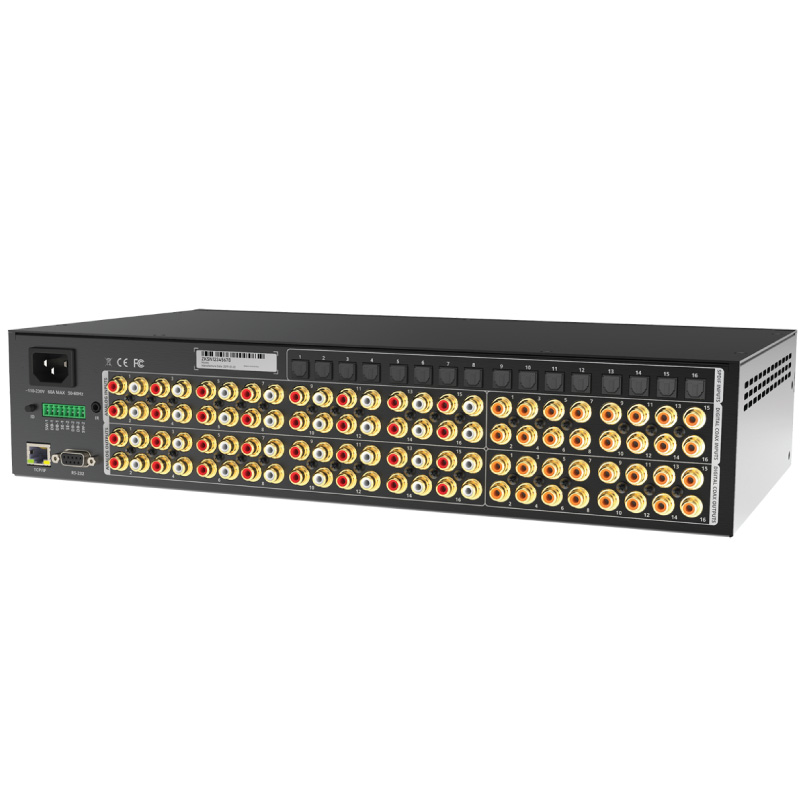

  • 16 coax digital inputs and 16 optical digital inputs w/auto conversion to coax, and analog audio, for easy integration with cable boxes.

CONTROL

  • TCP/IP, Bi-directional RS-232 and RS-422, Front panel IR sensor, Rear panel IR jack.
  • TCP/IP and RS-232 / RS-422 share the same protocol. Protocol allows for polled or push update modes. Polled or push update modes are settable on a command by command basis.
