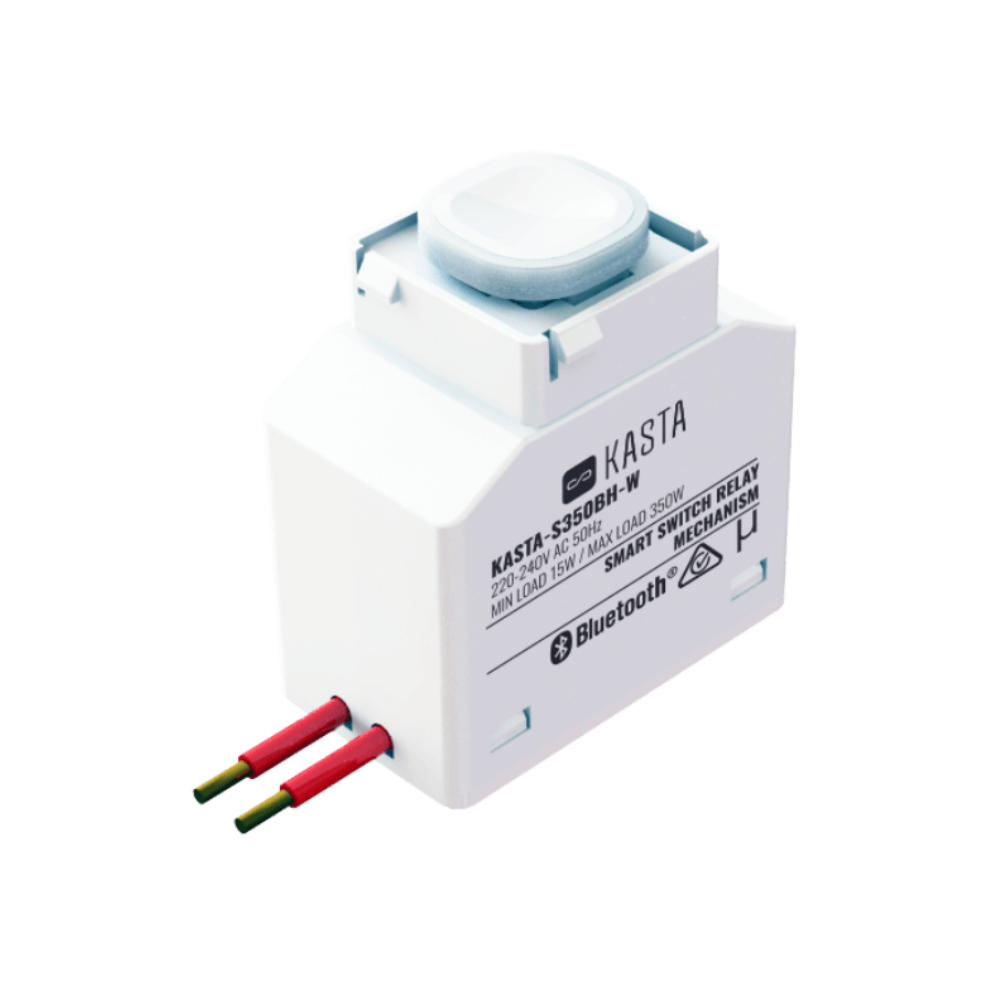

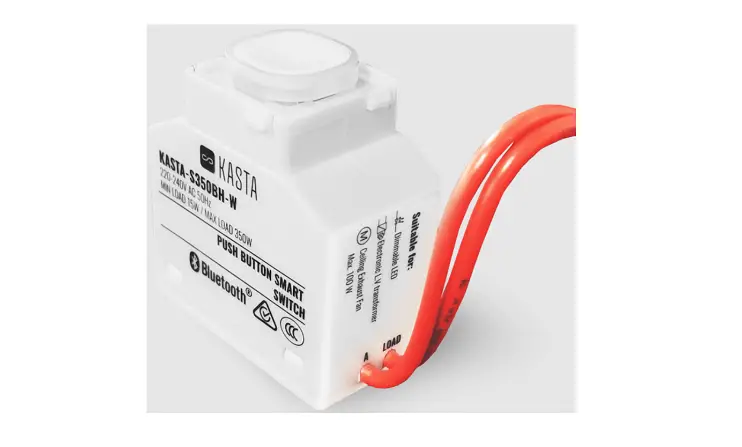

Smart Push Button S350BH Switch Relay Mechanism
Smart Push Button S350BH Switch Relay Mechanism – Smart Wireless LED Switch Relay that clips into a standard wallplate.
$121.85
Smart Push Button S350BH Switch Relay Mechanism
Smart Wireless LED Switch Relay that clips into a standard wallplate. It can be manually operated, controlled via the free KASTA app or programmed for automated operation.
Features
• Mains powered switch relay
• 2 wire connection Active & Load for easy installation
• Push button control
• Short press for on/off control
• Wireless Bluetooth Mesh communication
• Can be paired with KASTA remote switches for multi-way control
• Configured and controlled using the KASTA app (iOS and Android)
• Group and Scene functions
• Timer and Scheduling functions
• Thermal current overload protection
• Suits most Australian wall plates
• Supplied with White button caps (2x styles)
• 3 year warranty
| Weight | 100 g |
|---|---|
| Dimensions | 40 × 40 × 40 mm |
| Brands |
Specifications
Power Supply 220-240VAC 50Hz
Physical Connection Type Fly Leads
Wiring Connections Active and Load
LED Load Power 15W to 350W*
Operating Ambient Temperature -20 to 40°C
Thermal Derating 25 to 40°C (350W-175W)
Wireless Range Up to 25m open air
Up to 15m (typical indoors,
depending on building materials)
Form Factor Mechanism
Housing Material Polycarbonate (PC)
Multi-gang Derating 2=260W, 3=190W
@25°C
Standards Complied CoS SAA 183650
AS/NZS 60669.2.1
AS/NZS 60669.1
AS/NZS 4268
AS/NZS CISPR15
* May require load correction capacitor if less than 15W (supplied in box).
Suitable for use with small fan motors <100W (0.5A @ 0.8pF).
