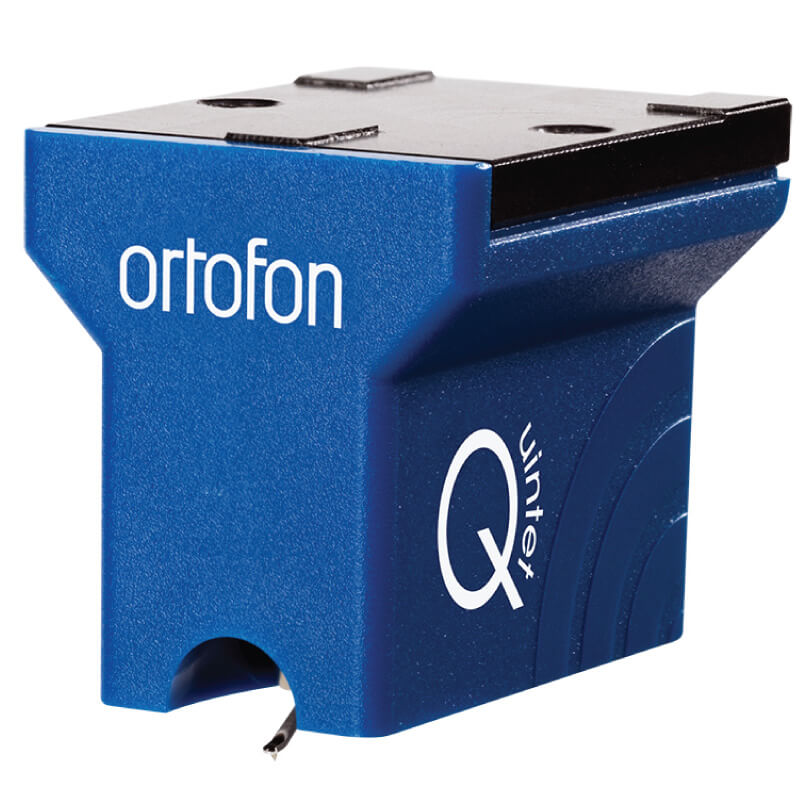

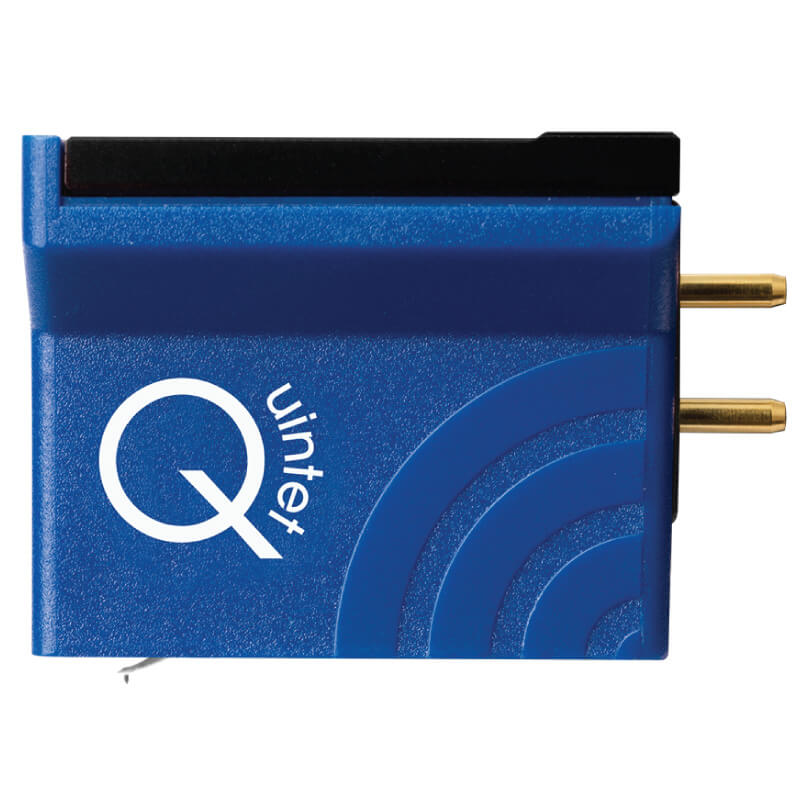

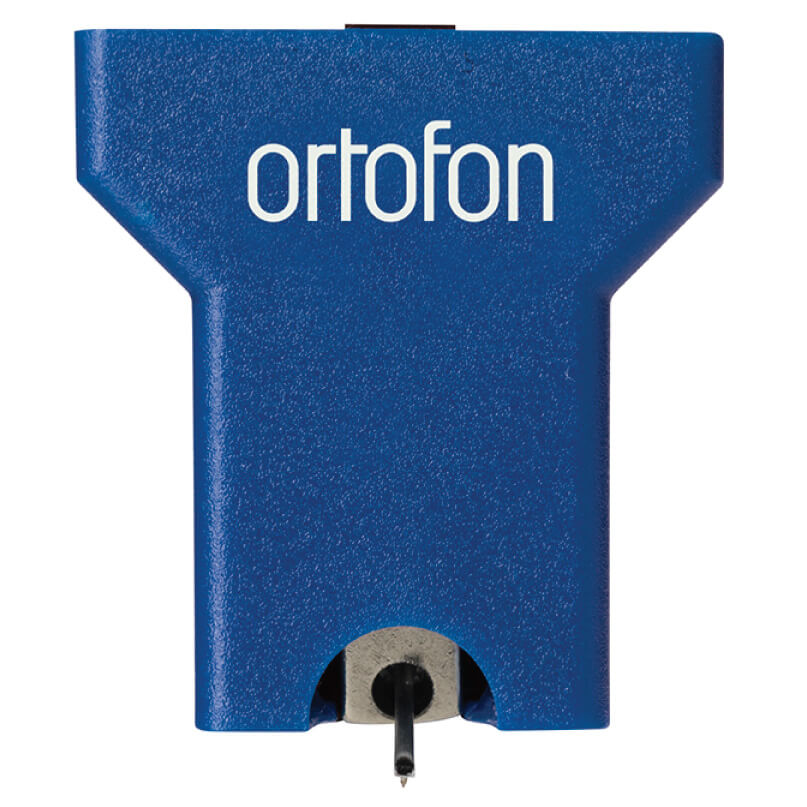

Ortofon MC Quintet Blue Moving Coil Cartridge


  • The Quintet Blue’s sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze
  • It features a Nude Elliptical diamond mounted on an aluminium cantilever
  • The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic

$769.00

The Quintet Story

Nothing demonstrates Ortofon’s long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon has introduced about 100 different Moving Coil models. We believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges.

Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell.

The Quintet series? right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge?s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.

Weight 9 g
Brand

Output voltage at 1 kHz 5 cm/sec 0.5 mV
Channel balance < 1.5 dB
Channel separation at 1 kHz > 21 dB
Channel separation at 15 kHz > 14 dB
Frequency range at -3 dB 20 – 25.000Hz
Frequency response 20-20.000 Hz +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force  70 μm
Compliance, dynamic, lateral 15 μm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 μm
Tracking force range 2.1-2.5 g (21-25 mN)
Tracking force recommended 2.3 g (23 mN)
Tracking angle 20º
Internal impedance, DC resistance 7 Ohm
Recommended load impedance >20 Ohm
Cartridge body material ABS/Aluminium
Coil wire material Pure 4-nines copper
Cartridge colour Blue
