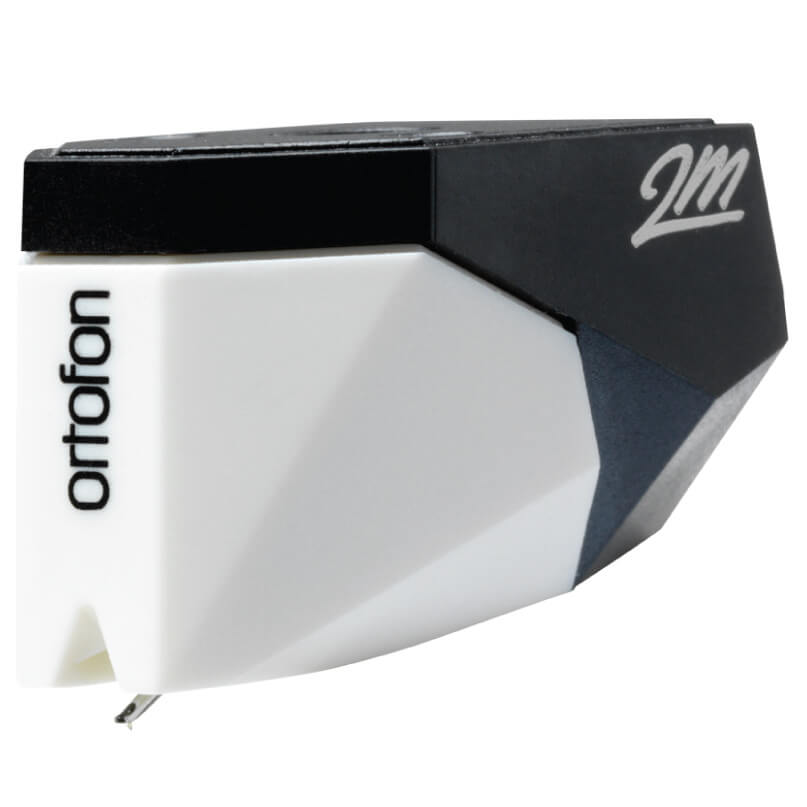

Ortofon 2M Mono Moving Magnet Cartridge

Ortofon

The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

  • An improved engine, which provides a high level of sonic accuracy
  • R 18?m Nude Spherical diamond that is an optimal solution for playing mono microgroove LP vinyl records
  • The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances
  • 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system

$549

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer M?ller Jensen Design ? the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record?s surface, the 2M?s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn?t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon?s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Each of the 2M Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:

  • 2M Mono SE, 2M Mono and 2M 78 are a true mono cartridges for playing mono vinyl records
  • 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
  • 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details
  • 2M Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
  • 2M Black is the best of everything, true to the groove with resolution and accurate insight into each recording

The 2M series of cartridges features Ortofon?s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

They have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Weight 7.2 g
Dimensions 28 × 19 × 18 mm
Brand

Output voltage at 1000 Hz, 5cm/sec. 4 mV
Frequency range at – 3dB 20-22.000 Hz
Frequency response 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force 70 µm
Compliance, dynamic, lateral 18 µm/mN
Stylus type Nude Spherical
Stylus tip radius R18 µm
Tracking force range 1.6-2.0 g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 700 Ohm
Internal inductance 350 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/White
Cartridge weight without screws 7.2 g
