LED Strips & Smart Lights

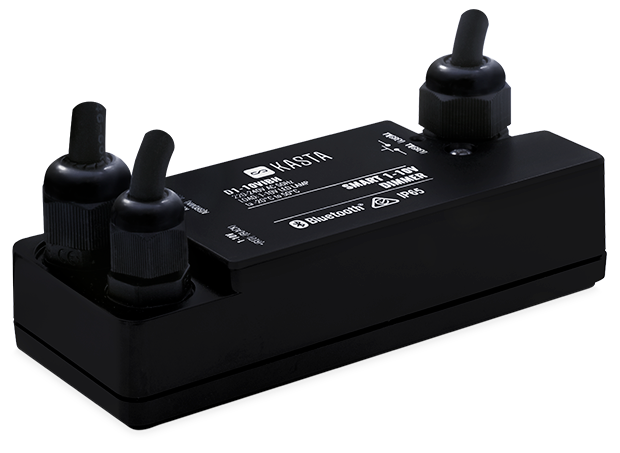

Kasta Smart 1-10V Dimmer
Kasta Smart 1-10V Dimmer for control of LED 0-10V dimmable lighting. It can operated in combination with the KASTA daylight sensor for daylight harvesting control. The 8-way multiway control is reliable Bluetooth mesh network connectivity to all KASTA devices.
$110
- Kasta Smart 1-10V Dimmer (suits luminaires with 1-10V input control)
- Can be used in combination with the KASTA Daylight Sensor for daylight harvesting control
- Reliable Bluetooth® mesh network connectivity to all KASTA devices
- 8-way multiway control
- High temperature rated
- IP65 rated
- Over temperature protection
- iOS and Android app setup and control
- 3 year warranty
| Weight | 250 g |
|---|---|
| Dimensions | 124 × 51 × 44 mm |
- Power Supply: 220-240V a.c. 50/60Hz
- Operating Ambient Temperature: -20 to 50°C
- IP Rating: IP20
- Physical Connection Type: Terminals
- No Load Standby Power: <1W
- Wiring Connections: Active, Neutral, 1-10V Dimmer Output & Momentary Mechanism
- Momentary Input (T1/T2): Local signal input only (not 240V a.c.)
- Maximum Output Current: 40mA
- Maximum Number of Drivers: 30
- Dimming Method: 0-10V Dimming
- Dimming Range: 0-100%
- Housing Material: Polycarbonate (PC)
- Standards Complied: AS/NZS 60669.2.1, AS/NZS 60669.1, AS/NZS CISPR 15, AS/NZS 4268
