Controls, Unison Rocker Switches

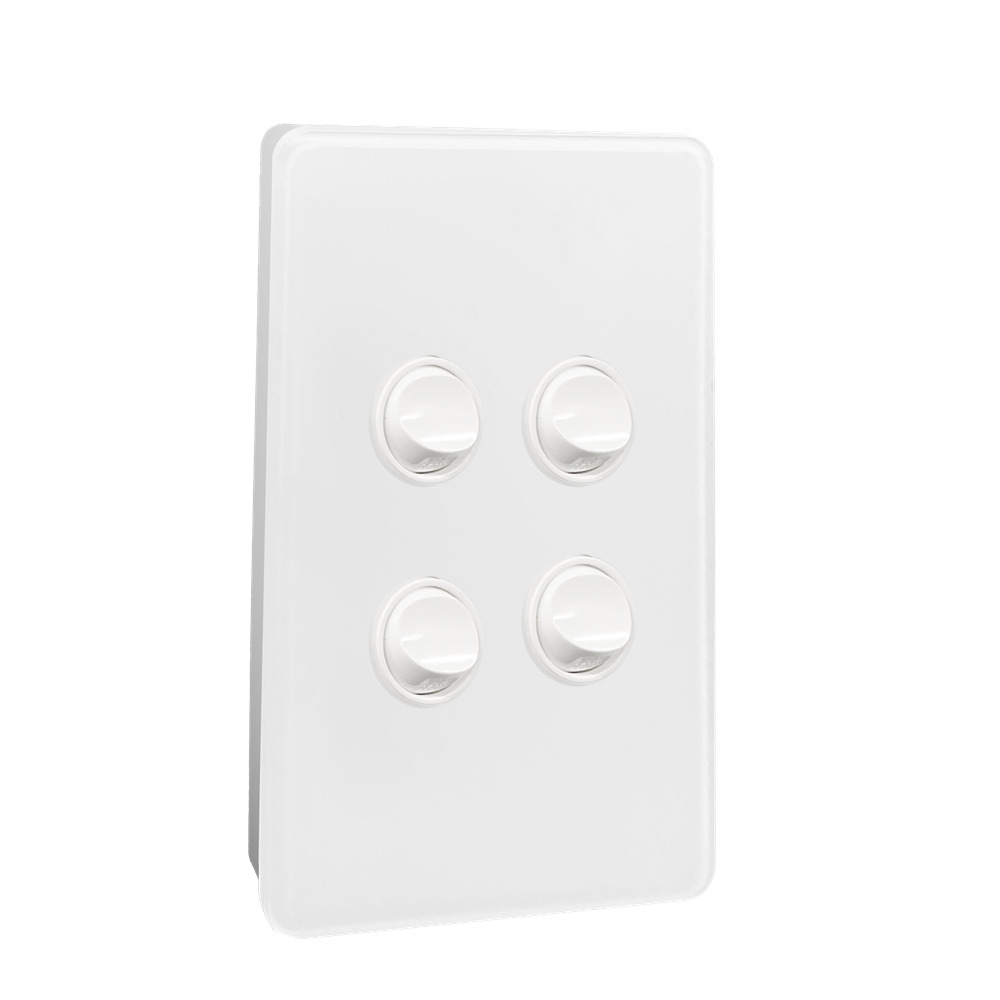

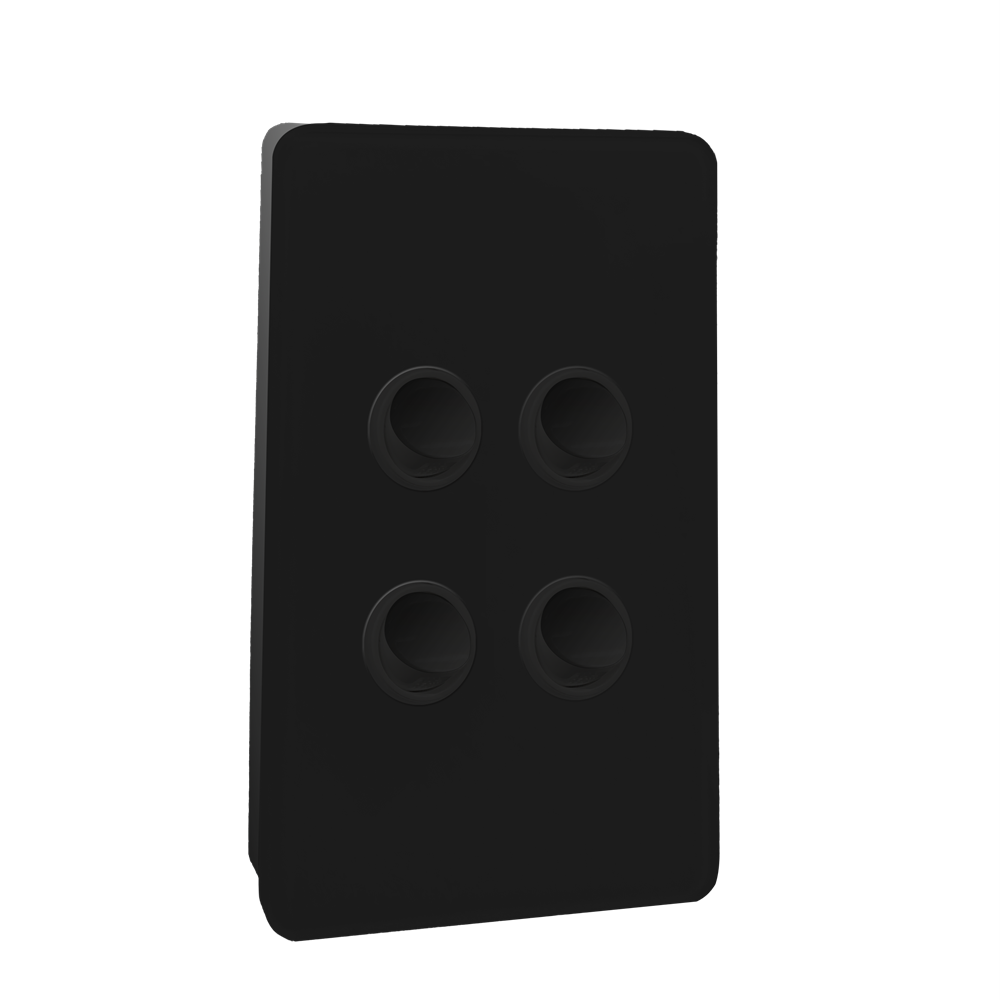

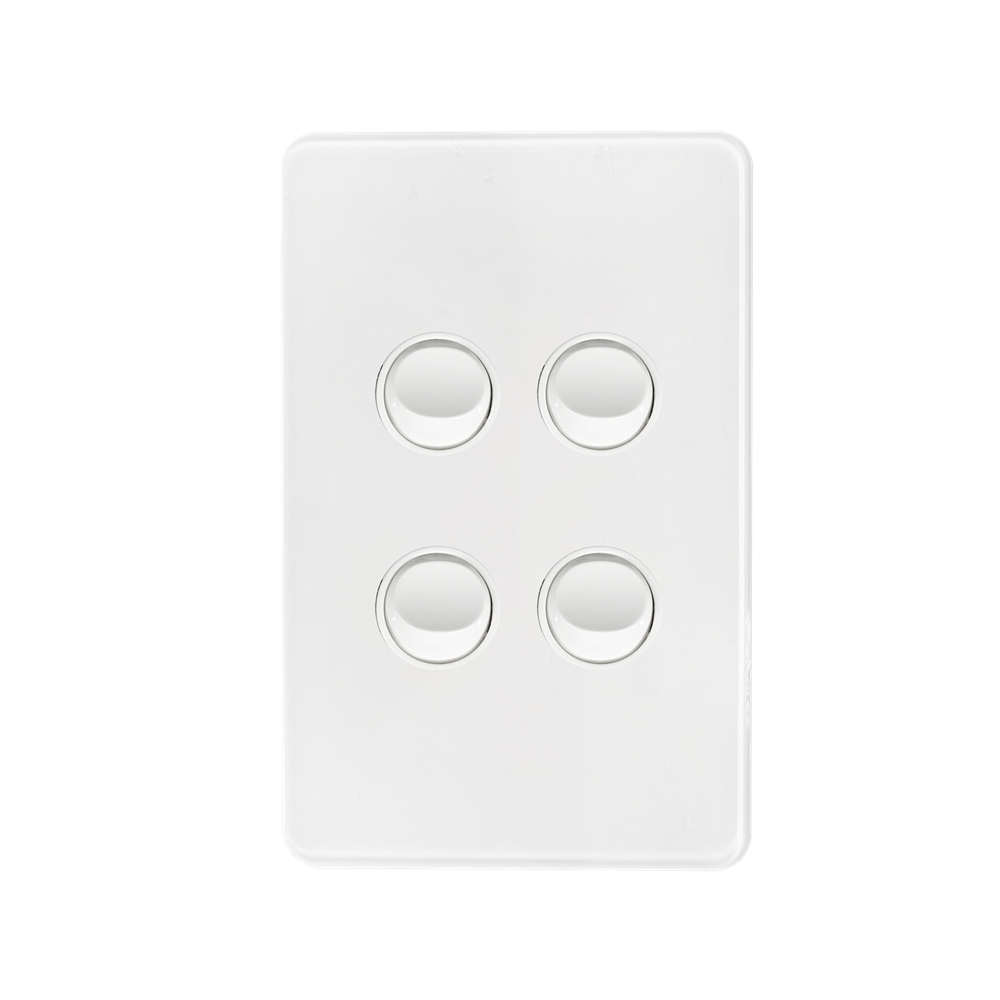

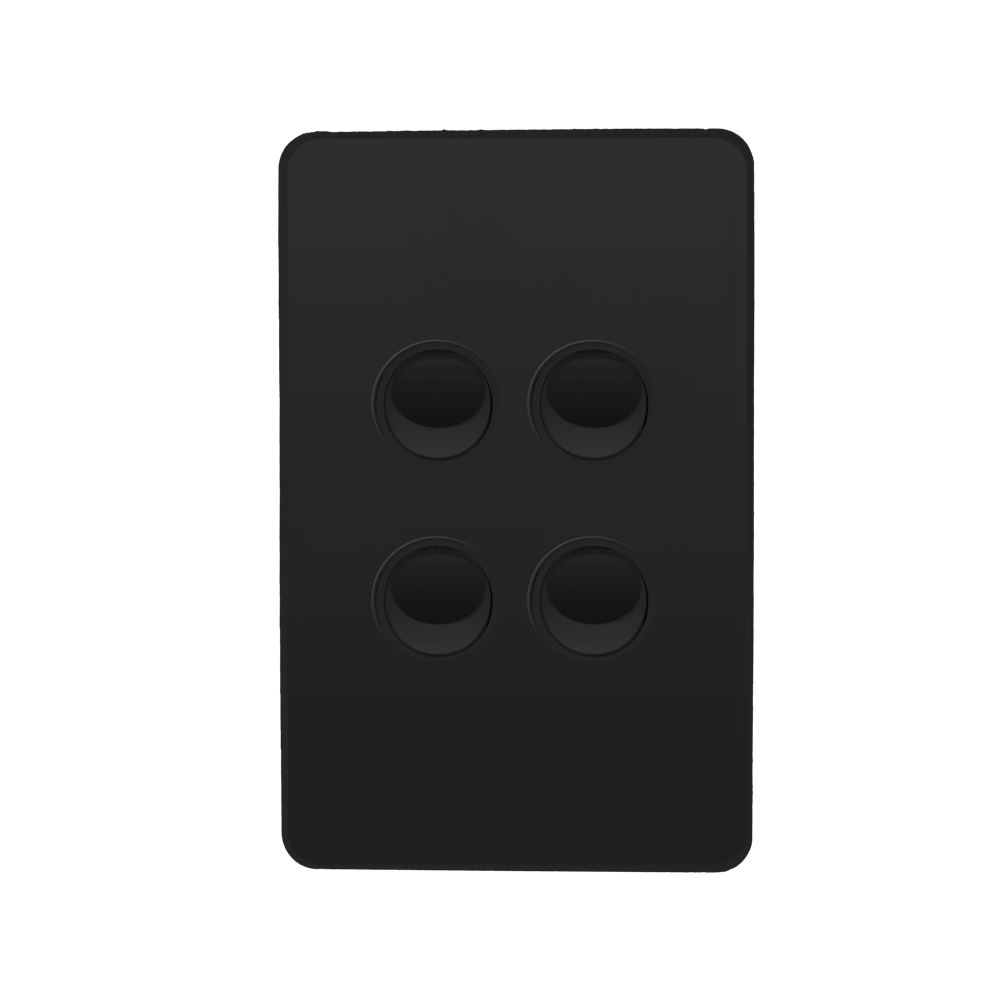

Kasta 240V 4 Gang Unison Rocker Switch Vertical
Kasta 240V 4 Gang Unison Rocker Switch Vertical – 240V Hesperus Unison Rocker Switches
$51.96
Kasta 240V 4 Gang Unison Rocker Switch Vertical
A complementary range of Hesperus traditional/non-smart 240V 4 Gang switches to complete your lighting control solution.
Features
- Modern, slim (9.8mm plate depth) glass-look design based on traditional classic shape
- UV stabilised to avoid discolouring
- Switch apertures acceptive of KASTA mechanisms
- Fits standard first fix mounting accessories (e.g. C-clips, nail brackets, wall boxes)
- Flush mounting centres (not recessed) for quicker installation
- Backed off terminal screws and deep tunnels allow fast fitment of cables
- Multiple mounting facilities at both 84mm and 103mm, along with corner fixing points
- Insulated screw caps hinged to the grid plate to provide IP2X rating on mounting screws
| Weight | 200 g |
|---|---|
| Dimensions | 80 × 120 × 9.8 mm |
| Brands | |
| Color | Black, White |
Specifications
- Power Supply 250V a.c.
- Current Rating 10AX
- Operating Ambient Temperature -20 to 40°C
- IP Rating IP20
- Plate Depth 9.8mm
- Terminal Size 4.1mm bore (accomodates 4×1.5mm2 cables)
- Terminal Screw Type Flat Terminal Screw
- Mounting Points 84mm / 103mm and Corners
- Mounting Screw Type Combination Flat / Philips Head Screws
- Frame Colour / Black Gloss
- Plate Colour / White Gloss
- Housing Material Acrylic / Polycarbonate (PC)
- Standards Complied AS/NZS 3100, AS/NZS 3133
