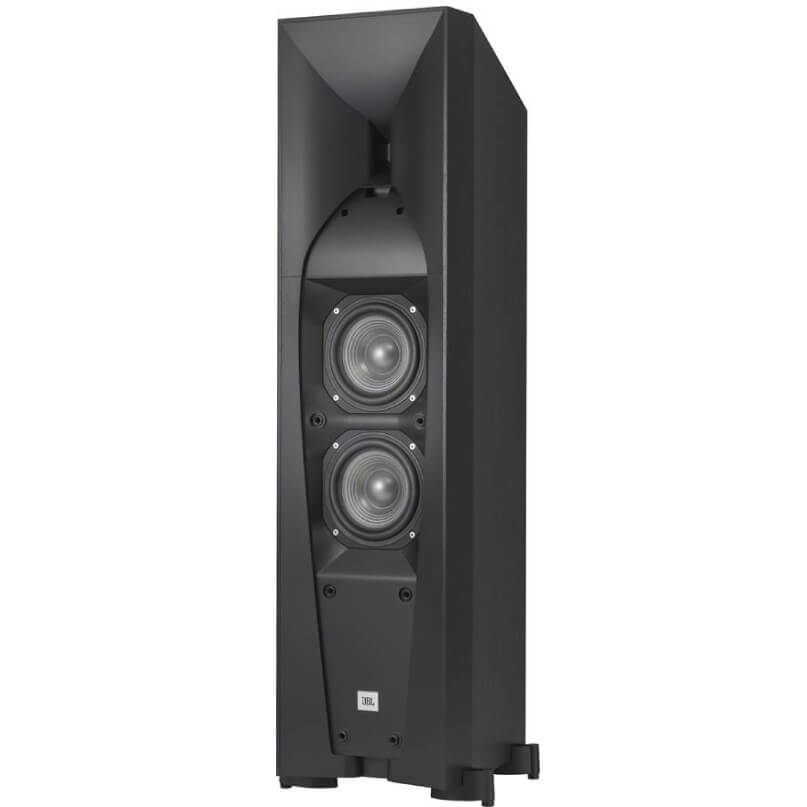

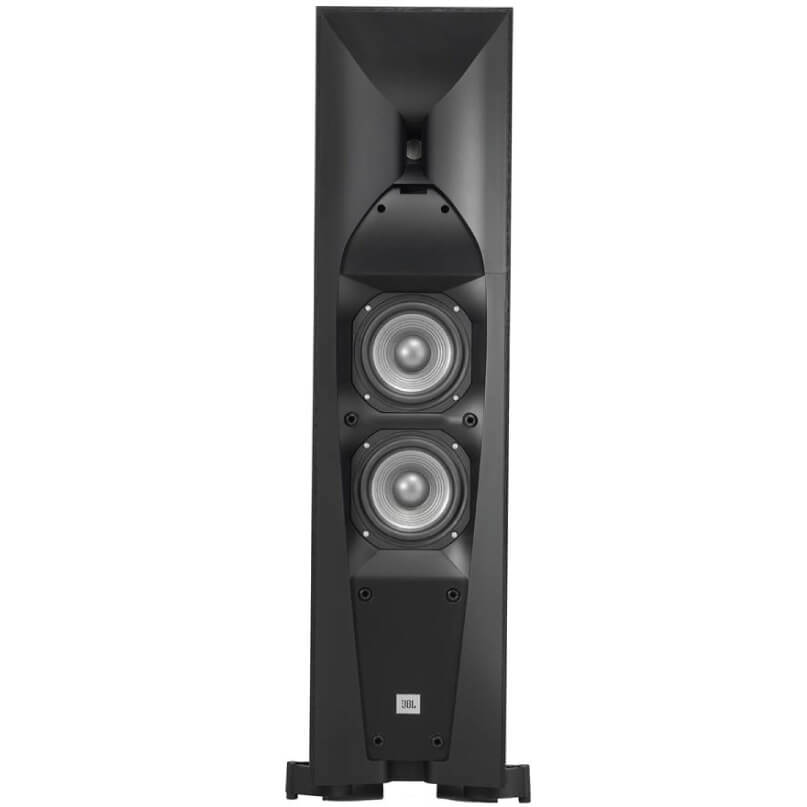

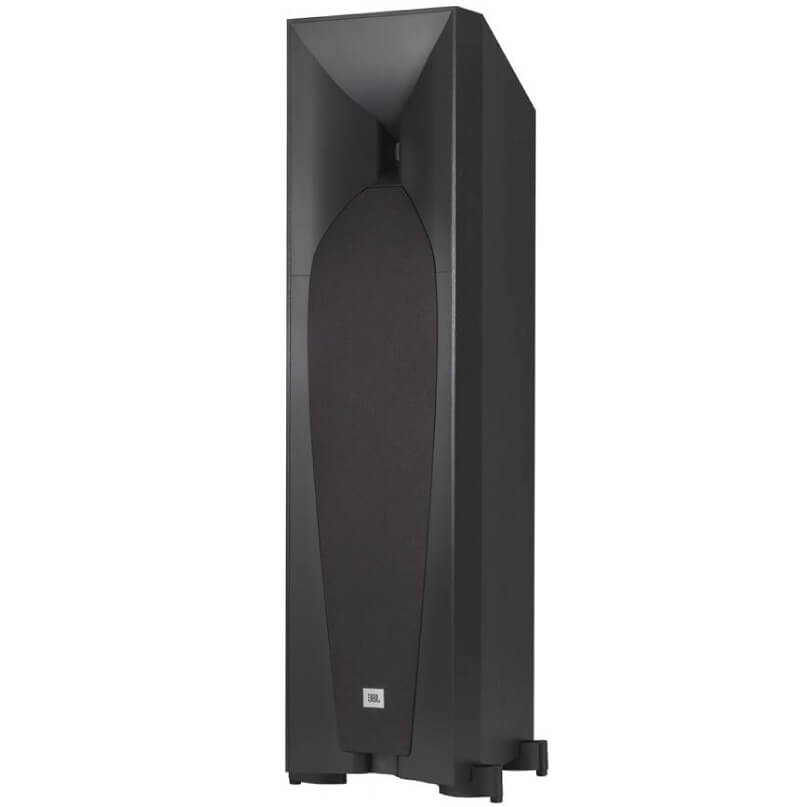

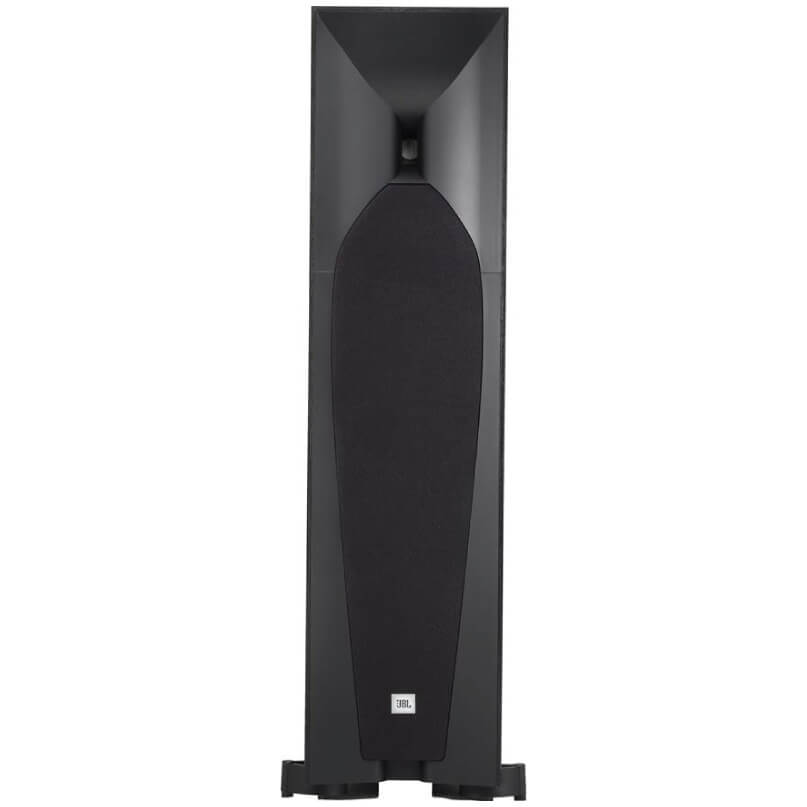

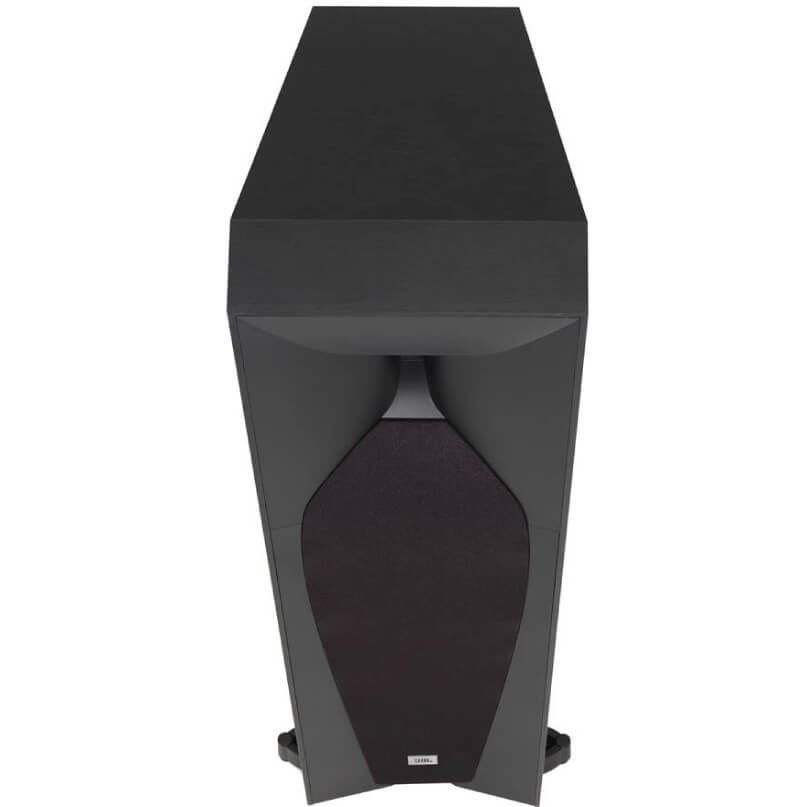

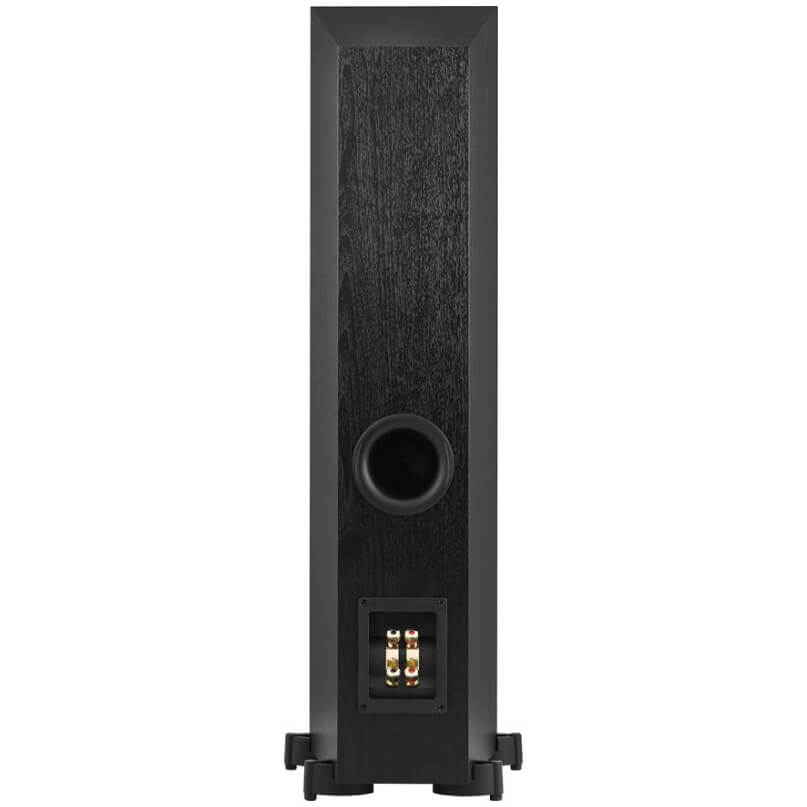

The Studio 570 uses the technology that JBL engineers developed for pro-audio loudspeakers to deliver accurate, powerful sound to your living room.
The Studio 570-floor standing speaker is a perfect complement to other members of the Studio 5 Series, including the Studio 530 bookshelf and the Studio 520C centre-channel loudspeakers. The Studio 570 features a 1-inch (25-millimetre) tweeter mounted on a glass-filled Bi-Radial horn ? the technology used in JBL concert sound systems ? to deliver concise, sustained high frequencies. A pair of 5-1/4-inch (130-millimetre) PolyPlas? cones with Symmetrical Field Geometry? (SFG) magnet assemblies handle low frequencies.
Feature?
- Dual 5-1/4″ (130mm) Low-Frequency Transducers
- Stiff, lightweight ribbed PolyPlas cones with rubber surrounds
- 1-1/2″-diameter woofer voice coils
- Heavy-duty magnet assemblies with Symmetrical Field Geometry (SFG) technology
- Rigid, non-resonant cast aluminum frames
- Clean, powerful bass response at all listening levels
- 1″ (25mm) High-Frequency Compression Driver
- One-piece Teonex diaphragm/surround with 1″ voice coil
- Significantly lower distortion and greater dynamic range than conventional midrange and HF drivers
- Glass-filled ABS Bi-Radial High-Frequency Horn
- Controlled directivity at ear level of seated listeners minimizes unwanted HF interaction with walls and furniture
- Cleaner, more realistic HF sound over a wider listening area
- 3/4″ (19mm) MDF Enclosure
- Rigid, heavily-braced design with non-parallel surfaces reduces unwanted resonances
- Low loss, 2-way crossover network
- Smoothes transition between woofers and HF compression driver/horn
- Reduced distortion and colouration for improved sonic clarity
- Available in black and cherry finishes
