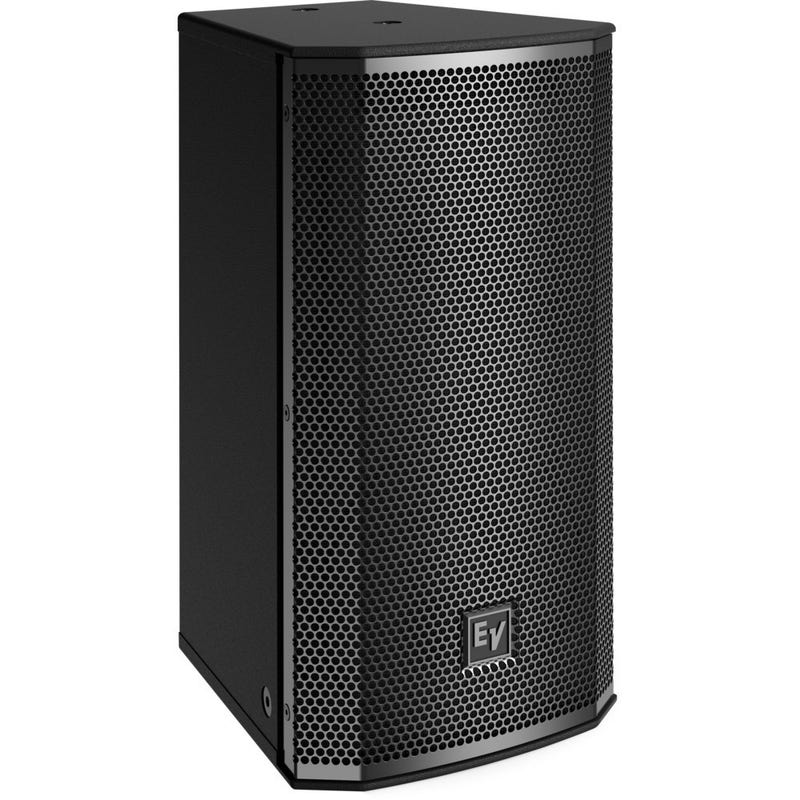

Electro-Voice EVC-1082-90B Loudspeaker 2-Way 8″ LF 90 x 60 Weatherized
Electro-Voice EVC-1082-90B is a compact 8″ 2-way weatherized loudspeaker with a 90° x 60° rotatable waveguide, delivering high-output performance and IP55-rated durability for fixed installations.
$2,935
Electro-Voice EVC-1082-90B is a 2-way 8-inch loudspeaker designed for versatile fixed-installation applications demanding clarity, controlled coverage, and reliability. Featuring a 1.25″ pure titanium dome compression driver and a high-output woofer, this weatherized loudspeaker provides smooth response and high intelligibility across the frequency range. The 90° x 60° constant directivity waveguide is rotatable, allowing for optimal placement flexibility. Rated at 200W continuous (800W peak), and with an IP55 weather resistance rating, it’s perfect for both indoor and protected outdoor environments. The enclosure is constructed from durable 15mm plywood with EVCoat and includes multiple suspension points for mounting flexibility.
| Weight | 8900 g |
|---|---|
| Dimensions | 381 × 292 × 292 mm |
| Brands |
Specs
LF Driver: 8″ high-output woofer
HF Driver: 1.25″ pure titanium dome compression driver
Coverage Pattern: 90° x 60° rotatable waveguide
Power Handling: 200W Continuous / 800W Peak
Sensitivity: 91 dB SPL (1W/1m)
Crossover: Passive, 24 dB/octave slopes
Enclosure: 15mm plywood with EVCoat
Mounting Options: M10 suspension points, U-bracket or pan/tilt wall mount compatible
Connectivity: Accepts up to 10 AWG (6 mm²) wire, optional NL4 connectors, transformer-ready input panel
Weather Rating: IP55 (Weatherized version)
Transformer Support: Optional TK-150 transformer with Automatic Saturation Compensation (ASC)
Related Products
-
Loudspeakers
Electro-Voice EVH-1152D/96 Premium 2-Way Coaxial Horn-Loaded Loudspeaker – 90° x 60°, 15″ LF, 3″ HF, White
LoudspeakersElectro-Voice EVH-1152D/96 Premium 2-Way Coaxial Horn-Loaded Loudspeaker – 90° x 60°, 15″ LF, 3″ HF, White
Electro-Voice EVH-1152D/96 Horn-Loaded Loudspeaker is a premium 2-way coaxial passive speaker with a 90° x 60° rotatable waveguide, engineered for high-output sound reinforcement in reverberant spaces.
SKU: EVH-1152D96WLB -
-
Loudspeakers
Electro-Voice Loudspeaker 2-Way Passive 8″ LF – 90° x 50°, Indoor/Outdoor 70/100V, with Bracket, White
LoudspeakersElectro-Voice Loudspeaker 2-Way Passive 8″ LF – 90° x 50°, Indoor/Outdoor 70/100V, with Bracket, White
Electro-Voice Loudspeaker 2-Way Passive 8″ delivers 90° x 50° coverage with weather-resistant design and included mounting bracket for flexible indoor/outdoor installs.
SKU: EVL-ZX1I-90TW -
-
-
Loudspeakers

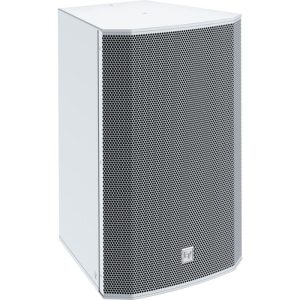

Electro-Voice EVC-1152-95 Loudspeaker (2-Way 15″, 90° x 55°, 350W, IP44, White)
