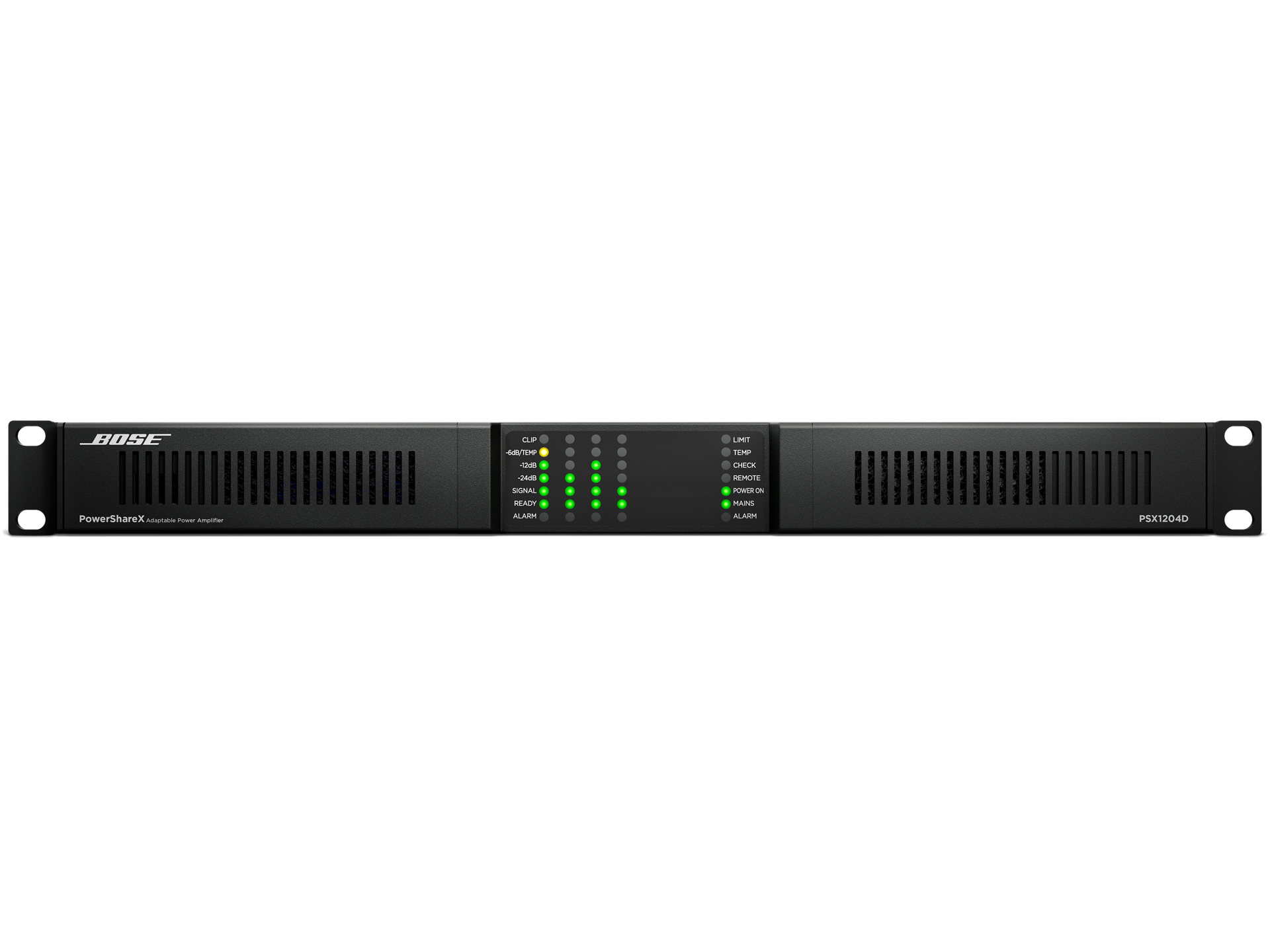

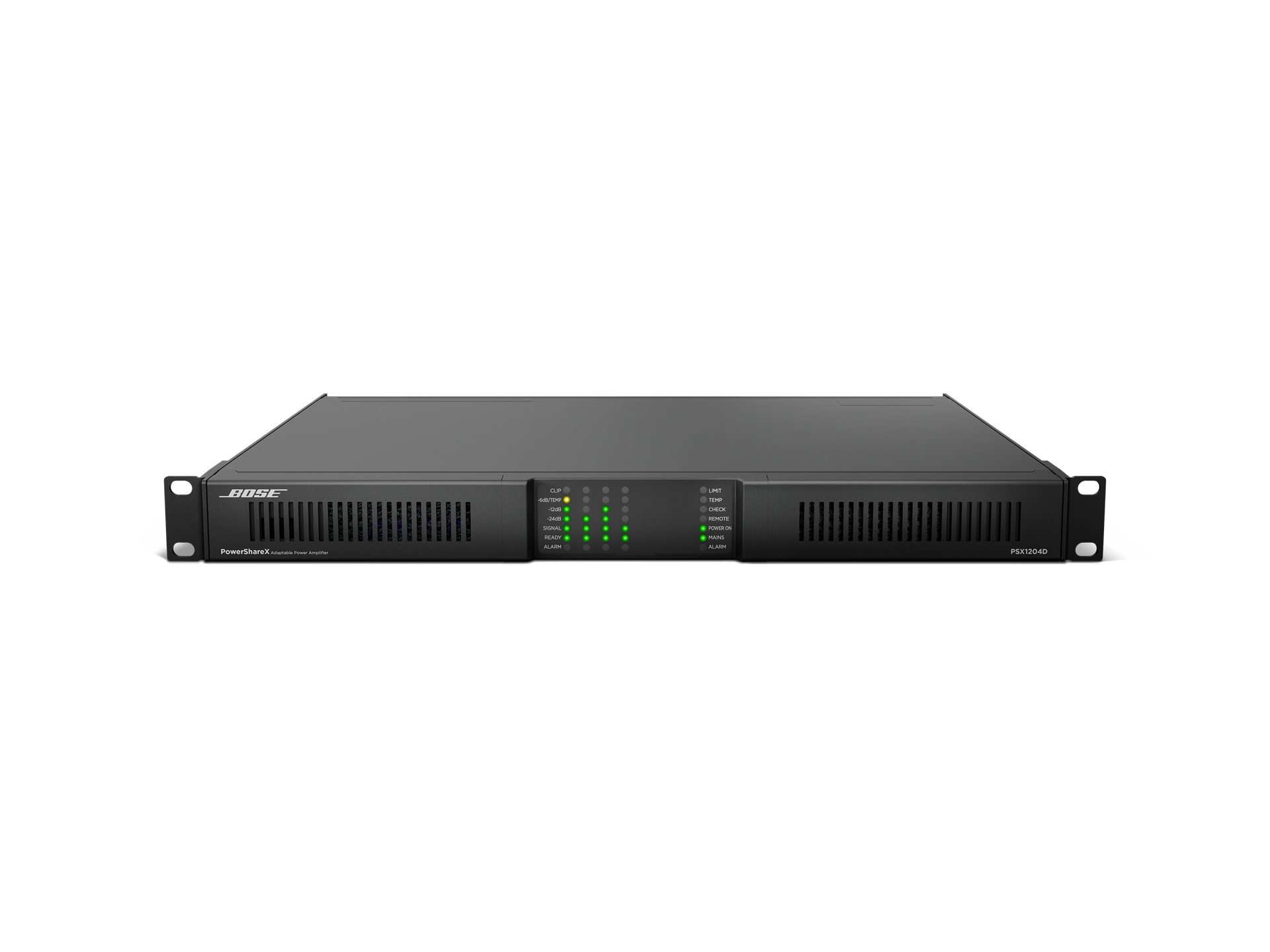

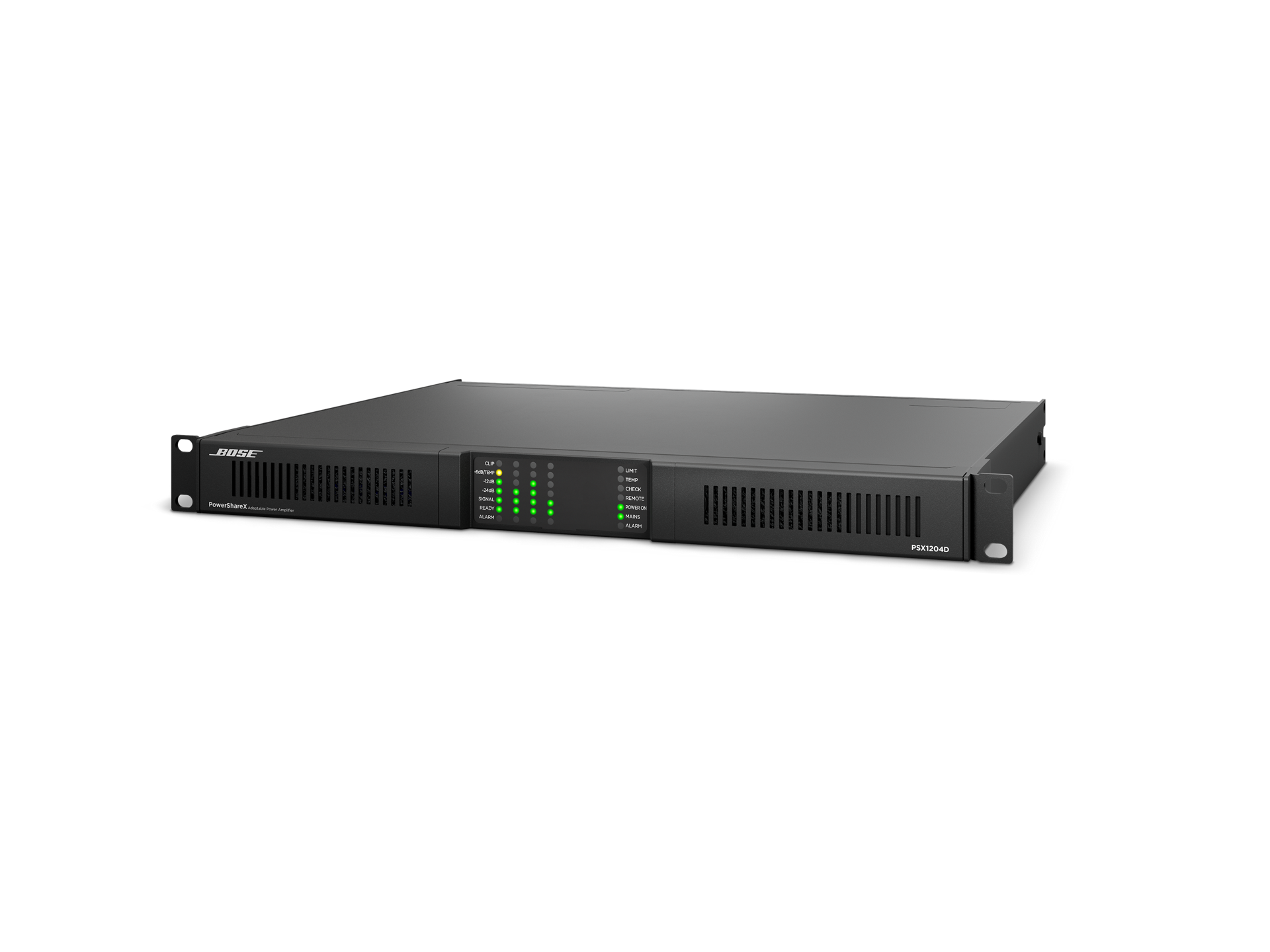

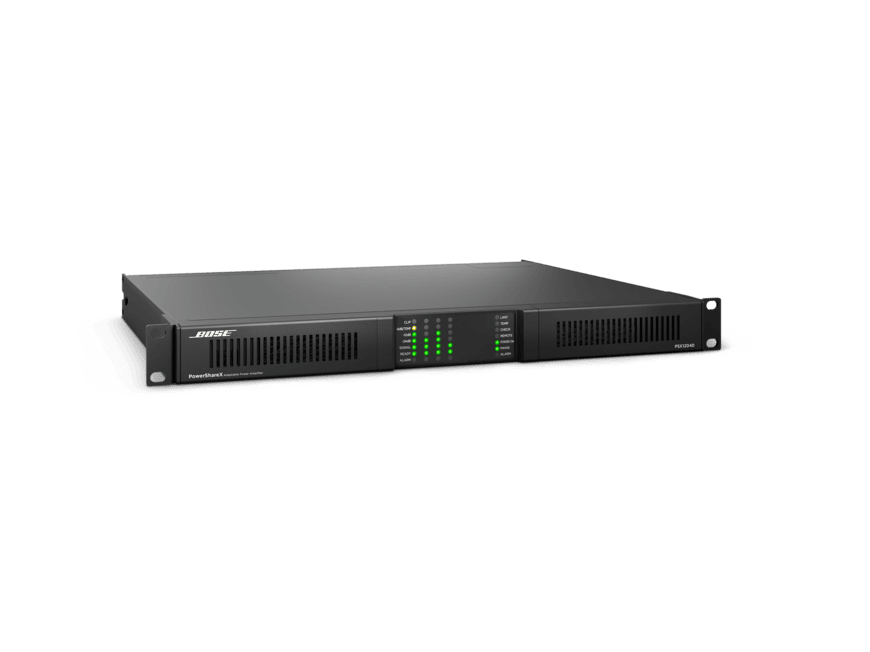

The PowerShareX PSX1204D is a versatile four-channel amplifier designed for high-performance applications. With 1200W of power and advanced PowerShare technology, it dynamically allocates power across outputs without needing to bridge channels. Its built-in DSP ensures optimal performance with Bose Professional loudspeakers and seamless integration with ControlSpace Designer software. Supporting both low-impedance and high-impedance loads, this amplifier is ideal for commercial, corporate, and entertainment venues. It offers easy installation, flexible connectivity, and monitoring through its Dante audio support and real-time system performance data.
| Weight | 7000 g |
|---|---|
| Dimensions | 358 × 483 × 45 mm |
| Brands |
Specs
Channels: 4
Rated Power (Symmetrical): 400 W per channel at 2 Ω / 300 W per channel at 4 Ω, 8 Ω, 70V, 100V
Maximum Peak Power (Symmetrical): 800 W at 2 Ω / 600 W at 4 Ω, 8 Ω, 70V, 100V
Maximum Peak Power (Asymmetrical): 2200 W at 2 Ω, 4 Ω, 8 Ω, 70V, 100V
Frequency Response: 20 Hz – 20 kHz (±1.0 dB) at 1 W, 8 Ω
THD+N: < 0.1% ( 104 dB (A-weighted)
Audio Inputs: 4 balanced analog, 4 Dante digital

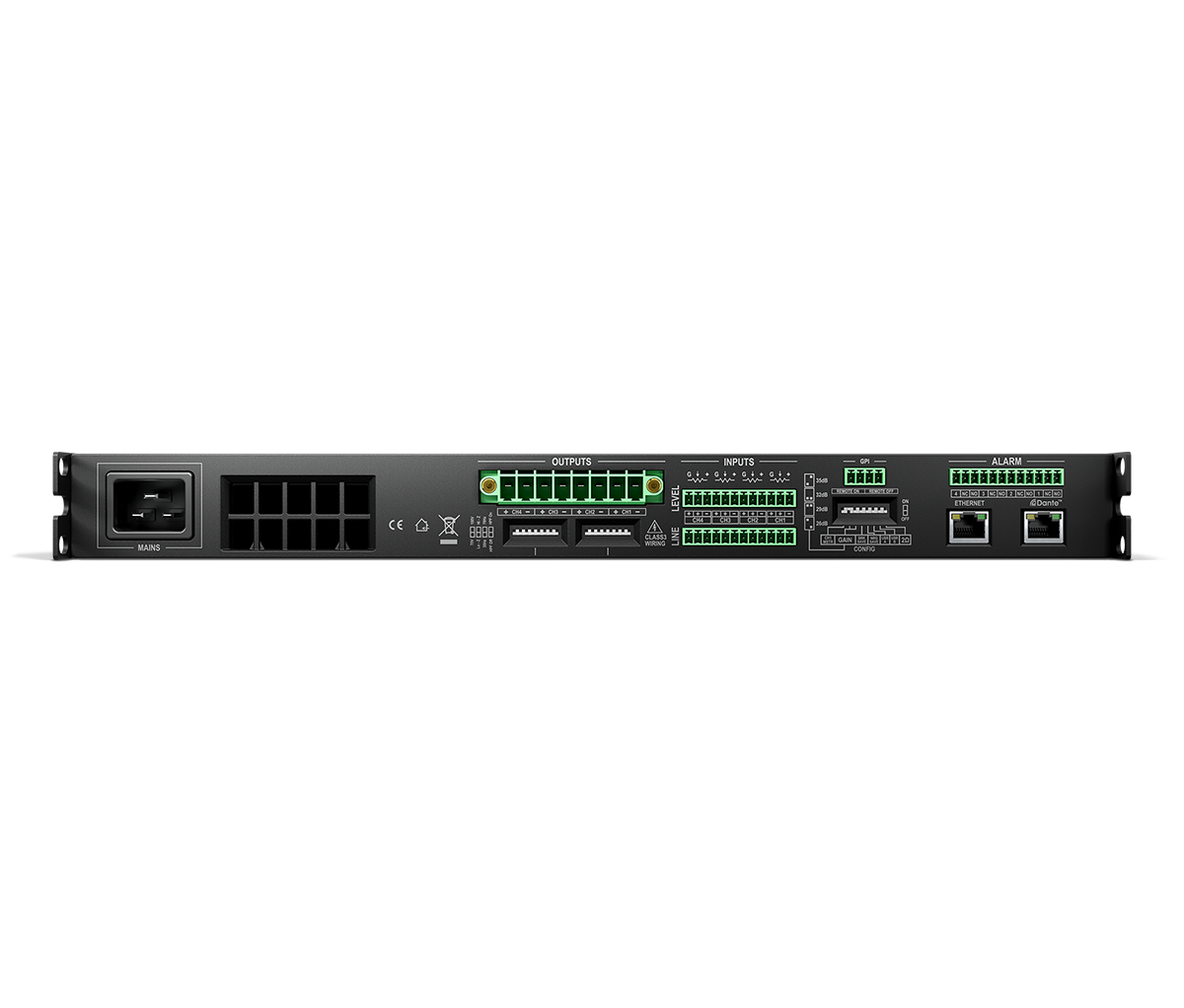

Audio Outputs: 4 analog (8-pin Euroblock)
DSP: 8-band input EQ, 9-band loudspeaker EQ, array EQ (ArenaMatch), band-pass crossover
Power Consumption: 31.1 W idle / 251 W max at 1/8 power, 4 Ω
Protection: High temperature, DC, output short circuit, inrush current, clip, peak
Mounting: 1U rack-mountable
