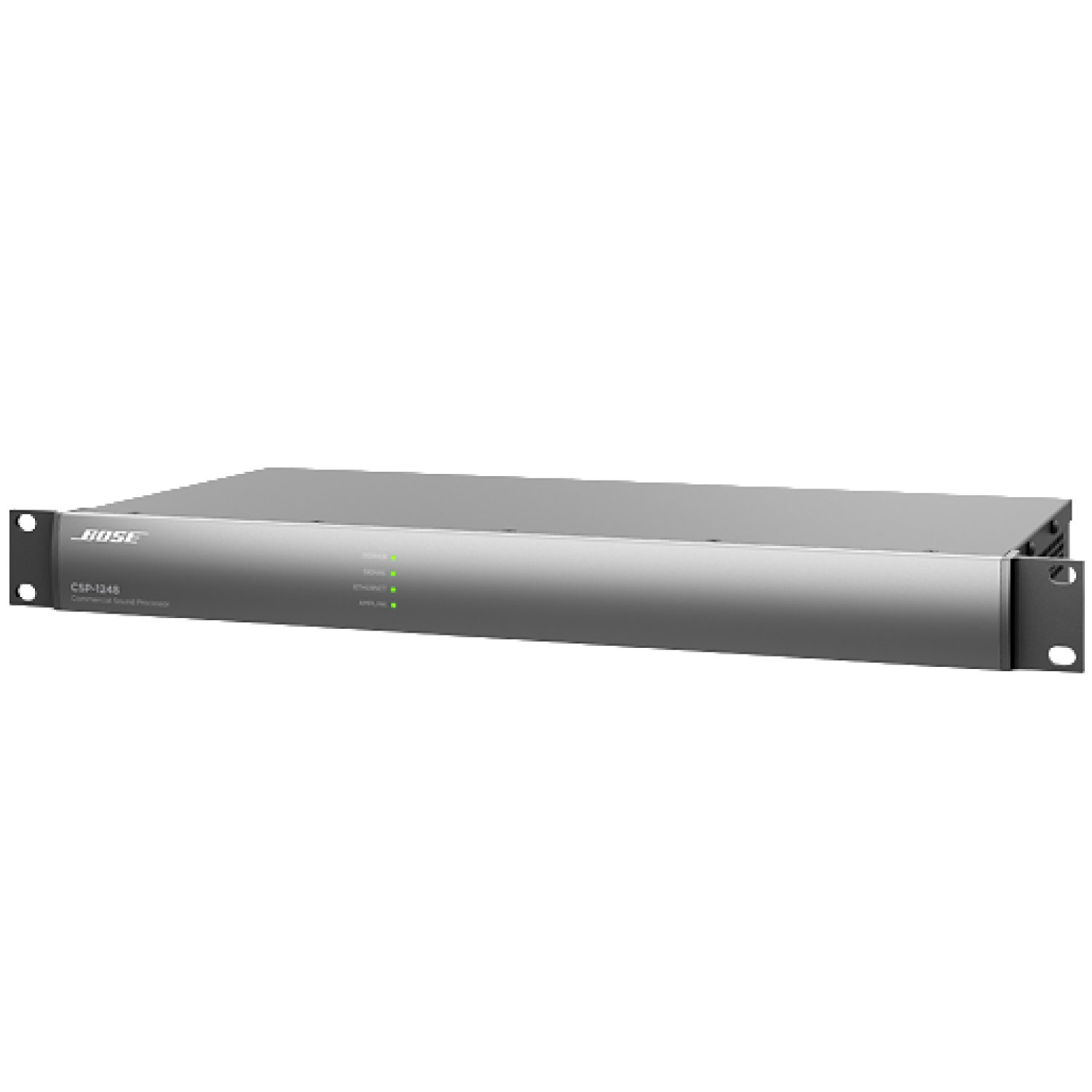

Bose rack-mount network appliance with front-panel led indicators and mounting ears.

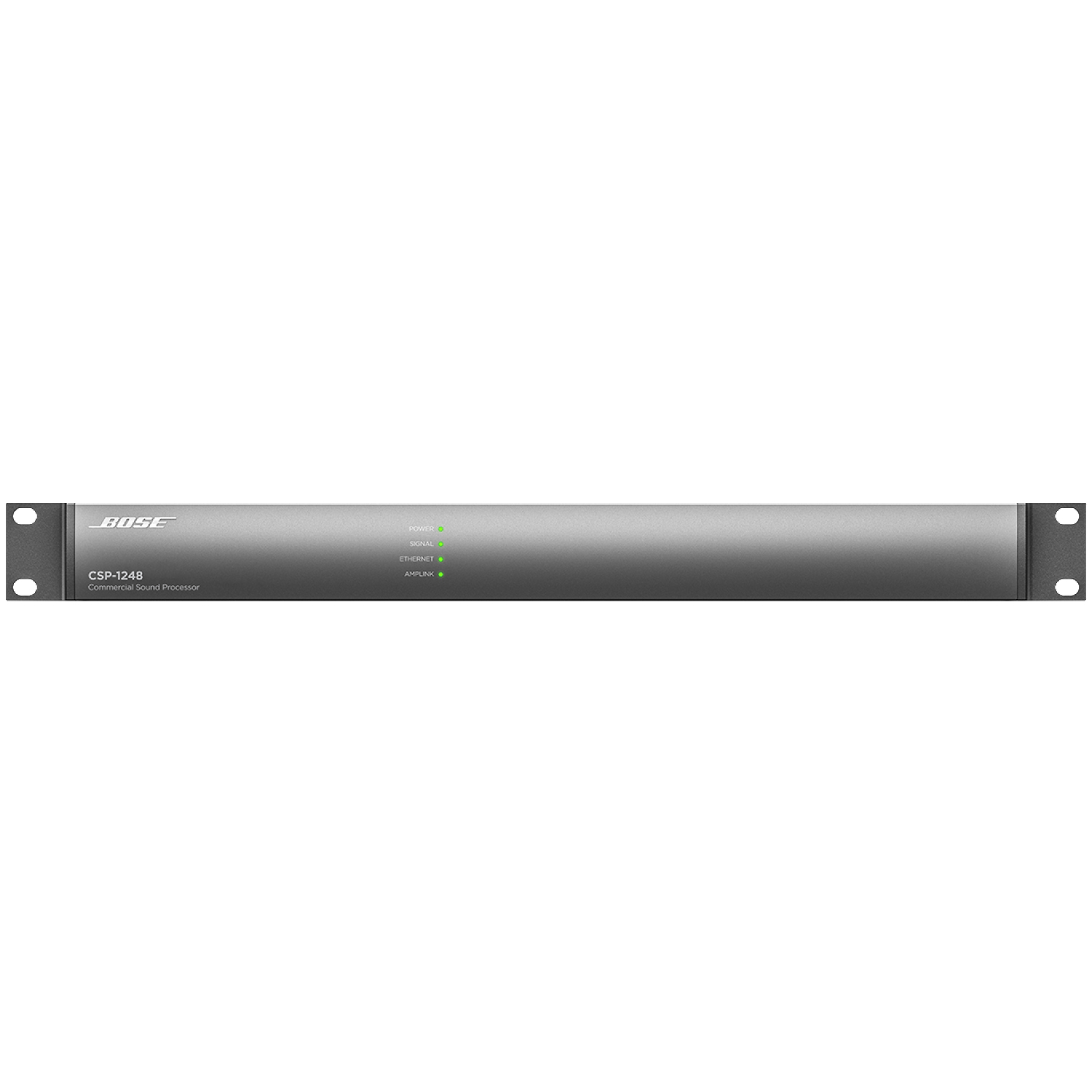

Bose csp-1248 commercial sound processor in a rack-mount chassis with green led indicators.

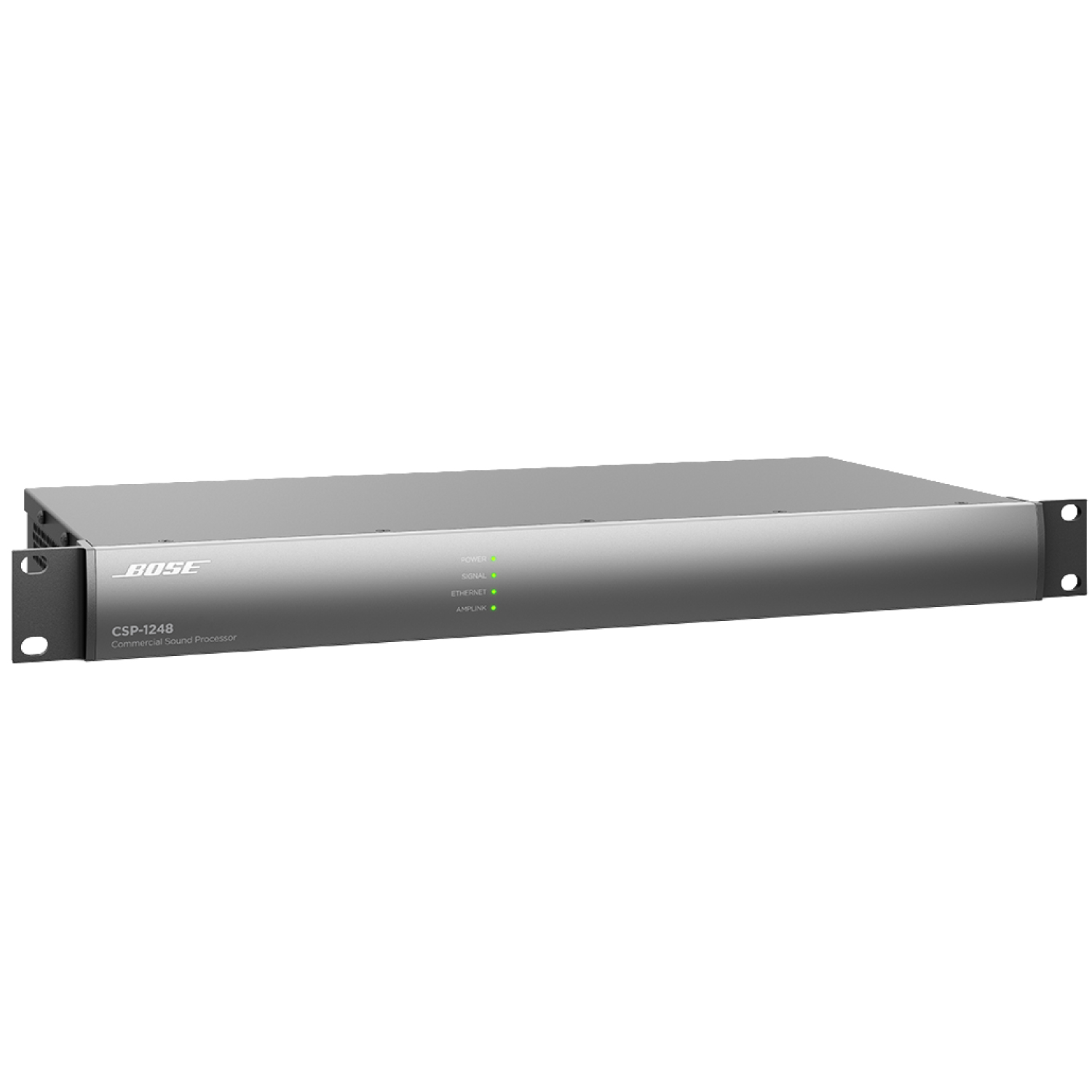

Bose csp-1248 commercial sound processor in a 1u rack-mount chassis with front panel status leds
Sales Specialist
Need help? Contact our sales specialist
(02) 9600 6655 | Email us

Bose CSP-1248 Processor

Bose

The DSP for quick-turn installations — Bose commercial sound processors are part of a comprehensive platform that includes loudspeakers, controls, and software that help installers deliver premium sound systems efficiently. An onboard CSP configuration utility and intuitive browser-based UI provide a quick-setup workflow. Common tasks are presented logically, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, Bose-proprietary algorithms offer predictable performance while optional interfaces — such as ControlCenter digital zone controllers and the ControlSpace Remote app — make operation easy for end users.

$3,144

Right-sized connectivity for cost-effective commercial installation — 8 x 4 balanced analog I/O, 4 pair mono-summed RCA inputs, 8 control inputs, 1 control output, mute contact, Ethernet port, and Bose AmpLink connectivity

CSP configuration utility with browser-based UI facilitates real-time display and control of levels, routing, thresholds, priorities, scheduled events, Bose loudspeaker EQs, plus input and area EQs

Rear-panel Ethernet port for PC/Mac configuration; also allows for connection to networks supporting ControlCenter digital zone controllers and the ControlSpace Remote app.

AutoVolume compensation continuously adapts zone output level based on ambient noise when paired with the Bose AVM-1 sense microphone (sold separately)

Opti-voice paging provides a smooth transition between music and announcements.

Opti-source level management monitors the input level of up to 4 sources, maintaining consistent volume when switching sources

SmartBass processing expands performance and response at any listening level.

Bose AmpLink output for simplified digital audio connection to compatible power amplifiers, reducing terminations, and related points of failure

Intuitive end-user operation — optional ControlCenter CC-1D, CC-2D, and CC-3D digital zone controllers and ControlSpace Remote app provide easy volume control and source selection2415

SKU: 808456-5110 Category:
Weight3500 g
Dimensions215 × 435 × 44 mm
Brands

Specs:

Analog Inputs: 12 channels (4 unbalanced RCA summed-mono, 8 balanced mic/line via Euroblock)

Analog Outputs: 4 balanced line-level via Euroblock

Digital Output: 8-channel AmpLink via RJ-45

Input Sensitivity: -70 dBu to +4 dBu, phantom power selectable

Max Input Level: +24 dBu

Max Output Level: +24 dBu

Frequency Response: 20 Hz – 20 kHz (+0.3 / -0.5 dB)

THD+N: 115 dB, A-weighted

Audio Latency: 900 μs (analog in to analog out)

DSP: 48 kHz / 24-bit, 3.6 GIPS processing

Control I/O: 8 digital control inputs, 1 mute input, 1 control output

Network: RJ-45 Ethernet (10/100 Mbps), DHCP or static IP

Mounting: 1RU rack-mountable

Cooling: Active side-venting fan

Power: 85–264 VAC, 50/60 Hz, < 30 W typical

Compliance: Not EN 54-24 certified

Applications: Retail, Restaurants, Bars, Hospitality, Fitness, Offices
