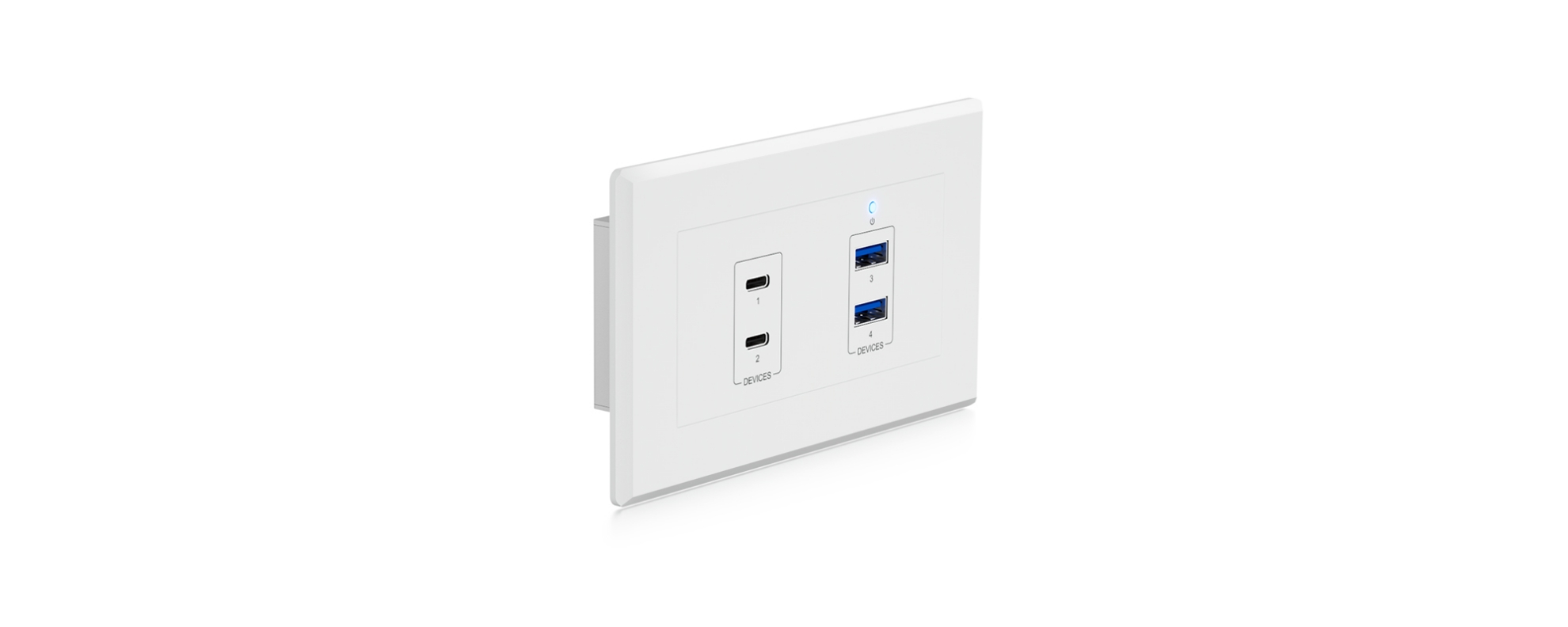

Blustream UEX3D-WP-EU

Blustream

The Blustream UEX3D-WP-EU is a sleek, EU/UK wall plate USB 3.2 Gen1 extender that delivers high-speed connectivity up to 100 meters via a single CAT6A cable. With four USB ports (2x USB-A, 2x USB-C), it supports data transfer rates up to 5Gbps, making it ideal for extending conferencing cameras, storage devices, and more. Its plug-and-play design, backward compatibility with USB 2.0/1.1, and bi-directional Power over Cable (PoC) ensure seamless integration and efficient power management.

$699

The UEX3D-WP-EU is a USB Device solution utilises HDBaseTâ„¢ technology to allow for remote connectivity to a USB 3.2 Gen1 Host at distances of up to 100m over a single CAT6A cable in a dual EU / UK wall plate format. The UEX3D-WP-EU allows for 4 x USB Devices (2 x USB type A, and 2 x USB-C) to be connected to a compatible Blustream USB HDBaseT Receiver (Host) extender with support for a combined transmission data bandwidth of up to 5Gbps.

The UEX3D-WP-EU is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT link. The UEX3D-WP-EU is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices.

* Requires compatible Blustream USB 3.2 HDBaseT Host product

SKU: UEX3D-WP-EU Category:
Weight800 g
Dimensions46 × 136 × 76 mm
Brands

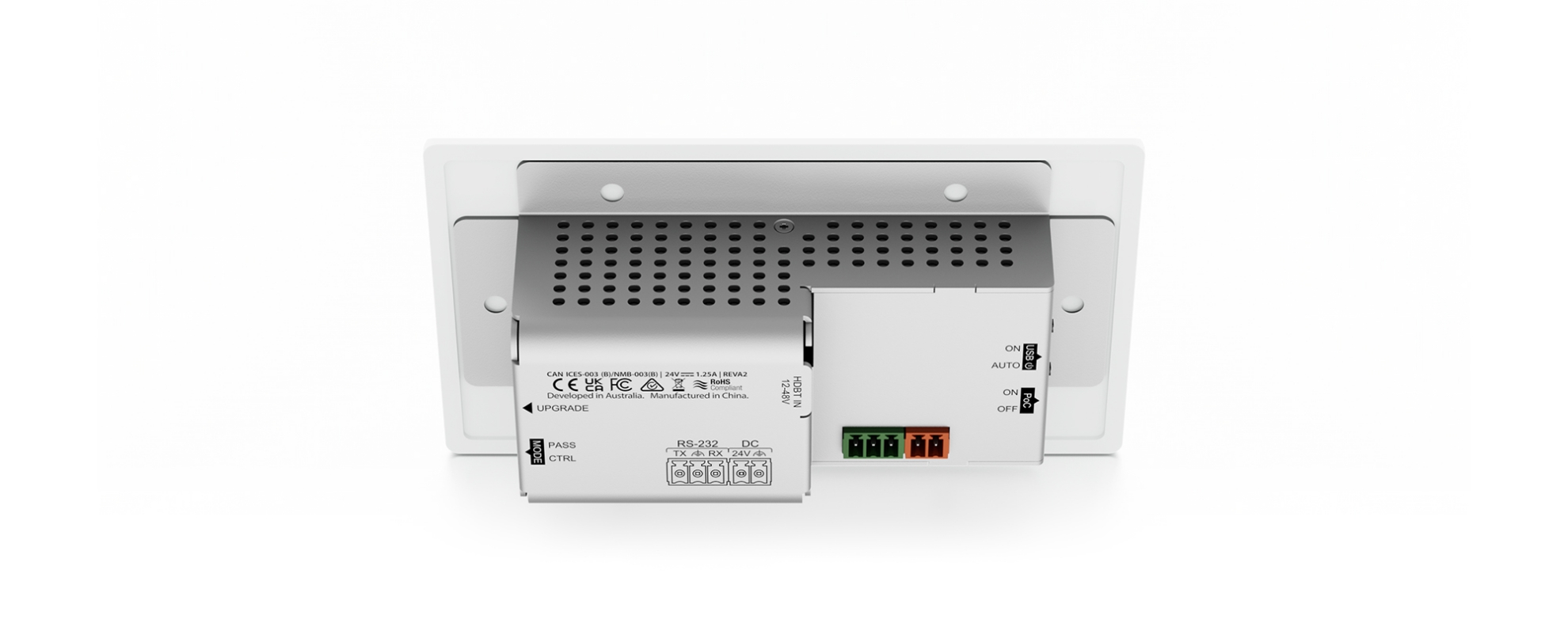

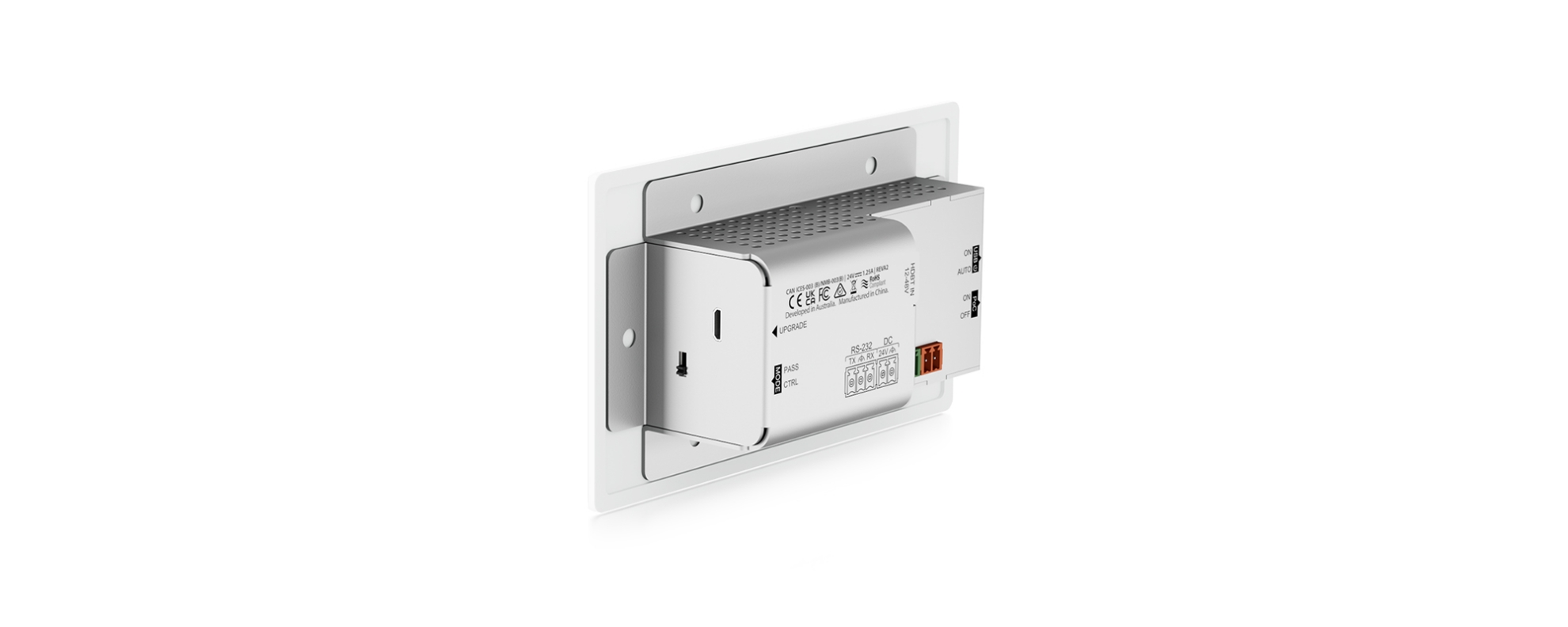

• CAT Connectors: 1 x RJ45 connector

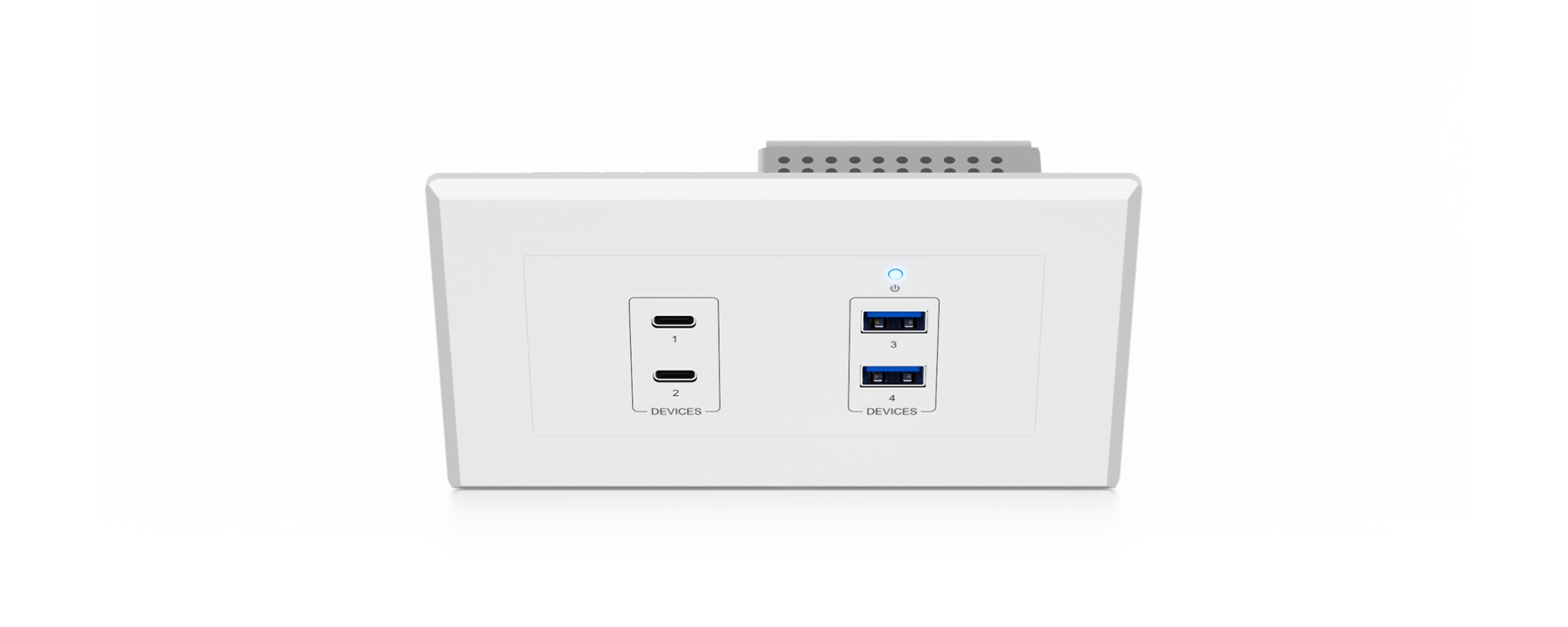

• USB Device Ports: 2 x USB Type C female, 2 x USB Type A female
• Local power input: 1 x 2-Pin Phoenix connector
• Firmware Upgrade: 1 x Micro-USB
• RS-232: 1 x 3-Pin Phoenix connector
• Power Supply: 24V/1.5A DC
• Dimensions (W x H x D): 136mm x 76mm x 46mm (without faceplate)
• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm (faceplate)
• Mounting hole spacing: UK 121mm CTC, EU 60mm CTC
• Backbox Mounting Depth: 40mm (minimum), 47mm (recommended), UK or EU double gang
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
