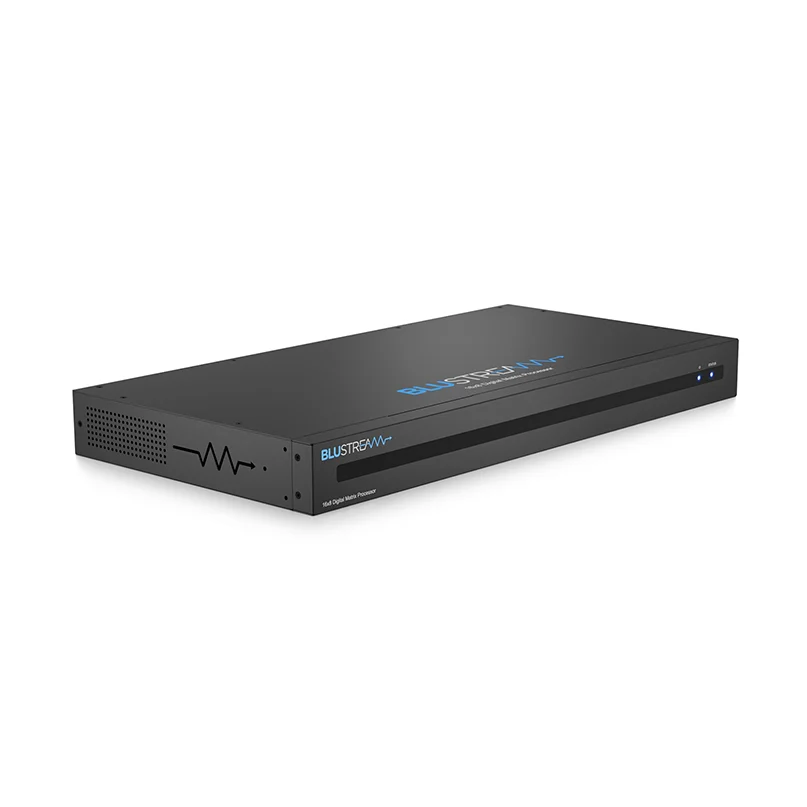

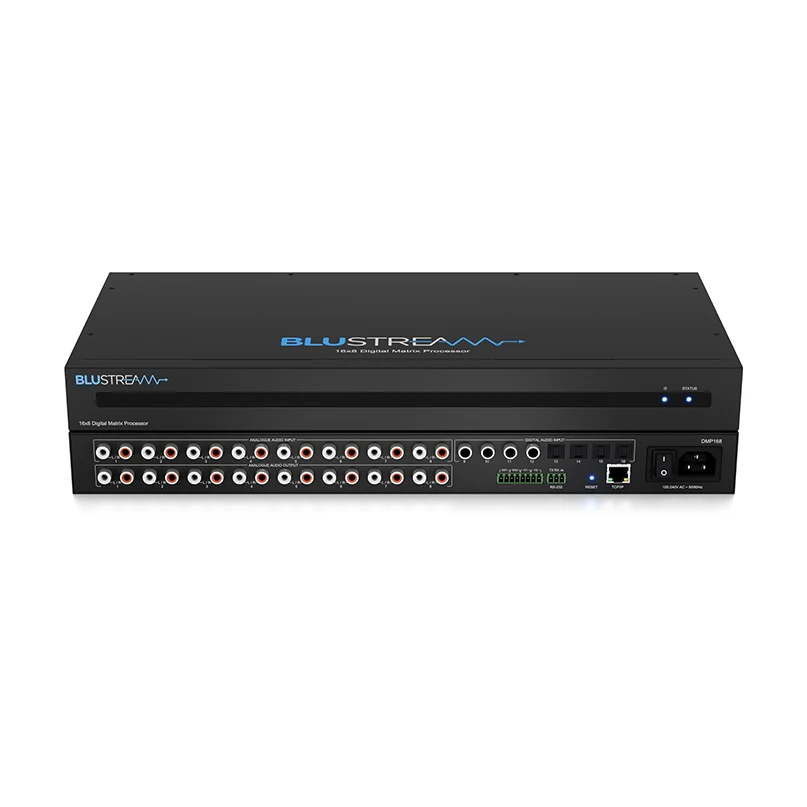

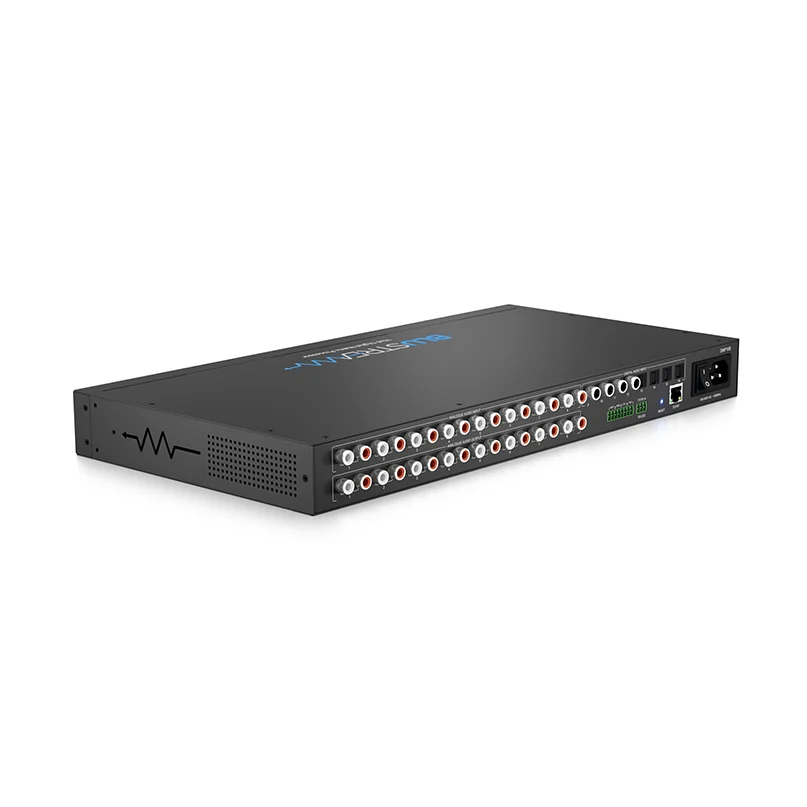

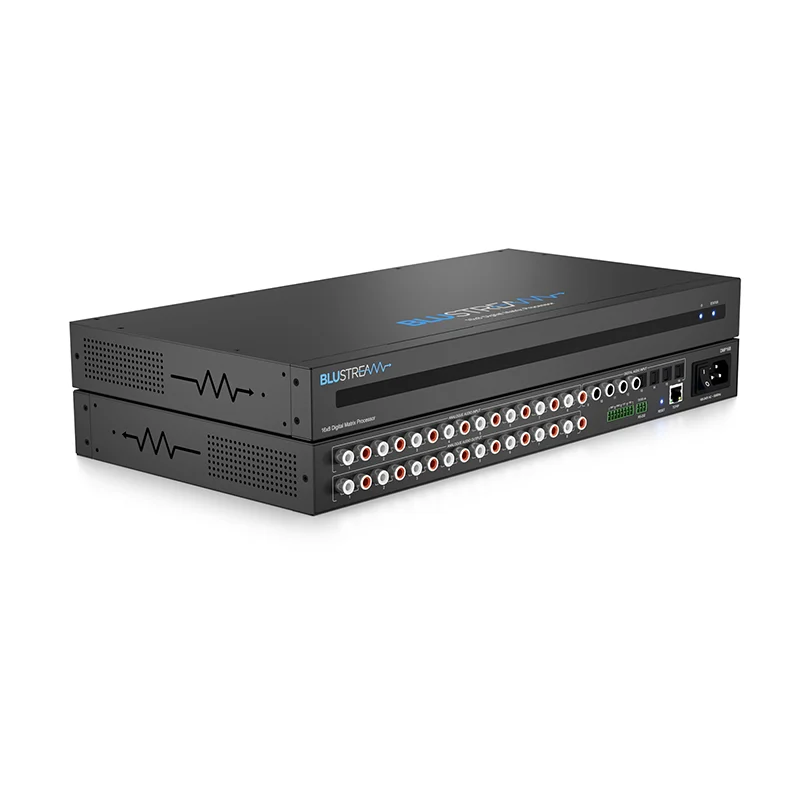

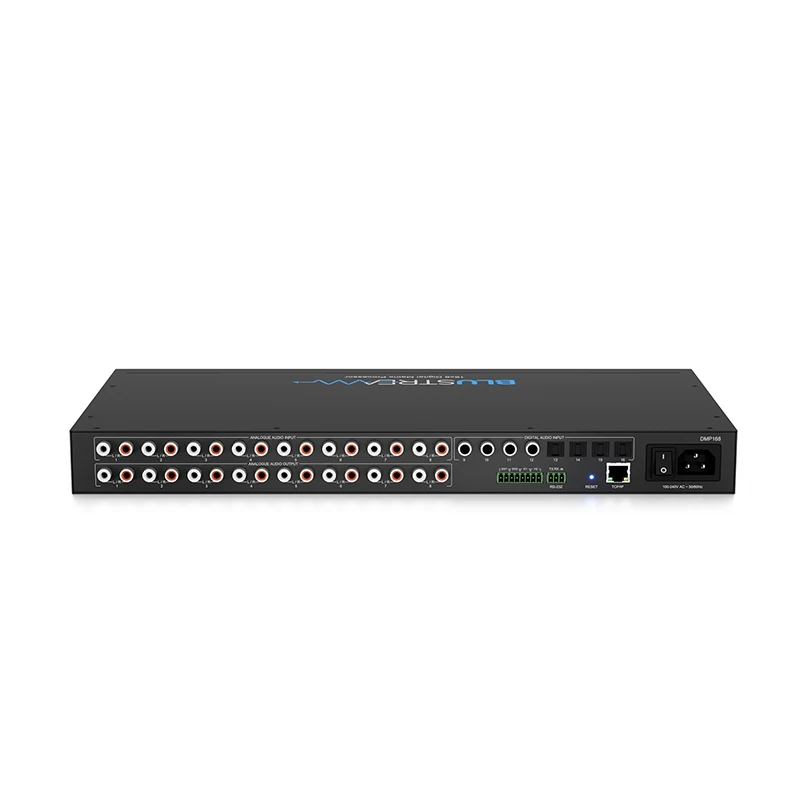

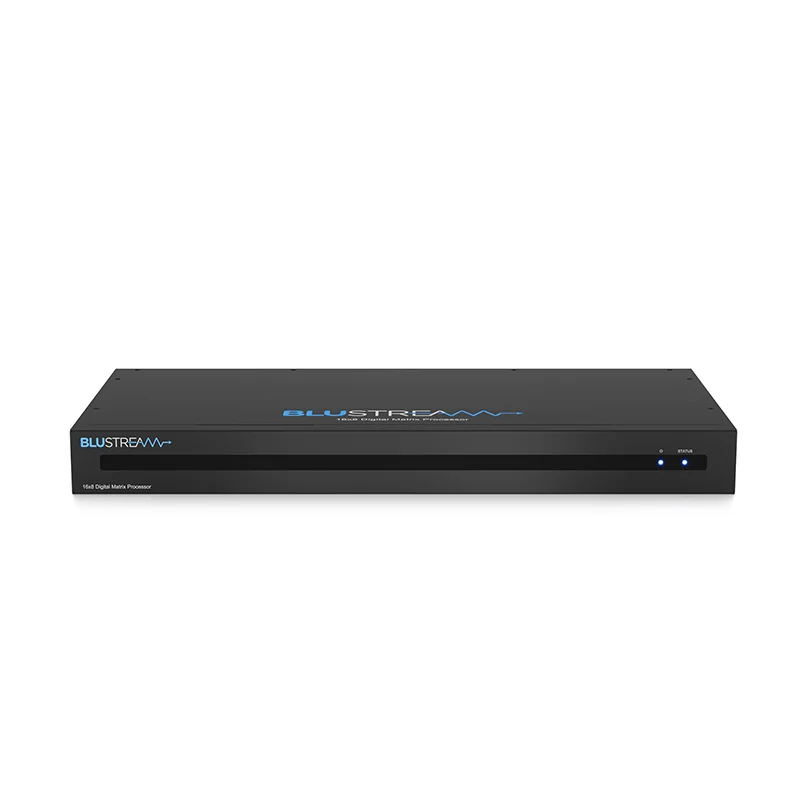

Blustream DMP168 Advanced Audio Matrix

Blustream DMP168 Advanced Audio Matrix

The DMP168 features advanced audio processing including volume, balance, high/low shelf, high/low pass filter and 4 band parametic equalizer control per input and output, independent lip-sync delay per input, stereo to mono separation, or combining of mono audio inputs, configurable output grouping, and assignable audio ducking.

DMP168 Features:

• Features 8 x analogue L/R inputs, 4 x digital coaxial inputs, and 4 x digital optical inputs which can be switched to 8 x analogue L/R outputs
• Supports separation (mono) of all audio channels and independent control resulting in switching of up to 32×16 audio feeds
• Supports: volume, balance, high/low shelf, high/low pass filter, and 4 band parametic equalizer control per input and output
• Supports independent gain adjustment for all analogue and digital inputs
• Features 8 x assignable bus inputs allowing mixing of source inputs
• Features output grouping to combine audio outputs for a single group control.
• Combining the output grouping feature with high/low pass filter results in up to 4 x 2.1ch audio outputs
• Features assignable audio ducking with independent level and ramp up/down rate adjustment
• Features 8x configurable presets
• Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
• Digital audio inputs support resolutions up to 192kHz 24-bit
• Supports independent lip-sync delay (0-500ms) per output
• Features input audio sensing, 2 x contact closures and 2 x trigger inputs allowing programmable events based on the presence of audio, NO/NC connections, and/or voltage between 2-15V AC or DC voltage
• Supports control via web-GUI, RS-232, TCP/IP and IR
• 1U design for 19″ rack mount integration – rack mounting kit included
