Avgear MHD44TP Amplifier

Share

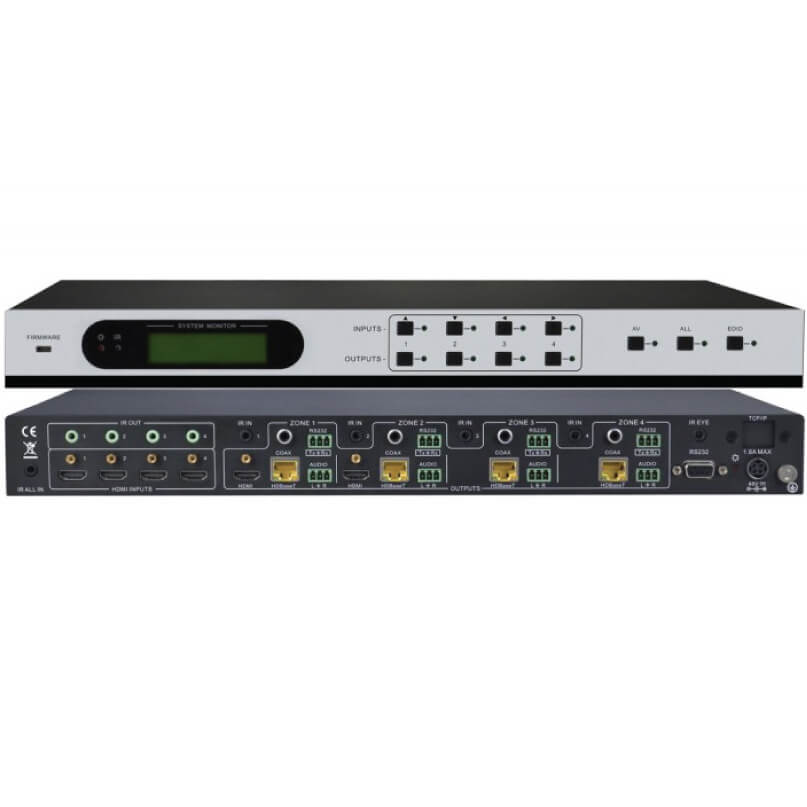

MHD44TP is an HDBaseT 4×4 HDMI matrix switcher with digital audio de-embedded locally, Supports HDMI 1.4a, and HD3D.
  • HDCP compliant
  • IR extender
  • LCD display
  • Input

$2,200.00

Wishlist
Compare
  • It has 4 HDMI inputs, 2 HDMI local outputs, and 4 RJ45 outputs paired with receiver TPHD402PR for transmission of HDMI,
  • IR &?RS232. It enables?crosspoint?switching from any input to any output or all outputs.
  • It’s mainly applied in control rooms, conferencing rooms, commercial halls, government institutions, etc.

Features:

* HDMI1.4a, support?HD3D.

* ?Support?1080P.

* ?HDCP?compliant

* ?Audio de-embedded locally.

* ?2?HDMI?outputs for local monitors.

* ?Integrated?HDBaseT?technology for?HDMI, IR &?RS232?transmission at 60M.

* ?PoE technology, power from the matrix to receivers(TPHD402PR).

* ?Controllable via IR from any of the 4 remote displays to the matrix.

* ?Controllable via IR from any of the 4 remote displays to its relative source.

* ?Smart?EDID?management, for rapid integration of sources and displays

* ?Locking power supply.

* ?Bi-directional IR &?RS232.

* ?IR extender for easy control.

* ?LCD display for system and switching status.

* ?Controllable via button, IR &?RS232(Optional TCP/IP).

SKU: MHD44TP Category:
Weight 2150 g
Dimensions 235 × 483 × 44 mm
Brand

Specifications

Input  :

  •  4 HDMI (HDMI female connector), T.M.D.S. 2.9V/3.3V, 75Ω;  4 IR (3.5mm jack);

Output  :

  •  4 HDMI (HDMI female connector), T.M.D.S. 2.9V/3.3V, 75Ω;  4 IR (3.5mm jack);
  • 4 Stereo audio (Captive screw connectors)

Gain

  •  0 dB

Bandwidth :

  •    340 MHz (10.2 Gbit/s)

Maximum Pixel Clock :

  •    165MHz

​
Switching Speed

  •    200ns (Max.)

HDMI Standard:

  •    HDMI 1.4a, supports CEC,EDID and DDC, compliant with HDCP

​
CMRR  :

  •  >70dB@20Hz~20KHz

​
Audio Bandwidth :

  •  20Hz ~ 25KHz

​
Frequency Response

  •  20Hz ~ 20KHz

​
SNR

  •   Max 80dB

​
Stereo Channel Separation

  •   :>75dB@20Hz~20KHz

​
THD + Noise :

  •  1%@1KHz, 0.3%@20KHz

​
Control:

  •    Buttons, IR remote & RS232 (9-pin female D connector), Optial TCP/IP control

Power Supply   :

  • 100VAC ~ 240VAC, 50/60Hz;

Temperature :

  •   -20 ~ +70℃

Humidity   :

  • 10% ~ 90%

Chassis Dimension

  •  W483 x H44 x D235mm (1U high, full rack wide)

Weight  :

  •  2.15Kg
