Wireless Microphone Systems, Audio
ASL RPA01
ASL RPA01
Handheld Radio Microphone Transmitter – With Belt & Lanyard
- HANDHELD MICROPHONE
- ROBUST DESIGN
- EXCELLENT ACOUSTICS
- MULTI CHANNEL UHF TRANSMITTER
- SELECTABLE CHANNELS
$5,700
ASL RPA01
Handheld Radio Microphone Transmitter – With Belt & Lanyard
- HANDHELD MICROPHONE
- ROBUST DESIGN
- EXCELLENT ACOUSTICS
- MULTI CHANNEL UHF TRANSMITTER
- SELECTABLE CHANNELS

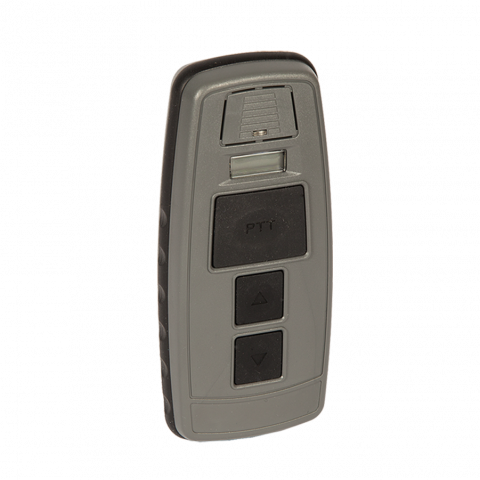

The RPA01 Roving PA Radio Microphone Transmitter is a multi-channel UHF handheld microphone, which is designed to work with ASL range of the Radio Microphone Receiver.
The receivers are typically installed within the ASL Station Announcement Points and used for making remote announcements to station platforms
| Weight | 500 g |
|---|---|
| Dimensions | 100 × 100 × 200 mm |
| Brands |
Specifications:
General
Effective Radiating Power (EIRT) …………………………………………………………………………………………………………………….10 mW
Audio Frequency Response ……………………………………………………………………………………………………………… 200 Hz – 10 kHz
Antenna ……………………………………………………………………………………………………………………………………………. Internal dipole
Grid Spacing ………………………………………………………………………………………………………………………………………………… 25 kHz
Operating Frequency ……………………. 10 frequencies in the Channel 70 Licence free band selectable by internal rotary switch
……………………………………………………………………………………………………………….. Frequencies available from ASL on request
Pilot Tone Frequency …………………………………………………………………………………………………………………………… Non-standard
Compatible Hardware ……….. RMR01/RMR02 Radio Microphone Receivers and RRM02 Remote Radio Microphone Receiver
Battery
Type …………………………………………………………………………………………………………………………………. VARTA EasyPack 550
Talk Time ………………………………………………………………………………………………………………………………………. Up to 7 hours
Type ………………………………………………………………………………………………………………………………… Built in Lithium polymer
Life Time …………………………………………………………………………………………………………………………………………Up to 3 years
Life Cycle …………………………………………………………………………………………………………………………………………………. >1000
Self-discharge ………………………………………………………………………………………………… 5% per month (less after first month)
Format ……………………………………………………………………………………………………………………… Plastic case and rubber buttons
Colour ………………………………………………………………………………………………………….Grey case, black buttons and rubber strip
Lanyard …………………………………………………………………………. Breakaway links 8 mm width x 240 mm length ribbon (approx.)
Environmental
Temperature (Storage and Operating) …………………………………………………………………………………………………… 5 °C to +50 °C
Humidity Range……………………………………………………………………………………………………………….. 0% to 93% non-condensing
Safety and EMC
Radio Type Approval ………………………………………………………………………………….. EN 300 422-1:v1.2.2, EN 300 422-2:v1.1.1
EMC …………………………………………………… .EN 301 489-9:v1.3.1, EN 301 489-1:v 1.6.1, EN 50121-4:2006, ENV 50204:1995
Safety ……………………………………………………………………………………………………………………………………………… .EN60065:2002
Dimensions and Weight
Dimensions (H x W x D) …………………………………………………………………………… 141mm x 65 mm x 39 mm (including belt clip)
Weight …………………………………………………………………………………………………………………………………………………………… 166 g
