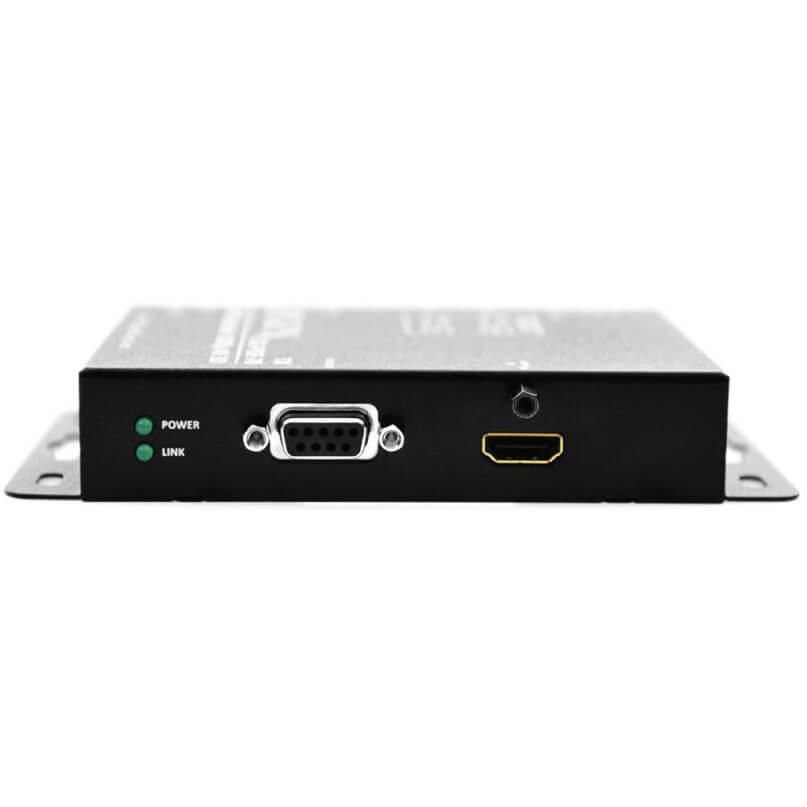

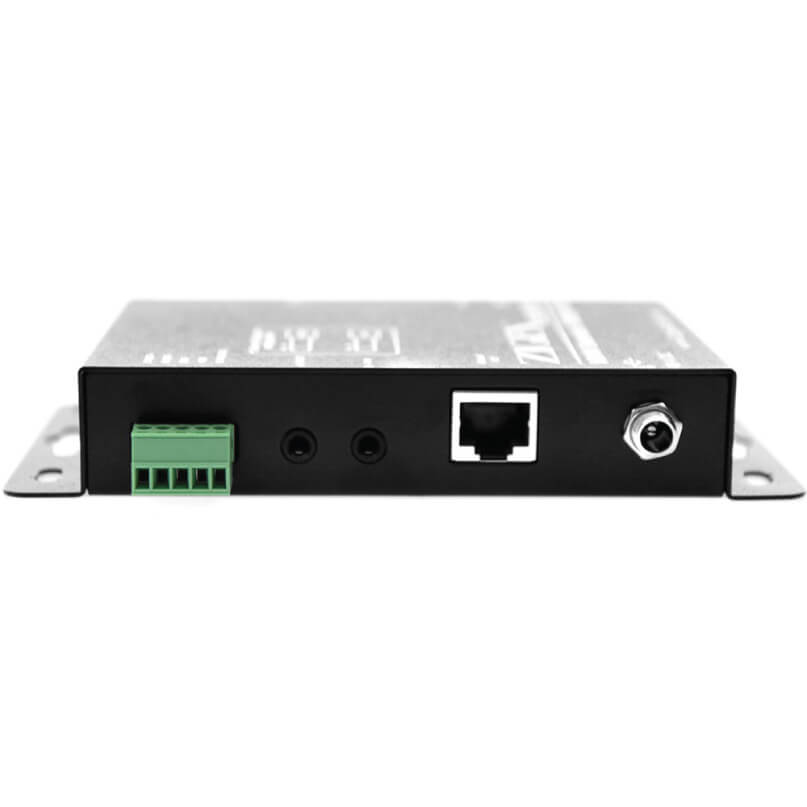

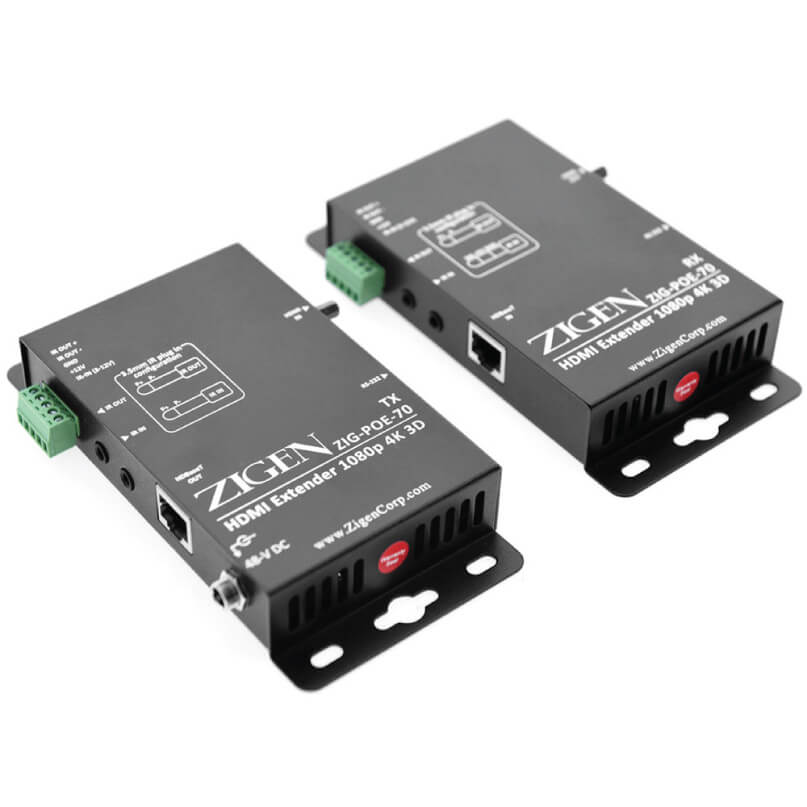

Zigen POE-70 Amplifier Hdml Extender


Out of stock

The POE-70 is the latest innovative new product from Zigen. 70 meter (230′) HDMI extender over single UTP/STP, with IR and RS232 and POE (48V).
  • HDBaseT technology
  • Extend HDMI
  • HDCP compliant


Out of stock

  • Robust and cost-effective – the POE-70 is the right HDMI extender for all of your projects requiring 24/7 flawless operation.
  • The?ZIG-POE-70-TX?provides a complete solution for detection and powering of POE IEEE 802.3af devices such as the?ZIG-POE-70-RX.
  • The?ZIG-POE-70-TX?POE solution will safely detect, classify, and provide 48V up to 13W power to RX device connected to the?HDBaseT?port.
  • The TX unit will first read a signature from the TX and only enable power delivery if all constraints are met.
  • During the power delivery, the link is continuously monitored for any fault or overloading conditions and the current is limited to avoid hazardous conditions.
  • The?ZIG-POE-70-TX?senses the removal of a powered device and turns off 48V power immediately when the RX is disconnected.
SKU: POE-70 Category:

  • HDBaseT technology
  • Extend HDMI signals up to 70 meters/228 feet by using Cat-5e/6/7
  • Supports HDMI 1.4 with 3D
  • Supports HDMI 1.2 and 1.3
  • HDCP compliant
  • Supports 3D pass-through
  • Supports CEC pass-through
  • Supports RS-232 (Bi-direction transfer)
  • Supports all frequency band IR control (Bi-direction transfer)
  • Supports 12V or 5V IR Receiver/Emitter
  • Full HD support: 1080P@60Hz, 3D and 4Kx2K​
  • HD-BaseT technology
  • Uses Cat-5e/6/7 cable for easy installation
  • Supports HDMI 1.2, 1.3 and 1.4 with 48-bit deep color
  • 4K / 2K, 30Hz, 24bpp
  • 4K / 2K, 60Hz, 24bpp with 4:2:0 pixel format
  • Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920×1200, 2K and 4K.
  • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more.
  • Supports all frequency band IR control (Bi-directional transfer)
  • Extend HDMI signals up to 70m/230ft by using a single cat5/6 cable
