Zigen HVX-100 Amplifier Transmitter / Receiver Extender


Out of stock

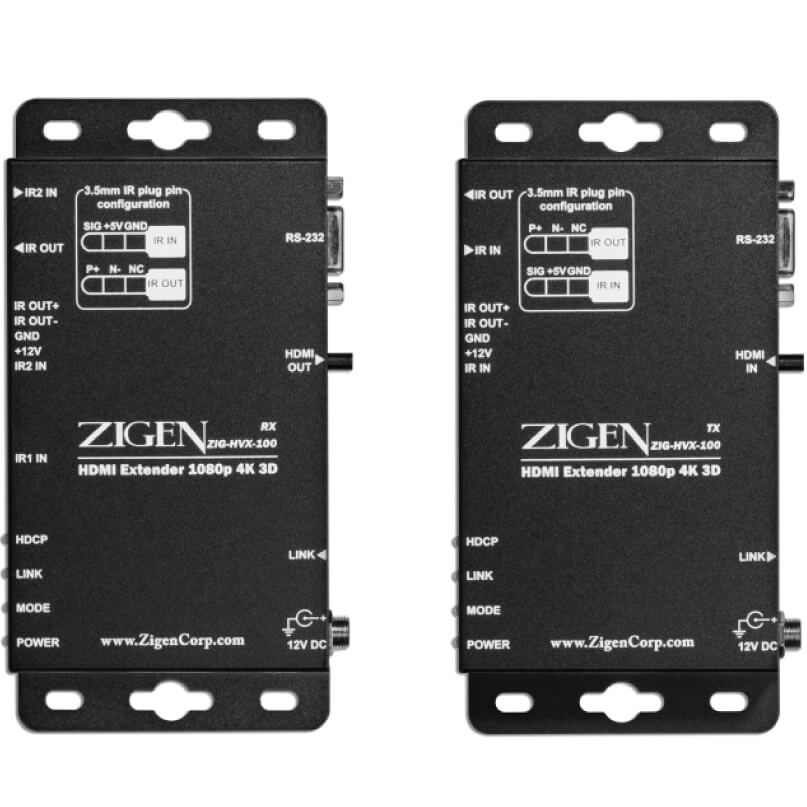

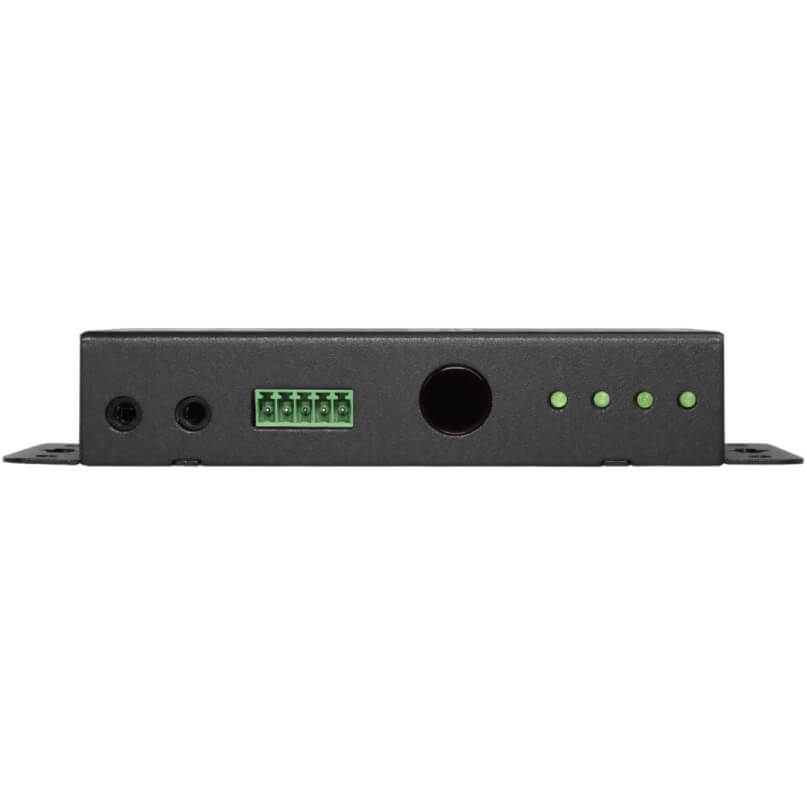

The ZIGEN ZIG-HVX-100 is a transmitter/receiver extender kit for long-distance transmission of HDMI video. It embedded audio plus bi-directional control signals over a single CAT 5 /6 /7 type cable.
  • Full HD support
  • HDMI
  • HD-baseT technology.
  • Dual voltage


Out of stock

  • ?The?ZIG-HVX-100?can be used as a point-to-point solution or integrated with Matrix switching equipment to extend inputs or outputs to remote locations.
  • The transmitter and receiver set supports simultaneous transmission of bi-directional RS-232 and IR signals from a control system.
  • Providing remote control to source equipment or displays.
  • In addition, ZIG-HVX-100 comes equipped with dual voltage IR receiver/emitter ports for screw or 3.5mm in /out.
  • ZIG-HVX-100 is Compliant with HDMI 1.4, 3D, HDCP, DVI ?D standard


  • HDBaseT?technology.
  • Supports HDMI 1.2, 1.3, 1.4 and 2.0 with 48-bit deep color
  • HDCP 1.4 & 2.2 Compliant
  • 4K / 2K, 30Hz, 24bpp
  • 4K / 2K, 60Hz, 24bpp with 4:2:0 pixel format
  • Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920×1200, 2K and 4K.
  • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more.
  • Supports all frequency band IR control (Bi-directional transfer)
  • Supports dual voltage IR 5-volt / 12-volt with phoenix connector and 3.5mm.
  • Supports bi-directional?RS-232 transfer.
  • Supports CEC pass-through
  • Extend HDMI signals up to?100M / 328-ft?by using a single?cat5/6 cable
SKU: HVX-100 Category:


  • Full HD support: 1080p@60Hz, 3D and 4K x 2K.
  • Compliant with HDMI 1.4 with 3D function, HDCP and DVI-D standards.
  • Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920×1200, 4K x 2K.
  • Supports uncompressed PCM 2- Ch. Audio, 5.1, 7.1, DTS-HD, Dolby audio format.
  • Supports all frequency band IR control (Bi-directional transfer)
  • Supports dual voltage IR 5-v and 12-v with screw terminals.
  • Supports bi-direction RS-232.
  • Supports CEC pass-through.
  • HD-baseT technology.
  • CAT-5 /6 /7 Cable distance 100M
