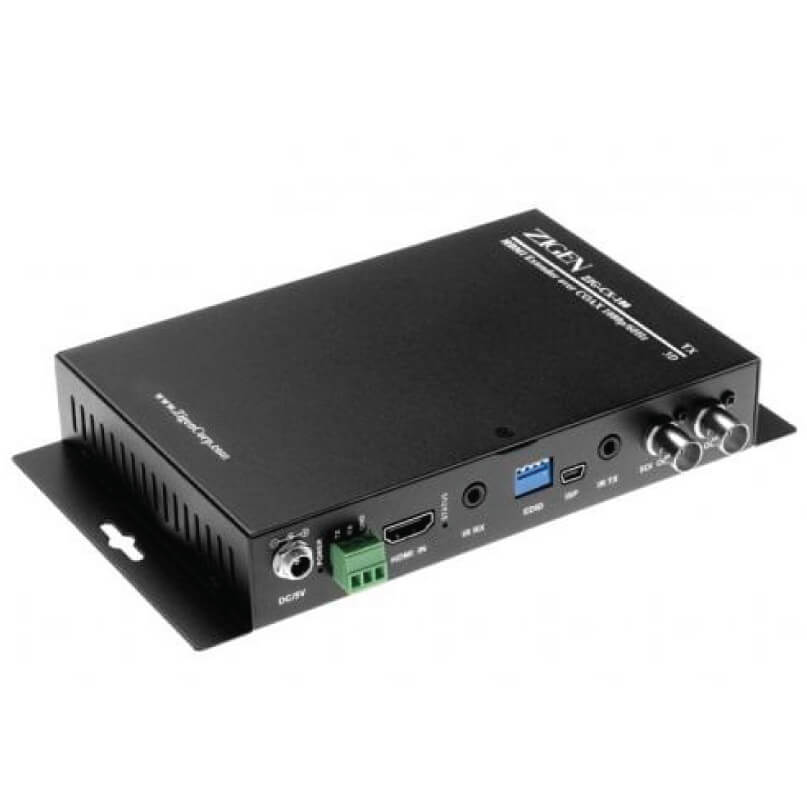

Zigen CX100 Amplifier Transmitter / Receiver Extender


Out of stock

The ZIGEN ZIG-CX-100 is a transmitter/receiver extender kit for long-distance transmission of HDMI video. Embedded audio plus bi-directional control signals over a single Coaxial cable.
  • Video Signal
  • Extend HDMI
  • Power Supply


Out of stock

  • The ZIG-CX-100 can be used as a point-to-point solution
  • It integrated with Matrix switching equipment to extend inputs or outputs to remote locations.
  • The transmitter and receiver sets support simultaneous transmission of bi-directional RS-232 and IR signals from a control system,
  • Providing remote control to source equipment or displays.
  • ZIG-CX-100?is Compliant with?HDMI?1.4, 3D,?HDCP, DVI ? D standards.
SKU: CX100 Category:

• Input Video Signal 0.5-1.0 volts p-p
• Input DDC Signal 5 volts p-p (TTL)
• Supported Video Format
• DTV/HDTV; 640X480P 60HZ;
• 800X600 60HZ;1024X768 60HZ;
• 1280X768 60HZ;1360X768 60HZ;
• 1280X960 60HZ;1280X1024 60HZ;
• 1400X1050 60HZ;1440X480I 60HZ;
• 720X480P 60HZ;1440X576I 50HZ;
• 720X576P 50HZ; 1440X576P 50HZ;
• 1280X720P 50HZ/60HZ;
• 1920X1080I 50/60HZ;
• 1920X1080P 24/25/30/50/60HZ;
• 1280X720P 3D 50/60HZ;
• 1920X1080I 3D 50/60HZ;
• 1920X1080P 3D 24HZ.
• Output Video HDMI1.4+HDCP
• Support 5.1/7.1/stereo audio (Including PCM and non PCM, HD ADUIO, etc)
• Extend HDMI signal by using a single COAX cable.1080p/24Hz with 3D up to 330-ft / 100-meters or 1080p/60Hz up to 330-ft / 100-meters
• Power Supply 5V/3A DC
• Power Consumption 7.5Watts (transmitter) 8Watts (receiver)
• Operating Temperature Range -5 to +35°C (-41 to +95 °F)
• Operating Humidity Range 5 to 90 % RH (no condensation)
