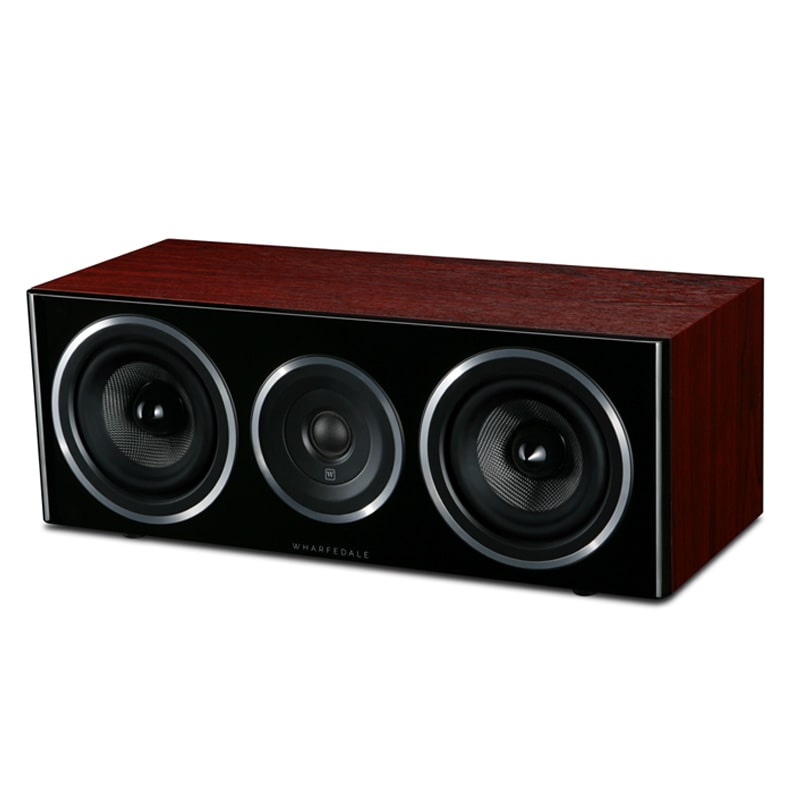

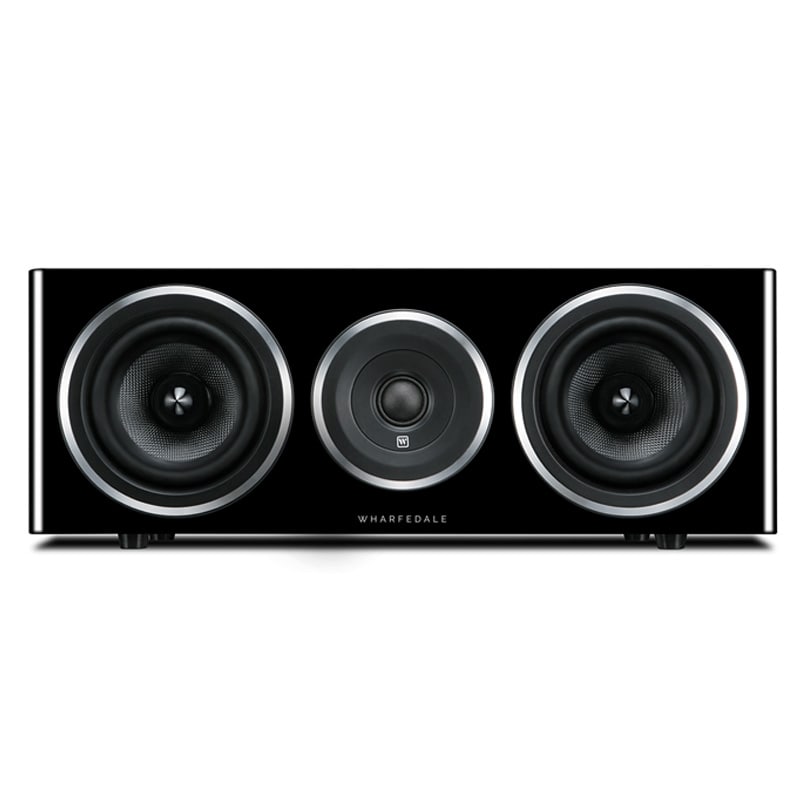

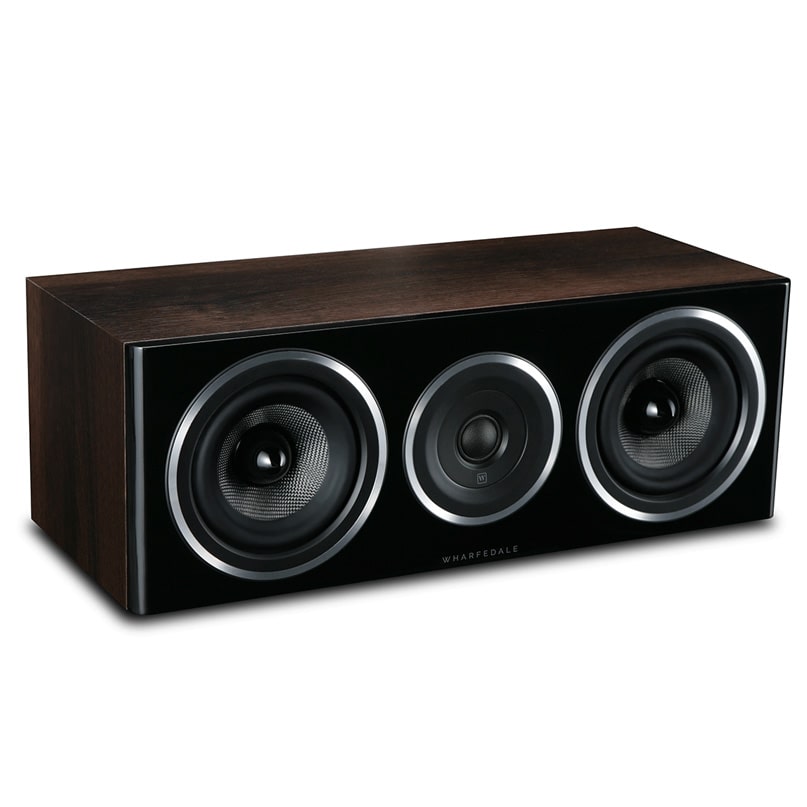

Wharfedale Diamond 11.CS Centre Speaker


Since 1981, Wharfedale?s famous Diamond speakers have served as the classic entry point to true high-fidelity sound, offering exceptional value for money earning numerous ?product of the year? awards in the UK and around the world. Now, with the all-new Diamond 11 Series, Wharfedale once again raised the bar for affordable, high-performance loudspeakers.
  • Frequency Response (+/-3dB) : 65Hz – 20kHz
  • Nominal Impedance: 8 Ohms Compatible
  • Weight : 7.6kg


  • The latest generation of Diamond speakers includes design elements never previously seen at such affordable price points.
  • At the start of the design process, Wharfedale?s engineers went back to basics in order to create a loudspeaker system that would once again revolutionize this sector of the hi-fi market and bring high-end performance ? and style ? within reach of most music lovers, not just the wealthy few.
  • High-frequency performance has been similarly enhanced with a newly evolved tweeter design.
  • Again, an over-sized ceramic magnet system is used, with a copper cap for flux control.
  • And, here, the pole piece is vented through to a specially shaped rear chamber.
  • This provides a low resonant frequency, ensuring excellent linearity throughout the operating system and allowing the textile dome to contribute to a lucid midrange performance in addition to precise high-frequency detailing.


  • Bass and midrange driver baskets with a network of ribs for added strength, improving among other things transient impact
  • Massive magnet designs improving sensitivity and control of cone movement
  • Specially shaped single-forged pole piece with copper cap controls the magnetic flux and reducing low distortion through the critical midrange area
  • Progressive suspension featuring lightweight foamed surround for an extended midrange response
  • super-long-throw voice coil motor system to achieve unparalleled linearity and accuracy
  • Woven Kevlar cones
SKU: Diamond 11.CS Categories: ,
Weight 7600 g
Dimensions 200 × 480 × 170 mm

  • Description 2 Way Centre Speaker
  • Enclosure Type Bass Reflex (down ported)
  • Bass Driver DUAL 5 inch Woven Kevlar cone
  • Tweeter 1 inch soft dome
  • Frequency Response (+/-3dB) : 65Hz – 20kHz
  • Sensitivity (2.83V@1m) : 87dB
  • Recommended Amplifier Power : 25W-150W
  • Nominal Impedance : 8 Ohms Compatible
  • Dimensions (H x W x D) in mm : 170 x 480 x 200
  • Weight:  7.6kg
  • Stocked Colours : Blackwood, Rosewood, Walnut, White Sandex
