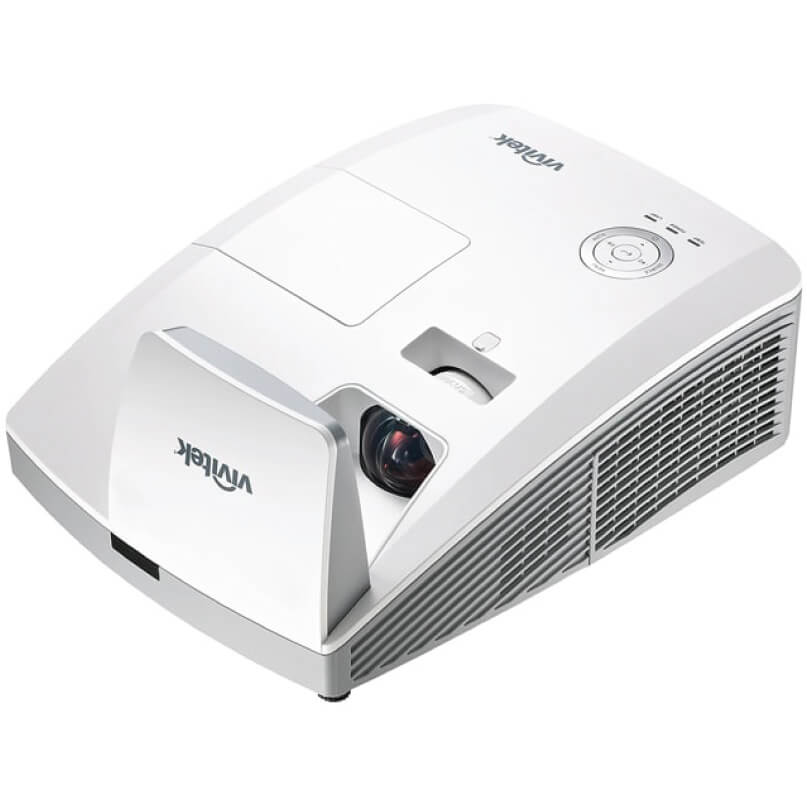

Vivitek DH759USTi Ultra Short Throw Projector


Vivitek DH759USTi Ultra Short Throw Projector is an ultra-short-throw interactive projector. This delivers a large 88? to 110? diagonal image from a distance of ~11? to 17? (to the front of the projector).
  • Native Resolution: 1080p (1920×1080)
  • Horizontal Frequency: 15, 31 ? 91Hz
  • Weight: 11 lb (5 kg)


  • The projector delivers a high bright 3,500 ANSI Lumens and an outstanding contrast ratio of 10,000:1 plus offers a low cost of operation with lamp life up to 10,000 hours.
  • The DW759USTi offers full IWB functionality with IR pen support and 10-point finger touch interactivity with the optional finger touch DT02 Laser Curtain in an intuitive way with minimal set-up and on-going maintenance.
  • Enhanced interactivity is assured with NovoScreenNote interactive software for MAC and PC. Very quiet operation. Full 3D support.

Short throw and extreme short throw projectors

  • Short throw and extreme short-throw projectors enable users to bring big, breathtaking images into small, intimate spaces, without any obstructing shadows from presenters.
  • Requiring only minimal distance from a screen to operate, these projectors are perfect for cozy home theatres and classrooms.


  • A critical breakthrough in education technology, Vivitek’s new line of interactive projectors enable educators to easily interact with students, using a pen or finger-touch interactive capabilities, to enhance their learning and retention.

Excellent Connectivity

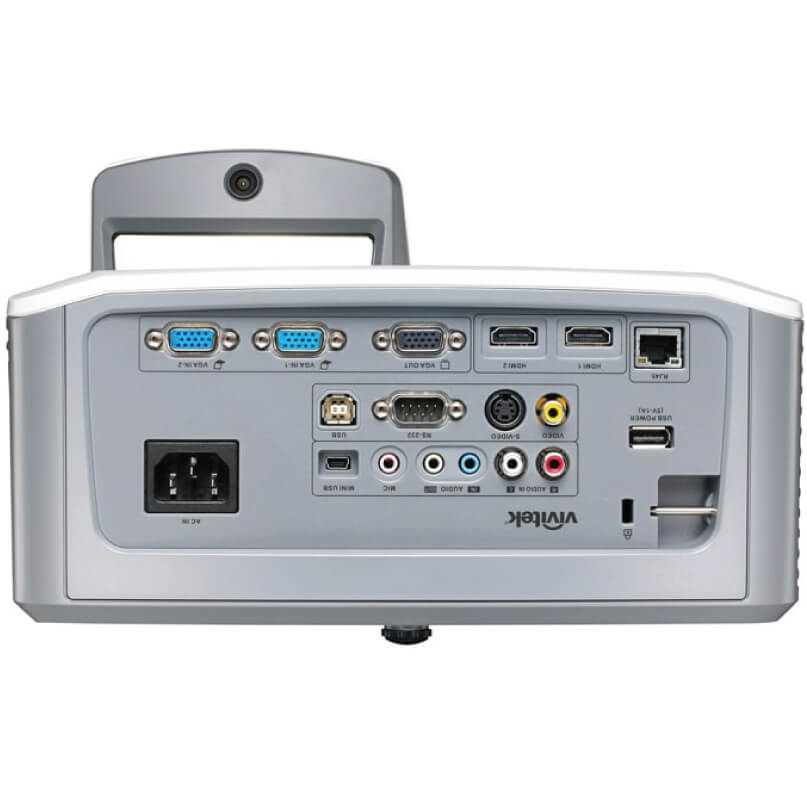

  • The Vivitek DH759USTi comes equipped with all the connectivity for your educational needs: two (2) HDMI, two (2) VGA-in, VGA-out for monitor loop through, composite Video, S-Video, and RJ45/Rs232c for integration and system administration.


  • Brightness 3,500 ANSI lumens with a high 10,000:1 contrast ratio for bright defined and sharp images from single-chip technology (no convergence required)
  • Native HD1080 resolution (1920×1080) and signal compatible up to WUXGA resolution (1920×1200)
  • Ultra Short Throw 0.33:1 T.R that delivers a large, up to 110? image
  • Connectivity options include: 2x HDMI v1.4 (1 w/MHL) and, 2x VGA-in, 1x VGA-out, microphone in, audio-in/audio out, RJ-45 for projector status and control
  • Integrated network monitoring and management solutions (product certified) including Crestron? RoomView?, Extron, AMX and Telnet
  • 3D compatibility with DLP? Link? and HDMI 1.4b Blu-ray technology
  • Wi-Fi is compatible with NovoConnect/NovoPRO Wireless Presentation System for B.Y.O.D support of iOS, Android, PC, MAC and Chromebook. Feature-rich interactivity and collaboration
  • Integrated audio speakers delivering 10W+10W (20W) for clear and loud audio enhancement
  • Interactivity:

– Built-in IWB functionality with IR pen support allowing simultaneous writing/ drawing
– Optional finger touch DT02 Laser curtain module allowing up to 10 simultaneous finger-touch for writing/drawing
– Easy to use automatic or manual calibration for interactivity set-up

  • Includes at no cost, wall-mount arm and projector mount bracket
SKU: DH759USTi Category:
Weight 5000 g
Dimensions 375 × 288 × 123 mm

  • Display Type: Single 0.65”DLP® Technology by TI
  • Brightness: 3500 ANSI Lumens
  • Native Resolution: 1080p (1920×1080)
  • Max. Resolution: WUXGA (1920×1200)@60Hz
  • Contrast Ratio: 10,000:1
  • Lamp Life and Type: 5,000 / 10,000 Hours (Normal/Eco Mode), 230W / 200W
  • Throw Ratio (±3%): 0.33:1
  • Image Size (Diagonal): 88” – 110” (2032mm – 2540mm) Diagnol
  • Projection Distance: 23.74” to 29.68” (603mm-754mm) Typical to mirror.
  • Projection Lens: F=2.5, f=5.1MM
  • Zoom Ratio: Fixed
  • Aspect Ratio: 16:10 Native, 4:3, 16:9, 2.35:1 switchable
  • Offset: 120% Fixed. Lens Shift adjustent of 1.7%
  • Keystone Correction: +/-40 Degree
  • Horizontal Frequency: 15, 31 – 91Hz
  • Vertical Scan Rate: 24 – 30Hz, 47 – 120Hz, Freemont, CA
  • Interactive Functionality: Yes (via Camera), pen based. (Finger Touch requires optional DT02 Laser Curtain Kit)
  • 3D Functionality: Yes, DLP® Link™, HDMI 1.4b (Blu-Ray)
  • Audio: 2 x 10W, Total 20W.
  • Video Compatibility: SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
  • I/O Connection Ports: 2x HDMI v1.4 (1w/MHL), VGA-In (x2), S-Video, Composite, Audio-In RCA, Audio-In (Mini-Jack), VGA-Out, Microphone Jack, Audio-Out (Mini-Jack) variable, RJ45, RS-232, USB Power (5V, 1.5A), USB (Service), Mini USB
  • Security Solutions: Kensington® Security Slot, Security Bar, Keypad Lock
  • Dimensions (W x D x H): 11.3”x14.7”x4.9” (287.7 x 374.5 x 122.6mm) (not including height of mirror)
  • Weight: 11 lb (5 kg)
  • Noise Level: 33dB/29dB (Normal/Eco. Mode)
  • Power Supply: AC 100-240V, 50/60Hz Consumption: 290W (Normal Mode), 250W (Eco. Mode), <0.5W (Standby Mode)
  • Warranty: 3 years P&L warranty, Lamp -1 year/3500 hours whichever comes first
  • Standard Accessories: AC Power Cord, VGA Cable, USB Cable, Remote Control , Interactive Pen (w/Battery) (x2), USB Cable, Documentation Kit
  • Optional Accessories: Laser Curtain Kit (DT02), Replacement Lamp:5811118004-SVV
